8-28 | CHASSIS ELECTRICAL
GIGA
NEW GIGA GXZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 754 | I6-97173 035-0 | RELAY; TRAILER STOP | 1 | 1811- | GXZ | (IADG) 24V 10A | ||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 1811- | GXZ | |||
| 753 | I6-97173 035-0 | RELAY; TRAILER FLASHER | 3 | 1811- | GXZ | (IADG) 24V 10A | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 1811- | GXZ | M6 FLANGE | ||
| 770 | I6-97173 035-0 | RELAY; ENG BRK | 1 | 1811- | GXZ | (IADG) 24V 10A | ||
| 754 | I8-97173 035-1 | RELAY; TRAILER STOP | 1 | 1811- | GXZ | 24V 10A | ||
| 160 | I8-98259 779-0 | RELAY; ECM | 1 | 1811- | GXZ | 24V 30A | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 1811- | GXZ | |||
| 066 | I0-91180 108-0 | NUT; SOCKET FIX | 2 | 1811- | GXZ | M8 FLANGE | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 1811- | GXZ | 24V 10A | ||
| 299 | I8-98105 162-1 | SOCKET; PARKING | 1 | 1811- | GXZ | (B) | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 1811- | GXZ | (IADG) 24V 10A | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 1811- | GXZ | M6X16 FLANGE | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 1811- | GXZ | M8X20 W/LK&PL WASHER | ||
| 065 | I0-28650 825-0 | BOLT; SOCKET FIX | 2 | 1811- | GXZ | M8X25 FLANGE | ||
| 468 | I0-91180 106-0 | NUT; MODULE | 2 | 1811- | GXZ | M6 FLANGE | ||
| 753 | I8-97173 035-1 | RELAY; TRAILER FLASHER | 3 | 1811- | GXZ | 24V 10A | ||

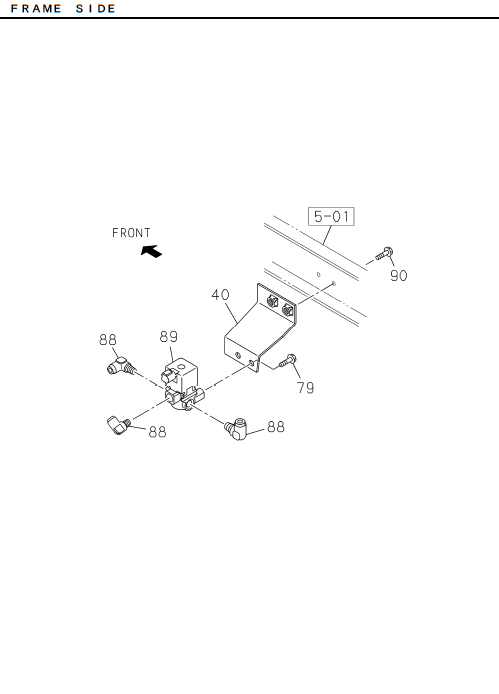

| 090 | I0-28650 835-0 | BOLT; MAG VLV | 2 | 1811- | GXZ | M8X35 FLANGE | ||
| 001 | I8-97613 970-1 | UNIT; FLASHER | 1 | 1811- | GXZ | |||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1811- | GXZ | |||
| 299 | I1-82523 014-0 | SOCKET; PARKING | 1 | 1811- | GXZ | (A) 7P | ||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 1811- | GXZ | (IADG) 24V 10A | ||
| 088 | I1-09660 956-0 | CONNECTOR; MAG VLV | 3 | 1811- | GXZ | DIN8 & R1/4 ELBOW | ||
| 040 | I8-98326 065-0 | BRACKET; MAG VLV | 1 | 1811- | GXZ | |||
| 440 | I1-81510 701-0 | MODULE; INFORMATION,ABS | 1 | 1811- | GXZ | |||
| 770 | I8-97173 035-1 | RELAY; ENG BRK | 1 | 1811- | GXZ | 24V 10A | ||
| 089 | I8-97948 256-0 | VALVE; MAG,DIFF LOCK | 1 | 1811- | GXZ | |||
| 732 | I6-97173 035-0 | RELAY; EDS | 2 | 1811- | GXZ | (IADG) 24V 10A | ||
| 732 | I8-97173 035-1 | RELAY; EDS | 2 | 1811- | GXZ | 24V 10A | ||
| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 1811- | GXZ | 24V 10A | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1811- | GXZ | |||
| 079 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 1811- | GXZ | M8X20 FLANGE | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 1811- | GXZ | M6X16 FLANGE | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 1811- | GXZ |
