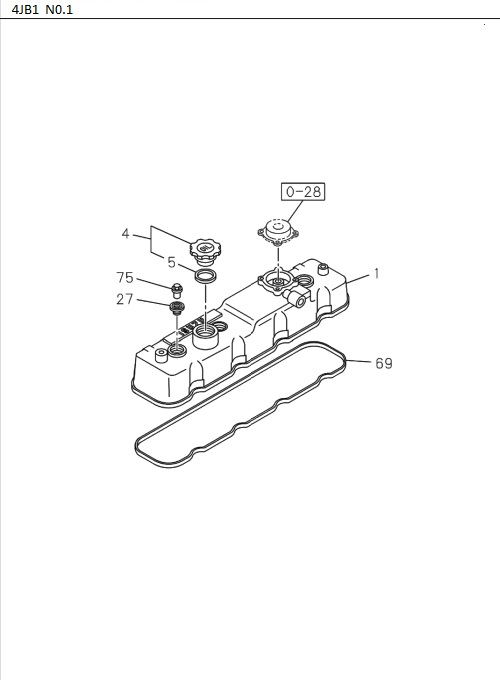

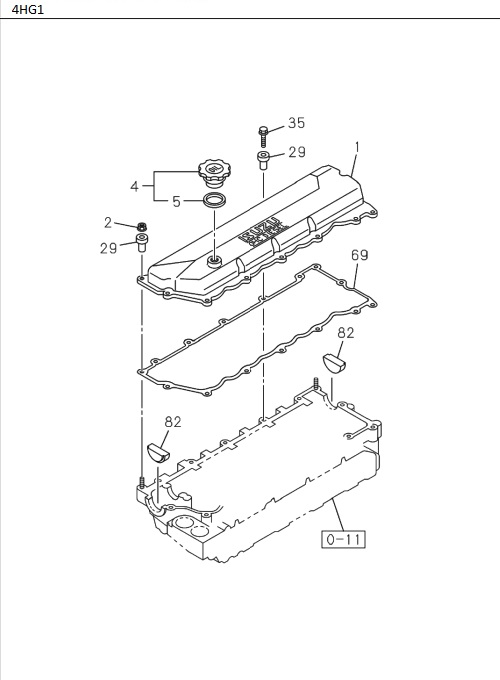

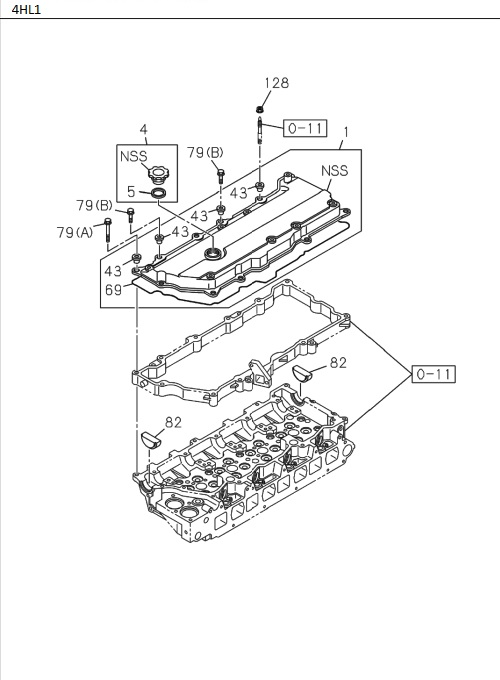

0-10 | CYLINDER HEAD COVER
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 69 | I8-97331 359-1 | GASKET, HD TO COVER | 1 | 1807- | 4HL1-TC | |||
| 27 | I8-97263 801-1 | GASKET, HD COVER | 3 | 1512- | 4JB1-TC | ID=19.5 | ||
| 35 | I0-28650 830-0 | BOLT, NOISE SHIELD COVER | 12 | 1512- | 4HG1-T | M8X30 | ||
| 124 | I8-97325 051-0 | RUBBER, MTG,COVER | 3 | 1512- | 4JB1-TC | OD=21.8 | ||
| 135 | I0-50640 825-0 | BOLT, COVER,ENG | 2 | 1512- | 4JB1-TC | (B) M8X22 | ||
| 5 | I8-94123 623-1 | GASKET, OIL FILLER | 1 | 1512- | ALL | ID=32 OD=40 | ||
| 1 | I8-94476 696-1 | COVER, CYL HD | 1 | 1512- | 4JB1-TC | |||
| 4 | I8-94133 207-5 | CAP, OIL FILLER | 1 | 1512- | ALL | |||
| 135 | I0-28051 020-0 | BOLT, COVER,ENG | 1 | 1512- | 4JB1-TC | (A) M10X20 | ||
| 69 | I6-97105 690-1 | GASKET, HD TO COVER | 1 | 1512- | 4HG1-T | (IADG) | ||
| 69 | I8-97105 690-2 | GASKET, HD TO COVER | 1 | 1512- | 4HG1-T | |||
| 79 | I0-28650 835-0 | BOLT, COVER | 2 | 1807- | 4HL1-TC | (B) M8X35 FLANGE | ||
| 79 | I1-09044 072-1 | BOLT, COVER | 7 | 1807- | 4HL1-TC | (A) M8X65 FLANGE | ||
| 1 | I8-97331 361-2 | COVER, CYL HD | 1 | 1807-2112 | 4HL1-TC | |||

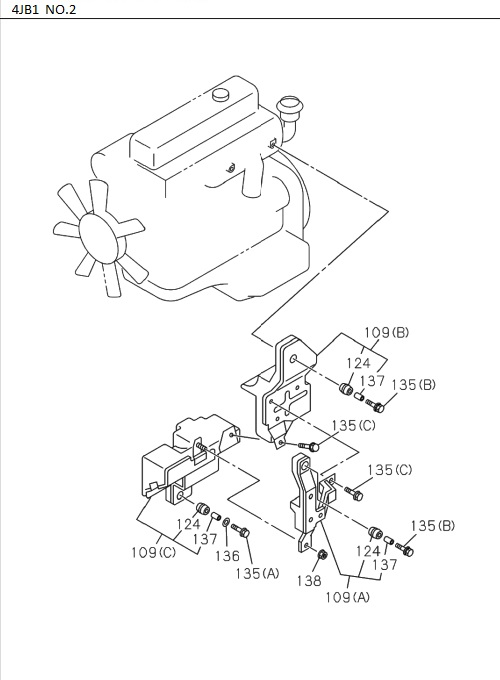

| 109 | I8-97223 630-1 | COVER, ENG | 1 | 1512- | 4JB1-TC | (C) | ||
| 69 | I8-97872 983-0 | GASKET, HD TO COVER | 1 | 1512- | 4JB1-TC | |||
| 29 | I8-97105 689-A | RUBBER, MTG,HD COVER | 15 | 1512- | 4HG1-T | |||
| 137 | I8-94140 427-1 | BUSHING, MTG RUBBER,COVER | 3 | 1512- | 4JB1-TC | OD=13 T=9.5 | ||
| 135 | I0-28050 810-0 | BOLT, COVER,ENG | 2 | 1512- | 4JB1-TC | (C) M8X10 | ||
| 138 | I0-91180 108-0 | NUT, COVER,ENG | 1 | 1512- | 4JB1-TC | M8 | ||
| 1 | I8-98171 615-0 | COVER, CYL HD | 1 | 1512- | 4HG1-T | |||
| 43 | I8-94395 684-0 | RUBBER, MTG,HD COVER, OUTER | 11 | 1807- | 4HL1-TC | OD=22 | ||
| 2 | I0-91180 108-0 | NUT, COVER,HD | 3 | 1512- | 4HG1-T | M8 | ||
| 82 | I8-98163 813-0 | PLUG, CYL HD COVER | 2 | 1807- | 4HL1-TC | |||
| 136 | I0-91614 610-0 | WASHER, PL,ENG COVER | 1 | 1512- | 4JB1-TC | ID=10.5 OD=22 | ||
| 128 | I0-91180 108-0 | NUT, COVER,CYL HEAD COVER | 2 | 1807- | 4HL1-TC | M8 FLANGE | ||
| 1 | I8-97846 577-0 | COVER, CYL HD | 1 | 2201- | 4HL1-TC | |||
| 109 | I8-97223 629-1 | COVER, ENG | 1 | 1512- | 4JB1-TC | (B) | ||
| 82 | I8-98163 813-0 | PLUG, CYL HD COVER | 2 | 1512- | 4HG1-T | |||
| 75 | I8-94158 108-0 | NUT, CAP,HD COVER | 3 | 1512- | 4JB1-TC | M8 OD=19 | ||
| 109 | I8-97223 628-2 | COVER, ENG | 1 | 1512- | 4JB1-TC | (A) |
