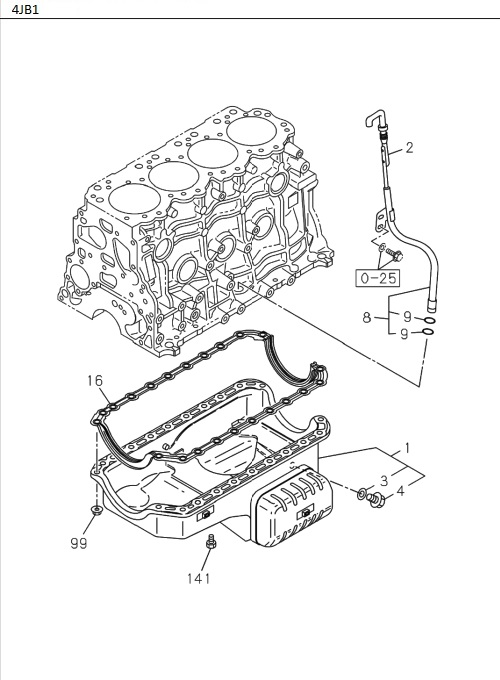

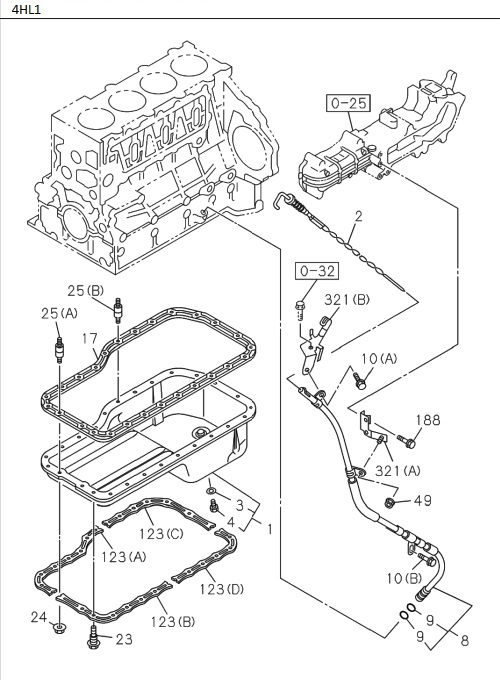

0-13 | OIL PAN AND LEVEL GAUGE
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 99 | I0-91180 208-0 | NUT, BRKT TO OIL PAN FIX | 10 | 1512- | 4JB1-TC | M8 | ||
| 321 | I8-98287 889-0 | BRACKET, GUIDE TUBE | 1 | 1807- | 4HL1-TC | (A) | ||
| 123 | I8-97187 000-0 | RUBBER, SEAL OIL | 1 | 1512- | 4HG1-T | (D) | ||
| 141 | I8-94133 973-2 | BOLT, BRKT TO OIL PAN FIX | 12 | 1512- | 4JB1-TC | |||
| 17 | I8-97364 386-0 | GASKET, OIL PAN | 1 | 1512- | 4HG1-T | |||
| 4 | I8-94152 613-A | PLUG, DRAIN, OIL | 1 | 1512- | ALL | M14X14 | ||
| 24 | I0-91180 108-0 | NUT, OIL PAN | 13 | 1512- | 4HG1-T | M8 | ||
| 321 | I8-98379 823-1 | BRACKET, GUIDE TUBE | 1 | 1807- | 4HL1-TC | (B) | ||
| 123 | I8-97186 998-0 | RUBBER, SEAL OIL | 1 | 1807- | 4HL1-TC | (C) | ||
| 2 | I8-98287 887-0 | GAUGE, OIL LEVEL | 1 | 1807- | 4HL1-TC | |||
| 123 | I8-97187 000-0 | RUBBER, SEAL OIL | 1 | 1807- | 4HL1-TC | (D) | ||
| 8 | I8-97200 567-1 | TUBE, GUIDE, OIL LEVEL GAUGE | 1 | 1512- | 4HG1-T | |||
| 10 | I0-28151 016-0 | BOLT, GUIDE TUBE | 1 | 1807- | 4HL1-TC | (B) M10X16 FLANGE | ||
| 10 | I0-28050 816-0 | BOLT, GUIDE TUBE | 1 | 1807- | 4HL1-TC | (A) M8X16 FLANGE | ||
| 123 | I8-97186 998-0 | RUBBER, SEAL OIL | 1 | 1512- | 4HG1-T | (C) | ||
| 25 | I8-97190 391-0 | STUD, OIL PAN | 1 | 1512- | 4HG1-T | M8X16, M8X17 L=37 | ||
| 49 | I0-91180 108-0 | NUT, GUIDE TUBE | 1 | 1807- | 4HL1-TC | M8 FLANGE | ||
| 188 | I0-28050 820-0 | BOLT, BRKT,TUBE | 1 | 1807- | 4HL1-TC | M8X20 FLANGE | ||
| 23 | I8-97190 390-0 | BOLT, OIL PAN | 13 | 1512- | 4HG1-T | M8X12.8 W/PL WASHER,RUBBER TUBE | ||
| 17 | I8-97364 386-0 | GASKET, OIL PAN | 1 | 1807- | 4HL1-TC | |||
| 10 | I0-28156 011-0 | BOLT, GUIDE TUBE | 1 | 1512- | 4HG1-T | (C) M10X110 | ||
| 123 | I8-97186 994-0 | RUBBER, SEAL OIL | 1 | 1807- | 4HL1-TC | (B) | ||
| 25 | I8-97190 392-0 | STUD, OIL PAN | 9 | 1807- | 4HL1-TC | (A) M8X16,M8X19 L=39 | ||
| 25 | I8-97190 391-0 | STUD, OIL PAN | 1 | 1807- | 4HL1-TC | (B) M8X16,M8X17 L=37 | ||
| 1 | I8-98000 123-0 | PAN ASM, OIL | 1 | 1512- | 4JB1-TC | |||
| 25 | I8-97190 392-0 | STUD, OIL PAN | 9 | 1512- | 4HG1-T | M8X16, M8X19 L=39 | ||
| 8 | I8-97221 497-0 | TUBE, GUIDE, OIL LEVEL GAUGE | 1 | 1512- | 4JB1-TC | |||
| 24 | I0-91180 108-0 | NUT, OIL PAN | 13 | 1807- | 4HL1-TC | M8 | ||
| 2 | I8-97231 295-0 | GAUGE, OIL LEVEL | 1 | 1512- | 4JB1-TC | |||
| 1 | I8-98203 596-0 | PAN ASM, OIL | 1 | 1512- | 4HG1-T | |||
| 1 | I8-98124 513-0 | PAN ASM, OIL | 1 | 1807- | 4HL1-TC | |||
| 123 | I8-97186 988-0 | RUBBER, SEAL OIL | 1 | 1807- | 4HL1-TC | (A) | ||
| 2 | I8-97094 460-2 | GAUGE, OIL LEVEL | 1 | 1512- | 4HG1-T | |||
| 123 | I8-97186 994-0 | RUBBER, SEAL OIL | 1 | 1512- | 4HG1-T | (B) | ||
| 49 | I0-91180 110-0 | NUT, GUIDE TUBE | 1 | 1512- | 4HG1-T | M10 | ||
| 9 | I5-09623 002-0 | GASKET, GUIDE TUBE, OIL LEVEL GAU | 1 | 1512- | ALL | ID=11 | ||
| 3 | I8-97912 531-0 | GASKET, DRAIN PLUG | 1 | 1512- | ALL | ID=14.2 OD=24 | ||
| 23 | I8-97190 390-0 | BOLT, OIL PAN | 13 | 1807- | 4HL1-TC | M8X12.8 W/PL WASHER,RUBBER TUBE | ||
| 123 | I8-97186 988-0 | RUBBER, SEAL OIL | 1 | 1512- | 4HG1-T | (A) | ||
| 8 | I8-98221 362-4 | TUBE, GUIDE,OIL LEVEL GAUGE | 1 | 1807- | 4HL1-TC | |||
| 16 | I8-97080 194-0 | GASKET, OIL PAN TO C/BL | 1 | 1512- | 4JB1-TC |
