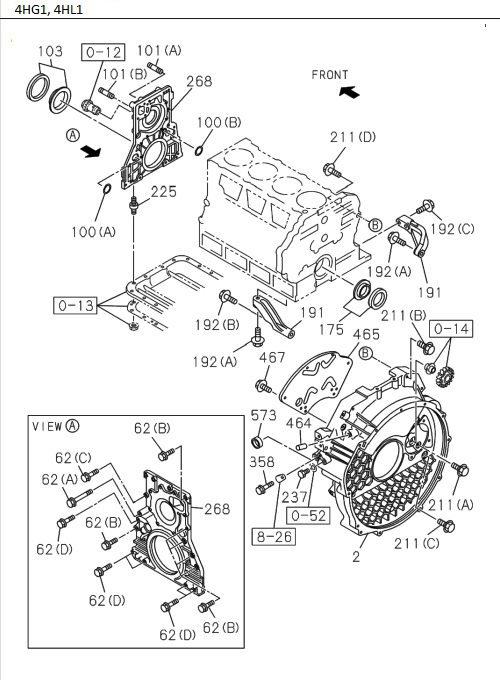

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 573 | I8-94150 231-0 | CUP, SEALING | 1 | 1512- | 4HG1-T | OD= 19 | ||
| 211 | I8-97200 622-1 | BOLT, HSG | 2 | 1807- | 4HL1-TC | (B) M8X20,M8X65 L=90 | ||

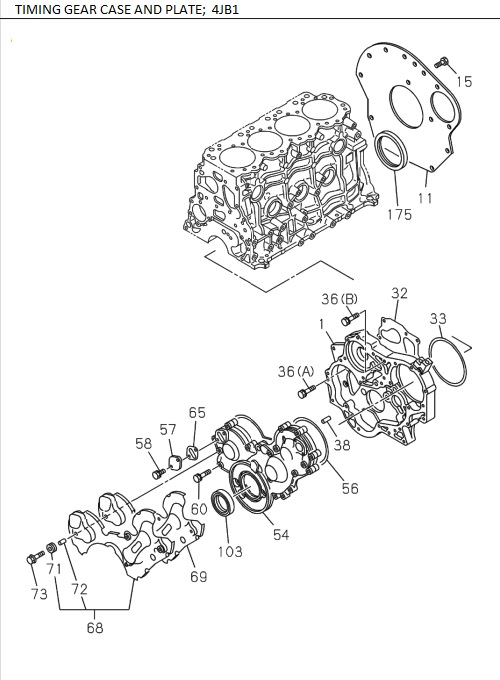

| 1 | I8-97219 001-A | CASE, TIMING GEAR | 1 | 1512- | 4JB1-TC | |||
| 100 | I9-09561 318-0 | GASKET, FRT COVER | 1 | 1807- | 4HL1-TC | (B) ID=17.8 | ||
| 60 | I0-50540 870-0 | BOLT, COVER TO CASE | 6 | 1512- | 4JB1-TC | M8X70 | ||
| 101 | I0-41010 818-0 | STUD, WATER PUMP | 1 | 1807- | 4HL1-TC | (A) M8X18 L=30 | ||
| 72 | I8-97914 630-1 | BUSHING, SPACER, COVER TO COVER | 4 | 1512- | 4JB1-TC | |||
| 175 | I8-97071 561-1 | SEAL, OIL, CR/SHF, RR | 1 | 1512- | 4JB1-TC | ID=95 OD=118 | ||
| 211 | I8-97135 419-0 | BOLT, HSG | 1 | 1807- | 4HL1-TC | (A) M12X30 | ||
| 211 | I8-97135 419-0 | BOLT, HSG | 1 | 1512- | 4HG1-T | (B) M1 2X30 | ||
| 58 | I0-28050 612-0 | BOLT, CHECK HOLE COVER | 4 | 1512- | 4JB1-TC | M6X12 | ||
| 62 | I1-09044 072-1 | BOLT, COVER | 2 | 1807- | 4HL1-TC | (A) M8X65 | ||
| 237 | I0-28051 012-0 | PLUG, FLYWHEEL HSG | 1 | 1807- | 4HL1-TC | M10X12 | ||
| 358 | I0-28050 616-0 | BOLT, ADAPTER | 1 | 1807- | 4HL1-TC | M6X16 | ||
| 100 | I8-97028 748-1 | GASKET, FRT COVER | 1 | 1512- | 4HG1-T | (A) ID=35.1 | ||
| 464 | I8-94373 246-3 | PIPE, PCV,FLYWHEEL HSG | 1 | 1807- | 4HL1-TC | |||
| 68 | I8-94155 721-1 | COVER ASM, GEAR CASE COVER | 1 | 1512- | 4JB1-TC | |||
| 103 | I6-97329 780-0 | SEAL, OIL. CR/SHF. FRT | 1 | 1512- | 4HG1-T | (IADG) ID=109 OD=137 | ||
| 60 | I8-94130 055-1 | BOLT, COVER TO CASE | 1 | 1512- | 4JB1-TC | M8X58 | ||
| 211 | I0-28651 040-0 | BOLT, HSG | 1 | 1807- | 4HL1-TC | (D) M10X40 | ||
| 192 | I0-28151 200-0 | BOLT, STAY TO HSG | 1 | 1807- | 4HL1-TC | (B) M12X100 | ||
| 211 | I8-98179 087-1 | BOLT, HSG | 9 | 1512- | 4HG1-T | (C) M12X70 | ||
| 73 | I0-28050 616-0 | BOLT, COVER FIX | 4 | 1512- | 4JB1-TC | M6X16 | ||
| 465 | I8-97363 824-1 | PLATE, FLYWHEEL HSG | 1 | 1807- | 4HL1-TC | |||
| 464 | I8-94373 246-3 | PIPE, PCV, FLYWHEEL HSG | 1 | 1512- | 4HG1-T | |||
| 103 | I8-97329 780-0 | SEAL, OIL. CR/SHF. FRT | 1 | 1512- | 4HG1-T | ID=109 OD=137 | ||
| 36 | I0-50540 820-0 | BOLT, GEAR CASE | 6 | 1512- | 4JB1-TC | M8X20 | ||
| 467 | I8-98030 649-0 | BOLT, PLATE | 6 | 1807- | 4HL1-TC | M6X10 | ||
| 69 | I8-94155 722-3 | SEAL, RUBBER, COVER TO COVER | 1 | 1512- | 4JB1-TC | |||
| 32 | I8-97129 427-1 | GASKET, GEAR CASE TO C/BL | 1 | 1512- | 4JB1-TC | |||
| 62 | I0-28650 825-0 | BOLT, COVER | 6 | 1807- | 4HL1-TC | (B) M8X25 | ||
| 225 | I8-97190 392-0 | STUD, OIL PAN | 3 | 1512- | 4HG1-T | M8X16,M8X19 L=39 | ||
| 101 | I0-41010 818-0 | STUD, WATER PUMP | 1 | 1512- | 4HG1-T | M8X18 L=30 | ||
| 175 | I8-98334 339-0 | SEAL, OIL,CR/SHF,RR | 1 | 1807- | 4HL1-TC | ID=104 OD=139 | ||
| 101 | I8-97028 541-0 | STUD, WATER PUMP | 1 | 1807- | 4HL1-TC | (B) M8X18 L=29 | ||
| 60 | I0-58331 255-0 | BOLT, COVER TO CASE | 1 | 1512- | 4JB1-TC | M12X55 | ||

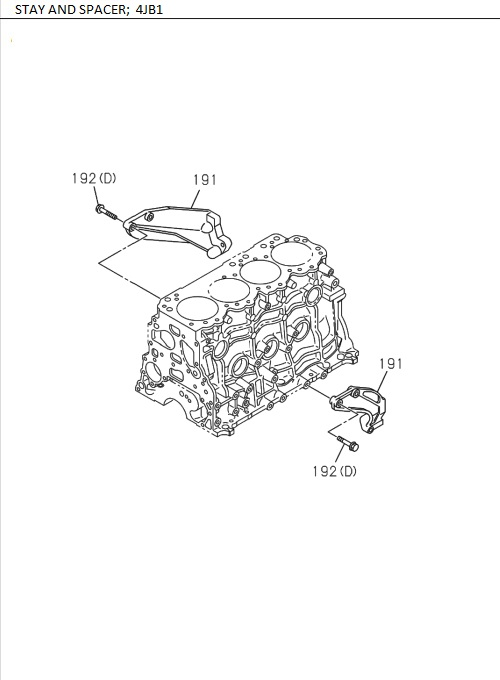

| 191 | I8-97074 108-3 | STAY, FLYWHEEL HSG | 1 | 1512- | 4JB1-TC | |||
| 60 | I0-28050 830-0 | BOLT, COVER TO CASE | 8 | 1512- | 4JB1-TC | M8X30 | ||
| 192 | I0-28651 035-0 | BOLT, STAY TO HSG | 4 | 1512- | 4JB1-TC | (C) M10X35 | ||
| 33 | I8-94109 707-0 | GASKET, BRKT TO CASE | 1 | 1512- | 4JB1-TC | |||
| 103 | I8-97329 780-0 | SEAL, OIL,CR/SHF,FRT | 1 | 1807- | 4HL1-TC | ID=109 OD=137 | ||
| 36 | I0-50740 845-0 | BOLT, GEAR CASE | 2 | 1512- | 4JB1-TC | M8X45 | ||
| 62 | I0-28650 830-0 | BOLT, COVER | 1 | 1807- | 4HL1-TC | (C) M8X30 | ||
| 191 | I8-97167 291-0 | STAY, FLYWHEEL HSG | 1 | 1807- | 4HL1-TC | |||
| 2 | I8-97364 899-5 | HOUSING, FLYWHEEL | 1 | 1807- | 4HL1-TC | |||
| 54 | I8-97940 716-A | COVER, GEAR CASE | 1 | 1512- | 4JB1-TC | |||
| 57 | I5-11321 009-0 | COVER, TIMING CHECK HOLE | 2 | 1512- | 4JB1-TC | |||
| 15 | I5-09000 227-0 | BOLT, RR PLATE TO C/BL | 3 | 1512- | 4JB1-TC | M12X25 | ||
| 103 | I8-97351 704-0 | SEAL, OIL. CR/SHF. FRT | 1 | 1512- | 4JB1-TC | |||
| 268 | I8-98039 931-2 | COVER, FRT | 1 | 1512- | 4HG1-T | |||
| 191 | I8-97167 292-0 | STAY, FLYWHEEL HSG | 1 | 1512- | 4HG1-T | |||
| 192 | I0-28151 200-0 | BOLT, STAY TO HSG | 1 | 1512- | 4HG1-T | (A) M12X100 | ||
| 71 | I5-19389 002-0 | RUBBER, MTG, COVER | 4 | 1512- | 4JB1-TC | |||
| 103 | I6-97329 780-0 | SEAL, OIL,CR/SHF,FRT | 1 | 1807- | 4HL1-TC | (IADG) ID=109 OD=137 | ||
| 191 | I8-97167 292-0 | STAY, FLYWHEEL HSG | 1 | 1807- | 4HL1-TC | |||
| 175 | I6-97071 561-0 | SEAL, OIL, CR/SHF, RR | 1 | 1512- | 4JB1-TC | (IADG) ID=95 OD=118 | ||
| 62 | I1-09044 072-1 | BOLT, COVER | 2 | 1512- | 4HG1-T | (C) M8X65 | ||
| 225 | I8-97190 392-0 | STUD, OIL PAN | 3 | 1807- | 4HL1-TC | M8X16,M8X19 L=39 | ||
| 101 | I8-97028 541-0 | STUD, WATER PUMP | 1 | 1512- | 4HG1-T | M8X18 L=29 | ||
| 192 | I0-28151 250-0 | BOLT, STAY TO HSG | 1 | 1512- | ALL | (B) M12X50 | ||
| 268 | I8-98039 931-2 | COVER, FRT | 1 | 1807- | 4HL1-TC | |||
| 211 | I8-98179 087-1 | BOLT, HSG | 9 | 1807- | 4HL1-TC | (C) M12X70, W/PL WASHER | ||
| 175 | I8-98334 339-0 | SEAL, OIL, CR/SHF, RR | 1 | 1512- | 4HG1-T | ID=104 OD=139 | ||
| 56 | I6-97238 631-1 | GASKET, GEAR CASE TO COVER | 1 | 1512- | 4JB1-TC | (IADG) | ||
| 65 | I8-97118 698-1 | GASKET, COVER, TIMING CHECK HOLE | 2 | 1512- | 4JB1-TC | |||
| 211 | I8-97200 622-1 | BOLT, HSG | 2 | 1512- | 4HG1-T | (A) M8X20, M8X65 L=90 | ||
| 192 | I0-28151 040-0 | BOLT, STAY TO HSG | 2 | 1807- | 4HL1-TC | (C) M10X40 | ||
| 62 | I0-28650 835-0 | BOLT, COVER | 6 | 1512- | 4HG1-T | (B) M8X35 | ||
| 62 | I0-28650 825-0 | BOLT, COVER | 6 | 1512- | 4HG1-T | (A) M8X25 | ||
| 38 | I8-97135 423-0 | PIN, GEAR CASE COVER | 2 | 1512- | 4JB1-TC | OD=10 L=20 | ||
| 191 | I8-97084 390-2 | STAY, FLYWHEEL HSG | 1 | 1512- | 4JB1-TC | |||
| 56 | I8-97238 631-0 | GASKET, GEAR CASE TO COVER | 1 | 1512- | 4JB1-TC | |||
| 100 | I9-09561 318-0 | GASKET, FRT COVER | 1 | 1512- | 4HG1-T | (B) ID=17.8 | ||
| 211 | I0-28651 040-0 | BOLT, HSG | 1 | 1512- | 4HG1-T | (D) M10X40 | ||
| 467 | I8-98030 649-0 | BOLT, PLATE | 6 | 1512- | 4HG1-T | M6X10 | ||
| 2 | I8-97364 899-5 | HOUSING, FLYWHEEL | 1 | 1512- | 4HG1-T | |||
| 192 | I0-28151 250-0 | BOLT, STAY TO HSG | 2 | 1807- | 4HL1-TC | (A) M12X50 | ||
| 11 | I8-94437 923-2 | PLATE, RR, C/BL | 1 | 1512- | 4JB1-TC | |||
| 100 | I8-97028 748-1 | GASKET, FRT COVER | 1 | 1807- | 4HL1-TC | (A) ID=35.1 | ||
| 465 | I8-97363 824-1 | PLATE, FLYWHEEL HSG | 1 | 1512- | 4HG1-T | |||
| 62 | I0-28650 835-0 | BOLT, COVER | 6 | 1807- | 4HL1-TC | (D) M8X35 |
