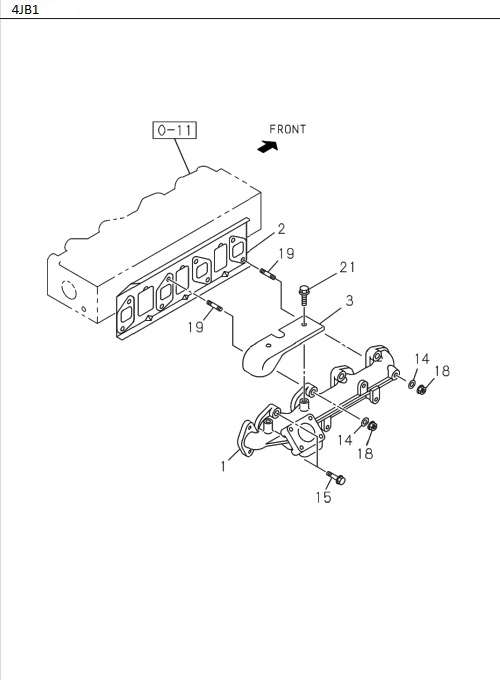

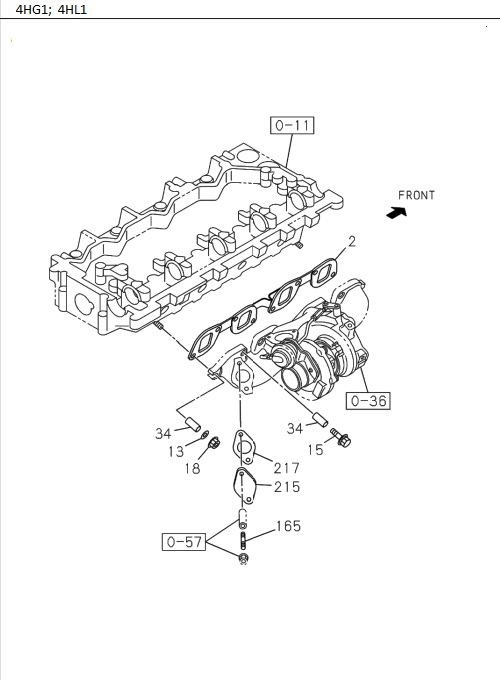

0-27 | EXHAUST MANIFOLD
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 21 | I0-28050 812-A | BOLT, HEAT PROTECTOR | 2 | 1512- | 4JB1-TC | M8X12 | ||
| 13 | I1-09556 015-0 | WASHER, LK, EXH MANIF | 2 | 1512- | 4HG1-T | T=2.2 | ||
| 18 | I0-91110 510-0 | NUT, EXH MANIF | 2 | 1807- | 4HL1-TC | M10 | ||
| 165 | I8-94105 162-1 | STUD, EGR PIPE | 2 | 1807- | 4HL1-TC | M8X45 L=57 | ||
| 15 | I8-97061 543-0 | BOLT, EXH MANIF | 6 | 1512- | 4HG1-T | M10X60 | ||
| 2 | I8-97146 499-2 | GASKET, EXH MANIF TO HD | 1 | 1512- | 4HG1-T | |||
| 217 | I8-94340 670-0 | GASKET, EXH MANIF TO PLATE | 1 | 1807- | 4HL1-TC | ID=38 | ||
| 2 | I8-97146 499-A | GASKET, EXH MANIF TO HD | 1 | 1807- | 4HL1-TC | (IADG) | ||
| 2 | I8-97146 499-A | GASKET, EXH MANIF TO HD | 1 | 1512- | 4HG1-T | (IADG) | ||
| 13 | I1-09556 015-0 | WASHER, LK,EXH MANIF | 2 | 1807- | 4HL1-TC | T=2.2 | ||
| 34 | I8-97250 073-1 | COLLAR, DIST,EXH MANIF | 8 | 1807- | 4HL1-TC | L=28 | ||
| 18 | I0-91110 510-0 | NUT, EXH MANIF | 2 | 1512- | 4HG1-T | M10 | ||
| 15 | I8-97131 597-1 | BOLT, EXH MANIF | 6 | 1512- | 4JB1-TC | M8X35 | ||
| 19 | I8-97378 065-0 | STUD, MANIF TO CYL HD | 2 | 1512- | 4JB1-TC | M8X35 L=46 | ||
| 2 | I8-97146 499-2 | GASKET, EXH MANIF TO HD | 1 | 1807- | 4HL1-TC | |||
| 1 | I8-97217 908-0 | MANIFOLD, EXHAUST | 1 | 1512- | 4JB1-TC | |||
| 2 | I8-97350 317-2 | GASKET, EXH MANIF TO HD | 1 | 1512- | 4JB1-TC | |||
| 215 | I8-98170 965-0 | PLATE, BOSS,EXH MANIF | 1 | 1807- | 4HL1-TC | |||
| 18 | I0-91180 208-0 | NUT, EXH MANIF | 2 | 1512- | 4JB1-TC | M8 | ||
| 14 | I8-97257 914-0 | WASHER, PL, EXH MANIF | 2 | 1512- | 4JB1-TC | ID=8.5 OD=15 T=4 | ||
| 15 | I8-97061 543-0 | BOLT, EXH MANIF | 6 | 1807- | 4HL1-TC | M10X60 | ||
| 34 | I8-97250 073-1 | COLLAR, DIST, EXH MANIF | 8 | 1512- | 4HG1-T | L=28 | ||
| 3 | I8-97214 580-0 | PROTECTOR, HEAT, EXH MANIF | 1 | 1512- | 4JB1-TC |
