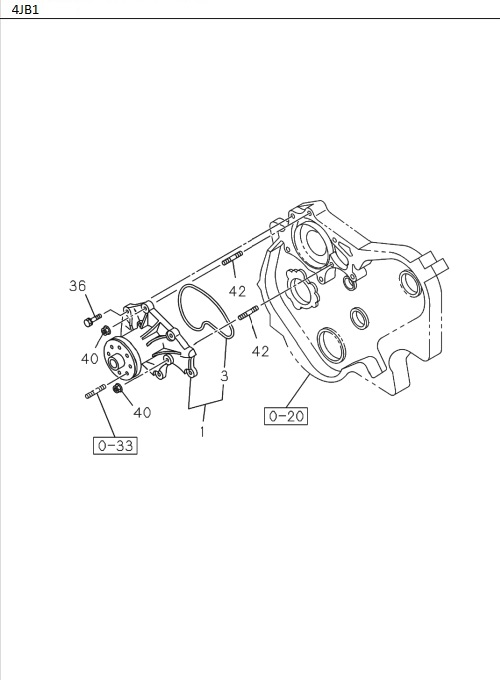

0-30 | WATER PUMP AND CORROSION RESISTOR
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97105 012-5 | PUMP ASM, WATER, W/GASKET | 1 | 1512- | 4JB1-TC | |||
| 40 | I0-91180 108-0 | NUT, WATER PUMP | 2 | 1512- | ALL | M8 | ||
| 36 | I0-28650 840-0 | BOLT, WATER PUMP TO C/BL | 6 | 1512- | 4HG1-T | M8X40 | ||
| 3 | I8-94178 081-1 | GASKET, PUMP TO C/BL | 1 | 1512- | 4JB1-TC | |||
| 1 | I6-97105 012-1 | PUMP ASM, WATER, W/GASKET | 1 | 1512- | 4JB1-TC | (IADG) | ||
| 2 | I8-98329 116-0 | PUMP ASM, WATER | 1 | 1512- | 4HG1-T | |||
| 36 | I0-28650 840-0 | BOLT, WATER PUMP TO C/BL | 6 | 1807- | 4HL1-TC | M8X40 | ||
| 2 | I8-L7363 478-0 | PUMP ASM, WATER | 1 | 1807- | 4HL1-TC | |||
| 42 | I0-41010 822-0 | STUD, WATER PUMP | 2 | 1512- | 4JB1-TC | M8X22 L=34 | ||
| 36 | I8-94150 045-1 | BOLT, WATER PUMP TO C/BL | 5 | 1512- | 4JB1-TC | M8X55 |
