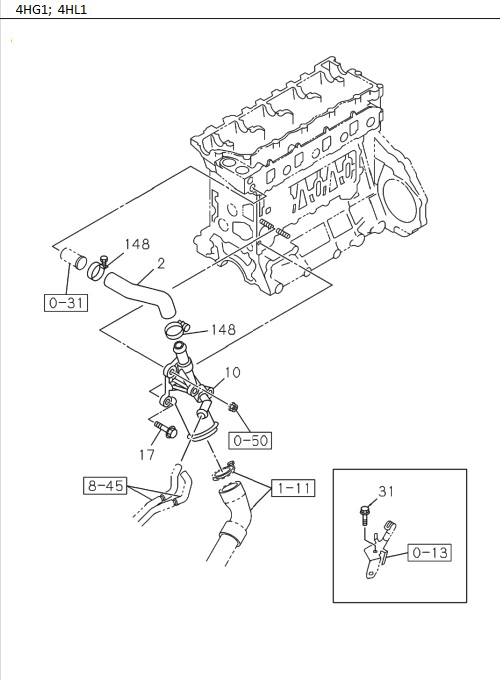

0-32 | WATER PIPING, ENGINE
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 10 | I8-98166 991-0 | PIPE, SUCTION | 1 | 1807- | 4HL1-TC | |||
| 102 | I8-94125 862-1 | CLIP, WATER HOSE | 2 | 1512- | 4JB1-TC | (A) ID=20.8 | ||
| 2 | I6-97037 464-0 | HOSE, WATER, BY PASS | 1 | 1512- | 4JB1-TC | (IADG) | ||
| 74 | I0-50640 816-0 | BOLT, HEAT PROTECTION FIX | 3 | 1512- | 4JB1-TC | M8X16 | ||
| 102 | I8-94221 519-0 | CLIP, WATER HOSE | 4 | 1512- | 4JB1-TC | (B) ID=12.8 | ||
| 73 | I8-97695 989-A | PROTECTOR, HEAT, WATER PIPE | 1 | 1512- | 4JB1-TC | |||
| 2 | I8-97037 464-0 | HOSE, WATER, BY PASS | 1 | 1512- | 4JB1-TC | |||
| 72 | I0-28050 820-0 | BOLT, WATER PIPE | 1 | 1512- | 4JB1-TC | (A) M8X20 | ||
| 17 | I8-94458 473-1 | BOLT, SUCTION PIPE | 1 | 1512- | 4HG1-T | M8X48 | ||
| 11 | I8-97213 400-3 | PIPE, INL, WATER PUMP | 1 | 1512- | 4JB1-TC | |||
| 69 | I0-91180 106-0 | NUT, WATER PIPE | 1 | 1512- | 4JB1-TC | M6 | ||
| 97 | I0-28050 612-0 | BOLT, WATER PIPE | 1 | 1512- | 4JB1-TC | (B) M6X12 | ||
| 148 | I1-09704 037-0 | CLIP, BYPASS HOSE | 2 | 1512- | 4HG1-T | ID=30 | ||
| 72 | I0-50740 845-0 | BOLT, WATER PIPE | 1 | 1512- | 4JB1-TC | (B) M8X45 | ||
| 148 | I1-09704 037-0 | CLIP, BYPASS HOSE | 2 | 1807- | 4HL1-TC | ID=30 | ||
| 171 | I8-98269 690-A | HOSE, RUBBER, WAX CSD | 1 | 1512- | 4JB1-TC | |||
| 2 | I8-98235 636-2 | HOSE, WATER,BY-PASS | 1 | 1807- | 4HL1-TC | |||
| 85 | I8-94221 519-0 | CLIP, RUBBER, WAX CSD | 4 | 1512- | 4JB1-TC | ID=12.8 | ||
| 155 | I8-98169 766-0 | PIPE ASM, WATER | 1 | 1512- | 4JB1-TC | |||
| 30 | I8-97367 983-1 | CLIP, HARNESS | 1 | 1512- | 4JB1-TC | ID=12 | ||
| 2 | I8-97209 948-A | HOSE, WATER, BY PASS | 1 | 1512- | 4HG1-T | |||
| 31 | I0-28050 845-0 | BOLT, CLIP | 1 | 1807- | 4HL1-TC | M8X45 | ||
| 37 | I8-94321 135-1 | GASKET, WATER PIPE | 1 | 1512- | 4JB1-TC | |||
| 17 | I8-94458 473-1 | BOLT, SUCTION PIPE | 1 | 1807- | 4HL1-TC | M8X48 | ||
| 23 | I8-94365 676-3 | GASKET, SUCTION PIPE TO BLOCK | 1 | 1512- | 4JB1-TC | |||
| 97 | I0-28050 616-0 | BOLT, WATER PIPE | 1 | 1512- | 4JB1-TC | (A) M6X16 | ||
| 10 | I8-98212 009-0 | PIPE, SUCT 1 ON | 1 | 1512- | 4HG1-T |
