| 354 |
I0-28050 816-0 |
|
BOLT, FUEL PIPE |
2 |
1807- |
|
4HL1-TC |
M8X16 |
| 43 |
I8-97223 367-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.48 |
| 45 |
I8-97355 142-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.55 |
| 43 |
I8-97223 370-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.54 |
| 45 |
I8-97355 155-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.68 |
| 43 |
I8-97223 371-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.56 |
| 140 |
I1-15349 042-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.40 |
| 45 |
I8-97355 140-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.53 |
| 45 |
I8-97355 122-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.35 |
| 140 |
I8-97116 041-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.56 |
| 68 |
I8-97330 118-3 |
|
CLIP, INJ PIPE |
1 |
1807- |
|
4HL1-TC |
(A) ID=7 & 7 L=22 |
| 45 |
I8-97355 176-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.89 |
| 45 |
I8-97355 162-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.75 |
| 45 |
I8-97355 121-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.34 |
| 45 |
I8-97355 175-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.88 |

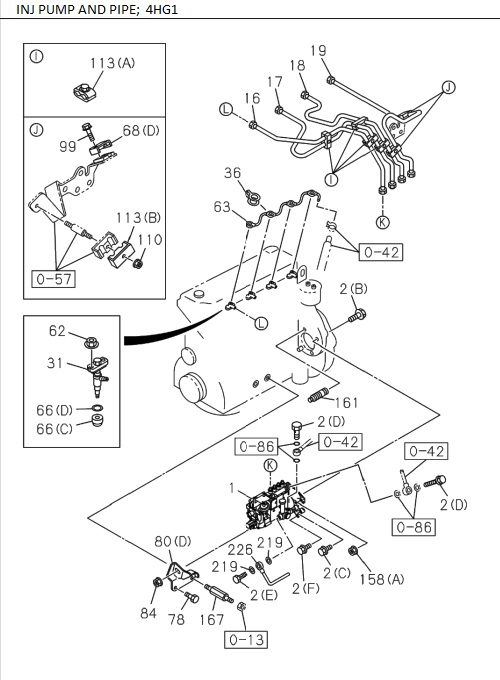

| 272 |
I8-97352 267-0 |
|
NOZZLE KIT, INJ |
4 |
1512- |
|
4HG1-T |
|
| 45 |
I8-97355 174-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.87 |
| 43 |
I8-97223 359-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.32 |
| 122 |
I8-97375 638-0 |
|
CLIP, LEAK OFF PIPE |
2 |
1807- |
|
4HL1-TC |
ID=11.5 |
| 19 |
I8-97223 926-1 |
|
PIPE, INJ NO.4 |
1 |
1512- |
|
4JB1-TC |
|
| 18 |
I8-97209 495-1 |
|
PIPE, INJ NO.3 |
1 |
1512- |
|
4HG1-T |
|
| 348 |
I8-98320 079-0 |
|
HOSE, FUEL |
1 |
1807- |
|
4HL1-TC |
(B) |
| 140 |
I1-15349 047-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.58 |
| 29 |
I8-97173 219-0 |
|
CLIP, HOSE |
2 |
1512- |
|
4JB1-TC |
ID=11 |
| 392 |
I0-91180 108-0 |
|
NUT, RAIL ASM |
3 |
1807- |
|
4HL1-TC |
M8 |
| 45 |
I8-97355 153-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.66 |
| 140 |
I8-97116 043-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.58 |
| 71 |
I0-28050 610-0 |
|
BOLT, BRKT |
2 |
1807- |
|
4HL1-TC |
(B) M6X10 |
| 140 |
I8-97116 043-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.58 |
| 140 |
I1-15349 047-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(B) T=0.58 |
| 45 |
I8-97355 151-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.64 |
| 140 |
I1-15349 048-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.60 |
| 62 |
I0-91180 108-0 |
|
NUT, NOZZEN HOLDER |
8 |
1512- |
|
4HG1-T |
M8 |
| 140 |
I8-97116 041-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.56 |
| 43 |
I8-97223 347-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.08 |
| 43 |
I8-97223 388-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.90 |
| 43 |
I8-97223 383-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.80 |
| 43 |
I8-97223 352-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.18 |
| 45 |
I8-97355 173-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.86 |
| 71 |
I0-28050 816-0 |
|
BOLT, BRKT |
3 |
1807- |
|
4HL1-TC |
(A) M8X16 |
| 17 |
I8-98219 029-0 |
|
PIPE, INJ NO.2 |
1 |
1807- |
|
4HL1-TC |
|
| 87 |
I0-28650 830-0 |
|
BOLT, PUMP |
3 |
1807- |
|
4HL1-TC |
M8X30 |
| 43 |
I8-97223 387-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.88 |
| 81 |
I0-91614 708-0 |
|
WASHER, PL, BRKT TO PUMP |
2 |
1512- |
|
4JB1-TC |
ID=8.4 OD=22 |
| 30 |
I8-98269 810-1 |
|
HOSE, RUBBER, FUEL LEAK |
1 |
1512- |
|
4JB1-TC |
|
| 199 |
I8-97602 218-0 |
|
GASKET, EYE BOLT |
4 |
1807- |
|
4HL1-TC |
(B) |
| 34 |
I8-94320 307-0 |
|
BOLT, EYE,NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
|
| 140 |
I8-97116 039-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.54 |
| 45 |
I8-97355 133-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.46 |
| 140 |
I1-15349 049-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(B) T=0.70 |
| 80 |
I8-97601 699-0 |
|
BRACKET, PUMP |
1 |
1807- |
|
4HL1-TC |
|
| 140 |
I8-97116 037-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.52 |
| 72 |
I0-50551 020-0 |
|
BOLT, BRKT TO INJ PUMP |
2 |
1512- |
|
4JB1-TC |
M10X20 |
| 161 |
I8-97363 237-0 |
|
STUD, INJ PUMP |
2 |
1807- |
|
4HL1-TC |
M10X46.5 L=58.5 |
| 140 |
I8-97116 040-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.55 |
| 45 |
I8-97355 165-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.78 |
| 120 |
I8-98041 601-0 |
|
BRACKET, INJ PIPE |
1 |
1807- |
|
4HL1-TC |
|
| 43 |
I8-97223 346-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.06 |
| 16 |
I8-97209 493-1 |
|
PIPE, INJ NO,1 |
1 |
1512- |
|
4HG1-T |
|
| 45 |
I8-97355 126-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.39 |
| 211 |
I8-98011 888-2 |
|
RAIL ASM, COMMON |
1 |
1807- |
|
4HL1-TC |
|
| 45 |
I8-97355 139-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.52 |
| 78 |
I0-28650 820-0 |
|
BOLT, BRKT TO C/BL |
2 |
1512- |
|
4JB1-TC |
M8X20 |
| 140 |
I8-97116 042-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.57 |
| 45 |
I8-97355 182-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.94 |
| 45 |
I8-97355 129-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.42 |
| 18 |
I8-97223 925-1 |
|
PIPE, INJ NO.3 |
1 |
1512- |
|
4JB1-TC |
|
| 68 |
I8-97330 119-3 |
|
CLIP, INJ PIPE |
1 |
1807- |
|
4HL1-TC |
(B) ID=7 & 7 L=22 |
| 2 |
I0-28151 270-0 |
|
BOLT, INK PUMP |
1 |
1512- |
|
4HG1-T |
(B) M12X70 |
| 140 |
I8-97116 044-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.59 |
| 140 |
I1-15349 004-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=1.20 |
| 45 |
I8-97355 125-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.38 |
| 43 |
I8-97223 381-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.76 |

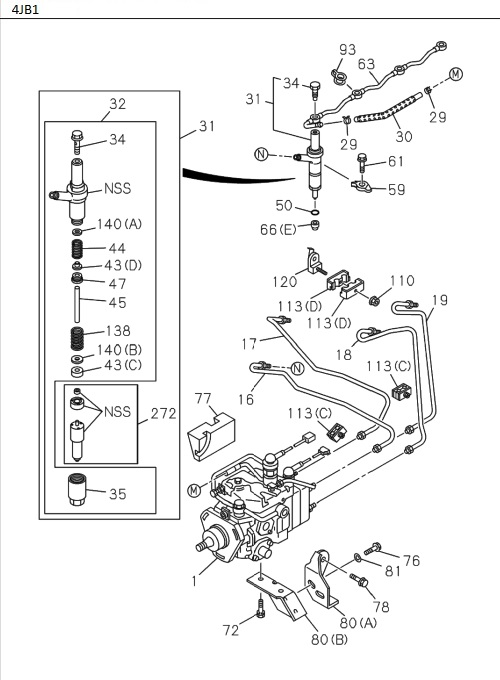

| 1 |
I8-98253 289-0 |
|
PUMP ASM, INJ |
1 |
1512- |
|
4JB1-TC |
|
| 43 |
I8-97223 366-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.46 |
| 44 |
I1-15343 003-0 |
|
SPRING, NOZZLE, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
|
| 43 |
I8-97223 355-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.24 |
| 45 |
I8-97355 146-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.59 |
| 377 |
I8-98113 835-0 |
|
BRACKET, HARNESS |
1 |
1807- |
|
4HL1-TC |
|
| 43 |
I8-97223 351-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.16 |
| 45 |
I8-97355 127-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.40 |
| 138 |
I8-94174 141-0 |
|
SPRING, NOZZLE LWR, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
|
| 140 |
I8-97116 040-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.55 |
| 43 |
I8-97223 390-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.94 |
| 43 |
I8-97223 382-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.78 |
| 138 |
I1-15343 004-0 |
|
SPRING, NOZZLE LWR, NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
|

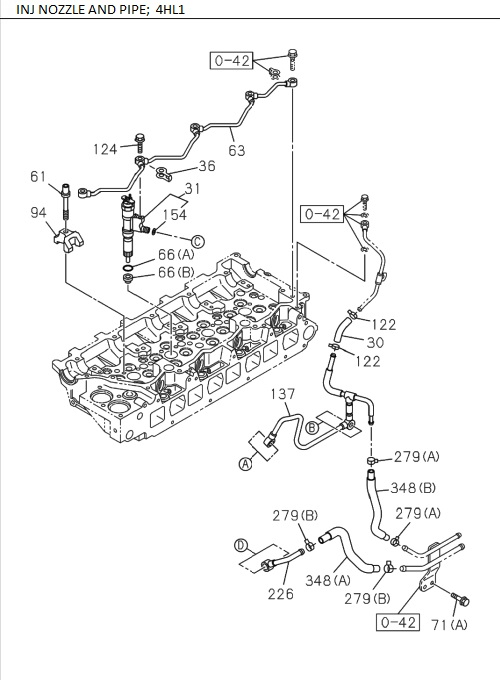

| 66 |
I8-94173 412-0 |
|
GASKET, INJ NOZZLE |
4 |
1807- |
|
4HL1-TC |
(A) ID=23.3 |
| 66 |
I8-97171 332-0 |
|
GASKET, INJ NOZZLE |
4 |
1512- |
|
4HG1-T |
(A) |
| 140 |
I1-15349 044-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.52 |
| 18 |
I8-98219 030-0 |
|
PIPE, INJ NO.3 |
1 |
1807- |
|
4HL1-TC |
|
| 45 |
I8-97355 177-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.90 |
| 80 |
I8-97368 671-0 |
|
BRACKET, PUMP |
1 |
1512- |
|
4JB1-TC |
(B) |
| 168 |
I8-98271 418-0 |
|
BRACKET, FUEL PIPE |
1 |
1807- |
|
4HL1-TC |
|

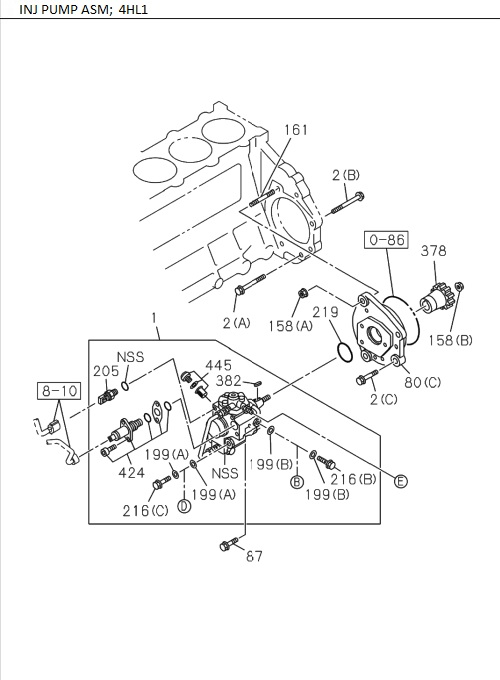

| 1 |
I8-97386 557-6 |
|
PUMP ASM, INJ |
1 |
1807- |
|
4HL1-TC |
|
| 378 |
I8-97601 698-1 |
|
GEAR, PUMP |
1 |
1807- |
|
4HL1-TC |
Z=35 |
| 140 |
I8-97116 035-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.50 |
| 45 |
I8-97355 168-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.81 |
| 167 |
I8-97065 515-2 |
|
SPACER, GUID TUBE |
1 |
1512- |
|
4HG1-T |
|
| 45 |
I8-97355 167-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.80 |
| 45 |
I8-97355 118-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.31 |
| 17 |
I8-97223 924-1 |
|
PIPE, INJ NO.2 |
1 |
1512- |
|
4JB1-TC |
|
| 219 |
I8-98251 345-0 |
|
GASKET |
2 |
1512- |
|
4HG1-T |
ID=14.2 OD=19.2 |
| 445 |
I8-98204 986-0 |
|
SCREW, FILTER,INLET |
1 |
1807- |
|
4HL1-TC |
|
| 63 |
I8-97239 891-A |
|
PIPE, FUEL, NOZZLE LEAK OFF |
1 |
1512- |
|
4HG1-T |
|
| 45 |
I8-97355 172-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.85 |
| 45 |
I8-97355 148-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.61 |
| 140 |
I8-97116 035-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.50 |

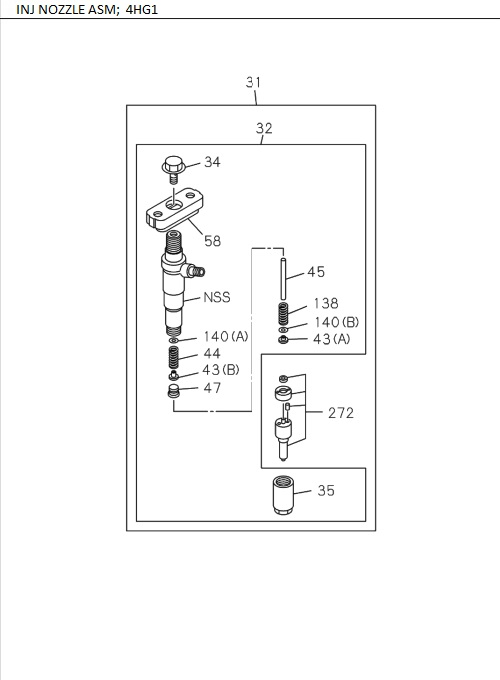

| 32 |
I8-97352 048-0 |
|
HOLDER ASM, NOZZEL |
4 |
1512- |
|
4HG1-T |
|
| 2 |
I0-28151 070-0 |
|
BOLT, INK PUMP |
1 |
1512- |
|
4HG1-T |
(A) M10X70 |
| 80 |
I8-97368 670-0 |
|
BRACKET, PUMP |
1 |
1512- |
|
4JB1-TC |
(C ) |
| 216 |
I5-15759 003-0 |
|
BOLT, EYE |
1 |
1807- |
|
4HL1-TC |
(C) M14X26 EYE-BOLT |
| 272 |
I8-97329 208-0 |
|
NOZZLE KIT, INJ |
4 |
1512- |
|
4JB1-TC |
|
| 45 |
I8-97355 180-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.93 |
| 424 |
I8-98145 501-1 |
|
OVERHAUL KIT, SUPPLY PUMP |
1 |
1807- |
|
4HL1-TC |
|
| 66 |
I8-98079 248-0 |
|
GASKET, INJ NOZZLE |
4 |
1807- |
|
4HL1-TC |
(B) ID=9.2 T=8.1 |
| 45 |
I8-97355 161-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.74 |
| 45 |
I8-97355 124-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.37 |
| 45 |
I8-97355 145-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.58 |
| 279 |
I8-98030 682-0 |
|
CLIP, FUEL HOSE |
2 |
1807- |
|
4HL1-TC |
(A) ID=16 |
| 35 |
I1-15349 041-0 |
|
NUT, NOZZLE RET, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
|
| 45 |
I8-97355 138-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.51 |
| 16 |
I8-98219 028-0 |
|
PIPE, INJ NO.1 |
1 |
1807- |
|
4HL1-TC |
|
| 43 |
I8-97223 349-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.12 |
| 94 |
I8-98028 999-1 |
|
BRACKET, INJ NOZZLE |
4 |
1807- |
|
4HL1-TC |
|
| 43 |
I8-97223 343-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.00 |
| 216 |
I8-98035 828-0 |
|
BOLT, EYE |
1 |
1807- |
|
4HL1-TC |
(A) M10X23 EYE-BOLT |
| 45 |
I8-97355 178-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.91 |
| 140 |
I8-97116 038-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.53 |
| 43 |
I8-97223 356-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.26 |
| 9 |
I8-97203 278-0 |
|
STUD, CLIP |
5 |
1807- |
|
4HL1-TC |
M6X35 L=43 |
| 282 |
I8-98213 706-1 |
|
BRACKET, COMMON RAIL |
1 |
1807- |
|
4HL1-TC |
|
| 63 |
I8-97288 702-0 |
|
PIPE, FUEL, NOZZLE LEAK OFF |
1 |
1512- |
|
4JB1-TC |
|
| 35 |
I1-15349 041-0 |
|
NUT, NOZZLE RET, NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
|
| 36 |
I8-98246 930-0 |
|
GASKET, RETRUN PIPE, NOZZEL HOLDER |
4 |
1512- |
|
4HG1-T |
ID=8.6 |
| 140 |
I8-97116 042-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.57 |
| 45 |
I8-97355 132-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.45 |
| 45 |
I1-15341 008-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
|
| 43 |
I8-97223 391-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.96 |
| 32 |
I8-97203 471-1 |
|
HOLDER ASM, NOZZEL |
4 |
1512- |
|
4JB1-TC |
|
| 43 |
I8-97223 354-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.22 |
| 140 |
I1-15349 045-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(B) T=0.54 |
| 43 |
I8-97223 378-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.70 |
| 43 |
I8-97223 348-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.10 |
| 45 |
I8-97355 123-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.36 |
| 45 |
I8-97355 113-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.26 |
| 45 |
I8-97355 156-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.69 |
| 17 |
I8-97209 494-1 |
|
PIPE, INJ NO.2 |
1 |
1512- |
|
4HG1-T |
|
| 43 |
I8-97223 379-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.72 |
| 34 |
I1-09675 037-1 |
|
BOLT, EYE,NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
M8X18 EYE-BOLT |
| 93 |
I8-97375 236-0 |
|
GASKET, LEAK OFF PIPE |
4 |
1512- |
|
4JB1-TC |
|
| 43 |
I8-97223 360-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.34 |
| 140 |
I8-97116 032-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.20 |
| 43 |
I8-97223 368-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.50 |
| 58 |
I8-97065 713-0 |
|
FLANGE, INJ, NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
|
| 140 |
I1-15349 004-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=1.20 |
| 199 |
I1-15619 507-0 |
|
GASKET, EYE BOLT |
2 |
1807- |
|
4HL1-TC |
(A) |
| 43 |
I8-97223 353-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.20 |
| 45 |
I8-97355 179-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.92 |
| 43 |
I8-97223 361-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.36 |
| 31 |
I8-97382 945-0 |
|
NOZZLE ASM, INJ |
4 |
1512- |
|
4JB1-TC |
(A) |
| 45 |
I8-97355 137-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.50 |
| 36 |
I8-98065 992-0 |
|
GASKET, RETURN PIPE,NOZZLE HOLDER |
4 |
1807- |
|
4HL1-TC |
ID=8.3 OD=15.0 |
| 31 |
I8-98240 674-0 |
|
NOZZLE ASM, INJ |
4 |
1807- |
|
4HL1-TC |
|
| 124 |
I1-09675 037-1 |
|
BOLT, EYE LEAK OFF PIPE |
4 |
1807- |
|
4HL1-TC |
M8X18 EYE-BOLT |
| 45 |
I8-97355 160-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.73 |
| 1 |
I8-98268 832-0 |
|
PUMP ASM, INJ |
1 |
1512- |
|
4HG1-T |
|
| 45 |
I8-97355 128-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.41 |
| 205 |
I8-98023 581-0 |
|
SENSOR, FUEL TEMP |
1 |
1807- |
|
4HL1-TC |
|
| 140 |
I1-15349 049-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.70 |
| 289 |
I8-98032 549-0 |
|
LIMITER, FUEL PRESS |
1 |
1807- |
|
4HL1-TC |
|
| 99 |
I0-28650 625-0 |
|
BOLT, CLIP, INJ, PIPE |
1 |
1512- |
|
4HG1-T |
M6X25 |
| 43 |
I8-97361 697-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
(A) |
| 45 |
I8-97355 152-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.65 |
| 45 |
I8-97355 149-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.62 |
| 43 |
I8-97223 365-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.44 |
| 216 |
I8-97351 388-0 |
|
BOLT, EYE |
1 |
1807- |
|
4HL1-TC |
(B) M10X23 EYE-BOLT |
| 16 |
I8-97223 923-1 |
|
PIPE, INJ NO,1 |
1 |
1512- |
|
4JB1-TC |
|
| 78 |
I0-28751 020-0 |
|
BOLT, BRKT TO C/BL |
1 |
1512- |
|
4HG1-T |
M10X20 |
| 45 |
I8-97355 119-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.32 |
| 43 |
I8-97223 374-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.62 |
| 140 |
I8-97116 044-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.59 |
| 45 |
I8-97355 134-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.47 |
| 140 |
I8-97116 034-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.40 |
| 113 |
I8-98227 926-0 |
|
CLIP, INJ PIPE |
2 |
1512- |
|
4JB1-TC |
(C ) |
| 43 |
I8-97223 392-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.98 |
| 348 |
I8-98320 078-0 |
|
HOSE, FUEL |
1 |
1807- |
|
4HL1-TC |
(A) |
| 2 |
I1-15759 029-0 |
|
BOLT, INK PUMP |
1 |
1512- |
|
4HG1-T |
(E) M14X30 |
| 140 |
I1-15349 043-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.50 |
| 140 |
I8-97116 032-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.20 |
| 210 |
I8-98213 697-0 |
|
PIPE, INJ,C/R |
1 |
1807- |
|
4HL1-TC |
|
| 47 |
I8-97223 340-0 |
|
SPACER, NOZZLE SPRING, NOZZLE HOL |
4 |
1512- |
|
4HG1-T |
|
| 113 |
I8-97213 481-0 |
|
CLIP, INJ PIPE |
1 |
1512- |
|
4HG1-T |
(B) |
| 226 |
I8-98226 198-1 |
|
PIPE, FUEL |
1 |
1807- |
|
4HL1-TC |
|
| 45 |
I8-97355 117-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.30 |
| 45 |
I8-97355 120-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.33 |
| 45 |
I8-97355 166-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.79 |
| 140 |
I8-97116 029-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.70 |
| 219 |
I8-98031 844-0 |
|
GASKET |
1 |
1807- |
|
4HL1-TC |
ID=52 |
| 290 |
I8-98119 790-0 |
|
SENSOR, PRESS |
1 |
1807- |
|
4HL1-TC |
|
| 43 |
I8-97223 357-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.28 |
| 43 |
I8-97223 385-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.84 |
| 43 |
I8-97223 393-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=3.00 |
| 154 |
I0-95690 111-0 |
|
GASKET, CONNECTOR |
4 |
1807- |
|
4HL1-TC |
ID=11.0 |
| 43 |
I8-97223 389-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.92 |
| 61 |
I8-94468 020-2 |
|
BOLT, CLAMP NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
|
| 45 |
I8-97355 157-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.70 |
| 68 |
I1-09701 091-0 |
|
CLIP, INJ PIPE |
1 |
1512- |
|
4HG1-T |
|
| 84 |
I7-05110 010-A |
|
NUT, BRKT TO BRKT |
1 |
1512- |
|
4HG1-T |
M10 |
| 66 |
I8-97171 331-0 |
|
GASKET, INJ NOZZLE |
4 |
1512- |
|
4JB1-TC |
(C ) |
| 45 |
I8-97355 158-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.71 |
| 279 |
I8-97375 638-0 |
|
CLIP, FUEL HOSE |
2 |
1807- |
|
4HL1-TC |
(B) ID=11.5 |
| 110 |
I0-91180 106-0 |
|
NUT CLIP |
1 |
1512- |
|
ALL |
M6 |
| 2 |
I0-28151 050-0 |
|
BOLT, INJ PUMP |
1 |
1807- |
|
4HL1-TC |
(A) M10X50 |
| 66 |
I8-94326 439-0 |
|
GASKET, INJ NOZZLE |
4 |
1512- |
|
4HG1-T |
(B) |
| 388 |
I0-49140 835-0 |
|
STUD, RAIL |
2 |
1807- |
|
4HL1-TC |
M8X35 L=53 |
| 43 |
I8-97223 375-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.64 |
| 43 |
I8-97349 452-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
(B) |
| 43 |
I8-97223 373-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.60 |
| 43 |
I8-97223 386-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.86 |
| 113 |
I8-97213 050-0 |
|
CLIP, INJ PIPE |
4 |
1512- |
|
4HG1-T |
(A) |
| 382 |
I8-98161 995-0 |
|
KEY, DRIVE SHAFT |
1 |
1807- |
|
4HL1-TC |
|
| 50 |
I8-97287 402-2 |
|
GASKET, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
|
| 140 |
I8-97116 033-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.30 |
| 76 |
I0-50540 825-0 |
|
BOLT, BRKT TO BRKT |
2 |
1512- |
|
4JB1-TC |
M8X25 |
| 47 |
I8-97223 340-0 |
|
SPACER, NOZZLE SPRING, NOZZLE HOL |
4 |
1512- |
|
4JB1-TC |
|
| 140 |
I8-97116 037-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.52 |
| 45 |
I8-97355 116-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.29 |
| 2 |
I0-28151 290-0 |
|
BOLT, INK PUMP |
1 |
1512- |
|
4HG1-T |
(C) M12X90 |
| 43 |
I8-97223 369-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.52 |
| 43 |
I8-97223 363-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.40 |
| 288 |
I1-15641 046-0 |
|
GASKET |
1 |
1807- |
|
4HL1-TC |
ID=11 OD=16.3 |
| 77 |
I8-97226 808-0 |
|
RUBBER, SPACE, INJ PUMP |
1 |
1512- |
|
4JB1-TC |
|
| 45 |
I8-97355 169-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.82 |
| 2 |
I0-28151 290-0 |
|
BOLT, INJ PUMP |
1 |
1807- |
|
4HL1-TC |
(B) M12X90 |
| 45 |
I8-97355 154-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.67 |
| 59 |
I8-97259 884-0 |
|
CLAMP, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
|
| 2 |
I1-09675 086-0 |
|
BOLT, INK PUMP |
2 |
1512- |
|
4HG1-T |
(D) M14X27 |
| 113 |
I8-98380 442-0 |
|
CLIP, INJ PIPE |
2 |
1512- |
|
4JB1-TC |
(D) |
| 43 |
I8-97223 376-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(4) T=2.66 |
| 45 |
I8-97355 144-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.57 |
| 61 |
I8-98008 895-0 |
|
BOLT, CLAMP NOZZLE HOLDER |
4 |
1807- |
|
4HL1-TC |
M8X54 |
| 43 |
I8-97223 344-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.02 |
| 158 |
I0-91180 114-0 |
|
NUT, INJ PUMP |
1 |
1807- |
|
4HL1-TC |
(B) M14 |
| 45 |
I8-97355 171-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.84 |
| 140 |
I1-15349 046-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(B) T=0.56 |
| 2 |
I0-28151 270-0 |
|
BOLT, INJ PUMP |
1 |
1807- |
|
4HL1-TC |
(C) M12X70 |
| 80 |
I8-97136 677-A |
|
BRACKET, PUMP |
1 |
1512- |
|
4HG1-T |
(A) |
| 45 |
I8-97355 115-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.28 |
| 43 |
I8-97223 362-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.38 |
| 43 |
I8-97361 697-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(B) |
| 45 |
I8-97355 114-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.27 |
| 158 |
I0-91180 110-0 |
|
NUT, INJ PUMP |
2 |
1807- |
|
4HL1-TC |
(A) M10 |
| 140 |
I8-97116 039-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.54 |
| 19 |
I8-98219 031-0 |
|
PIPE, INJ NO.4 |
1 |
1807- |
|
4HL1-TC |
|
| 45 |
I8-97355 164-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.77 |
| 140 |
I8-97116 033-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.30 |
| 45 |
I8-97355 141-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.54 |
| 140 |
I8-97116 034-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.40 |
| 71 |
I0-28050 825-0 |
|
BOLT, BRKT |
2 |
1807- |
|
4HL1-TC |
(C) M8X25 |
| 43 |
I8-97223 350-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.14 |
| 161 |
I8-97363 237-0 |
|
STUD, INL PUMP |
2 |
1512- |
|
4HG1-T |
M10X46.5 L=58.5 |
| 158 |
I0-91180 110-0 |
|
NUT, INJ PUMP |
2 |
1512- |
|
4HG1-T |
M10 |
| 140 |
I1-15349 048-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(B) T=0.60 |
| 30 |
I8-98320 077-0 |
|
HOSE, RUBBER,FUEL LEAK |
1 |
1807- |
|
4HL1-TC |
|
| 68 |
I8-98148 996-2 |
|
CLIP, INJ PIPE |
10 |
1807- |
|
4HL1-TC |
(C) ID=11 & 11 L=19 |
| 44 |
I1-15343 003-0 |
|
SPRING, NOZZLE, NOZZLE HOLDER |
4 |
1512- |
|
4HG1-T |
|
| 140 |
I8-97116 038-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.53 |
| 140 |
I8-97116 029-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(B) T=0.70 |
| 140 |
I1-15349 044-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(B) T=0.52 |
| 19 |
I8-97209 496-1 |
|
PIPE, INJ NO.4 |
1 |
1512- |
|
4HG1-T |
|
| 43 |
I8-97223 364-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.42 |
| 140 |
I8-97116 036-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4JB1-TC |
(A) T=0.51 |
| 140 |
I1-15349 046-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.56 |
| 43 |
I8-97223 345-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.04 |
| 63 |
I8-97306 081-0 |
|
PIPE, FUEL,NOZZLE LEAK OFF |
1 |
1807- |
|
4HL1-TC |
|
| 45 |
I8-97355 136-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.49 |
| 43 |
I8-97223 372-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.58 |
| 120 |
I8-98015 024-1 |
|
BRACKET, INJ PIPE |
1 |
1512- |
|
4JB1-TC |
|
| 45 |
I8-97355 130-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.43 |
| 45 |
I8-97355 147-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.60 |
| 43 |
I8-97223 377-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.68 |
| 45 |
I8-97355 112-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.25 |
| 45 |
I8-97355 163-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.76 |
| 45 |
I8-97355 143-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.56 |
| 43 |
I8-97223 384-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.82 |
| 31 |
I8-97200 570-3 |
|
NOZZLE ASM, INJ |
4 |
1512- |
|
4HG1-T |
(B) |
| 45 |
I8-97355 159-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.72 |
| 140 |
I1-15349 045-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(B) T=0.54 |
| 71 |
I0-28050 835-0 |
|
BOLT, BRKT |
2 |
1807- |
|
4HL1-TC |
(D) M8X35 |
| 137 |
I8-98320 076-0 |
|
PIPE ASM, LEAK OFF |
1 |
1807- |
|
4HL1-TC |
|
| 45 |
I8-97355 131-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.44 |
| 226 |
I8-97203 567-0 |
|
PIPE, FUEL |
1 |
1512- |
|
4HG1-T |
|
| 45 |
I8-97355 170-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.83 |
| 140 |
I8-97116 036-0 |
|
SHIM, NOZZLE SPRING, NOZZLE HOLDER |
AR |
1512- |
|
4HG1-T |
(A) T=0.51 |
| 43 |
I8-97223 358-0 |
|
SEAT, NOZZLE SPRING, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
(A) T=2.30 |
| 45 |
I8-97355 150-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.63 |
| 45 |
I8-97355 135-0 |
|
ROD, PUSH, NOZZLE HOLDER |
4 |
1512- |
|
4JB1-TC |
L=38.48 |
