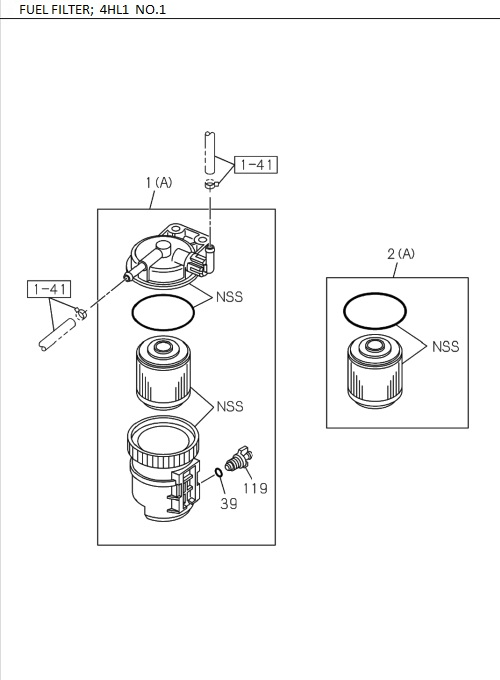

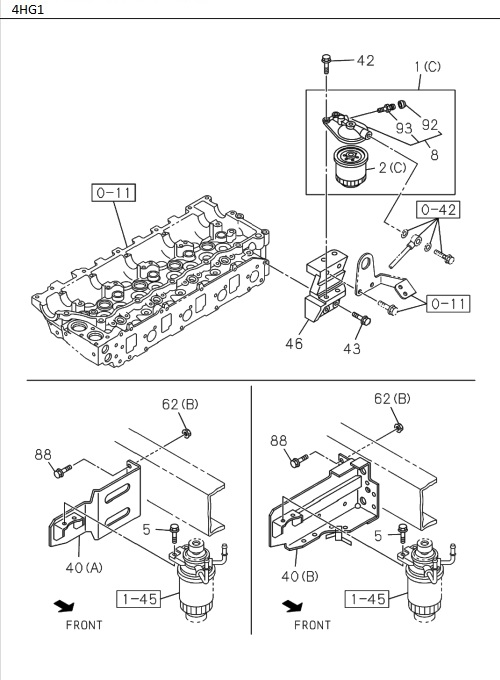

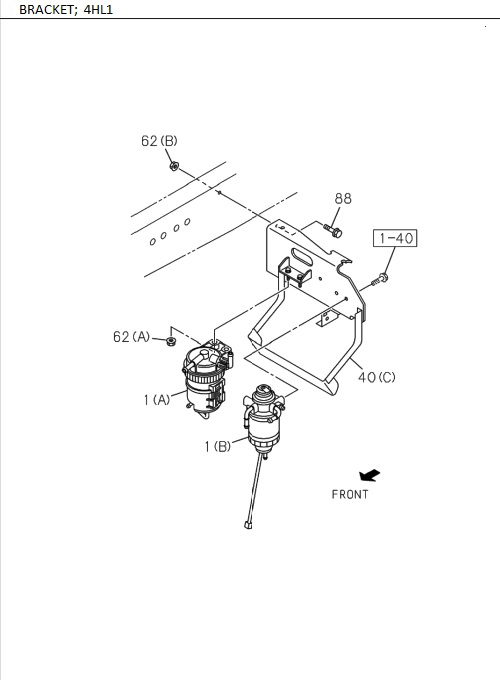

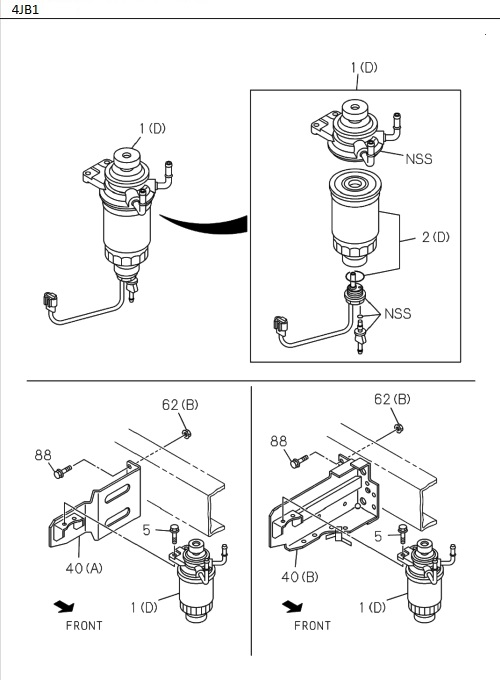

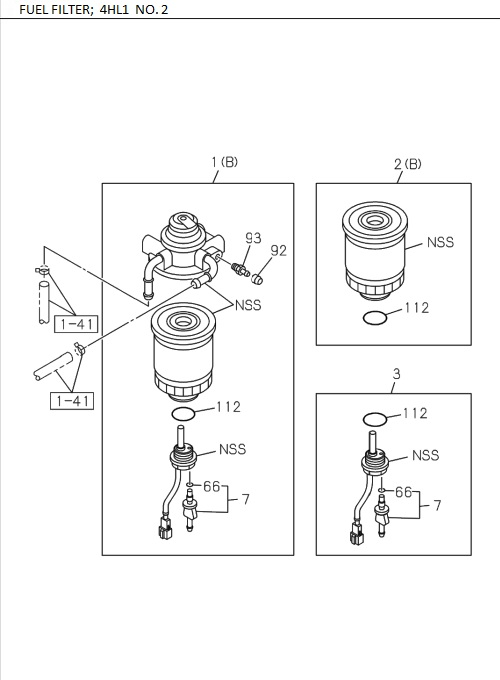

0-41 | FUEL FILTER AND BRACKET
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 112 | I1-09623 649-0 | GASKET, SENSOR TO CASE | 1 | 1807- | 4HL1-TC | |||
| 88 | I0-28651 030-0 | BOLT, BRKT,FUEL FILTER | 2 | 1807- | 4HL1-TC | M10X30 | ||
| 2 | I8-98159 693-A | ELEMENT KIT, FUEL FILTER | 1 | 1807- | 4HL1-TC | (IADG) (A) | ||
| 46 | I8-97061 452-0 | BRACKET | 1 | 1512- | 4HG1-T | |||
| 92 | I8-97172 548-0 | CAP, FUEL FILTER | 1 | 1512- | 4HG1-T | |||
| 92 | I8-97172 548-0 | CAP, FUEL FILTER | 1 | 1807- | 4HL1-TC | |||
| 2 | I8-98037 481-A | ELEMENT KIT, FUEL FILTER | 1 | 1807- | 4HL1-TC | (B) | ||
| 2 | I8-97172 549-A | ELEMENT KIT, FUEL FILTER | 1 | 1512- | 4HG1-T | (A) | ||
| 8 | I8-98215 484-A | COVER, FUEL FILTER | 1 | 1512- | 4JB1-TC | |||
| 40 | I8-98323 451-0 | BRACKET, FUEL FILTER | 1 | 1807- | 4HL1-TC | |||
| 39 | I8-98188 943-0 | GASKET, DRAIN PLUG | 1 | 1807- | 4HL1-TC | |||
| 1 | I8-97171 451-2 | FILTER ASM, FUEL | 1 | 1601- | 4HG1-T | (A) | ||
| 1 | I8-97504 758-0 | FILTER ASM, FUEL | 1 | 1807- | 4HL1-TC | (B) | ||
| 66 | I8-98004 898-0 | GASKET, PLUG,FUEL FILTER | 1 | 1807- | 4HL1-TC | |||
| 42 | I0-28051 035-0 | BOLT, FUEL FILTER | 2 | 1512- | 4HG1-T | M10X35 | ||
| 2 | I6-97172 549-0 | ELEMENT KIT, FUEL FILTER | 1 | 1512- | 4HG1-T | (IADG) (A) | ||
| 1 | I8-97070 864-0 | FILTER ASM, FUEL | 1 | 1512- | 4JB1-TC | (A) | ||
| 93 | I8-97172 546-1 | CONNECTOR, FUEL FILTER | 1 | 1512- | 4HG1-T | |||
| 119 | I8-98188 941-0 | PLUG, DRAIN,FUEL FILTER | 1 | 1807- | 4HL1-TC | |||
| 62 | I0-91180 110-0 | NUT, FUEL FILTER | 2 | 1807- | 4HL1-TC | (B) M10 | ||
| 62 | I0-91180 108-0 | NUT, FUEL FILTER | 2 | 1807- | 4HL1-TC | (A) M8 | ||
| 2 | I8-98159 693-0 | ELEMENT KIT, FUEL FILTER | 1 | 1807- | 4HL1-TC | (A) | ||
| 2 | I6-13240 023-0 | ELEMENT KIT, FUEL FILTER | 1 | 1512- | 4JB1-TC | (IADG) (A) | ||
| 93 | I8-97172 546-1 | CONNECTOR, FUEL FILTER | 1 | 1807- | 4HL1-TC | |||
| 3 | I8-98244 942-0 | SENSOR ASM, FUEL FILTER | 1 | 1807- | 4HL1-TC | |||
| 8 | I8-98215 484-A | COVER, FUEL FILTER | 1 | 1512- | 4HG1-T | |||
| 7 | I8-98004 899-0 | PLUG, SENSOR,FUEL FILTER | 1 | 1807- | 4HL1-TC | |||
| 43 | I0-28181 228-0 | BOLT, BRKT | 2 | 1512- | 4HG1-T | M12X28 | ||
| 2 | I2-13240 023-0 | ELEMENT KIT, FUEL FILTER | 1 | 1512- | 4JB1-TC | (A) | ||
| 1 | I8-98184 212-1 | FILTER ASM, FUEL | 1 | 1807- | 4HL1-TC | (A) |
