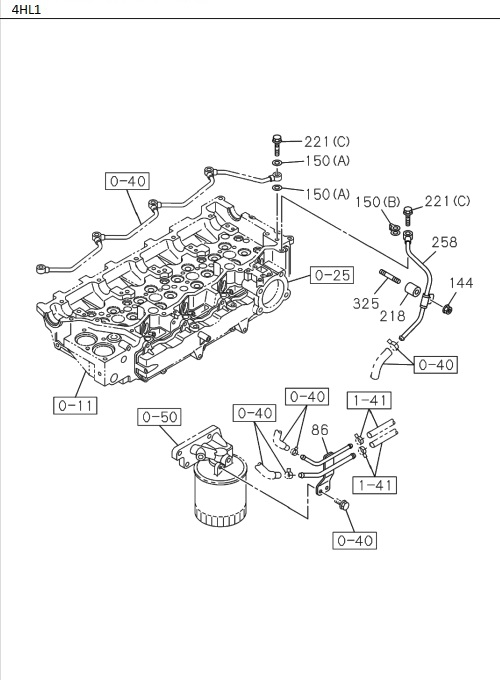

0-42 | FUEL PUMP AND PIPE
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 150 | I1-09630 083-0 | GASKET, FUEL PIPE | 2 | 1807- | 4HL1-TC | (A) ID=10.2 OD=15.2 | ||
| 325 | I0-41010 630-0 | STUD, CLIP | 1 | 1807- | 4HL1-TC | M6X30 L=38 | ||
| 221 | I0-28650 640-0 | BOLT, FUEL PIPE | 1 | 1512- | 4HG1-T | (B) M6X40 | ||
| 87 | I0-28050 812-A | BOLT, STAY, FUEL PIPE | 1 | 1512- | 4HG1-T | M8X12 | ||
| 115 | I9-09572 014-0 | GASKET, JOIN BOLT, FUEL PIPE | 4 | 1512- | 4HG1-T | ID=14.2 OD=23.0 | ||
| 150 | I9-09572 014-0 | GASKET, FUEL PIPE | 2 | 1512- | 4HG1-T | ID=14.2 OD=23 | ||
| 218 | I8-94371 715-1 | PIECE, DISTANCE | 1 | 1807- | 4HL1-TC | |||
| 119 | I8-97211 323-A | PIPE, FUEL,FUEL FILTER TO IJN PU | 1 | 1512- | 4HG1-T | |||
| 37 | I8-98150 357-0 | CLIP, FUEL HOSE | 2 | 1512- | 4HG1-T | (B) ID=13 | ||
| 220 | I8-97087 227-2 | HOSE, FUEL | 1 | 1512- | 4HG1-T | (A) | ||
| 86 | I8-98320 080-0 | PIPE, FUEL,PUMP TO CARBURETOR | 1 | 1807- | 4HL1-TC | |||
| 37 | I8-98008 098-0 | CLIP, FUEL HOSE | 2 | 1512- | 4HG1-T | (A) ID=16 | ||
| 123 | I8-97223 179-A | PIPE, FUEL, FUEL FILTER LEAK OFF | 1 | 1512- | 4HG1-T | (A) | ||
| 220 | I8-97087 228-2 | HOSE, FUEL | 1 | 1512- | 4HG1-T | (B) | ||
| 221 | I8-94396 711-0 | BOLT, FUEL PIPE | 2 | 1807- | 4HL1-TC | M10X21 EYE-BOLT | ||
| 145 | I8-97016 323-1 | CLIP, FUEL PIPE | 2 | 1512- | 4HG1-T | ID=6.1 & 9.6 | ||
| 221 | I0-28050 816-0 | BOLT, FUEL PIPE | 2 | 1512- | 4HG1-T | (A) M8X16 | ||
| 150 | I8-98079 755-0 | GASKET, FUEL PIPE | 1 | 1807- | 4HL1-TC | (B) ID=10.2 OD=17 | ||
| 100 | I8-97108 315-0 | "CLIP, ""B"" FUEL PIPE " | 1 | 1512- | 4HG1-T | |||
| 37 | I5-09707 031-1 | CLIP, FUEL HOSE | 1 | 1512- | 4HG1-T | (D) L=140 | ||
| 144 | I0-91180 106-0 | NUT, CLIP | 1 | 1807- | 4HL1-TC | M6 | ||
| 37 | I8-98150 358-0 | CLIP, FUEL HOSE | 2 | 1512- | 4HG1-T | (C) ID=12 | ||
| 258 | I8-98284 565-0 | PIPE ASM, FUEL,LEAK OFF | 1 | 1807- | 4HL1-TC | |||
| 108 | I1-09675 086-0 | BOLT, JOINT, FUEL FILTER | 2 | 1512- | 4HG1-T | M14X27 | ||
| 123 | I8-97087 196-0 | PIPE, FUEL, FUEL FILTER LEAK OFF | 1 | 1512- | 4HG1-T | (B) | ||
| 220 | I8-98293 110-0 | HOSE, FUEL | 1 | 1512- | 4HG1-T | (C) | ||
| 107 | I8-97210 721-A | PIPE, FUEL, FEED PUMP TO FUEL FIL | 1 | 1512- | 4HG1-T | |||
| 124 | I1-09468 002-1 | NUT, CAP, FUEL PIPE | 1 | 1512- | 4HG1-T | M14 |
