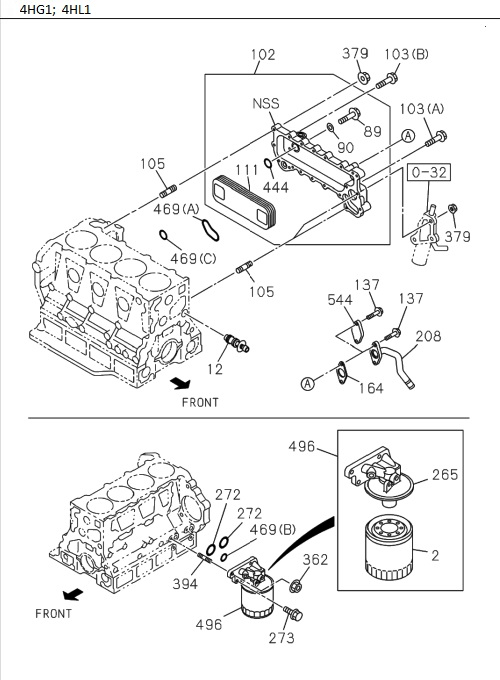

0-50 | OIL COOLER AND OIL FILTER
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 469 | I8-98045 447-A | GASKET, OIL COOLER TO C/BL | 1 | 1512- | 4HG1-T | (C) | ||
| 2 | I8-98328 207-A | ELEMENT, OIL FILTER | 1 | 1807- | 4HL1-TC | |||
| 2 | I6-97329 911-0 | ELEMENT, OIL FILTER | 1 | 1512- | 4JB1-TC | (IADG) | ||
| 496 | I8-98328 485-0 | FILTER ASM, OIL | 1 | 1807- | 4HL1-TC | |||
| 272 | I8-94399 399-0 | GASKET, OIL FILTER TO C/BL | 2 | 1807- | 4HL1-TC | ID=22.1 | ||
| 89 | I0-28050 816-0 | BOLT, ELEMENT TO CASE | 4 | 1512- | 4HG1-T | M8X16 | ||
| 105 | I8-97016 314-0 | STUD, OIL COOLER | 3 | 1512- | 4HG1-T | M8X52 L=63 | ||
| 362 | I0-91180 110-0 | NUT, OIL FILTER | 2 | 1512- | 4HG1-T | M10 | ||
| 469 | I8-94338 878-A | GASKET, OIL COOLER TO C/BL | 1 | 1512- | 4HG1-T | (A) | ||
| 2 | I6-97247 514-0 | ELEMENT, OIL FILTER | 1 | 1512- | 4HG1-T | (IADG) | ||
| 102 | I8-97385 200-A | COOLER ASM, OIL | 1 | 1512- | 4HG1-T | |||
| 394 | I0-49241 025-0 | STUD, OIL FILTER | 2 | 1512- | 4HG1-T | M10X25 L=48.5 | ||
| 164 | I8-97146 684-A | GASKET, HTR PIPE | 1 | 1807- | 4HL1-TC | ID=18.6 | ||
| 111 | I8-97334 101-1 | CORE, OIL COOLER | 1 | 1512- | 4HG1-T | |||
| 273 | I0-28751 030-0 | BOLT, OIL FILTER | 2 | 1807- | 4HL1-TC | M10X30 | ||
| 103 | I0-28050 820-0 | BOLT, OIL COOLER | 7 | 1807- | 4HL1-TC | (A) M8X20 | ||
| 12 | I8-97013 566-2 | VALVE ASM, BYPASS | 1 | 1807- | 4HL1-TC | |||
| 394 | I0-49241 025-0 | STUD, OIL FILTER | 2 | 1807- | 4HL1-TC | M10X25 L=48.5 | ||
| 1 | I8-97224 298-2 | FILTER & COOLER ASM, OIL | 1 | 1512- | 4JB1-TC | |||
| 111 | I8-97334 101-1 | CORE, OIL COOLER | 1 | 1807- | 4HL1-TC | |||
| 2 | I8-97329 911-0 | ELEMENT, OIL FILTER | 1 | 1512- | 4JB1-TC | |||
| 496 | I8-98328 485-0 | FILTER ASM, OIL | 1 | 1512- | 4HG1-T | |||
| 65 | I8-94450 772-0 | VALVE, OIL COOLER | 1 | 1512- | 4JB1-TC | |||
| 379 | I0-91180 108-0 | NUT, OIL COOLER | 3 | 1512- | 4HG1-T | M8 | ||
| 103 | I0-28050 835-0 | BOLT, OIL COOLER | 7 | 1512- | 4HG1-T | M8X35 | ||
| 90 | I1-21729 043-0 | GASKET, BOLT,OIL COOLER | 4 | 1807- | 4HL1-TC | |||
| 265 | I8-98328 486-0 | BODY, OIL FILTER | 1 | 1512- | 4HG1-T | |||
| 469 | I8-94338 878-A | GASKET, OIL COOLER TO C/BL | 1 | 1807- | 4HL1-TC | (A) | ||
| 469 | I8-94399 339-0 | GASKET, OIL COOLER TO C/BL | 1 | 1807- | 4HL1-TC | (B) ID=9.8 | ||
| 555 | I8-97212 335-1 | HOUSING, COOLER | 1 | 1512- | 4HG1-T | |||
| 329 | I0-28050 835-0 | BOLT, OIL FILTER | 2 | 1512- | 4JB1-TC | (A) M8X32 | ||
| 329 | I0-28050 860-0 | BOLT, OIL FILTER | 2 | 1512- | 4JB1-TC | (B) M8X60 | ||
| 2 | I8-97329 911-A | ELEMENT, OIL FILTER | 1 | 1512- | 4JB1-TC | |||
| 89 | I0-28050 816-0 | BOLT, ELEMENT TO CASE | 4 | 1807- | 4HL1-TC | M8X16 | ||
| 379 | I0-91180 108-0 | NUT, OIL COOLER | 3 | 1807- | 4HL1-TC | M8 | ||
| 11 | I8-97144 713-0 | BOLT, CENTER | 1 | 1512- | 4JB1-TC | |||
| 105 | I8-97016 314-0 | STUD, OIL COOLER | 3 | 1807- | 4HL1-TC | M8X52 L=63 | ||
| 9 | I8-97047 000-0 | GASKET, CENTER BOLT | 1 | 1512- | 4JB1-TC | |||
| 63 | I8-94383 720-0 | GASKET, COOLER TO BRKT | 1 | 1512- | 4JB1-TC | |||
| 137 | I0-28650 820-0 | BOLT | 2 | 1512- | 4HG1-T | M8X20 | ||
| 362 | I0-91180 110-0 | NUT, OIL FILTER | 2 | 1807- | 4HL1-TC | M10 | ||
| 272 | I8-94399 399-0 | GASKET, OIL FILTER TO C/BL | 2 | 1512- | 4HG1-T | ID=22.1 | ||
| 272 | I8-98087 965-0 | GASKET, OIL FILTER TO C/BL | 1 | 1512- | 4JB1-TC | |||
| 164 | I8-97146 684-A | GASKET, HTR PIPE | 1 | 1512- | 4HG1-T | |||
| 90 | I1-21729 043-0 | GASKET, BOLT, OIL COOLER | 4 | 1512- | 4HG1-T | |||
| 273 | I0-28751 030-0 | BOLT, OIL FILTER | 2 | 1512- | 4HG1-T | M10X30 | ||
| 102 | I8-97384 045-6 | COOLER ASM, OIL | 1 | 1807- | 4HL1-TC | |||
| 137 | I0-28650 820-0 | BOLT | 2 | 1807- | 4HL1-TC | M8X20 | ||
| 67 | I9-09920 975-0 | GASKET, VLV | 1 | 1512- | 4JB1-TC | |||
| 64 | I8-97166 497-2 | BODY, OIL FILTER & OIL COOLER | 1 | 1512- | 4JB1-TC | |||
| 70 | I9-09921 193-0 | GASKET, PULG, OIL FILTER | 1 | 1512- | 4JB1-TC | |||
| 469 | I8-94399 339-0 | GASKET, OIL COOLER TO C/BL | 1 | 1512- | 4HG1-T | (B) ID=9.8 | ||
| 544 | I8-97147 028-0 | COVER, HEATER | 1 | 1512- | 4HG1-T | |||
| 444 | I8-97384 130-0 | GASKET, ELEMET TO BODY | 2 | 1512- | 4HG1-T | |||
| 208 | I8-97146 519-0 | PIPE, WATER,HTR | 1 | 1807- | 4HL1-TC | |||
| 103 | I0-28050 820-0 | BOLT, OIL COOLER | 7 | 1512- | 4HG1-T | M8X20 | ||
| 103 | I0-28050 835-0 | BOLT, OIL COOLER | 7 | 1807- | 4HL1-TC | (B) M8X35 | ||
| 469 | I8-98045 447-A | GASKET, OIL COOLER TO C/BL | 1 | 1807- | 4HL1-TC | (C) | ||
| 265 | I8-98328 486-0 | BODY, OIL FILTER | 1 | 1807- | 4HL1-TC | |||
| 62 | I8-97226 391-0 | COOLER ASM, OIL | 1 | 1512- | 4JB1-TC | |||
| 444 | I8-97384 130-0 | GASKET, ELEMENT TO BODY | 2 | 1807- | 4HL1-TC | |||
| 2 | I2-97247 514-0 | ELEMENT, OIL FILTER | 1 | 1512- | 4HG1-T |
