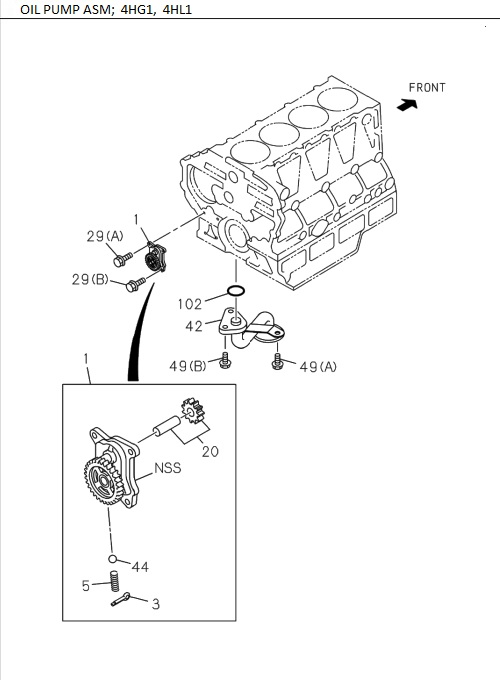

0-51 | OIL PUMP AND OIL STRAINER
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-94384 778-1 | GREAR SET , OIL PUMP | 1 | 1512- | 4JB1-TC | |||
| 29 | I0-28060 830-0 | BOLT, OIL PUMP | 2 | 1512- | 4HG1-T | (B) 18X30 | ||
| 80 | I0-50540 822-0 | BOLT, OIL PIPE FIX | 1 | 1512- | 4JB1-TC | M8X22 | ||
| 1 | I8-97385 984-0 | PUMP ASM, OIL | 1 | 1512- | 4JB1-TC | |||
| 42 | I8-98213 867-0 | STRAINER, OIL,OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 78 | I5-09675 043-0 | BOLT, EYE JOINT, OIL PIPE | 1 | 1512- | 4JB1-TC | M8X23 | ||
| 29 | I0-28060 825-0 | BOLT, OIL PUMP | 2 | 1807- | 4HL1-TC | (A) M8X25 | ||
| 54 | I8-94141 977-0 | WASHER, PL,OIL PIPE | 2 | 1807- | 4HL1-TC | ID=8.4 OD=16 | ||
| 76 | I8-97160 706-0 | PIPE ASM, OIL | 1 | 1512- | 4JB1-TC | |||
| 49 | I8-97071 956-0 | BOLT, STRAINER,OIL PUMP | 1 | 1807- | 4HL1-TC | (A) M10X80 | ||
| 49 | I8-97071 956-0 | BOLT, STRAINER ,OIL PUMP | 1 | 1512- | 4HG1-T | (A) M10X80 | ||
| 45 | I0-81124 030-0 | PIN, SPLIT, RELIEF VLV | 1 | 1512- | 4JB1-TC | L=30 | ||
| 42 | I8-98213 867-0 | STRAINER, OIL, OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 121 | I8-94235 567-1 | VALVE, RELIEF, OIL PUMP | 1 | 1512- | 4JB1-TC | |||
| 102 | I8-94399 398-0 | GASKET, STRAINER | 1 | 1512- | 4HG1-T | ID=24.5 | ||
| 49 | I0-28060 816-0 | BOLT, STRAINER ,OIL PUMP | 2 | 1512- | 4JB1-TC | (B) M8X16 | ||
| 2 | I5-13165 004-0 | SEAT, SPR | 1 | 1512- | 4JB1-TC | |||
| 29 | I0-28060 830-0 | BOLT, OIL PUMP | 2 | 1807- | 4HL1-TC | (B) M8X30 | ||
| 1 | I8-98017 585-1 | PUMP ASM, OIL | 1 | 1807- | 4HL1-TC | |||
| 5 | I8-97036 834-0 | SPRING, OIL | 1 | 1512- | 4JB1-TC | |||
| 5 | I5-09580 098-0 | SPRING, COIL | 1 | 1807- | 4HL1-TC | |||
| 5 | I5-09580 098-0 | SPRING, OIL | 1 | 1512- | 4HG1-T | |||
| 49 | I0-28060 816-0 | BOLT, STRAINER,OIL PUMP | 2 | 1807- | 4HL1-TC | (B) M8X16 | ||
| 20 | I8-98059 192-0 | GEAR, DRIVE OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 29 | I0-28060 825-0 | BOLT, OIL PUMP | 2 | 1512- | 4HG1-T | (A) M8X25 | ||
| 44 | I5-09843 003-0 | BALL, RELIEF VLV | 1 | 1807- | 4HL1-TC | |||
| 102 | I8-94399 398-0 | GASKET, STRAINER | 1 | 1807- | 4HL1-TC | ID=24.5 | ||
| 44 | I5-09843 003-0 | BALL, RELIEF VLV | 1 | 1512- | 4HG1-T | |||
| 29 | I0-28050 825-0 | BOLT, OIL PUMP | 2 | 1512- | 4JB1-TC | (C) H8X25 | ||
| 1 | I8-98017 585-1 | PUMP ASM, OIL | 1 | 1512- | 4HG1-T | |||
| 20 | I8-98059 192-0 | GEAR, DRIVE,OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 3 | I0-81124 030-0 | PIN, SPLIT | 1 | 1512- | 4HG1-T | L=30 | ||
| 3 | I0-81124 030-0 | PIN, SPLIT | 1 | 1807- | 4HL1-TC | L=30 |
