0-57 | EMISSION PIPING
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

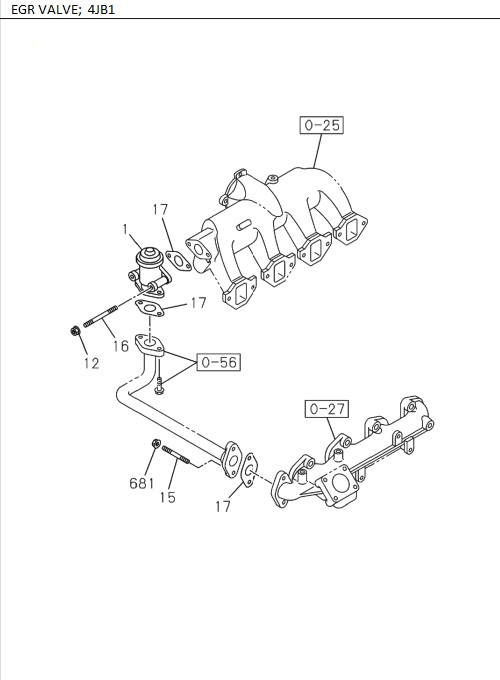

| 1 | I8-97208 656-4 | VALVE, EGR | 1 | 1512- | 4JB1-TC | |||
| 135 | I8-97221 358-1 | BRACKET, EGR | 1 | 1512- | 4HG1-T | |||

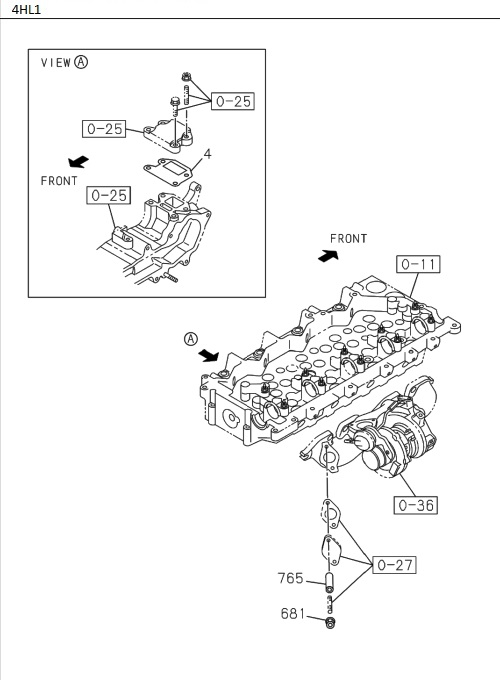

| 681 | I0-91180 208-0 | NUT, EGR PIPE | 2 | 1807- | 4HL1-TC | M8 | ||
| 486 | I0-91180 108-0 | NUT, BRKT | 1 | 1512- | ALL | M8 | ||
| 707 | I8-97214 234-1 | STUD, CLIP , IJN PIPE | 1 | 1512- | 4HG1-T | M6X25 L=36 | ||

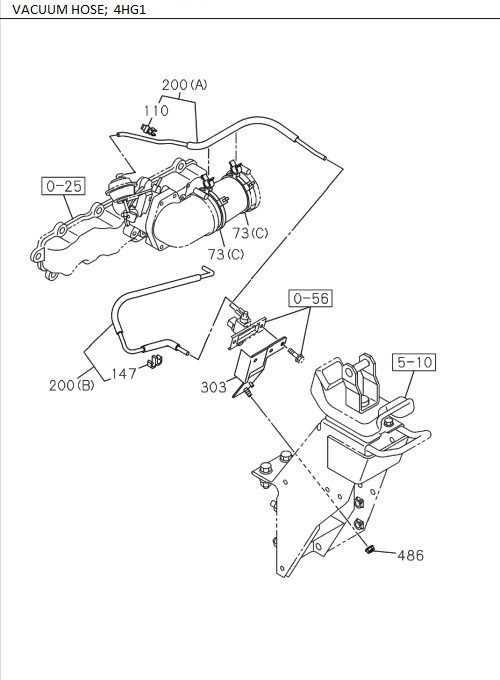

| 92 | I8-98269 804-0 | HOSE, VAC, THROTTLE BODY | 1 | 1512- | 4HG1-T | |||
| 765 | I8-94225 562-0 | SPACER, EGR PIPE | 2 | 1807- | 4HL1-TC | |||
| 138 | I8-98090 689-0 | CLIP, BAND , VAC HOSE | 1 | 1601- | 4JB1-TC | |||
| 303 | I8-98097 124-0 | BRACKT, VAC SW | 1 | 1512- | 4HG1-T | |||
| 4 | I8-97306 040-0 | GASKET, EGR VLV | 1 | 1807- | 4HL1-TC | |||
| 73 | I8-97226 171-0 | CLIP, VAC HOSE | 1 | 1512- | 4JB1-TC | (B) ID=16.5 & 7 | ||
| 73 | I8-94315 423-0 | CLIP, VAC HOSE | 2 | 1512- | 4JB1-TC | (A) ID=30 | ||
| 303 | I8-98106 386-0 | BRACKT, VAC SW | 1 | 1512- | 4JB1-TC | |||

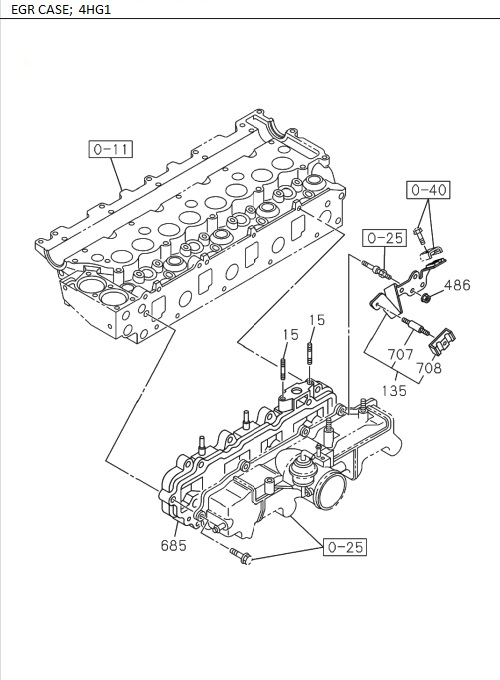

| 685 | I8-97146 873-1 | CASE, INLET, EGR | 1 | 1512- | 4HG1-T | |||
| 12 | I0-91180 208-0 | NUT, EGL VLV | 2 | 1512- | 4JB1-TC | M8 | ||
| 708 | I8-97213 481-0 | CLIP, PIPE , IJN | 1 | 1512- | 4HG1-T | |||
| 73 | I8-97373 487-0 | CLIP, VAC HOSE | 2 | 1512- | 4HG1-T | (C) L=350 | ||

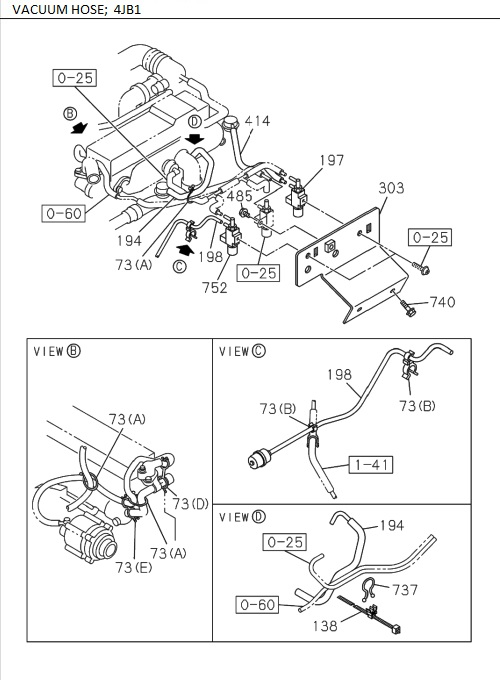

| 414 | I8-97259 489-0 | HOSE, RUBBER , EGR VL V TO VSV | 1 | 1512- | 4JB1-TC | |||
| 110 | I8-94208 733-0 | CLIP, VAC HOSE | 1 | 1601- | 4HG1-T | (A) ID=6.8 & 6.8 | ||
| 110 | I8-94208 734-0 | CLIP, VAC HOSE | 1 | 1601- | 4HG1-T | (B) ID=6.8 & 6.8 & 6.8 | ||
| 194 | I8-97208 495-0 | HOSE, VAC | 1 | 1512- | 4JB1-TC | |||
| 752 | I8-94384 335-0 | VALVE, EVRV | 1 | 1512- | 4JB1-TC | |||
| 17 | I8-97192 765-0 | GASKET, EGR PIPE | 3 | 1512- | 4JB1-TC | |||
| 15 | I0-41010 822-0 | STUD, EGR PIPE | 2 | 1512- | 4HG1-T | M8X22 L=34 | ||
| 740 | I0-28650 825-0 | BOLT, VAC REG VALVE | 2 | 1512- | 4JB1-TC | M8X25 | ||
| 73 | I8-94315 426-0 | CLIP, VAC HOSE | 1 | 1512- | 4JB1-TC | (B) ID=13.2 & 7.5 | ||
| 737 | I8-94315 423-0 | CLIP, EGR VLV TO COOLER | 1 | 1512- | 4JB1-TC | ID=30 | ||
| 198 | I0-04930 300-0 | HOSE, VAC, VSV | 1 | 1512- | 4JB1-TC | L=300 | ||
| 200 | I8-98132 327-A | HOSE, VAC | 1 | 1512- | 4HG1-T | |||
| 73 | I8-94481 468-0 | CLIP, VAC HOSE | 1 | 1512- | 4JB1-TC | (A) ID=37 | ||
| 110 | I8-97807 385-0 | CLIP, VAC HOSE | 3 | 1601- | 4HG1-T | (C ) L=109.5 | ||
| 485 | I0-36230 510-0 | BOLT, VSV | 1 | 1512- | 4JB1-TC | M5X10+PL | ||
| 16 | I0-41010 855-0 | STUD, EGR LVL | 2 | 1512- | 4JB1-TC | M8X55 L=67 | ||
| 15 | I8-97378 062-0 | STUD, EGR PIPE | 2 | 1512- | 4JB1-TC | M8X25 L=36 | ||
| 197 | I8-97171 030-0 | VALVE, VAC SWITCHING | 1 | 1512- | 4JB1-TC | |||
| 110 | I8-97019 084-0 | CLIP, VAC HOSE | 1 | 1512- | 4HG1-T | (D) ID=7.5 & 7.5 | ||
| 681 | I0-91180 208-0 | NUT, EGR PIPE | 2 | 1512- | 4JB1-TC | M8 |
