0-60 | ENGINE ELECTRICAL CONTROL PARTS
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 26 | I0-28151 050-0 | BOLT, GEN BRKT | 1 | 1807- | 4HL1-TC | (A) M10X50 | ||
| 132 | I0-91180 106-0 | NUT, CONTROLLER | 1 | 1512- | 4HG1-T | M6 | ||
| 10 | I8-97173 951-0 | RELAY, STARTER | 1 | 1512- | 4JB1-TC | 12V 80A | ||
| 490 | I0-91180 110-0 | NUT, ENG STOP | 2 | 1512- | 4HG1-T | (B) M10 | ||
| 601 | I0-91180 108-0 | NUT, UNIT | 9 | 1807- | 4HL1-TC | M8 | ||
| 16 | I8-97146 998-0 | BOLT, GEN | 1 | 1807- | 4HL1-TC | M10X133 | ||
| 23 | I7-05110 010-A | NUT, GEN | 1 | 1512- | ALL | (B) M10 | ||
| 97 | I8-94368 591-0 | SWITCH, THERMO, EGR CONT | 1 | 1512- | 4JB1-TC | |||

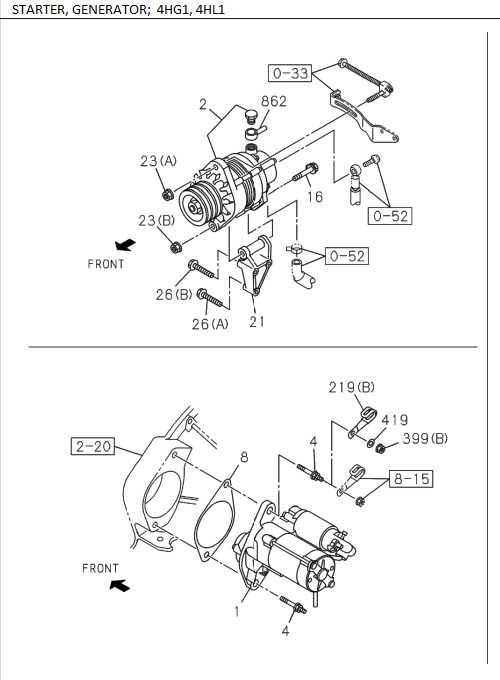

| 1 | I8-98245 259-1 | STARTER ASM | 1 | 1512-1512 | 4HG1-T | 24V 4.5KW | ||
| 130 | I8-98170 223-2 | CONTROLLER, EGR | 1 | 1601- | 4HG1-T | |||
| 1 | I8-98222 018-2 | STARTER ASM | 1 | 1512- | 4HG1-T | 24V 4.0KW | ||
| 2 | I6-97351 573-0 | GENERATOR ASM | 1 | 1601- | 4HG1-T | (IADG) 24V 60A | ||
| 606 | I8-98146 323-1 | BRACKET, CONT UNIT | 1 | 1807- | 4HL1-TC | (C) | ||
| 26 | I0-28151 070-0 | BOLT, GEN BRKT | 2 | 1807- | 4HL1-TC | (B) M10X70 | ||
| 23 | I0-91180 108-0 | NUT, GEN | 1 | 1807- | 4HL1-TC | (A) M8 | ||
| 105 | I8-94336 668-0 | SWITCH, THERMO, QOS | 1 | 1512- | 4JB1-TC | (A) | ||
| 16 | I8-97146 998-0 | BOLT, GEN | 1 | 1512- | 4HG1-T | M10X133 | ||
| 129 | I8-98260 257-0 | SENSOR, GLOW PLUG,THERMO | 1 | 1807- | 4HL1-TC | |||
| 1 | I8-98222 018-2 | STARTER ASM | 1 | 1807- | 4HL1-TC | 24V 4.0KW | ||
| 606 | I8-97505 646-0 | BRACKET, CONT UNIT | 1 | 1807- | 4HL1-TC | (A) | ||
| 737 | I0-91610 606-0 | WASHER, PL | 3 | 1807- | 4HL1-TC | ID=6.4 | ||
| 460 | I1-09630 086-0 | GASKET, PLUG | 1 | 1512- | 4HG1-T | ID=16.2 | ||
| 489 | I0-28651 025-0 | BOLT, ENG STOPPER | 1 | 1512- | 4HG1-T | M10X25 | ||
| 862 | I8-97333 832-0 | CONNECTOR, GEN | 1 | 1807- | 4HL1-TC | |||
| 460 | I1-09630 086-0 | GASKET, PLUG | 1 | 1807- | 4HL1-TC | ID=16.2 OD=22 | ||
| 1 | I6-98222 018-0 | STARTER ASM | 1 | 1512- | 4HG1-T | (IADG) 24V 4.0KW | ||
| 4 | I8-97212 602-0 | BOLT, STARTER | 2 | 1512- | 4HG1-T | M10X15, M14X75 L=103 | ||
| 26 | I0-28151 070-0 | BOLT, GEN BRKT | 2 | 1512- | 4HG1-T | (B) M10X70 | ||
| 606 | I8-97505 645-0 | BRACKET, CONT UNIT | 1 | 1807- | 4HL1-TC | (D) | ||
| 393 | I8-97357 140-0 | BRACKET, HARNESS TO BODY | 1 | 1807- | 4HL1-TC | |||
| 796 | I8-98009 418-0 | SENSOR, MAP | 1 | 1807- | 4HL1-TC | |||
| 16 | I0-28056 013-0 | BOLT, GEN | 1 | 1512- | 4JB1-TC | M10X130 | ||
| 7 | I0-91180 112-0 | NUT, STARTER | 2 | 1512- | 4JB1-TC | M12 | ||
| 1 | I8-98245 258-1 | STARTER ASM | 1 | 1601- | 4HG1-T | 24V 4.5KW | ||
| 395 | I0-91180 106-0 | NUT, BRKT FIX | 2 | 1807- | 4HL1-TC | M6 | ||
| 490 | I0-91180 106-0 | NUT, ENG STOP | 1 | 1512- | 4HG1-T | (A) M6 | ||
| 105 | I8-94457 511-0 | SWITCH, THERMO, QOS | 1 | 1512- | 4JB1-TC | (B) | ||
| 211 | I0-91180 106-0 | NUT, CABLE FIX | 1 | 1512- | 4HG1-T | M6 | ||

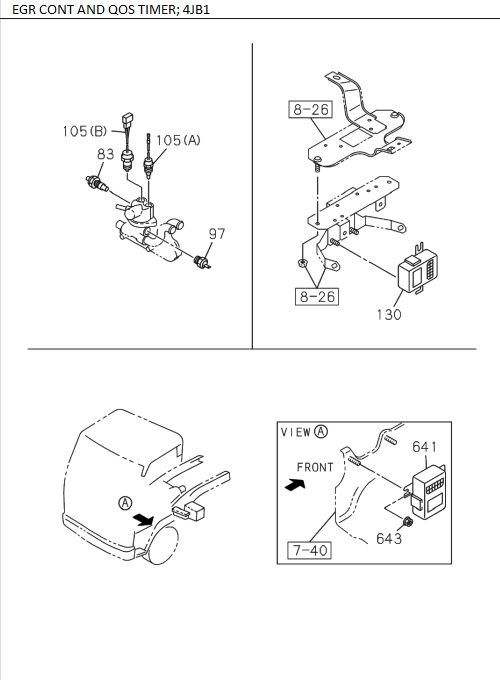

| 130 | I8-97201 734-3 | CONTROLLER, EGR | 1 | 1512- | 4JB1-TC | |||
| 393 | I8-98018 903-0 | BRACKET, HARNESS TO BODY | 1 | 1512- | 4HG1-T | (B) WB 2400MM | ||
| 8 | I8-97210 762-0 | SPACER, STARTER | 1 | 1601- | 4JB1-TC | |||
| 862 | I8-97351 626-0 | CONNECTOR, GEN | 1 | 1512- | 4HG1-T | |||
| 2 | I8-97351 573-0 | GENERATOR ASM | 1 | 1601- | 4HG1-T | 24V 60A | ||
| 539 | I0-36230 412-0 | SCREW, SENSOR | 2 | 1807- | 4HL1-TC | M4X12 W/LK&PL WASHER | ||
| 1 | I8-97172 211-A | STARTER ASM | 1 | 1512- | 4HG1-T | 24V 4.0KW | ||

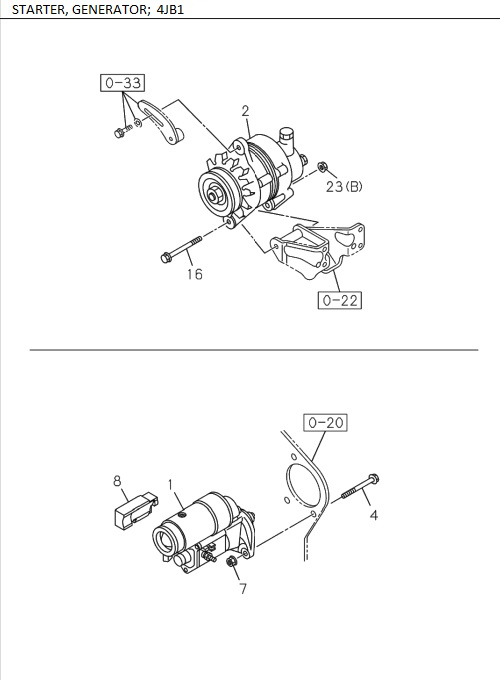

| 2 | I8-97695 602-A | GENERATOR ASM | 1 | 1512- | 4JB1-TC | 12V 60A | ||
| 4 | I0-28051 280-0 | BOLT, STARTER | 2 | 1512- | 4JB1-TC | M12X80 | ||
| 1 | I8-97172 211-A | STARTER ASM | 1 | 1807- | 4HL1-TC | 24V 4.0KW | ||
| 897 | I8-98082 814-3 | DRM | 1 | 1807- | 4HL1-TC | |||
| 1 | I8-97120 356-2 | STARTER ASM | 1 | 1512- | 4JB1-TC | 12V 2.0KW | ||
| 4 | I8-97212 602-0 | BOLT, STARTER | 2 | 1807- | 4HL1-TC | M10X15, M14X75 L=103 | ||

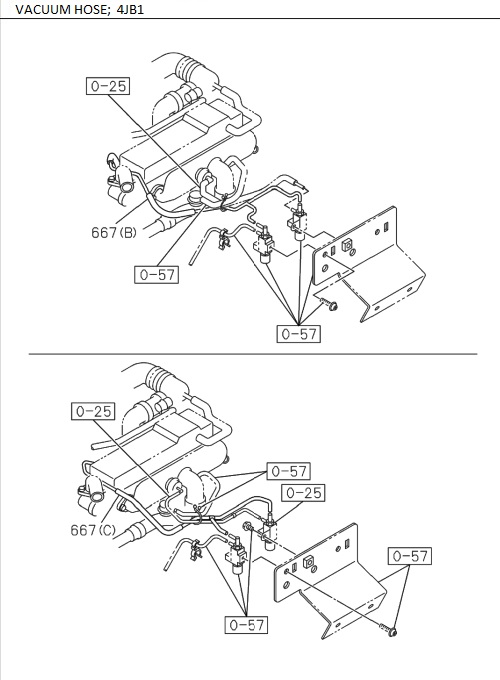

| 667 | I8-97228 358-1 | HOSE, VAC, PUMP TO VSV | 1 | 1512- | 4JB1-TC | |||
| 1 | I6-97120 356-0 | STARTER ASM | 1 | 1512- | 4JB1-TC | (IADG) 12V 2.0KW | ||
| 2 | I8-97351 574-1 | GENERATOR ASM | 1 | 1512- | 4HG1-T | 24V 80A | ||
| 1 | I6-98222 018-0 | STARTER ASM | 1 | 1807- | 4HL1-TC | (IADG) 24V 4.0KW | ||
| 2 | I6-97351 573-0 | GENERATOR ASM | 1 | 1807- | 4HL1-TC | (IADG) 24V 60A | ||
| 46 | I8-97173 951-0 | RELAY, GLOW PLUG | 1 | 1512- | 4JB1-TC | 12V 80A | ||
| 23 | I0-91180 108-0 | NUT, GEN | 1 | 1512- | 4HG1-T | (A) M8 | ||
| 613 | I8-98341 259-1 | CONTROL UNIT, ENG | 1 | 1807- | 4HL1-TC | |||
| 2 | I8-97351 573-0 | GENERATOR ASM | 1 | 1807- | 4HL1-TC | 24V 60A | ||
| 606 | I8-98369 699-A | BRACKET, CONT UNIT | 1 | 1807- | 4HL1-TC | (B) | ||

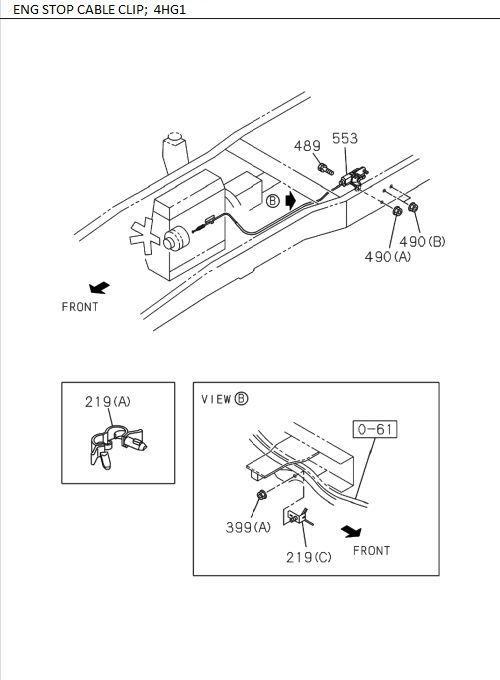

| 219 | I8-97101 436-0 | CLIP, ENG STOP CABLE | 1 | 1512- | 4HG1-T | (B) | ||
| 553 | I8-97255 066-1 | MOTOR, ASM ENG STOP | 1 | 1512- | 4HG1-T | |||
| 26 | I0-28151 050-0 | BOLT, GEN BRKT | 1 | 1512- | 4HG1-T | (A) M10X50 | ||
| 403 | I8-97125 981-0 | CLIP, CABLE | 1 | 1512- | 4HG1-T | |||
| 21 | I8-97075 884-2 | BRACKET, GEN | 1 | 1807- | 4HL1-TC | |||
| 83 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 1512- | 4JB1-TC | |||
| 643 | I0-91180 106-0 | NUT, TIMER, QOS | 2 | 1512- | 4JB1-TC | M6 | ||
| 393 | I8-97357 140-0 | BRACKET, HARNESS TO BODY | 1 | 1512- | 4HG1-T | (A) | ||
| 8 | I8-97350 947-0 | SPACER, STARTER | 1 | 1807- | 4HL1-TC | |||
| 748 | I0-28650 825-0 | BOLT, CONT UNIT | 4 | 1807- | 4HL1-TC | (B) M8X25 | ||
| 10 | I8-97264 947-0 | RELAY, STARTER | 1 | 1512- | 4HG1-T | 24V 50A | ||

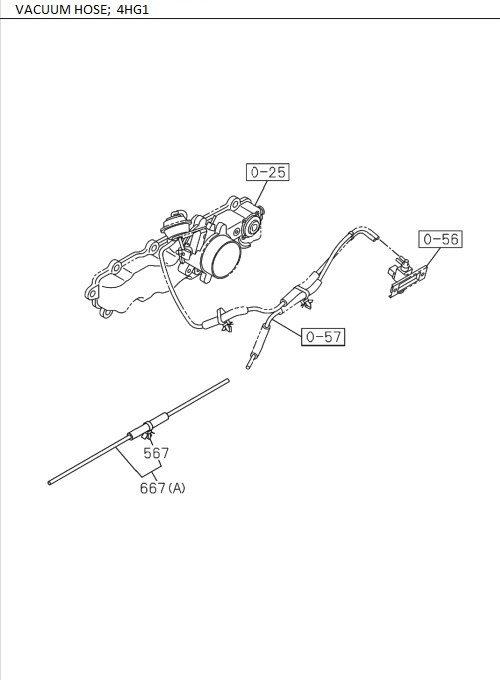

| 667 | I8-98317 488-1 | HOSE, VAC, PUMP TO VSV | 1 | 1512- | 4HG1-T | |||
| 21 | I8-97075 884-2 | BRACKET, GEN | 1 | 1512- | 4HG1-T | |||
| 641 | I8-97361 317-0 | TIMER, QOS | 1 | 1512- | 4JB1-TC | |||
| 46 | I8-97173 947-0 | RELAY, GLOW PLUG | 1 | 1512- | 4HG1-T | 24V 50A | ||
| 219 | I8-94472 578-0 | CLIP, ENG STOP CABLE | 1 | 1512- | 4HG1-T | (A) ID=7-10 | ||
| 83 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 1512- | 4HG1-T | |||
| 490 | I7-05110 010-A | NUT, ENG STOP | 1 | 1512- | 4HG1-T | (C) M10 | ||
| 748 | I0-28050 612-0 | BOLT, CONT UNIT | 4 | 1807- | 4HL1-TC | (A) M6X12 | ||
| 491 | I0-91614 710-0 | WASHER, LK, ENG STOP | 1 | 1512- | 4HG1-T | ID=10.5 OD=26 | ||
| 10 | I8-97264 947-0 | RELAY, STARTER | 1 | 1807- | 4HL1-TC | 24V 50A |
