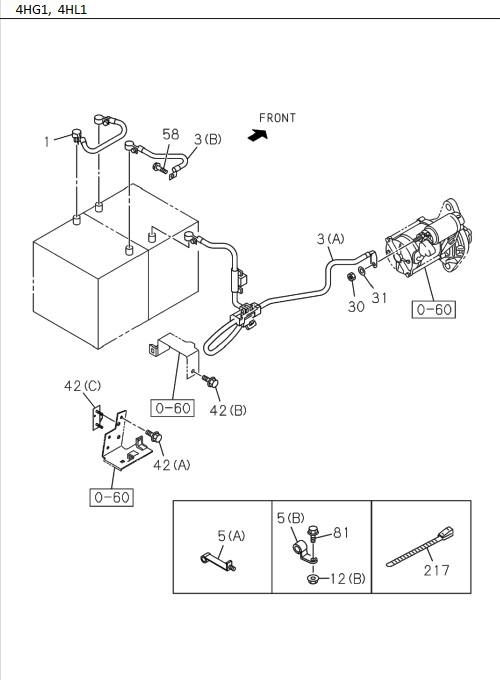

| 81 |
I0-28650 825-0 |
|
BOLT, BATTERY CABLE |
1 |
1512- |
|
4HG1-T |
M8X25, WB 3300MM |
| 3 |
I7-42501 236-A |
|
HARNESS, CABLE, BATTERY TO STARTE |
1 |
1512- |
|
4HG1-T |
(B) |
| 1 |
I7-42502 223-A |
|
CABLE, BATTERY |
1 |
1807- |
|
4HL1-TC |
L=280 |
| 81 |
I0-28650 825-0 |
|
BOLT, BATTERY CABLE |
1 |
1807- |
|
4HL1-TC |
M8X25 |
| 58 |
I8-98141 256-1 |
|
BOLT, CABLE BATTERY |
1 |
1512- |
|
ALL |
M8X24 |

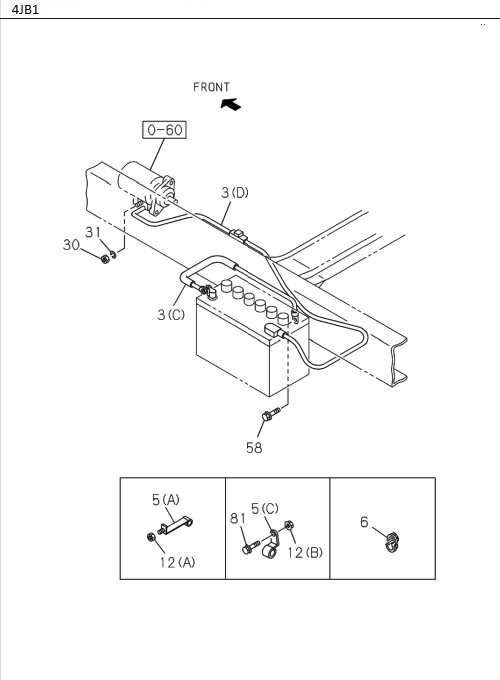

| 3 |
I8-98003 122-0 |
|
HARNESS, CABLE, BATTERY TO STARTE |
1 |
1512- |
|
4JB1-TC |
(D) L=800, WB 3300MM |
| 3 |
I8-97696 362-A |
|
HARNESS, CABLE,BATTERY TO STARTER |
1 |
1807- |
|
4HL1-TC |
(A) |
| 31 |
I0-91510 808-0 |
|
WASHER, LK,CABLE,STARTER TO BATTERY |
1 |
1807- |
|
4HL1-TC |
ID=8.2 |
| 31 |
I0-91510 808-0 |
|
WASHER, LK, CABLE, STARTER TO BATTERY |
1 |
1512- |
|
4HG1-T |
ID=8.2 |
| 31 |
I0-91510 508-0 |
|
WASHER, LK, CABLE, STARTER TO BATTERY |
1 |
1512- |
|
4HG1-T |
ID=8.2 |
| 3 |
I7-42501 236-A |
|
HARNESS, CABLE, BATTERY TO STARTE |
1 |
1512- |
|
4JB1-TC |
(C) L=400, WB 3300MM |
| 6 |
I8-94128 319-A |
|
GROMMENT, BATTERY CABLE |
1 |
1512- |
|
ALL |
ID= 17 |
| 31 |
I0-91510 508-0 |
|
WASHER, LK, CABLE, STARTER TO BATTERY |
1 |
1512- |
|
4JB1-TC |
ID=8.2 |
| 5 |
I8-97015 782-1 |
|
CLIP, BATTERY CABLE TO BODY |
1 |
1512- |
|
4JB1-TC |
(A) ID=13 L=90, WB 2400MM |
| 3 |
I8-97695 750-A |
|
HARNESS, CABLE, BATTERY TO STARTE |
1 |
1512- |
|
4HG1-T |
(A) WB 3300MM |
| 5 |
I1-09700 813-0 |
|
CLIP, BATTERY CABLE TO BODY |
1 |
1512- |
|
4HG1-T |
(B) ID=13 H=18 L=20, WB 3300MM |
| 5 |
I1-09700 813-0 |
|
CLIP, BATTERY CABLE TO BODY |
1 |
1807- |
|
4HL1-TC |
ID=13 H=18 L=20 |
| 3 |
I8-97351 862-0 |
|
HARNESS, CABLE, BATTERY TO STARTE |
1 |
1512- |
|
4JB1-TC |
(D) L=900, WB 2400MM |
| 1 |
I7-42502 223-A |
|
CABLE, BATTERY |
1 |
1512- |
|
4HG1-T |
L=280 |
| 217 |
I5-09707 031-1 |
|
CLIP, BAND CABLE |
2 |
1512- |
|
4HG1-T |
L=140 |
| 12 |
I0-91180 108-0 |
|
NUT, BATTERY CABLE CLIP |
1 |
1512- |
|
ALL |
M8 |
| 3 |
I7-42501 236-A |
|
HARNESS, CABLE,BATTERY TO STARTER |
1 |
1807- |
|
4HL1-TC |
(B) L=200 |
| 42 |
I0-28650 625-0 |
|
BOLT, BRKT, BATTERY CABLE |
1 |
1512- |
|
4HG1-T |
M6X25, WB 2400MM |
| 30 |
I0-91110 508-0 |
|
NUT, CABLE , STARTER TO BATTERY |
1 |
1512- |
|
ALL |
M8 |
| 3 |
I8-97377 774-0 |
|
HARNESS, CABLE, BATTERY TO STARTE |
1 |
1512- |
|
4HG1-T |
(A) WB 2400MM |
| 3 |
I7-42501 235-A |
|
HARNESS, CABLE, BATTERY TO STARTE |
1 |
1512- |
|
4JB1-TC |
(C) L=300, WB 2400MM |
| 42 |
I0-28050 816-0 |
|
BOLT, BRKT,BATTERY CABLE |
1 |
1807- |
|
4HL1-TC |
M8X16 |
| 42 |
I8-97028 451-3 |
|
BOLT, BRKT,BATTERY CABLE |
1 |
1807- |
|
4HL1-TC |
|
| 5 |
I8-97015 782-1 |
|
CLIP, BATTERY CABLE TO BODY |
1 |
1512- |
|
4HG1-T |
(A) ID=13 L=90, WB 2400MM |
