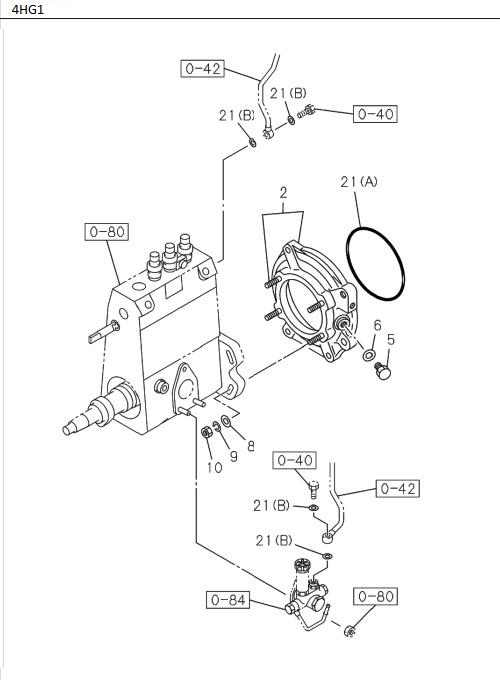

0-86 | MISCELLANEOUS PARTS, INJECTION PUMP
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-97123 609-0 | BRACKET, HSG & TIMER, INJ PUMP | 1 | 1512- | 4HG1-T | |||
| 9 | I1-09985 185-0 | WASHER, LK, HSG BRKT, INJ PUMP | 4 | 1512- | 4HG1-T | ID=10.2 | ||
| 6 | I1-15729 787-0 | GASKET, PLUG, INJ PUMP BRKT | 1 | 1512- | 4HG1-T | |||
| 5 | I8-97026 919-0 | PLUG, HSG BRKT, INJ PUMP | 1 | 1512- | 4HG1-T | |||
| 21 | I8-97039 200-1 | GASKET, INJ PUMP | 1 | 1807- | 4HL1-TC | |||
| 21 | I9-09572 014-0 | GASKET, INJ PUMP | 2 | 1512- | 4HG1-T | (B) ID=14.2 OD=23.0 | ||
| 10 | I5-15639 002-0 | NUT, HSG BRKT, INJ PUMP | 4 | 1512- | 4HG1-T | |||
| 8 | I9-09164 510-0 | WASHER, PL, HSG BRKT, INJ PUMP | 4 | 1512- | 4HG1-T | ID=10.5 | ||
| 21 | I8-97039 200-1 | GASKET, INJ PUMP | 1 | 1512- | 4HG1-T | (A) |
