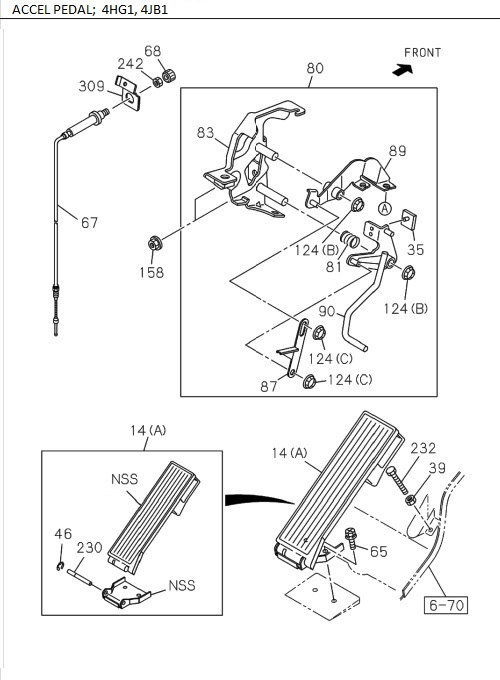

1-01 | ACCELERATOR PEDAL AND CONTROL
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 104 | I0-91180 108-0 | NUT, ENG CONT | 1 | 1512- | 4HG1-T | M8 | ||
| 124 | I8-94279 042-0 | NUT, LEVER | 2 | 1512- | 4JB1-TC | (A) ID=4.9 PUSH NUT | ||
| 83 | I8-98093 900-0 | BRACKET, CONT LINK | 1 | 1512- | 4JB1-TC | |||
| 447 | I0-91180 108-0 | NUT, BRKT, CONT WIRE | 2 | 1512- | ALL | M8 | ||
| 659 | I8-94462 219-0 | CLIP, ACCEL CONT CABLE | 1 | 1512- | 4HG1-T | (B) ID=10 H=40 | ||
| 385 | I0-91180 106-0 | NUT, CLIP | 1 | 1512- | 4HG1-T | (A) M6 | ||
| 309 | I8-98124 981-1 | BRACKET, IDLE CONT CABLE | 1 | 1512- | 4JB1-TC | |||
| 242 | I8-97853 233-0 | NUT, ACCEL PEDAL | 1 | 1512- | 4HG1-T | M18 | ||
| 230 | I8-97853 064-0 | PIN, JOINT, ACCEL PEDAL TO BRKT | 1 | 1512- | ALL | |||
| 175 | I0-28650 825-0 | BOLT, BRKT, ACCEL CABLE | 1 | 1512- | ALL | M8X25 | ||

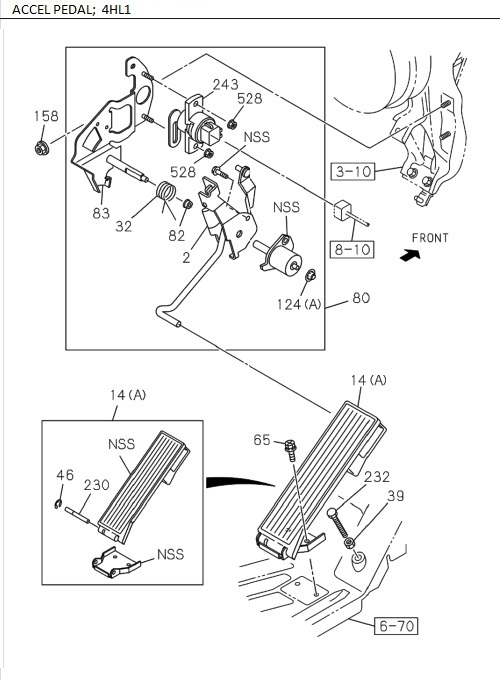

| 243 | I8-98131 263-0 | SENSOR, ACCEL | 1 | 1807- | 4HL1-TC | |||
| 67 | I8-98124 108-A | CABLE ASM, IDLE CONT | 1 | 1512- | 4HG1-T | |||
| 124 | I8-94368 617-0 | NUT, LEVER | 1 | 1807- | 4HL1-TC | ID=7.9 PUSH NUT | ||
| 89 | I8-97868 042-0 | LEVER, RELAY | 1 | 1512- | 4HG1-T | |||
| 272 | I0-28050 816-0 | BOLT, LEVER | 3 | 1512- | 4HG1-T | M8X16 | ||
| 68 | I8-97853 765-1 | KNOB, IDLE CONT | 1 | 1512- | 4HG1-T | |||
| 66 | I0-91180 108-0 | NUT, BRKT | 1 | 1512- | ALL | M8 | ||
| 170 | I8-98013 420-0 | KNOB | 1 | 1807- | 4HL1-TC | |||
| 242 | I8-97853 233-0 | NUT, ACCEL PEDAL | 1 | 1512- | 4JB1-TC | M18 | ||
| 314 | I8-98072 003-2 | BRACKET, ACCEL CABLE | 1 | 1512- | 4JB1-TC | (D) | ||
| 68 | I8-97853 765-1 | KNOB, IDLE CONT | 1 | 1512- | 4JB1-TC | |||
| 384 | I0-28650 825-0 | BOLT, CLIP, CONT CABLE | 2 | 1512- | ALL | (A) M8X25 | ||
| 659 | I0-95235 552-0 | CLIP, ACCEL CONT CABLE | 1 | 1512- | 4JB1-TC | (C) ID=16 L=28 | ||

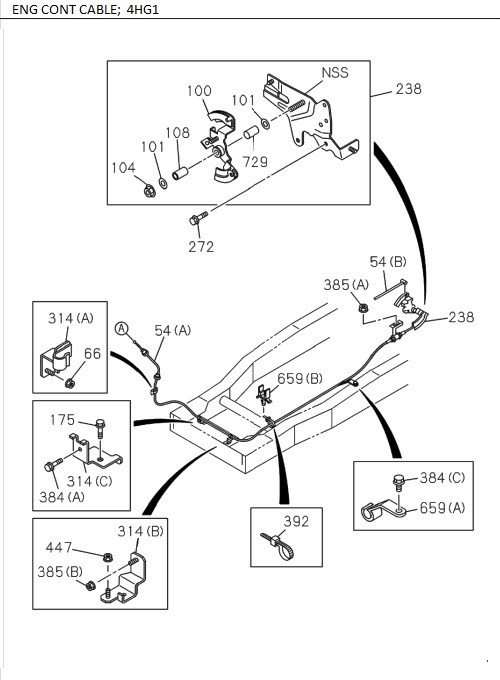

| 54 | I8-97695 479-A | CABLE, ENG CONT | 1 | 1512- | 4HG1-T | (A) | ||
| 314 | I8-98094 801-1 | BRACKET, ACCEL CABLE | 1 | 1512- | 4JB1-TC | (B) | ||
| 101 | I0-91610 708-0 | WASHER, ENG CONT | 2 | 1512- | 4HG1-T | |||
| 39 | I0-91110 508-0 | NUT, ACCEL PEDAL STOPPER | 1 | 1512- | ALL | M8 | ||
| 659 | I8-94178 110-0 | CLIP, ACCEL CONT CABLE | 1 | 1512- | 4HG1-T | (A) | ||
| 2 | I8-98002 158-2 | LEVER, ENG CONT | 1 | 1807- | 4HL1-TC | |||

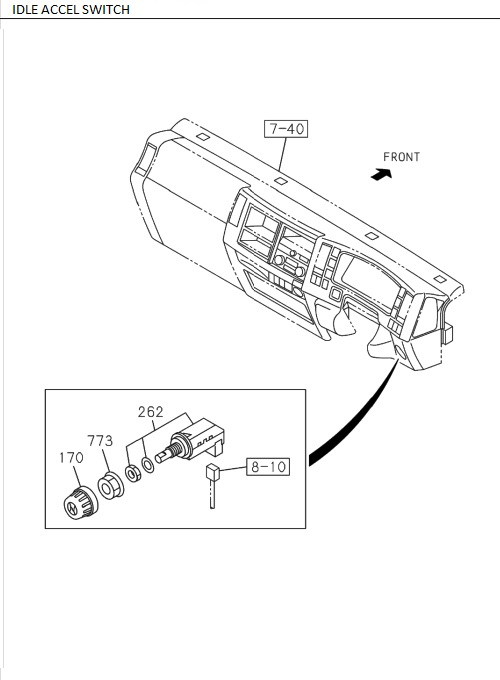

| 262 | I8-98013 418-0 | SWITCH, ACCEL,IDLE | 1 | 1807- | 4HL1-TC | |||
| 65 | I8-94310 730-0 | BOLT | 2 | 1512- | ALL | M8X16 | ||
| 124 | I8-97022 566-0 | NUT, LEVER | 2 | 1512- | 4JB1-TC | (B) ID=9.9 PUSH NUT | ||
| 87 | I8-97853 204-1 | LINK, ENG CONT | 1 | 1512- | 4HG1-T | |||
| 232 | I8-97378 461-0 | BOLT, STOPPER, ACCEL PEDAL | 1 | 1512- | ALL | M8X45 | ||
| 314 | I8-98124 144-0 | BRACKET, ACCEL CABLE | 1 | 1512- | 4HG1-T | (A) | ||
| 14 | I8-97853 061-A | PAD, PEDAL, ACCEL | 1 | 1512- | ALL | (A) | ||
| 80 | I8-98038 416-1 | LINK ASM, ENG CONT | 1 | 1512- | 4JB1-TC | |||
| 80 | I8-97387 358-3 | LINK ASM, ENG CONT | 1 | 1807- | 4HL1-TC | |||
| 314 | I8-98131 406-0 | BRACKET, ACCEL CABLE | 1 | 1512- | 4HG1-T | (C) | ||
| 314 | I8-98094 801-1 | BRACKET, ACCEL CABLE | 1 | 1512- | 4JB1-TC | (B) | ||
| 90 | I8-98059 513-0 | LEVER, RELAY, ENG CONT | 1 | 1512- | 4JB1-TC | |||
| 124 | I8-94279 042-0 | NUT, LEVER | 2 | 1512- | 4HG1-T | (A) ID=4.9 PUSH NUT | ||
| 309 | I8-98124 981-1 | BRACKET, IDLE CONT CABLE | 1 | 1512- | 4HG1-T | |||
| 80 | I8-98038 416-1 | LINK ASM, ENG CONT | 1 | 1512- | 4HG1-T | |||
| 54 | I7-11117 040-A | CABLE, ENG CONT | 1 | 1512- | 4HG1-T | (B) L=293 | ||
| 773 | I8-97352 127-0 | HOLDER, ACCEL PEDAL | 1 | 1807- | 4HL1-TC | |||
| 87 | I8-97853 204-1 | LINK, ENG CONT | 1 | 1512- | 4JB1-TC | |||
| 392 | I5-09707 030-1 | CLIP, ACCEL CONT CABLE | 1 | 1512- | ALL | L=250 | ||
| 384 | I0-28050 612-0 | BOLT, CLIP, CONT CABLE | 2 | 1512- | 4JB1-TC | (B) M6X12 | ||
| 32 | I8-98031 665-0 | SPRING, RETURN,ACCEL PEDAL | 1 | 1807- | 4HL1-TC | |||
| 385 | I0-91180 108-0 | NUT, CLIP | 2 | 1512- | 4HG1-T | (B) M8 | ||
| 35 | I8-97302 305-0 | STOPPER, ACCEL PEDAL | 1 | 1512- | ALL | |||
| 100 | I8-97118 737-0 | SHAFT ASM, ENG CONT | 1 | 1512- | 4HG1-T | |||
| 83 | I8-98023 885-2 | BRACKET, CONT LINK | 1 | 1807- | 4HL1-TC | |||
| 238 | I8-97118 729-0 | LEVER, ACCEL CONT | 1 | 1512- | 4HG1-T | |||
| 158 | I8-94279 060-0 | NUT, BRKT | 2 | 1512- | ALL | M8 | ||
| 729 | I8-97118 760-0 | COLLAR, JOINT | 1 | 1512- | 4HG1-T | |||
| 83 | I8-98093 900-0 | BRACKET, CONT LINK | 1 | 1512- | 4HG1-T | |||
| 81 | I8-98031 665-0 | SPRING, RETURN, ENG CONT LEVER | 1 | 1512- | ALL | |||
| 528 | I8-94169 022-0 | NUT, ACCEL SENSOR | 2 | 1807- | 4HL1-TC | M5 | ||
| 384 | I0-28650 820-0 | BOLT, CLIP, CONT CABLE | 1 | 1512- | 4HG1-T | (C) M8X20 | ||
| 82 | I8-97581 053-0 | BUSHING, ENG CONT LVR | 1 | 1807- | 4HL1-TC | |||
| 108 | I8-97120 004-0 | BUSHING, ENG CONT | 1 | 1512- | 4HG1-T | |||
| 67 | I8-98124 108-A | CABLE ASM, IDLE CONT | 1 | 1512- | 4JB1-TC | |||
| 124 | I8-97022 566-0 | NUT, LEVER | 2 | 1512- | 4HG1-T | (B) ID=9.9 PUSH NUT | ||
| 46 | I0-91805 504-0 | RING, SNAP, ACCEL CONT PEDAL | 1 | 1512- | ALL | ID=4 | ||
| 89 | I8-97868 042-0 | LEVER, RELAY | 1 | 1512- | 4JB1-TC | |||

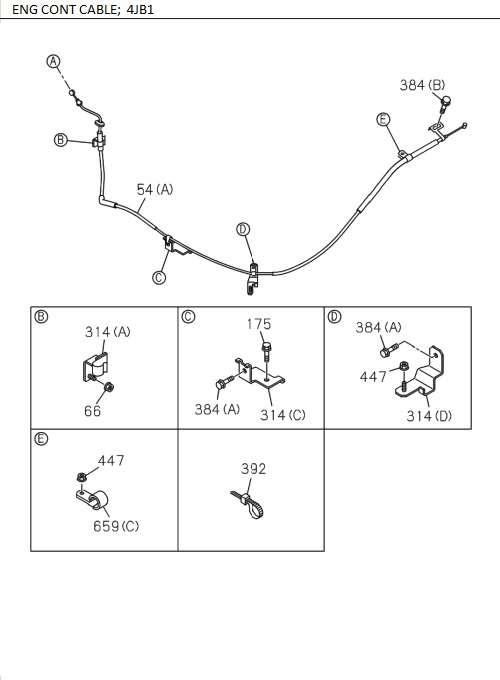

| 54 | I8-97695 478-A | CABLE, ENG CONT | 2 | 1512- | 4JB1-TC | (A) | ||
| 90 | I8-98059 513-0 | LEVER, RELAY, ENG CONT | 1 | 1512- | 4HG1-T |
