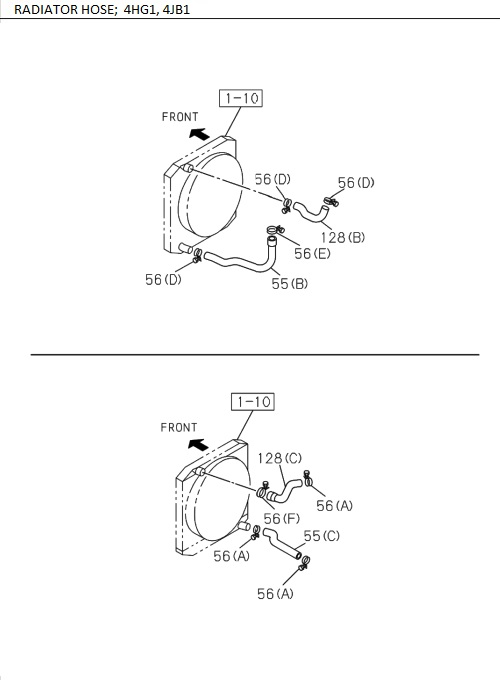

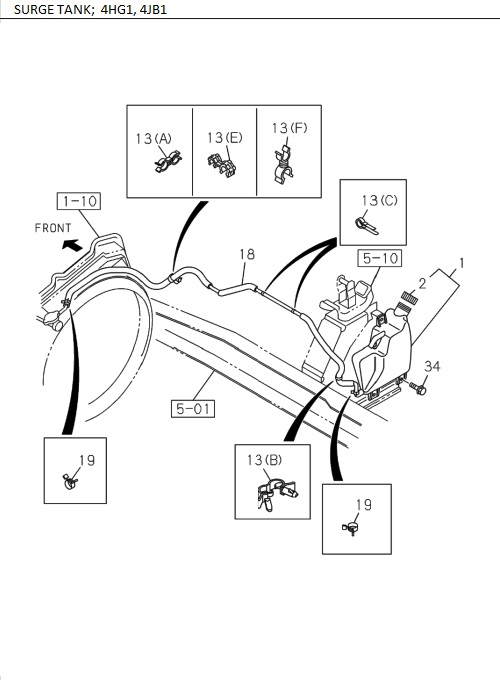

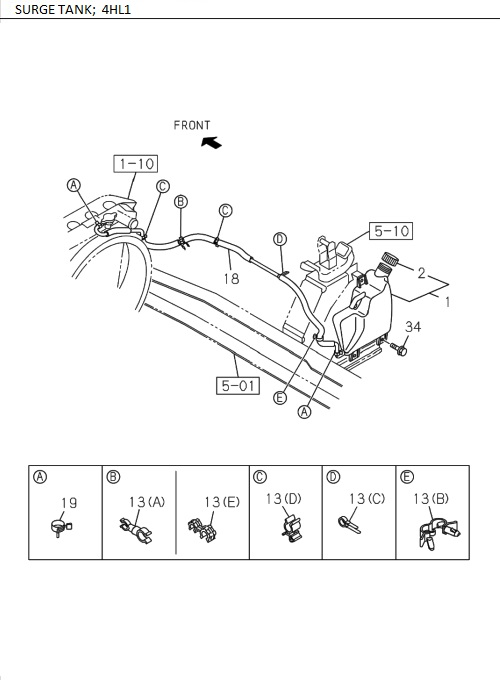

1-11 | RADIATOR HOSE AND SUB TANK
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I8-94438 996-0 | CLIP, HOSE,SURGE TANK | 1 | 1807- | 4HL1-TC | (A) ID=10 & 11 | ||
| 13 | I8-94416 613-0 | CLIP, HOSE, SURGE TANK | 1 | 1512- | 4HG1-T | (A) ID=10&12 | ||
| 18 | I8-97696 044-A | HOSE, RAD TO SURGE TANK | 1 | 1807- | 4HL1-TC | |||
| 128 | I7-63510 219-A | HOSE, WATER, RAD INL | 1 | 1512- | 4JB1-TC | |||
| 1 | I8-98178 179-0 | TANK, SURGE, RAD | 1 | 1512- | ALL | |||
| 56 | I8-98133 956-0 | CLIP, WATER HOSE,RAD | 2 | 1807- | 4HL1-TC | (A) ID=48 | ||
| 56 | I8-97245 216-0 | CLIP, WATER HOSE, RAD | 3 | 1512- | 4HG1-T | (A) ID=40 | ||
| 13 | I8-98029 256-0 | CLIP, HOSE,SURGE TANK | 2 | 1807- | 4HL1-TC | (D) ID=12 | ||
| 56 | I8-98133 956-0 | CLIP, WATER HOSE, RAD | 2 | 1512- | 4HG1-T | (C) ID=48 | ||
| 13 | I1-09709 290-0 | CLIP, HOSE, SURGE TANK | 1 | 1512- | ALL | (B) 13-18 L=14.5 | ||
| 55 | I8-97124 740-0 | HOSE, WATER, RAD OUTLET | 1 | 1512- | 4HG1-T | |||
| 56 | I8-98133 957-0 | CLIP, WATER HOSE,RAD | 1 | 1807- | 4HL1-TC | (C) ID=62 | ||
| 55 | I8-98270 180-0 | HOSE, WATER,RAD OUTLET | 1 | 1807- | 4HL1-TC | |||
| 56 | I8-98133 956-0 | CLIP, WATER HOSE, RAD | 2 | 1512- | 4JB1-TC | (C) ID=48 | ||
| 55 | I6-97124 740-0 | HOSE, WATER, RAD OUTLET | 1 | 1512- | 4HG1-T | (IADG) | ||
| 128 | I8-97162 163-A | HOSE, WATER, RAD INL | 1 | 1512- | 4HG1-T | |||
| 13 | I5-09700 319-0 | CLIP, HOSE, SURGE TANK | 1 | 1512- | ALL | (C ) ID=14 L=47 | ||
| 55 | I6-98270 180-0 | HOSE, WATER,RAD OUTLET | 1 | 1807- | 4HL1-TC | (IADG) | ||
| 56 | I8-97245 217-0 | CLIP, WATER HOSE, RAD | 1 | 1512- | 4HG1-T | (B) ID=50 | ||
| 56 | I1-09704 057-0 | CLIP, WATER HOSE,RAD | 1 | 1807- | 4HL1-TC | (B) ID=52 | ||
| 2 | I8-98178 074-0 | CAP, SURGE TANK | 1 | 1512- | ALL | |||
| 128 | I8-98270 176-0 | HOSE, WATER,RAD INL | 1 | 1807- | 4HL1-TC | |||
| 13 | I8-94438 996-0 | CLIP, HOSE, SURGE TANK | 1 | 1512- | 4HG1-T | (D) ID=10&11 | ||
| 128 | I6-98270 176-0 | HOSE, WATER,RAD INL | 1 | 1807- | 4HL1-TC | (IADG) | ||
| 55 | I8-97089 916-A | HOSE, WATER, RAD OUTLET | 1 | 1512- | 4JB1-TC | |||
| 13 | I8-94416 613-0 | CLIP, HOSE,SURGE TANK | 1 | 1807- | 4HL1-TC | (E) ID=10 & 12 | ||
| 18 | I8-97695 460-A | HOSE, RAD TO SURGE TANK | 1 | 1512- | 4HG1-T | |||
| 13 | I8-94400 865-0 | CLIP, HOSE, SURGE TANK | 1 | 1512- | 4JB1-TC | (E) ID=12&16.5 | ||
| 34 | I1-09030 042-0 | BOLT, RESERVE TANK | 3 | 1512- | ALL | M8X22 | ||
| 18 | I8-97695 593-A | HOSE, RAD TO SURGE TANK | 1 | 1512- | 4JB1-TC | |||
| 19 | I8-98150 358-0 | CLIP, HOSE, SURGE TANK | 2 | 1512- | ALL | ID=12 | ||
| 56 | I8-98133 958-0 | CLIP, WATER HOSE, RAD | 1 | 1512- | 4JB1-TC | (D) ID=42 |
