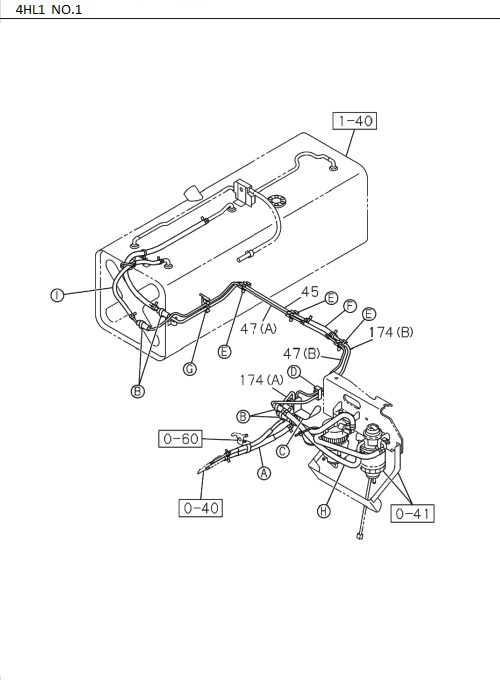

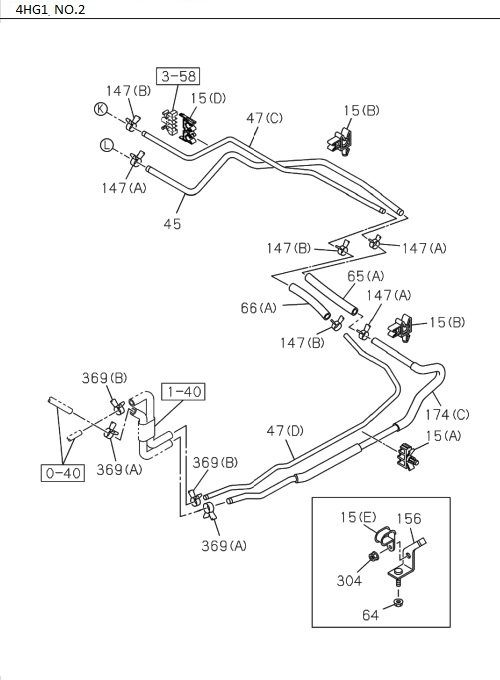

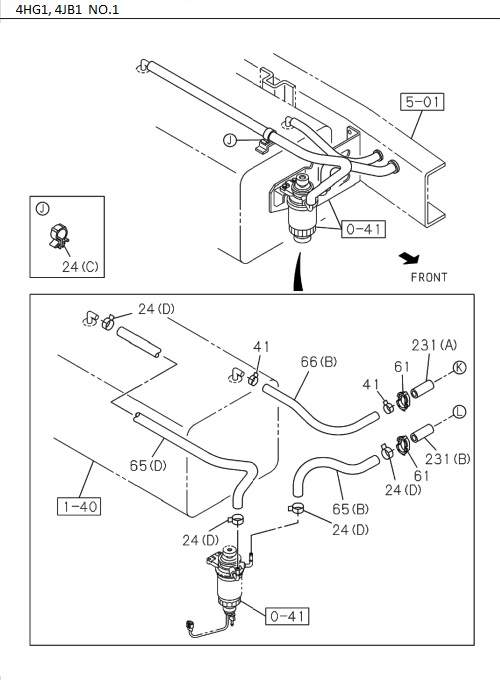

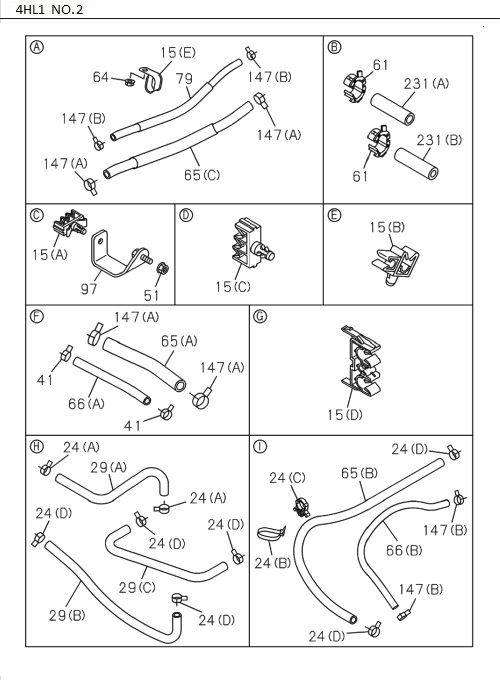

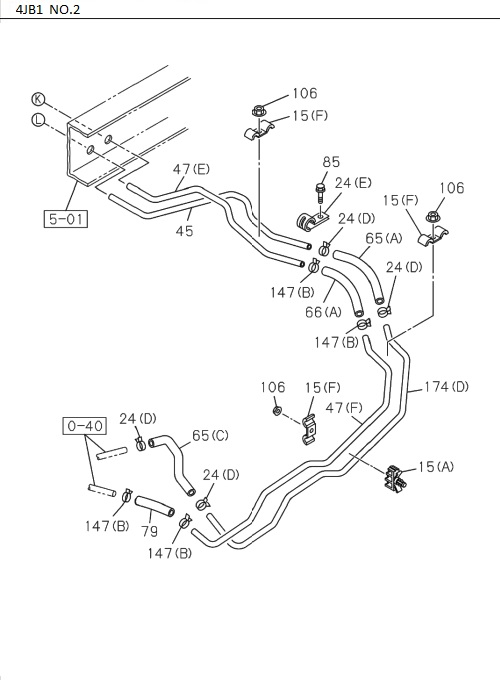

1-41 | FUEL PIPING, CHASSIS
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I8-98289 347-0 | CLIP, FUEL PIPE | 3 | 1512- | NLR | (E) 4JB1-TC, ID=11&7 L=15&15 | ||
| 47 | I8-98270 102-0 | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (A) NLR55T Lx, NLR55B Lx | ||
| 64 | I0-91180 106-0 | NUT, CLIP | 1 | 1512- | NMR | M6 | ||
| 47 | I8-97696 120-A | PIPE, FUEL,RETURN | 1 | 1807- | NMR81 | (B) | ||
| 85 | I0-28050 612-0 | BOLT, CLIP, FUEL HOSE | 1 | 1512- | NLR | 4JB1-TC, M6X12 | ||
| 24 | I8-98150 356-0 | CLIP, FUEL HOSE | 2 | 1807- | NMR81 | (E) ID=19 | ||
| 174 | I8-97696 118-A | PIPE, FUEL,FEED,FRT | 1 | 1807- | NMR81 | (B) | ||
| 47 | I8-97696 132-A | PIPE, FUEL, RETURN | 1 | 1512- | NMR71 | (A) | ||
| 24 | I8-97089 536-0 | CLIP, FUEL HOSE | 1 | 1512- | NMR71 | (C) | ||
| 47 | I8-98163 357-0 | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (B) NLR71-T | ||
| 97 | I8-97696 151-A | BRACKET, CLIP | 1 | 1807- | NMR81 | |||
| 24 | I8-98008 098-0 | CLIP, FUEL HOSE | 2 | 1807- | NMR81 | (D) ID=16 | ||
| 79 | I8-98259 685-0 | HOSE, FUEL,PUMP TO PIPE, RETURN | 1 | 1807- | NMR81 | |||
| 24 | I5-09707 030-1 | CLIP, FUEL HOSE | 1 | 1807- | NMR81 | (A) L=250 | ||
| 15 | I8-97215 437-0 | CLIP, FUEL PIPE | 3 | 1807- | NMR81 | (B) ID=12 & 6.35 | ||
| 66 | I0-01855 300-0 | HOSE, FUEL, RETURN PIPE | 1 | 1512- | ALL | (A) | ||
| 61 | I8-94128 319-A | GROMMET, PIPE TO FRAME | 2 | 1512- | ALL | ID=17 | ||
| 156 | I8-97087 834-3 | BRACKET, FUEL HOSE | 1 | 1512- | NLR | 4HG1-T | ||
| 231 | I8-94157 054-A | RUBBER, SUPPORT, FUEL PIPE | 1 | 1512- | ALL | (A) OD=15 L=50 | ||
| 156 | I8-97087 834-3 | BRACKET, FUEL HOSE | 1 | 1512- | NMR71 | |||
| 45 | I8-97363 968-A | PIPE, FUEL, DELIVERY | 1 | 1512- | NMR71 | |||
| 15 | I8-97215 437-0 | CLIP, FUEL PIPE | 3 | 1512- | NMR71 | (A) ID=12&6.35 | ||
| 45 | I8-97696 113-A | PIPE, FUEL,DELIVERY | 1 | 1807- | NMR81 | |||
| 47 | I8-97326 023-A | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (B) NLR71-BL, NLR71-TL | ||
| 65 | I8-97696 148-A | HOSE, FUEL,DELIVERY PIPE | 1 | 1807- | NMR81 | (C) | ||
| 65 | I0-01859 300-0 | HOSE, FUEL, DELIVERY PIPE | 1 | 1512- | ALL | (D) | ||
| 45 | I8-98270 101-0 | PIPE, FUEL, DELIVERY | 1 | 1512- | NLR | 4JB1-TC, WB 3300MM | ||
| 15 | I9-09916 239-1 | CLIP, FUEL PIPE | 1 | 1512- | NMR71 | (B) | ||
| 24 | I8-98008 098-0 | CLIP, FUEL HOSE | 4 | 1512- | NLR | (A) ID=16 | ||
| 24 | I5-09707 030-1 | CLIP, FUEL HOSE | 1 | 1512- | NMR71 | (B) L=250 | ||
| 304 | I7-05110 010-A | NUT, BRKT | 1 | 1512- | NMR | M10 | ||
| 147 | I8-98150 358-0 | CLIP, FUEL PIPE TO HOSE | 4 | 1512- | NLR | ID=12 | ||
| 15 | I9-09916 239-1 | CLIP, FUEL PIPE | 1 | 1512- | NLR | (B) 4HG1-T | ||
| 174 | I8-97225 253-0 | PIPE, FUEL, FEED, FRT | 1 | 1512- | NLR | 4JB1-TC, WB 3300MM | ||
| 47 | I8-97696 132-A | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (A) NLR71-BL, NLR71-TL | ||
| 147 | I8-98150 358-0 | CLIP, FUEL PIPE TO HOSE | 2 | 1807- | NMR81 | (B) ID=12 | ||
| 24 | I8-98008 098-0 | CLIP, FUEL HOSE | 4 | 1512- | NMR71 | (A) ID=16 | ||
| 24 | I5-09707 030-1 | CLIP, FUEL HOSE | 1 | 1512- | NLR | (B) L=250 | ||
| 15 | I8-97215 437-0 | CLIP, FUEL PIPE | 3 | 1512- | NLR | (A) 4HG1-T, ID=12&6.35 | ||
| 174 | I8-97326 017-A | PIPE, FUEL, FEED, FRT | 1 | 1512- | NLR | 4HG1-T, WB 3300MM | ||
| 45 | I8-97363 968-A | PIPE, FUEL, DELIVERY | 1 | 1512- | NLR | WB 3300MM | ||
| 45 | I8-97326 007-0 | PIPE, FUEL, DELIVERY | 1 | 1512- | NLR | 4HG1-T, WB 2400MM | ||
| 15 | I8-97326 157-1 | CLIP, FUEL PIPE | 1 | 1512- | NMR71 | (D) ID=10X2 or 12X2&6.35 | ||
| 24 | I8-97089 536-0 | CLIP, FUEL HOSE | 1 | 1807- | NMR81 | (C) | ||
| 47 | I7-33337 095-0 | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (A) NLR55-B, NLR55-T | ||
| 47 | I8-97354 091-0 | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (B) NLR55T Lx, NLR55B Lx | ||
| 66 | I0-01855 300-0 | HOSE, FUEL, RETURN PIPE | 1 | 1512- | ALL | (B) | ||
| 24 | I8-97089 536-0 | CLIP, FUEL HOSE | 1 | 1512- | NLR | (C) | ||
| 15 | I8-97064 484-1 | CLIP, FUEL PIPE | 2 | 1512- | NLR | (C) ID=10&6.4&4.8 | ||
| 47 | I8-97696 115-A | PIPE, FUEL,RETURN | 1 | 1807- | NMR81 | (A) | ||
| 15 | I8-97064 484-1 | CLIP, FUEL PIPE | 1 | 1807- | NMR81 | (A) ID=10 & 6.4 & 4.8 | ||
| 47 | I7-33337 103-0 | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (B) NLR55-B, NLR55-T | ||
| 24 | I5-09707 031-1 | CLIP, FUEL HOSE | 1 | 1807- | NMR81 | (B) L=140 | ||
| 65 | I0-01859 300-0 | HOSE, FUEL, DELIVERY PIPE | 1 | 1512- | ALL | (B) | ||
| 147 | I8-98150 358-0 | CLIP, FUEL PIPE TO HOSE | 4 | 1512- | NMR71 | ID=12 | ||
| 47 | I8-97326 023-A | PIPE, FUEL, RETURN | 1 | 1512- | NMR71 | (B) | ||
| 79 | I0-01855 300-0 | HOSE, FUEL, PUMP TO PIPE, RETRUN | 1 | 1512- | NLR | 4JB1-TC, L=150 | ||
| 304 | I7-05110 010-A | NUT, BRKT | 1 | 1512- | NLR | 4HG1-T, M10 | ||
| 41 | I8-98150 358-0 | CLIP, FUEL PIPE,FUEL TANK | 2 | 1807- | NMR81 | ID=12 | ||
| 15 | I8-97305 169-1 | CLIP, FUEL PIPE | 1 | 1807- | NMR81 | (C) ID=12 & 6.35 & 4.76 | ||
| 65 | I0-01859 300-0 | HOSE, FUEL, DELIVERY PIPE | 1 | 1512- | ALL | (A) | ||
| 29 | I8-98345 858-0 | HOSE, FUEL | 1 | 1807- | NMR81 | (C) | ||
| 174 | I8-97326 017-A | PIPE, FUEL, FEED, FRT | 1 | 1512- | NMR71 | |||
| 231 | I8-97077 629-A | RUBBER, SUPPORT, FUEL PIPE | 1 | 1512- | ALL | (B) OD=15 L=50 | ||
| 15 | I9-09916 239-1 | CLIP, FUEL PIPE | 1 | 1807- | NMR81 | (E) | ||
| 24 | I5-83574 045-0 | CLIP, FUEL HOSE | 1 | 1512- | NLR | (D) 4JB1-TC, ID=22 L=22 | ||
| 51 | I0-91180 110-0 | NUT, CLIP,PIPE | 1 | 1807- | NMR81 | M10 | ||
| 174 | I8-98163 356-0 | PIPE, FUEL, FEED, FRT | 1 | 1512- | NLR | 4HG1-T, WB 2400MM | ||
| 15 | I8-97326 157-1 | CLIP, FUEL PIPE | 1 | 1512- | NLR | (D) WB 3300MM, ID=10X2 or 12X2&6.35 | ||
| 29 | I8-97497 028-A | HOSE, FUEL | 1 | 1807- | NMR81 | (A) | ||
| 29 | I8-97497 029-A | HOSE, FUEL | 1 | 1807- | NMR81 | (B) | ||
| 147 | I8-98008 098-0 | CLIP, FUEL PIPE TO HOSE | 2 | 1807- | NMR81 | (A) ID=16 | ||
| 65 | I8-98289 250-A | HOSE, FUEL, DELIVERY PIPE | 1 | 1512- | NLR | (C) 4JB1-TC | ||
| 174 | I8-97260 217-A | PIPE, FUEL, FEED, FRT | 1 | 1512- | NLR | 4JB1-TC, WB 2400MM | ||
| 45 | I8-97075 972-A | PIPE, FUEL, DELIVERY | 1 | 1512- | NLR | WB 2400MM | ||
| 174 | I8-97696 117-A | PIPE, FUEL,FEED,FRT | 1 | 1807- | NMR81 | (A) | ||
| 106 | I0-91180 106-0 | NUT, FUEL PIPE | 3 | 1512- | NLR | 4JB1-TC, M6 | ||
| 15 | I8-97064 484-1 | CLIP, FUEL PIPE | 2 | 1512- | NMR71 | (C) ID=10&6.4&4.8 | ||
| 15 | I8-97326 157-1 | CLIP, FUEL PIPE | 1 | 1807- | NMR81 | (D) ID=10X2 OR 12X2 & 6.35 | ||
| 64 | I0-91180 106-0 | NUT, CLIP | 1 | 1512- | NLR | 4HG1-T, M6 | ||
| 47 | I8-97326 012-0 | PIPE, FUEL, RETURN | 1 | 1512- | NLR | (A) NLR71-T |
