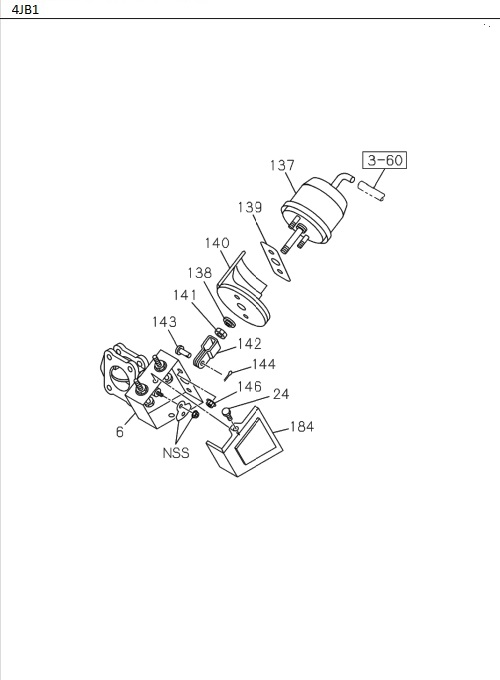

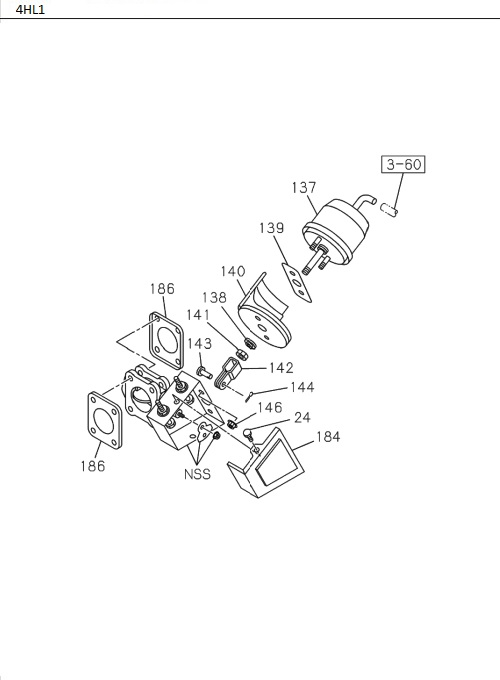

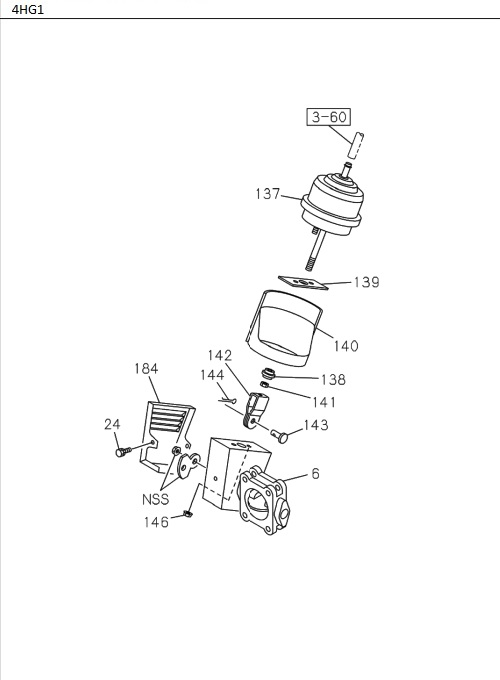

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 140 | I8-97257 283-0 | INSULATOR, EXH BRKT VLV | 1 | 1512- | NMR71 | |||
| 144 | I8-97029 428-0 | PIN, SPLIT, EXH BRKT VLV | 1 | 1512- | ALL | |||
| 140 | I8-97257 283-0 | INSULATOR, EXH BRKT VLV | 1 | 1512- | NLR | |||
| 6 | I8-97308 581-1 | VALVE, EXH BRAKE | 1 | 1512- | NMR71 | |||
| 141 | I8-94311 428-0 | NUT, CLEVIS,EXH BRK VLV | 1 | 1807- | NMR81 | |||
| 137 | I8-98269 461-0 | CHAMBER, POWER | 1 | 1512- | NMR71 | |||
| 24 | I8-97065 029-0 | BOLT, COVER | 2 | 1512- | ALL | |||
| 141 | I9-09111 508-A | NUT, CLEVS, EXH BRKT VLV | 1 | 1512- | NLR | |||
| 143 | I8-94311 452-0 | PIN, EXH BRKT VLV | 1 | 1512- | ALL | |||
| 184 | I8-98070 514-0 | COVER, BRKT | 1 | 1807- | NMR81 | |||
| 6 | I8-97369 945-1 | VALVE, EXH BRAKE | 1 | 1512- | NLR | 4JB1-TC | ||
| 6 | I8-97308 581-1 | VALVE, EXH BRAKE | 1 | 1512- | NLR | |||
| 146 | I0-91180 208-0 | NUT, EXH BRKT VLV | 2 | 1512- | NLR | |||
| 184 | I8-97311 447-0 | COVER, BRKT | 1 | 1512- | NLR | |||
| 137 | I8-98269 461-0 | CHAMBER, POWER | 1 | 1512- | NLR | |||
| 186 | I8-98022 713-0 | GASKET, EXH BRK VLV,BODY | 2 | 1807- | NMR81 | |||
| 137 | I8-98368 749-0 | CHAMBER, POWER | 1 | 1807- | NMR81 | |||
| 146 | I0-91180 208-0 | NUT, EXH BRKT VLV | 2 | 1512- | NMR71 | |||
| 139 | I8-94328 234-0 | GASKET, EXH BRKT VLV | 1 | 1512- | ALL | |||
| 140 | I8-97129 576-0 | INSULATOR, EXH BRK VLV | 1 | 1807- | NMR81 | |||
| 146 | I0-91180 108-0 | NUT, EXH BRK VLV | 2 | 1807- | NMR81 | M8 | ||
| 137 | I8-97173 327-0 | CHAMBER, POWER | 1 | 1512- | NLR | 4JB1-TC | ||
| 142 | I8-97177 311-0 | CLEVIS, EXH BRKT VLV | 1 | 1512- | ALL | |||
| 138 | I8-94311 446-0 | BEARING, EXH BRKT VLV | 1 | 1512- | ALL | |||
| 140 | I8-97079 006-0 | INSULATOR, EXH BRKT VLV | 1 | 1512- | NLR | 4JB1-TC | ||
| 184 | I8-97311 447-0 | COVER, BRKT | 1 | 1512- | NMR71 | |||
| 141 | I9-09111 508-A | NUT, CLEVS, EXH BRKT VLV | 1 | 1512- | NMR71 |
