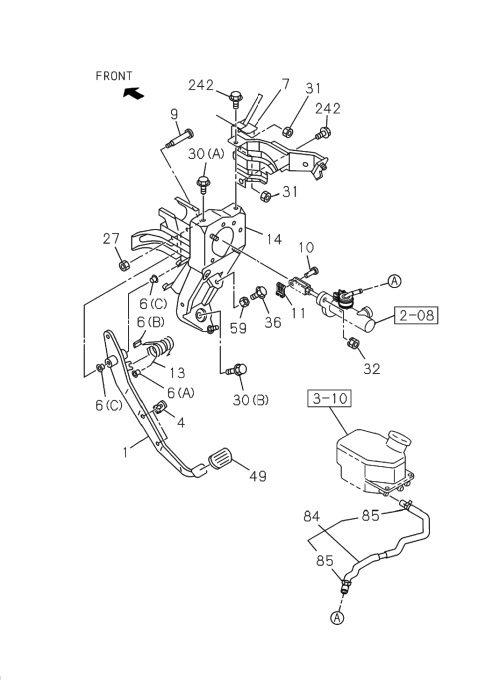

2-03 | CLUTCH PEDAL AND CONTROL
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I8-94279 050-0 | NUT, BRKT TO CLU M/CYL | 2 | 1512- | ALL | M8 | ||
| 31 | I8-94279 050-0 | NUT, MTG BRKT TO BODY | 2 | 1512- | ALL | M8 | ||
| 14 | I8-98034 750-0 | BRACKET ASM, CLU PEDAL MTG | 1 | 1512- | ALL | EXC. POWER ASSIST CLU | ||
| 11 | I8-98007 161-0 | PIN, SNAP, PUSH ROD TO PEDAL | 1 | 1512- | ALL | |||
| 6 | I8-94238 596-0 | BUSHING, CLU PEDAL | 2 | 1512- | ALL | (A) | ||
| 13 | I8-98034 014-0 | SPRING, ASSIST, CLU PEDAL | 1 | 1512- | NMR71 | EXC. POWER ASSIST CLU | ||
| 1 | I8-98002 484-0 | PEDAL, CLU | 1 | 1512- | NMR71 | POWER ASSIST CLU | ||
| 14 | I8-98002 482-4 | BRACKET ASM, CLU PEDAL MTG | 1 | 1512- | NLR | POWER ASSIST CLU | ||
| 1 | I8-98002 484-0 | PEDAL, CLU | 1 | 1512- | NLR | POWER ASSIST CLU | ||
| 1 | I8-98034 754-0 | PEDAL, CLU | 1 | 1512- | NMR71 | EXC. POWER ASSIST CLU | ||
| 7 | I8-98029 186-4 | BRACKET, CLU PEDAL | 1 | 1512- | ALL | |||
| 4 | I8-97853 534-1 | STOPPER, CLU PEDAL | 2 | 1512- | ALL | |||
| 13 | I8-98374 602-0 | SPRING, ASSIST,CLU PEDAL | 1 | 1807- | NMR81 | |||
| 13 | I8-98023 621-1 | SPRING, ASSIST, CLU PEDAL | 1 | 1512- | NLR | POWER ASSIST CLU | ||
| 36 | I0-20851 035-0 | BOLT, STOPPER, CLU PEDAL | 1 | 1512- | NLR | M10X35 | ||
| 6 | I8-97853 619-0 | BUSHING, CLU PEDAL | 2 | 1512- | ALL | (B) EXC. POWER ASSIST CLU | ||
| 61 | I8-94279 050-0 | NUT, BOOSTER TO BRKT | 4 | 1512- | ALL | M8, POWER ASSIST CLU | ||
| 84 | I8-98153 001-5 | HOSE, RUBBER, CLU LINE | 1 | 1512- | NMR71 | POWER ASSIST CLU | ||
| 49 | I8-97853 413-2 | RUBBER, PAD, CLU PEDAL | 1 | 1512- | ALL | |||
| 6 | I8-97853 620-0 | BUSHING, CLU PEDAL | 2 | 1512- | ALL | (C) EXC. POWER ASSIST CLU | ||
| 84 | I8-98217 270-1 | HOSE, RUBBER, CLU LINE | 1 | 1512- | ALL | EXC. POWER ASSIST CLU | ||
| 30 | I8-97313 188-0 | BOLT, CLU MTG BRKT | 1 | 1512- | ALL | (B) M10X22 | ||
| 242 | I0-28450 816-0 | BOLT, BRKT, CLUTCH | 2 | 1512- | ALL | M8X16 | ||
| 59 | I0-91110 510-0 | NUT, CLU PEDAL ADJ | 1 | 1512- | NLR | M10 | ||
| 13 | I8-98023 621-1 | SPRING, ASSIST, CLU PEDAL | 1 | 1512- | NLR | POWER ASSIST CLU | ||
| 1 | I8-98034 754-0 | PEDAL, CLU | 1 | 1512- | NLR | 4HG1-T, EXC. POWER ASSIST CLU | ||
| 14 | I8-98002 482-4 | BRACKET ASM, CLU PEDAL MTG | 1 | 1512- | NMR71 | POWER ASSIST CLU | ||
| 9 | I8-97866 667-0 | PIN, CLU PEDAL | 1 | 1512- | ALL | |||
| 27 | I0-91380 010-0 | NUT, FULCRUM PIN | 1 | 1512- | ALL | M10 LOCK NUT | ||
| 1 | I8-98374 437-0 | PEDAL, CLU | 1 | 1807- | NMR81 | |||
| 85 | I8-98168 080-0 | CLIP, HOSE TO M/CYL | 2 | 1512- | ALL | |||
| 30 | I0-28661 025-0 | BOLT, CLU MTG BRKT | 1 | 1512- | ALL | (A) M10X25 | ||
| 84 | I8-98153 001-5 | HOSE, RUBBER, CLU LINE | 1 | 1512- | NLR | POWER ASSIST CLU | ||
| 1 | I8-98034 752-0 | PEDAL, CLU | 1 | 1512- | NLR | 4JB1-TC | ||
| 10 | I8-98147 657-0 | PIN, CLU PEDAL | 1 | 1512- | ALL | |||
| 13 | I8-98034 014-0 | SPRING, ASSIST, CLU PEDAL | 1 | 1512- | NMR71 | EXC. POWER ASSIST CLU |
