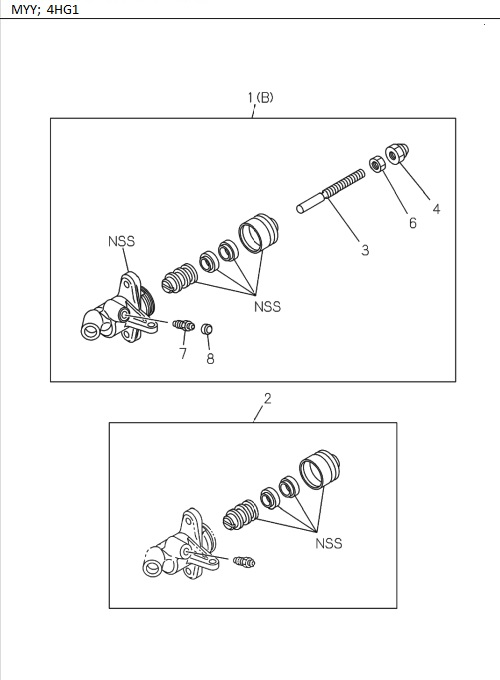

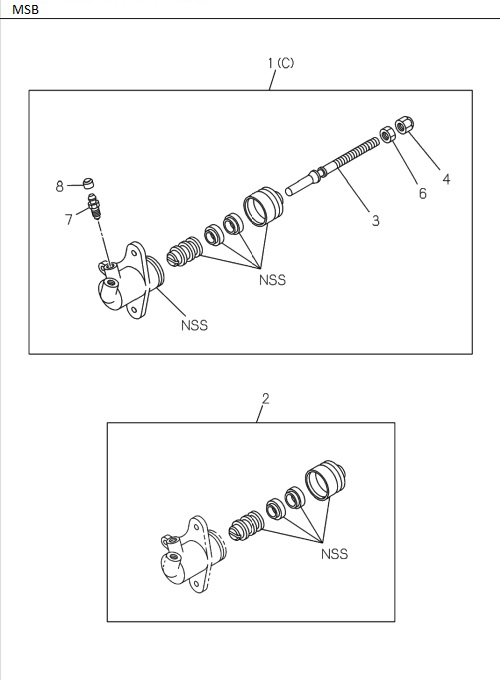

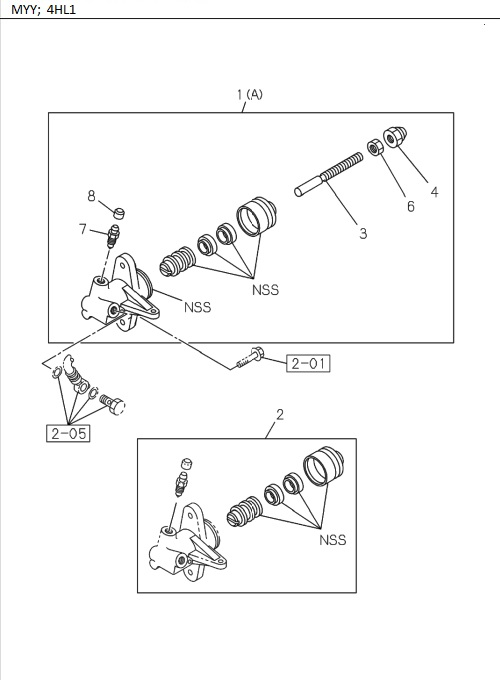

2-06 | CLUTCH SLAVE CYLINDER
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 6 | I0-91111 510-0 | NUT, LK, ROD END | 1 | 1512- | MYY5T | M8 | ||
| 1 | I8-98041 292-1 | CYLINDER, SLAVE, CLU | 1 | 1512- | MSB5M | (B) | ||
| 2 | I5-87831 204-0 | REPAIR KIT, CLU SLAVE CYL | 1 | 1512- | MYY5T | |||
| 1 | I6-98041 292-0 | CYLINDER, SLAVE, CLU | 1 | 1512- | MSB5M | (IADG) (B) | ||
| 3 | I8-98061 132-0 | ROD, PUSH, SLAVE CYL | 1 | 1512- | MYY6S | |||
| 4 | I9-09644 005-0 | NUT, ADJ, SLAVE CYL PUSH ROD | 1 | 1512- | MSB5M | |||
| 3 | I8-94459 698-0 | ROD, PUSH, SLAVE CYL | 1 | 1512- | MSB5M | |||
| 7 | I8-98020 477-0 | SCREW, BLEEDER, SLAVE CYL | 1 | 1512- | ALL | M8X10 | ||
| 4 | I8-98061 149-0 | NUT, ADJ, SLAVE CYL PUSH ROD | 1 | 1512- | MYY5T | |||
| 6 | I9-09111 508-A | NUT, LK, ROD END | 1 | 1512- | MSB5M | M10 | ||
| 8 | I8-97940 638-0 | CAP, BLEEDER, SLAVE CYL | 1 | 1512- | ALL | OD=10 | ||
| 2 | I6-87831 204-0 | REPAIR KIT, CLU SLAVE CYL | 1 | 1512- | MYY5T | (IADG) | ||
| 1 | I8-98041 292-1 | CYLINDER, SLAVE, CLU | 1 | 1512- | MSB5S | (B) | ||
| 2 | I5-87831 402-0 | REPAIR KIT, CLU SLAVE CYL | 1 | 1512- | MSB5M | |||
| 2 | I5-87831 402-0 | REPAIR KIT, CLU SLAVE CYL | 1 | 1512- | MSB5S | |||
| 1 | I6-98004 780-0 | CYLINDER, SLAVE, CLU | 1 | 1512- | MYY6S | (IADG) (A) | ||
| 1 | I8-98040 043-1 | CYLINDER, SLAVE,CLU | 1 | 1807- | MYY6S | NMR81 | ||
| 3 | I8-98061 132-0 | ROD, PUSH, SLAVE CYL | 1 | 1512- | MYY5T | |||
| 2 | I6-87831 204-0 | REPAIR KIT, CLU SLAVE CYL | 1 | 1512- | MYY6S | (IADG) | ||
| 4 | I9-09644 005-0 | NUT, ADJ, SLAVE CYL PUSH ROD | 1 | 1512- | MSB5S | |||
| 1 | I6-98004 780-0 | CYLINDER, SLAVE, CLU | 1 | 1512- | MYY5T | (IADG) (A) | ||
| 6 | I0-91111 510-0 | NUT, LK, ROD END | 1 | 1512- | MYY6S | M8 | ||
| 3 | I8-94459 698-0 | ROD, PUSH, SLAVE CYL | 1 | 1512- | MSB5S | |||
| 1 | I8-98004 780-1 | CYLINDER, SLAVE, CLU | 1 | 1512- | MYY5T | (A) | ||
| 1 | I6-98041 292-0 | CYLINDER, SLAVE, CLU | 1 | 1512- | MSB5S | (IADG) (B) | ||
| 6 | I9-09111 508-A | NUT, LK, ROD END | 1 | 1512- | MSB5S | M10 | ||
| 4 | I8-98061 149-0 | NUT, ADJ, SLAVE CYL PUSH ROD | 1 | 1512- | MYY6S | |||
| 2 | I5-87831 204-0 | REPAIR KIT, CLU SLAVE CYL | 1 | 1512- | MYY6S | |||
| 1 | I8-98004 780-1 | CYLINDER, SLAVE, CLU | 1 | 1512- | MYY6S | (A) |
