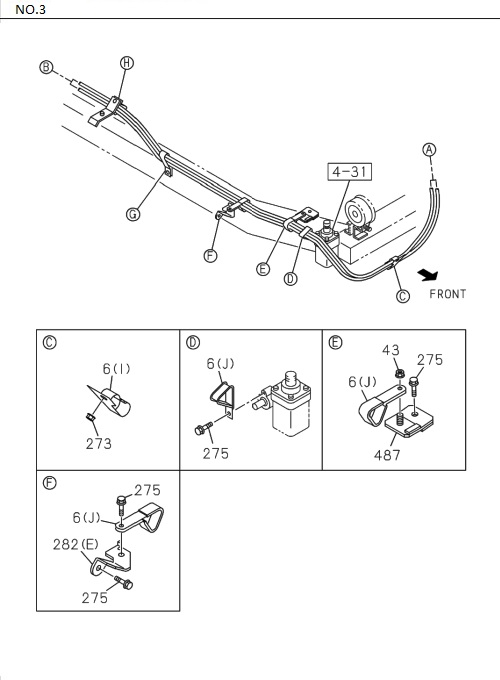

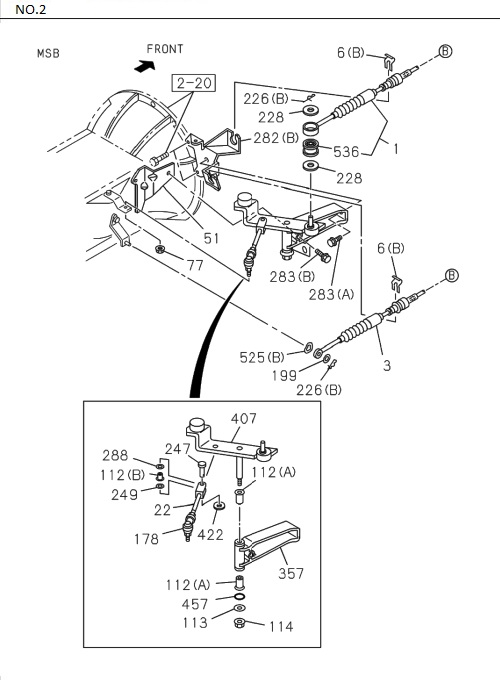

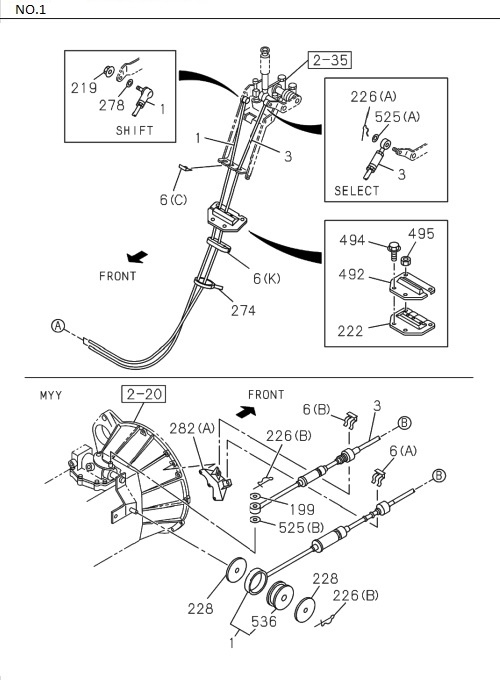

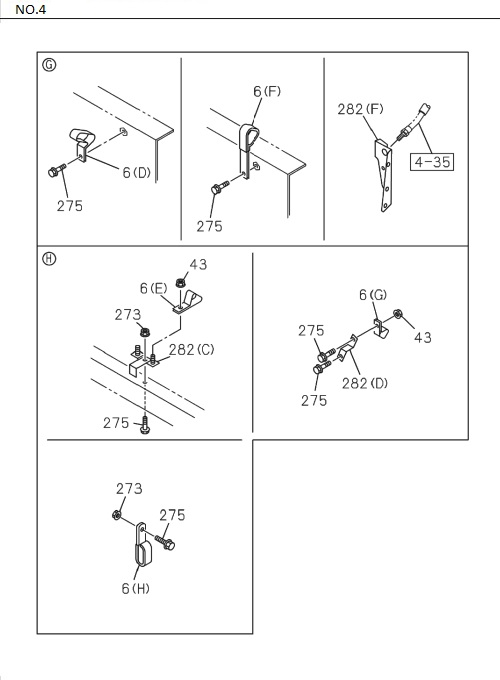

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 178 | I1-09760 118-1 | JOINT, BALL, LINK ROD | 1 | 1512- | MSB5S | L=45.5 | ||
| 3 | I8-97696 093-A | CABLE, SELECT,TRANS CONT | 1 | 1807- | NMR81 | 4HL1-TC | ||
| 283 | I0-28651 035-0 | BOLT, RELAY LEVER | 1 | 1512- | MSB5S | (B) M10X35 | ||
| 282 | I8-97311 441-1 | BRACKET, TRANS SIDE | 1 | 1512- | MYY5T | (A) | ||
| 492 | I1-33657 674-0 | RETAINER, GROMMET | 1 | 1512- | ALL | |||
| 357 | I8-97182 166-0 | BRACKET, RELAY LEVER | 1 | 1512- | MSB5S | |||
| 51 | I8-98189 335-1 | BRACKET, GEAR CONT | 1 | 1512- | MSB5S | |||
| 288 | I8-97373 819-0 | ASHER, CABLE TO RELAY LEVER | 1 | 1512- | MSB5S | |||
| 6 | I8-97011 448-0 | CLIP, CABLE | 2 | 1512- | ALL | (C) | ||
| 274 | I5-09707 031-1 | CLIP, CONT CABLE | 1 | 1512- | ALL | L=140 | ||
| 273 | I0-91180 108-0 | NUT, CONT CABLE | 1 | 1512- | ALL | M8 | ||
| 114 | I0-91180 110-0 | NUT, RELAY LEVER | 1 | 1512- | MSB5S | M10 | ||
| 282 | I8-97311 441-1 | BRACKET, TRANS SIDE | 1 | 1512- | MYY6S | (A) | ||
| 113 | I0-91610 610-0 | WASHER, RELAY LEVER | 1 | 1512- | MSB5M | ID=10.5 OD=22 T=1.6 | ||
| 77 | I8-97358 973-0 | NUT, LK. BALL JOINT, CONT ROD | 1 | 1512- | MSB5M | |||
| 283 | I0-28651 025-0 | BOLT, RELAY LEVER | 1 | 1512- | MSB5M | (A) M10X25 | ||
| 43 | I0-91180 108-0 | NUT, BRKT | 2 | 1512- | MYY6S | M8 | ||
| 1 | I8-97695 481-A | CABLE, SHIFT, TRANS CONT | 1 | 1512- | MYY6S | 4HG1-T | ||
| 6 | I1-09701 209-1 | CLIP, CABLE | 1 | 1512- | MYY5T | (A) D=22.2 | ||
| 6 | I8-97039 295-0 | CLIP, CABLE | 1 | 1512- | MYY6S | (E) | ||
| 6 | I8-98023 697-0 | CLIP, CABLE | 1 | 1512- | MSB5M | (H) | ||
| 457 | I9-09561 114-0 | GASKET | 2 | 1512- | MSB5M | ID=13.8 | ||
| 3 | I8-97695 483-A | CABLE, SELECT, TRANS CONT | 1 | 1512- | MYY5T | |||
| 282 | I8-97013 217-3 | BRACKET, TRANS SIDE | 1 | 1512- | MSB5M | (B) | ||
| 278 | I0-91541 208-0 | WASHER, LK, SHIFT WIRE | 1 | 1512- | ALL | ID=8.4 | ||
| 222 | I8-97065 212-1 | GROMMET, CABLE | 1 | 1512- | ALL | |||
| 178 | I1-09760 118-1 | JOINT, BALL, LINK ROD | 1 | 1512- | MSB5M | L=45.5 | ||
| 228 | I8-97182 975-0 | WASHER, PL, SHIFT CABLE | 2 | 1512- | ALL | ID=8.2 OD=40 | ||
| 6 | I8-97093 491-1 | CLIP, CABLE | 1 | 1512- | ALL | (K) | ||
| 407 | I8-97174 055-2 | LEVER, RELAY, SHIFT | 1 | 1512- | MSB5M | |||
| 247 | I8-97373 728-0 | PIN, CONT ROD TO LEVER | 1 | 1512- | MSB5M | |||
| 6 | I8-97039 517-1 | CLIP, CABLE | 1 | 1512- | MYY5T | (F) | ||
| 275 | I0-28050 816-0 | BOLT, CONT CABLE CLIP | 1 | 1512- | ALL | M8X16 | ||
| 357 | I8-97182 166-0 | BRACKET, RELAY LEVER | 1 | 1512- | MSB5M | |||
| 282 | I8-97013 217-3 | BRACKET, TRANS SIDE | 1 | 1512- | MSB5S | (B) | ||
| 1 | I8-97695 481-A | CABLE, SHIFT, TRANS CONT | 1 | 1512- | MYY5T | |||
| 282 | I8-97205 549-1 | BRACKET, TRANS SIDE | 1 | 1512- | MYY5T | (D) | ||
| 199 | I0-91610 508-0 | WASHER, PL, SELECT | 1 | 1512- | ALL | ID=8.4 OD=16 | ||
| 283 | I0-28651 035-0 | BOLT, RELAY LEVER | 1 | 1512- | MSB5M | (B) M10X35 | ||
| 114 | I0-91180 110-0 | NUT, RELAY LEVER | 1 | 1512- | MSB5M | M10 | ||
| 6 | I8-98023 697-0 | CLIP, CABLE | 1 | 1512- | MSB5S | (H) | ||
| 282 | I8-97028 496-1 | BRACKET, TRANS SIDE | 1 | 1512- | MYY6S | (C) | ||
| 77 | I8-97358 973-0 | NUT, LK. BALL JOINT, CONT ROD | 1 | 1512- | MSB5S | |||
| 282 | I8-97205 549-1 | BRACKET, TRANS SIDE | 1 | 1512- | MYY6S | (D) | ||
| 22 | I8-97134 286-1 | ROD, CONT, SHIFT | 1 | 1512- | MSB5M | |||
| 3 | I8-97695 482-A | CABLE, SELECT, TRANS CONT | 1 | 1512- | MSB5M | |||
| 247 | I8-97373 728-0 | PIN, CONT ROD TO LEVER | 1 | 1512- | MSB5S | |||
| 112 | I8-97085 157-0 | BUSHING, RELAY LEVER | 1 | 1512- | MSB5S | (B) | ||
| 422 | I8-97373 729-0 | NUT, CONT ROD TO LEVER | 1 | 1512- | MSB5M | |||
| 226 | I8-94157 841-0 | PIN, SHIFT CABLE | 1 | 1512- | ALL | (A) L=27.7 | ||
| 43 | I0-91180 108-0 | NUT, BRKT | 2 | 1512- | MYY5T | M8 | ||
| 249 | I9-09851 889-0 | WASHER, RUBBER, CONT ROD TO LEVER | 1 | 1512- | ALL | ID=8.5 T=1.5 | ||
| 112 | I8-97174 057-0 | BUSHING, RELAY LEVER | 2 | 1512- | MSB5S | (A) | ||
| 1 | I8-97696 090-A | CABLE, SHIFT,TRANS CONT | 1 | 1807- | MYY6S | 4HL1-TC | ||
| 3 | I8-97695 482-A | CABLE, SELECT, TRANS CONT | 1 | 1512- | MSB5S | |||
| 22 | I8-97134 286-1 | ROD, CONT, SHIFT | 1 | 1512- | MSB5S | |||
| 275 | I0-28650 825-0 | BOLT, CONT CABLE CLIP | 2 | 1512- | ALL | M8X25 | ||
| 457 | I9-09561 114-0 | GASKET | 2 | 1512- | MSB5S | ID=13.8 | ||
| 6 | I8-97036 329-2 | CLIP, CABLE | 1 | 1512- | MSB5M | (D) | ||
| 282 | I8-98326 995-0 | BRACKET, TRANS SIDE | 1 | 1807- | MYY6S | (F) | ||
| 6 | I1-09701 209-1 | CLIP, CABLE | 1 | 1512- | MYY6S | (A) D=22.2 | ||
| 6 | I8-97039 295-0 | CLIP, CABLE | 1 | 1512- | MYY5T | (E) | ||
| 6 | I8-98023 622-0 | CLIP, CABLE | 1 | 1512- | ALL | (I) | ||
| 6 | I8-97211 011-0 | CLIP, CABLE | 1 | 1512- | ALL | |||
| 6 | I8-97039 517-1 | CLIP, CABLE | 1 | 1512- | MYY6S | (F) | ||
| 282 | I8-97028 496-1 | BRACKET, TRANS SIDE | 1 | 1512- | MYY5T | (C) | ||
| 6 | I8-97036 329-2 | CLIP, CABLE | 1 | 1512- | MSB5S | (D) | ||
| 1 | I8-97695 480-A | CABLE, SHIFT, TRANS CONT | 1 | 1512- | MSB5M | |||
| 113 | I0-91610 610-0 | WASHER, RELAY LEVER | 1 | 1512- | MSB5S | ID=10.5 OD=22 T=1.6 | ||
| 525 | I8-94242 854-0 | WASHER, SHIFT CABLE | 1 | 1512- | ALL | (B) ID=8.4 OD=14 | ||
| 288 | I8-97373 819-0 | ASHER, CABLE TO RELAY LEVER | 1 | 1512- | MSB5M | |||
| 51 | I8-98189 335-1 | BRACKET, GEAR CONT | 1 | 1512- | MSB5M | |||
| 282 | I8-98034 115-0 | BRACKET, TRANS SIDE | 1 | 1807- | MYY6S | (B) | ||
| 3 | I8-97695 483-A | CABLE, SELECT, TRANS CONT | 1 | 1512- | MYY6S | 4HG1-T | ||
| 536 | I8-98097 681-0 | DAMPER, CABLE | 1 | 1512- | ALL | |||
| 283 | I0-28651 025-0 | BOLT, RELAY LEVER | 1 | 1512- | MSB5S | (A) M10X25 | ||
| 495 | I0-91180 106-0 | NUT, GROMMET | 2 | 1512- | ALL | M6 | ||
| 1 | I8-97695 480-A | CABLE, SHIFT, TRANS CONT | 1 | 1512- | MSB5S | |||
| 407 | I8-97174 055-2 | LEVER, RELAY, SHIFT | 1 | 1512- | MSB5S | |||
| 112 | I8-97174 057-0 | BUSHING, RELAY LEVER | 2 | 1512- | MSB5M | (A) | ||
| 487 | I8-98296 447-0 | BRACKET, CONT CABLE | 1 | 1807- | MYY6S | 4HL1-TC | ||
| 219 | I8-94363 045-0 | NUT, FLANGE, SHAFT CABLE | 1 | 1512- | ALL | M8 T=8.0 | ||
| 282 | I8-98034 115-0 | BRACKET, TRANS SIDE | 1 | 1512- | MSB5S | (E) | ||
| 422 | I8-97373 729-0 | NUT, CONT ROD TO LEVER | 1 | 1512- | MSB5S | |||
| 6 | I8-97036 333-1 | CLIP, CABLE | 1 | 1512- | ALL | (J) | ||
| 112 | I8-97085 157-0 | BUSHING, RELAY LEVER | 1 | 1512- | MSB5M | (B) | ||
| 226 | I8-94170 378-0 | PIN, SHIFT CABLE | 2 | 1512- | ALL | (B) L=23 | ||
| 525 | I0-91614 508-0 | WASHER, SHIFT CABLE | 2 | 1512- | ALL | (A) ID=8.4 OD=16 | ||
| 6 | I8-97039 296-1 | CLIP, CABLE | 1 | 1512- | MYY6S | (G) | ||
| 6 | I8-97039 296-1 | CLIP, CABLE | 1 | 1512- | MYY5T | (G) | ||
| 494 | I0-28450 620-0 | BOLT, GROMMET | 2 | 1512- | ALL | M6X20 |
