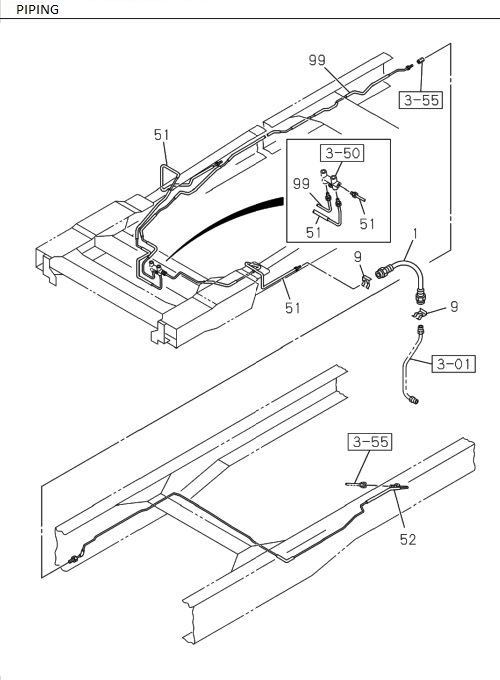

3-52 | BRAKE PIPING, OIL, FRONT
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 51 | I8-97695 717-A | PIPE, BRK | 1 | 1512- | NLR | NLR55-T , NLR55-B | ||
| 99 | I8-97695 463-A | PIPE ASM, 4/5/6 WAY | 1 | 1512- | NLR | WB 2400MM | ||
| 99 | I8-97695 464-A | PIPE ASM, 4/5/6 WAY | 1 | 1512- | NMR | |||

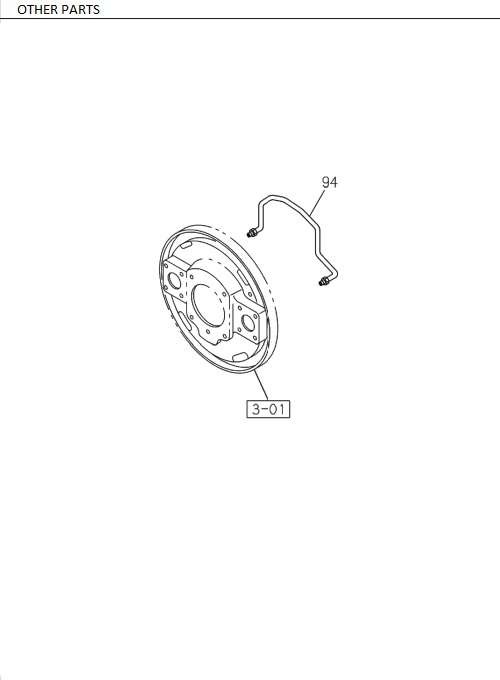

| 94 | I8-97019 223-A | PIPE, BRK W/C TO W/C | 1 | 1512- | NLR | NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL | ||
| 51 | I8-97695 462-A | PIPE, BRK | 1 | 1512- | ALL | |||
| 51 | I8-97695 461-A | PIPE, BRK | 1 | 1512- | ALL | |||
| 99 | I8-97695 464-A | PIPE ASM, 4/5/6 WAY | 1 | 1512- | NLR | WB 3300MM | ||
| 94 | I8-97019 222-A | PIPE, BRK W/C TO W/C | 1 | 1512- | NLR | NLR55-Tx/TLx , NLR55-Bx/BLx , NLR71-T/TL/BL | ||
| 9 | I8-97360 054-0 | CLIP, FLEX HOSE, FRT BRK | 2 | 1512- | ALL | |||
| 1 | I8-97035 063-1 | HOSE, FLEX, FRK BRK | 2 | 1512- | NLR | NLR55-T , NLR55-B, L=310 | ||
| 94 | I8-97081 151-0 | PIPE, BRK W/C TO W/C | 1 | 1512- | NLR | NLR55-T , NLR55-B | ||
| 52 | I8-97695 605-A | PIPE, BRK | 1 | 1512- | NMR | |||
| 52 | I8-97695 603-A | PIPE, BRK | 1 | 1512- | NLR | WB 2400MM | ||
| 51 | I8-97695 716-A | PIPE, BRK | 1 | 1512- | NLR | NLR55-T , NLR55-B | ||
| 24 | I0-92107 605-0 | NUT, UNION,OIL PIPE | 2 | 1512- | NLR | |||
| 1 | I8-97042 976-0 | HOSE, FLEX, FRK BRK | 2 | 1512- | ALL | |||
| 94 | I8-97081 184-0 | PIPE, BRK W/C TO W/C | 1 | 1512- | NLR | NLR55-T , NLR55-B | ||
| 52 | I8-97695 604-A | PIPE, BRK | 1 | 1512- | NLR | WB 3300MM |
