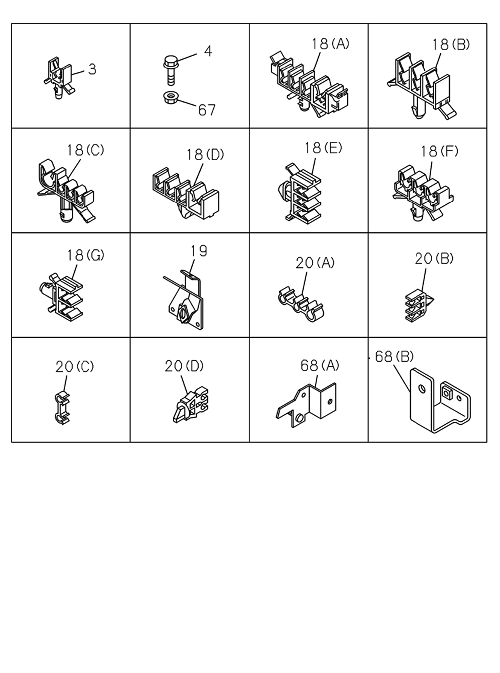

3-58 | FIXING PARTS, OIL PIPING
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 18 | I8-97326 158-1 | CLIP, BRKT PIPE | 1 | 1512- | NLR | (A) WB 3300MM, 4HG1-T, ID=10 & 4.76X3 | ||
| 18 | I8-97168 820-0 | CLIP, BRKT PIPE | 1 | 1512- | NMR | (E) ID=10 & 4.76X3 | ||
| 18 | I8-97314 976-0 | CLIP, BRKT PIPE | 1 | 1512- | NMR71 | (C) ID=4.76X3 | ||
| 18 | I8-97326 158-1 | CLIP, BRKT PIPE | 9 | 1512- | NMR | (A) ID=10 & 4.76X3 | ||
| 67 | I0-91180 108-0 | NUT, BRKT | 2 | 1512- | ALL | M8 | ||
| 18 | I8-97168 820-0 | CLIP, BRKT PIPE | 1 | 1512- | NLR | (E) WB 3300MM, ID=10 & 4.76X3 | ||
| 18 | I8-97168 819-0 | CLIP, BRKT PIPE | 1 | 1512- | NLR | (F) ID=10 & 4.76X3 | ||
| 68 | I8-97349 917-0 | BRACKET, CLIP | 1 | 1512- | ALL | (A) | ||
| 19 | I8-97695 465-A | BRACKET, OIL PIPE | 1 | 1512- | ALL | |||
| 3 | I8-94462 219-0 | CLIP, BRK PIPE | 1 | 1807- | NMR81 | ID=10 H=40 | ||
| 20 | I8-94122 333-0 | CLIP, BRK PIPE | 1 | 1512- | ALL | (B) | ||
| 20 | I8-94128 307-0 | CLIP, BRK PIPE | 1 | 1512- | ALL | (D) | ||
| 20 | I8-94146 043-0 | CLIP, BRK PIPE | 1 | 1512- | ALL | (A) ID=6.4 & 4.8X2 | ||
| 18 | I8-94249 689-2 | CLIP, BRKT PIPE | 2 | 1512- | NLR | (B) WB 2400MM , ID=6.5 & 4.8X2 H=29 | ||
| 68 | I8-97695 606-A | BRACKET, CLIP | 2 | 1512- | ALL | (B) | ||
| 18 | I8-97326 158-1 | CLIP, BRKT PIPE | 9 | 1512- | NLR | (A) WB 3300MM, ID=10 & 4.76X3 | ||
| 67 | I0-91180 106-0 | NUT, BRKT | 1 | 1512- | ALL | M6 | ||
| 18 | I8-94131 710-2 | CLIP, BRKT PIPE | 2 | 1512- | NLR | (D) ID=6.5 & 4.8X2 | ||
| 18 | I8-94316 410-0 | CLIP, BRKT PIPE | 2 | 1512- | NLR | (G) WB 2400MM, ID=4.8X2 | ||
| 18 | I8-97314 976-0 | CLIP, BRKT PIPE | 1 | 1512- | NLR | (C ) ID=4.76X3 | ||
| 18 | I8-94131 710-2 | CLIP, BRKT PIPE | 2 | 1512- | NMR | (D) ID=6.5 & 4.8X2 | ||
| 18 | I8-97168 819-0 | CLIP, BRKT PIPE | 1 | 1512- | NMR | (F) ID=10 & 4.76X3 | ||
| 20 | I8-94250 923-2 | CLIP, BRK PIPE | 1 | 1512- | ALL | (C) ID=6.35 & 4.76X2 | ||
| 18 | I8-97326 158-1 | CLIP, BRKT PIPE | 7 | 1512- | NLR | (A) WB 2400MM, ID=10 & 4.76X3 | ||
| 4 | I0-28650 825-0 | BOLT, BRKT | 2 | 1512- | ALL | M8X25 |
