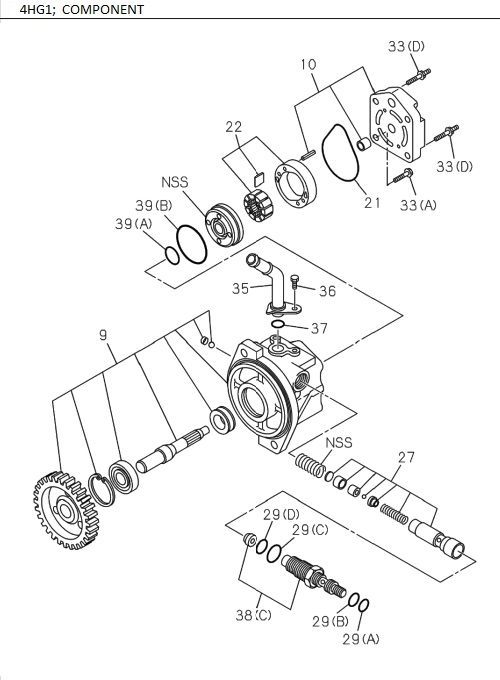

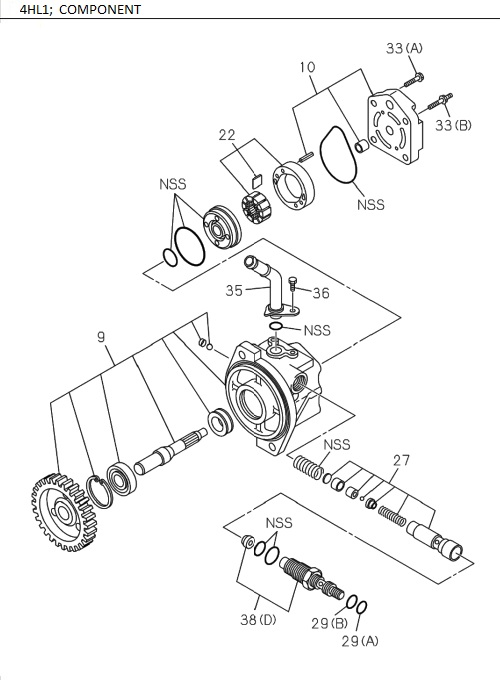

4-42 | POWER STEERING OIL PUMP
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I8-94379 666-0 | GASKET, PLUG TO VLV | 1 | 1512- | 4HG1-T | (C) | ||

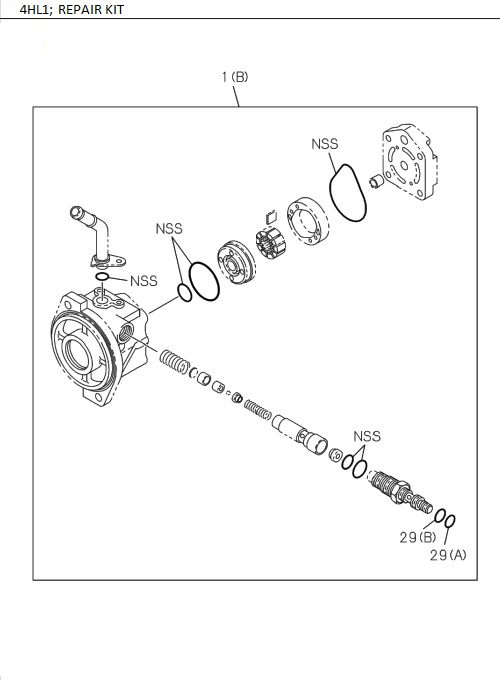

| 1 | I8-97482 044-0 | REPAIR KIT, OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 33 | I8-98034 052-0 | BOLT, COVER | 2 | 1807- | 4HL1-TC | (B) | ||
| 27 | I8-98219 136-0 | VALVE ASM, OIL PUMP | 1 | 1512- | 4JB1-TC | |||
| 27 | I8-98139 287-0 | VALVE ASM, OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 35 | I8-98139 290-0 | PIPE, HOSE CONN, OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 33 | I8-98139 286-0 | BOLT, COVER | 3 | 1512- | 4HG1-T | (B) | ||
| 33 | I8-97081 847-0 | BOLT, COVER | 4 | 1512- | 4JB1-TC | (C) | ||
| 39 | I8-94379 647-0 | GASKET, OUL PUMP | 1 | 1512- | 4HG1-T | (B) | ||
| 9 | I8-97482 045-0 | BODY ASM, FRT,OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 36 | I8-97482 042-0 | BOLT, CONN,PIPE | 1 | 1807- | 4HL1-TC | |||
| 35 | I8-98058 094-0 | PIPE, HOSE CONN,OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 22 | I8-98216 517-0 | CARTRIDGE ASM, OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 38 | I8-97482 038-0 | CONNECTOR, OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 29 | I8-97482 041-0 | GASKET, PLUG TO VLV | 1 | 1807- | 4HL1-TC | (B) | ||

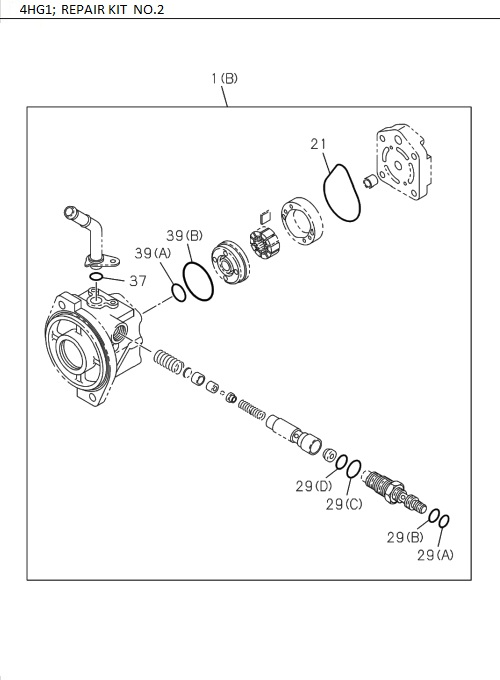

| 1 | I8-98058 096-0 | REPAIR KIT, OIL PUMP | 1 | 1512- | 4HG1-T | (B) | ||
| 9 | I8-98219 140-0 | BODY ASM, FRT, OIL PUMP | 1 | 1512- | 4JB1-TC | |||
| 33 | I8-97482 035-0 | BOLT, COVER | 2 | 1807- | 4HL1-TC | (A) | ||
| 29 | I8-94379 658-0 | GASKET, PLUG TO VLV | 1 | 1512- | 4HG1-T | (A) | ||
| 13 | I8-98219 139-0 | SHAFT KIT, RET | 1 | 1512- | 4JB1-TC | |||
| 10 | I8-98219 142-0 | BODY ASM, RR, OIL PUMP | 1 | 1512- | 4JB1-TC | |||
| 38 | I8-98139 291-0 | CONNECTOR, OIL PUMP | 1 | 1512- | 4HG1-T | (C) | ||
| 29 | I8-97075 581-0 | GASKET, PLUG TO VLV | 1 | 1807- | 4HL1-TC | (A) | ||
| 32 | I8-97064 987-0 | SPRING, OIL PUMP | 1 | 1512- | 4JB1-TC | |||
| 10 | I8-97482 034-0 | BODY ASM, RR,OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 22 | I8-97482 032-0 | CARTRIDGE ASM, OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 10 | I8-98116 059-0 | BODY ASM, RR, OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 29 | I8-97075 581-0 | GASKET, PLUG TO VLV | 1 | 1512- | 4HG1-T | (D) | ||
| 39 | I8-97147 441-0 | GASKET, OUL PUMP | 1 | 1512- | 4HG1-T | (A) | ||
| 22 | I8-97357 499-0 | CARTRIDGE ASM, OIL PUMP | 1 | 1512- | 4JB1-TC | |||

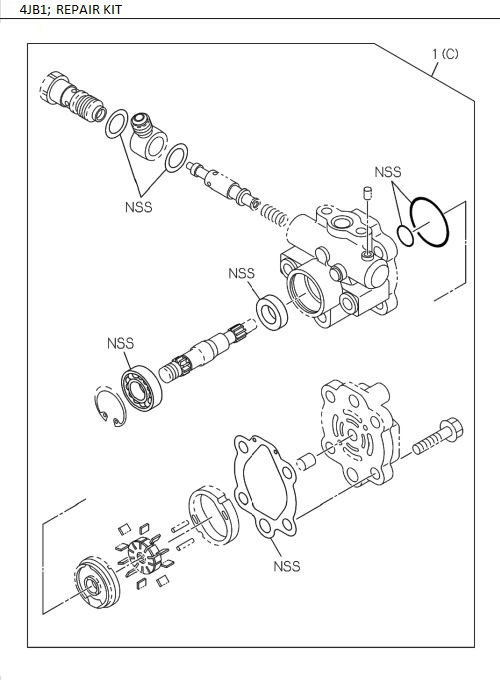

| 1 | I8-98219 134-0 | REPAIR KIT, OIL PUMP | 1 | 1512- | 4JB1-TC | (C ) | ||
| 29 | I8-94379 659-0 | GASKET, PLUG TO VLV | 1 | 1512- | 4HG1-T | (B) | ||
| 25 | I8-97081 859-0 | PIN, HSG, P/S | 2 | 1512- | 4JB1-TC | |||

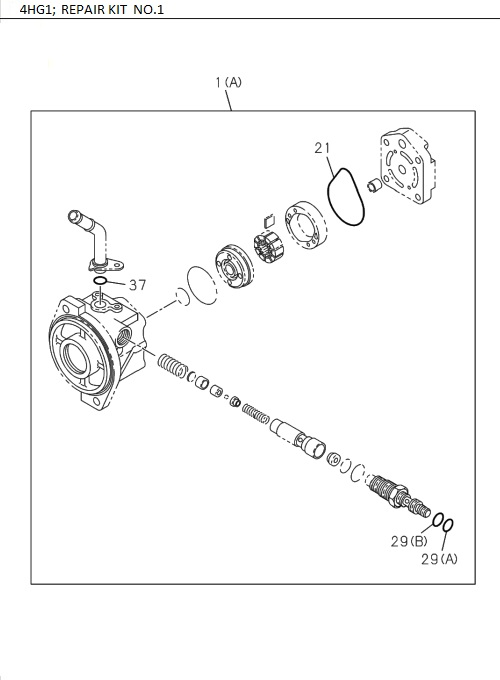

| 1 | I8-98058 095-0 | REPAIR KIT, OIL PUMP | 1 | 1512- | 4HG1-T | (A) | ||
| 33 | I8-98028 773-0 | BOLT, COVER | 1 | 1512- | 4HG1-T | (A) | ||
| 9 | I8-98058 097-0 | BODY ASM, FRT, OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 38 | I8-98219 137-0 | CONNECTOR, OIL PUMP | 1 | 1512- | 4JB1-TC | (B) | ||
| 37 | I8-97184 767-0 | GASKET, PIPE CONN, OIL PUMP | 1 | 1512- | 4HG1-T | |||
| 36 | I8-98028 783-0 | BOLT, CONN, PIPE | 1 | 1512- | 4HG1-T | |||
| 27 | I8-97482 037-0 | VALVE ASM, OIL PUMP | 1 | 1807- | 4HL1-TC | |||
| 21 | I8-94380 746-0 | GASKET, FRT COVER TO BODY | 1 | 1512- | 4HG1-T | |||
| 14 | I8-97064 620-0 | RING, RET, OIL PUMP | 1 | 1512- | 4JB1-TC | |||
| 38 | I8-98219 135-0 | CONNECTOR, OIL PUMP | 1 | 1512- | 4JB1-TC | (A) |
