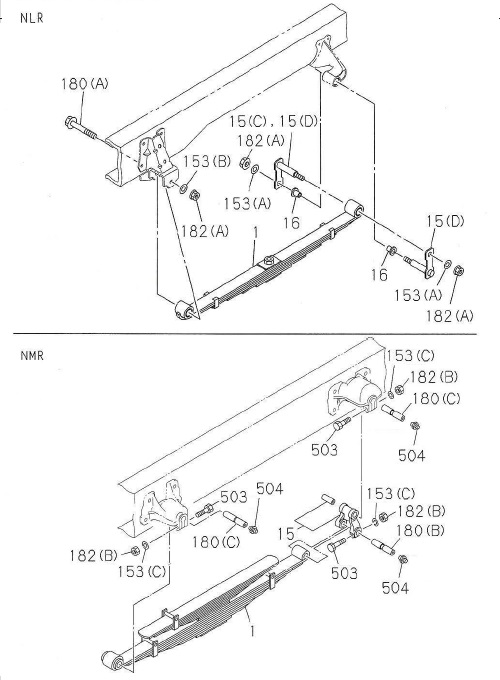

4-60 | REAR SUSPENSION
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

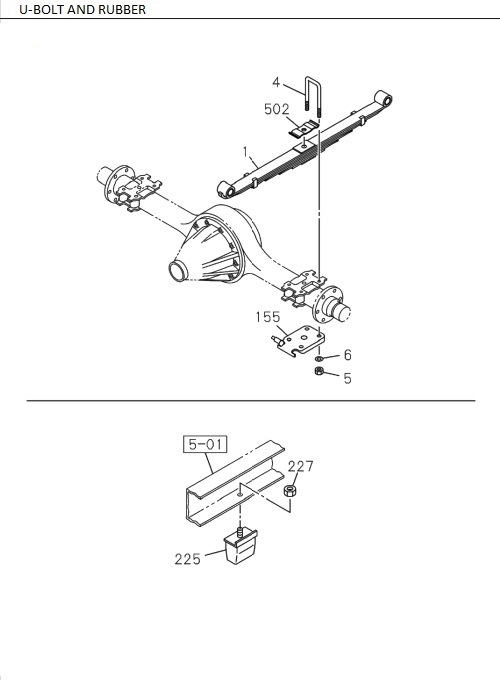

| 4 | I6-97213 253-0 | U-BOLT, RR SPR | 4 | 1807- | NMR81 | (IADG) L=335 | ||
| 153 | I8-98011 489-0 | WASHER, PL, SPRING PIN | 2 | 1512- | NLR | (B) ID=16.5 | ||
| 4 | I8-94127 920-A | U?BOLT, RR SPR | 4 | 1512- | NLR | NLR71, L=235 | ||
| 1 | I8-97695 986-A | SPRING ASM, LEAF,RR | 2 | 1807- | R/ | NMR | NMR81 | |
| 16 | I8-94113 323-2 | BUSHING, SHACKLE, RR SPR | 4 | 1512- | NLR | |||
| 504 | I7-66000 219-A | NIPPLE, GREASE | 2 | 1512- | NLR | |||
| 4 | I7-66000 210-A | U?BOLT, RR SPR | 4 | 1512- | NMR71 | NMR71-SD, L=325 | ||
| 502 | I8-98297 180-0 | CLAMP, RR LEAF SPR | 2 | 1807- | NMR81 | L=150 T=4.5 | ||
| 4 | I7-66000 206-A | U?BOLT, RR SPR | 4 | 1512- | NLR | NLR55, L=205 | ||
| 15 | I8-94113 322-3 | SHACKLE, RR SPR | 4 | 1512- | NMR71 | (D) | ||
| 180 | I6-66230 212-0 | PIN, RR SPR | 2 | 1512- | NMR | (IADG) (C) | ||
| 4 | I6-66000 210-0 | U?BOLT, RR SPR | 4 | 1512- | NMR71 | (IADG) NMR71-SD, L=325 | ||
| 180 | I6-66230 211-0 | PIN, RR SPR | 2 | 1512- | NMR | (IADG) (B) | ||
| 180 | I7-66230 212-A | PIN, RR SPR | 2 | 1512- | NMR | (C) | ||
| 155 | I8-94128 361-4 | BRACKET, S/ABS | 1 | 1512- | L | NLR | WB 3300MM | |
| 155 | I8-94128 360-4 | BRACKET, S/ABS | 1 | 1512- | R | NLR | WB 3300MM | |
| 227 | I0-91180 112-0 | NUT, CUSHION RUBBER | 2 | 1512- | ALL | M12 | ||
| 4 | I6-97213 253-0 | U?BOLT, RR SPR | 4 | 1512- | NMR71 | (IADG) NMR71-HD, L=335 | ||
| 1 | I8-97695 631-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NMR | NMR71-SD | |
| 502 | I8-98297 180-0 | CLAMP, RR LEAF SPR | 2 | 1512- | NMR71 | RR AXLE HD343MM | ||
| 182 | I8-97360 125-0 | NUT, PIN, RR SPR | 2 | 1512- | NMR71 | (A) M16 FLANGE | ||
| 16 | I7-66220 211-A | BUSHING, SHACKLE, RR SPR | 2 | 1512- | NMR | |||
| 502 | I8-94118 509-1 | CLAMP, RR LEAF SPR | 2 | 1512- | NMR71 | RR AXLE HD320MM, L=140 T=4.5 | ||
| 504 | I7-66000 219-A | NIPPLE, GREASE | 2 | 1512- | NMR | |||
| 1 | I8-97695 400-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NLR | NLR71-BL, NLR55B Lx | |
| 1 | I8-97695 628-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NLR | NLR55-T | |
| 153 | I7-66231 211-A | WASHER, PL, SPRING PIN | 2 | 1512- | NMR | (C) | ||
| 502 | I8-94119 069-2 | CLAMP, RR LEAF SPR | 2 | 1512- | NLR | L=130 T=4.5 | ||
| 1 | I6-97695 631-0 | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NMR | (IADG) NMR71-SD | |
| 225 | I8-94142 044-A | RUBBER, CUSHION, RR SPR | 2 | 1512- | NLR | |||
| 182 | I8-97360 125-0 | NUT, PIN, RR SPR | 2 | 1512- | NLR | (A) M16 FLANGE | ||
| 182 | I7-66000 214-A | NUT, PIN, RR SPR | 2 | 1512- | NMR | (A) M16 | ||
| 15 | I7-66226 210-A | SHACKLE, RR SPR | 2 | 1512- | NMR | |||
| 15 | I8-97033 966-1 | SHACKLE, RR SPR | 2 | 1512- | NLR | (C) | ||
| 180 | I8-98011 487-0 | PIN, RR SPR | 2 | 1512- | NLR | (A) M16X122 | ||
| 15 | I8-94113 322-3 | SHACKLE, RR SPR | 4 | 1512- | NLR | (D) | ||
| 1 | I8-97695 627-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NLR | NLR55-B | |
| 225 | I7-66802 212-A | RUBBER, CUSHION, RR SPR | 2 | 1512- | NMR | |||
| 4 | I8-97213 253-A | U-BOLT, RR SPR | 4 | 1807- | NMR81 | L=335 | ||
| 225 | I6-66802 212-0 | RUBBER, CUSHION, RR SPR | 2 | 1512- | NMR | (IADG) | ||
| 153 | I8-98011 489-0 | WASHER, PL, SPRING PIN | 4 | 1512- | NLR | (A) ID=16.5 | ||
| 503 | I7-04510 060-A | BOLT SCREW, RR SPR | 2 | 1512- | NLR | |||
| 1 | I7-97695 631-A | SPRING ASM, LEAF,RR | 2 | 1512- | R/ | NMR | NMR71-SDL | |
| 6 | I8-97360 118-0 | WASHER, PL, U-BOLT | 8 | 1512- | ALL | ID=16.4 | ||
| 5 | I8-97360 121-0 | NUT, U-BOLT, RR SPR | 8 | 1512- | ALL | M16 | ||
| 1 | I8-97695 632-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NMR | NMR71-HD | |
| 503 | I7-04510 060-A | BOLT SCREW, RR SPR | 2 | 1512- | NMR | |||
| 16 | I6-94113 323-2 | BUSHING, SHACKLE, RR SPR | 4 | 1512- | NLR | (IADG) | ||
| 4 | I8-97213 253-A | U?BOLT, RR SPR | 4 | 1512- | NMR71 | NMR71-HD, L=335 | ||
| 182 | I0-91110 510-0 | NUT, PIN, RR SPR | 6 | 1603- | NMR | (C) M10 | ||
| 180 | I7-66230 211-A | PIN, RR SPR | 2 | 1512- | NMR | (B) | ||
| 1 | I8-97695 630-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NLR | NLR71-TL, NLR55T Lx | |
| 182 | I0-91110 518-0 | NUT, PIN, RR SPR | 2 | 1512- | NMR | (B) M18 | ||
| 1 | I8-97696 049-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NLR | NLR55Bx | |
| 1 | I8-97695 629-A | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NLR | NLR71-T, NLR55Tx | |
| 1 | I6-97695 632-0 | SPRING ASM: LEAF, RR | 2 | 1512- | R/ | NMR | (IADG) NMR71-HD |
