5-01 | FRAME AND OTHER PARTS
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 105 | I8-98031 059-0 | BRACKET, RR SPR, RR | 1 | 1512- | NLR | (C) WB 3300MM | ||
| 140 | I8-94258 104-1 | BRACKRT, S/ABS, RR | 1 | 1512- | NLR | (A) WB 2400MM | ||
| 42 | I8-97165 923-1 | MEMBER, CROSS, ENG MTG | 1 | 1512- | NMR71 | |||
| 173 | I8-97213 460-A | STIFFENER, RR SPRING | 2 | 1512- | NLR | (B) WB 3300MM | ||
| 139 | I7-21170 211-A | MEMBER, CROSS, 6TH | 1 | 1512- | NMR | |||
| 74 | I7-21100 201-A | GUSSET, 4TH C/MBR | 2 | 1512- | NLR | (A) WB 3300MM, RH-LOWER, LH-UPPER | ||
| 24 | I8-97695 545-A | BRACKET, FRT SPR, FRT | 1 | 1512- | NMR71 | |||
| 34 | I7-21130 211-A | MEMBER, CROSS, 3RD | 1 | 1512- | NMR | (B) | ||
| 123 | I0-91180 212-0 | NUT | 6 | 1512- | NLR | (A) WB 3300MM, M12 | ||
| 344 | I8-97695 636-A | MEMBER, CROSS, 4TH | 1 | 1512- | NLR | WB 3300MM | ||
| 140 | I8-97163 957-0 | BRACKRT, S/ABS, RR | 1 | 1512- | NLR | (B) WB 3300MM | ||
| 173 | I8-97695 657-A | STIFFENER, RR SPRING | 1 | 1512- | NMR | (A) | ||
| 534 | I8-97695 550-A | BRACKET, BACK BAR | 1 | 1512- | ALL | |||
| 74 | I7-21100 200-A | GUSSET, 4TH C/MBR | 2 | 1512- | NLR | (A) WB 3300MM, RH-UPPER, LH-LOWER | ||

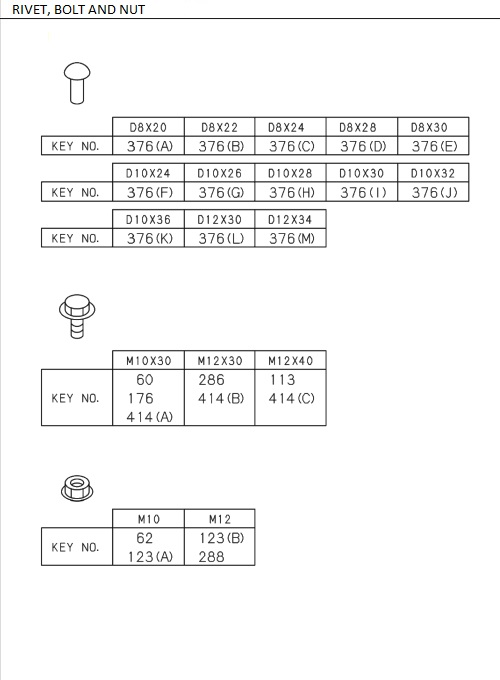

| 376 | I9-06751 036-0 | RIVET, FRAME | AR | 1512- | ALL | (K) D10X36 TAPER END | ||
| 173 | I8-97695 673-A | STIFFENER, RR SPRING | 1 | 1512- | NMR71 | (B) EXC. HD FRAME , NMR71-SD | ||
| 376 | I9-06751 234-0 | RIVET, FRAME | AR | 1512- | NLR | (M) D12X34 TAPER END | ||
| 101 | I8-98034 042-0 | BRACKET, RR SPR, FRT | 2 | 1512- | NLR | (C) WB 3300MM | ||
| 198 | I7-53134 011-A | GUSSET, 6TH C/MBR | 4 | 1512- | NMR | |||
| 24 | I8-97695 546-A | BRACKET, FRT SPR,FRT | 1 | 1807- | NMR81 | |||

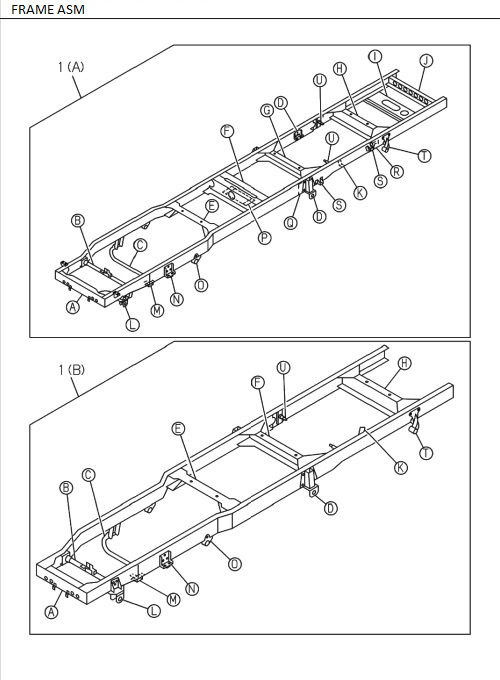

| 1 | I8-97695 450-A | FRAME ASM | 1 | 1512- | NLR | (A) 4JB1-TC, WB 2400MM | ||
| 24 | I8-97695 542-A | BRACKET, FRT SPR, FRT | 1 | 1512- | NLR | |||
| 130 | I8-97695 645-A | MEMBER, CROSS, END | 1 | 1512- | NMR | |||
| 105 | I8-98031 058-0 | BRACKET, RR SPR, RR | 1 | 1512- | NLR | (C) WB 3300MM | ||
| 376 | I9-06750 828-0 | RIVET, FRAME | AR | 1512- | NMR71 | (D) D8X28 TAPER END | ||
| 286 | I0-28051 230-0 | BOLT, SPARE TIRE BRKT | 4 | 1512- | NMR | M12X30 | ||
| 344 | I8-97076 793-2 | MEMBER, CROSS, 4TH | 1 | 1512- | NLR | WB 2400MM | ||
| 105 | I8-94126 620-1 | BRACKET, RR SPR, RR | 1 | 1512- | NLR | (B) WB 2400MM | ||
| 34 | I7-21130 211-A | MEMBER, CROSS, 3RD | 1 | 1512- | NLR | (A) 4HG1-T, WB 2400MM | ||
| 376 | I9-06751 024-0 | RIVET, FRAME | AR | 1512- | ALL | (F) D10X24 TAPER END | ||
| 34 | I7-53123 009-A | MEMBER, CROSS, 3RD | 1 | 1512- | NLR | (A) 4JB1-TC, WB 2400MM | ||
| 139 | I8-97695 395-0 | MEMBER, CROSS, 6TH | 1 | 1512- | NLR | WB 3300MM | ||
| 123 | I7-05110 010-A | NUT | 2 | 1512- | NMR | (B) M10 | ||
| 1 | I8-97695 594-A | FRAME ASM | 1 | 1512- | NLR | (A) 4HG1-T, WB 2400MM | ||
| 137 | I7-20210 211-A | BRACKET, SPARE TIRE | 2 | 1512- | NMR | HEAVY DUTY FRAME<6WB> IDN | ||
| 173 | I8-97695 677-A | STIFFENER, RR SPRING | 1 | 1512- | NMR71 | (B) EXC. HD FRAME , NMR71-SD | ||
| 63 | I7-53192 022-A | BRACKET, RAD MTG | 1 | 1807- | NMR81 | |||
| 376 | I9-06751 032-0 | RIVET, FRAME | AR | 1512- | ALL | (J) D10X32 TAPER END | ||
| 34 | I7-21130 211-A | MEMBER, CROSS, 3RD | 1 | 1512- | NLR | (B) WB 3300MM | ||
| 414 | I0-28661 030-0 | BOLT | 2 | 1512- | NMR | (C) M10X30 | ||
| 345 | I8-97045 542-2 | MEMBER, CROSS, 5TH | 1 | 1512- | NLR | (A) WB 2400MM | ||
| 130 | I7-21170 209-A | MEMBER, CROSS, END | 1 | 1512- | NLR | WB 3300MM | ||
| 198 | I8-97695 412-A | GUSSET, 6TH C/MBR | 2 | 1512- | NLR | WB 3300MM, LOWER | ||
| 74 | I7-53134 011-A | GUSSET, 4TH C/MBR | 4 | 1512- | NMR | (B) | ||
| 376 | I9-06750 828-0 | RIVET, FRAME | AR | 1512- | NLR | (D) D8X28 TAPER END | ||
| 60 | I0-28051 030-0 | BOLT MBBR | 6 | 1512- | NMR | M10X30 | ||
| 142 | I8-97695 669-A | BRACKET, FLEX HOSE, BRAKE | 1 | 1512- | NLR | (B) WB 3300MM | ||
| 201 | I8-97695 534-A | GUSSET, C/MBR | 4 | 1512- | ALL | |||
| 140 | I8-97695 655-A | BRACKET, S/ABS, RR | 2 | 1512- | NMR | (C) | ||
| 103 | I7-66202 213-A | STOPPER, SUB SPR | 4 | 1512- | NMR71 | |||
| 188 | I8-97078 869-1 | BRACKET, SUPPORT, CTR BRG | 1 | 1512- | NLR | WB 3300MM | ||
| 414 | I0-28051 230-0 | BOLT | 6 | 1512- | NLR | (A) WB 3300MM | ||
| 101 | I7-66225 211-A | BRACKET, RR SPR, FRT | 2 | 1512- | NMR | (A) | ||
| 75 | I7-53134 011-A | GUSSET, 5TH, C/MBR | 4 | 1512- | NMR | |||
| 42 | I7-53127 008-A | MEMBER, CROSS, ENG MTG | 1 | 1512- | NLR | 4JB1-TC | ||
| 376 | I9-06751 028-0 | RIVET, FRAME | AR | 1512- | ALL | (H) D10X28 TAPER END | ||
| 24 | I8-97695 546-A | BRACKET, FRT SPR, FRT | 1 | 1512- | NMR71 | |||
| 344 | I8-97695 634-A | MEMBER, CROSS, 4TH | 1 | 1512- | NMR | |||
| 414 | I0-28051 230-0 | BOLT | 6 | 1512- | NMR | (A) M12X30 | ||
| 63 | I7-53192 063-A | BRACKET, RAD MTG | 1 | 1807- | NMR81 | |||
| 198 | I8-97695 396-A | GUSSET, 6TH C/MBR | 1 | 1512- | NLR | WB 3300MM, UPPER | ||
| 345 | I7-21170 211-A | MEMBER, CROSS, 5TH | 1 | 1512- | NMR | (B) | ||
| 142 | I8-97695 654-A | BRACKET, FLEX HOSE, BRAKE | 1 | 1512- | NMR | (B) | ||
| 62 | I0-91180 110-0 | NUT, MBR | 6 | 1512- | NMR | M10 | ||
| 376 | I9-06750 820-0 | RIVET, FRAME | AR | 1512- | ALL | (A) D8X20 TAPER END | ||
| 414 | I0-28061 240-0 | BOLT | 24 | 1512- | NMR | (B) M12X40 | ||
| 140 | I8-94258 103-1 | BRACKRT, S/ABS, RR | 1 | 1512- | NLR | (A) WB 2400MM | ||
| 176 | I0-28051 030-0 | BOLT, C/MBR, ENG MTG | 8 | 1512- | ALL | M10X30 | ||
| 376 | I9-06751 230-0 | RIVET, FRAME | AR | 1512- | NLR | (L) D12X30 TAPER END | ||
| 140 | I8-97163 956-0 | BRACKRT, S/ABS, RR | 1 | 1512- | NLR | (B) WB 3300MM | ||
| 123 | I0-91180 212-0 | NUT | 30 | 1512- | NMR | (A) M12 | ||
| 376 | I9-06751 030-0 | RIVET, FRAME | AR | 1512- | ALL | (I) D10X30 TAPER END | ||
| 39 | I8-97695 646-A | BRACKET, FRT SPR, RR | 2 | 1512- | NMR | NMR71, NMR81 | ||
| 142 | I8-97047 775-1 | BRACKET, FLEX HOSE, BRAKE | 1 | 1512- | NLR | (A) WB 2400MM | ||
| 1 | I8-97695 819-A | FRAME ASM | 1 | 1512- | NLR | (B) 4JB1-TC, WB 3300MM | ||
| 2 | I8-97695 532-A | MEMBER, CROSS, 1ST | 1 | 1512- | ALL | |||
| 1 | I8-97695 597-A | FRAME ASM | 1 | 1512- | NMR71 | (B) NMR71-SD | ||
| 345 | I7-21170 211-A | MEMBER, CROSS, 5TH | 1 | 1512- | NLR | (B) WB 3300MM | ||
| 198 | I8-97695 397-A | GUSSET, 6TH C/MBR | 1 | 1512- | NLR | WB 3300MM, UPPER | ||
| 74 | I7-53134 011-A | GUSSET, 4TH C/MBR | 4 | 1512- | NLR | (B) WB 2400MM | ||
| 376 | I9-06751 234-0 | RIVET, FRAME | AR | 1512- | NMR71 | (M) D12X34 TAPER END | ||
| 39 | I8-94258 091-A | BRACKET, FRT SPR, RR | 2 | 1512- | NLR | WB 2400MM, NLR55T, NLR71T, NLR55B, NLR55E, NLR55EBUS | ||
| 188 | I8-97078 869-1 | BRACKET, SUPPORT, CTR BRG | 1 | 1512- | NMR | |||
| 39 | I8-97695 646-A | BRACKET, FRT SPR, RR | 2 | 1512- | NLR | WB 3300MM, NLR71TL, NLR71BL, NLR55H, NLR55HBUS | ||
| 288 | I0-91180 212-0 | NUT, SPARE TIRE BRKT | 4 | 1512- | NMR | M12 | ||
| 1 | I8-97695 449-A | FRAME ASM | 1 | 1512- | NMR71 | (B) NMR71-HD | ||
| 376 | I9-06751 230-0 | RIVET, FRAME | AR | 1512- | NMR71 | (L) D12X30 TAPER END | ||
| 63 | I7-53192 063-A | BRACKET, RAD MTG | 1 | 1512- | NLR | |||
| 173 | I8-97695 675-A | STIFFENER, RR SPRING | 1 | 1512- | NMR | (A) | ||
| 376 | I9-06750 824-0 | RIVET, FRAME | AR | 1512- | ALL | (C) D8X24 TAPER END | ||
| 42 | I8-97165 923-1 | MEMBER, CROSS, ENG MTG | 1 | 1512- | NLR | 4HG1-T | ||
| 105 | I7-66225 211-A | BRACKET, RR SPR, RR | 2 | 1512- | NMR | (A) FORWARD | ||
| 113 | I0-28061 240-0 | BOLT, SPR SUPPORT | 24 | 1512- | NMR | M12X40 | ||
| 105 | I8-94126 621-1 | BRACKET, RR SPR, RR | 1 | 1512- | NLR | (B) WB 2400MM | ||
| 63 | I7-53192 022-A | BRACKET, RAD MTG | 1 | 1512- | NLR | |||
| 1 | I8-97695 596-A | FRAME ASM | 1 | 1512- | NLR | (B) 4HG1-T, WB 3300MM | ||
| 376 | I9-06750 822-0 | RIVET, FRAME | AR | 1512- | ALL | (B) D8X22 TAPER END | ||
| 51 | I8-94258 963-0 | BRACKET, ENG SUPPORT, OUTER | 2 | 1512- | ALL | |||
| 103 | I7-66200 217-A | STOPPER, SUB SPR | 4 | 1807- | NMR81 | |||
| 20 | I8-97695 533-A | MEMBER, CROSS, 2ST | 1 | 1512- | ALL | |||
| 75 | I7-53134 011-A | GUSSET, 5TH, C/MBR | 4 | 1512- | NLR | WB 3300MM | ||
| 376 | I9-06751 026-0 | RIVET, FRAME | AR | 1512- | ALL | (G) D10X26 TAPER END | ||
| 534 | I8-97695 551-A | BRACKET, BACK BAR | 1 | 1512- | ALL | |||
| 137 | I7-89900 200-A | BRACKET, SPARE TIRE | 1 | 1512- | NLR | WB 3300MM | ||
| 101 | I8-94258 093-1 | BRACKET, RR SPR, FRT | 2 | 1512- | NLR | (B) WB 2400MM | ||
| 42 | I8-97696 040-A | MEMBER, CROSS,ENG MTG | 1 | 1807- | NMR81 | |||
| 24 | I8-97695 545-A | BRACKET, FRT SPR,FRT | 1 | 1807- | NMR81 | |||
| 376 | I9-06750 830-0 | RIVET, FRAME | AR | 1512- | ALL | (E) D8X30 TAPER END | ||
| 1 | I8-97696 017-A | FRAME ASM | 1 | 1807- | NMR81 | |||
| 24 | I8-97695 543-A | BRACKET, FRT SPR, FRT | 1 | 1512- | NLR | |||
| 75 | I8-94258 081-1 | GUSSET, 5TH, C/MBR | 2 | 1512- | NLR | WB 2400MM | ||
| 105 | I7-66226 211-A | BRACKET, RR SPR, RR | 2 | 1512- | NMR | (A) REARWARD |
