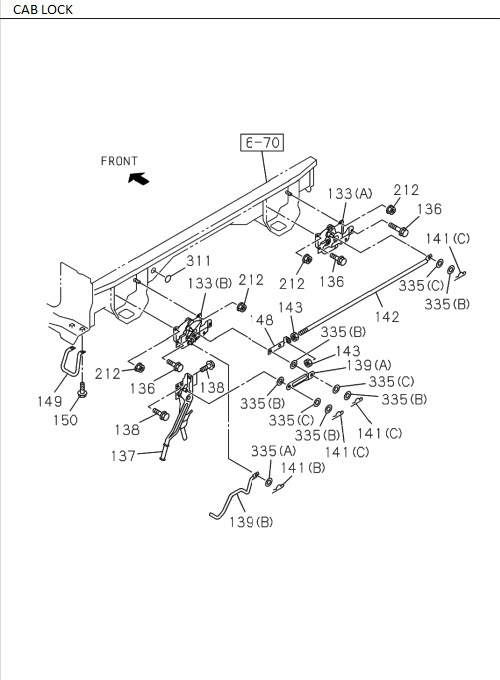

5-15 | CAB MOUNTING, CAB SIDE

ELF

NLR NMR

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
212 I0-91180 108-0 NUT, BRKT, CAB LOCK 4 1512- ALL MANUAL TILT CAB, M8
139 I8-97826 129-0 ROD, CAB LOCK, LEVER TO HOOK 1 2107- ALL (A) MANUAL TILT CAB
81 I8-98123 313-0 STAY ASM, CAB TILT 1 1512- ALL MANUAL TILT CAB
138 I0-28650 820-0 BOLT, CAB LOCK CONT UNIT 3 1512- ALL MANUAL TILT CAB, M8X20
96 I8-98123 513-0 PIN, JOINT 1 1512- ALL MANUAL TILT CAB
91 I0-81124 020-0 PIN, SPLIT, CAB STAY 1 1512- ALL MANUAL TILT CAB, OD=3.7 L=20
149 I8-98067 938-0 HANDEL, TILT 1 1512- ALL MANUAL TILT CAB
105 I0-28651 030-0 BOLT, CAB STAY 2 1512- ALL MANUAL TILT CAB, M10X30
95 I8-94160 167-2 SPRING, RETRUN, CAB STAY 1 1512- ALL MANUAL TILT CAB
335 I0-91610 512-0 WASHER, CAB LOCK ROD 5 1512- ALL (B) MANUAL TILT CAB, ID=12.5 OD=22
104 I0-28660 820-0 BOLT, CAB STAY BRKT 3 1512- ALL MANUAL TILT CAB, M8X20
143 I0-91110 510-0 NUT, JAW JOINT, HOOK TO HOOK 2 1512- ALL MANUAL TILT CAB, M10
145 I8-98051 939-0 BOLT, CAB RR MTG BRKT 12 1512- NMR71 EXC. MANUAL TILT CAB, M8X24.5
3 I8-97359 033-0 BOLT, LEVER 6 1512- ALL M12X37
245 I1-62500 587-0 BUSHING, CAB STAY 4 1512- ALL MANUAL TILT CAB
152 I1-76798 029-0 GROMMET, DUMMY HOLE, CAB TILT LOCK 2 1512- NMR71 EXC. MANUAL TILT CAB, OD=25 BLACK
38 I8-98039 988-0 NUT, LK 1 1512- ALL MANUAL TILT CAB, M14
98 I1-09985 183-0 WASHER, CAB STAY 1 1512- ALL MANUAL TILT CAB, ID=10.5 T=2.0
133 I0-28651 030-0 LOCK ASM, CAB 1 1512- NMR71 (B) MANUAL TILT CAB
141 I8-98039 045-1 PIN, SNAP, CAB LOCK ROD 1 1512- ALL (B) MANUAL TILT CAB, L=25.3
87 I0-81123 020-0 PIN, SPLIT, CAB STAY PIN 1 1512- ALL MANUAL TILT CAB, OD=2.8 L=20
1 I8-98001 433-2 LEVER, TORSION BAR 1 1512- NLR MANUAL TILT CAB
85 I8-94331 481-0 LEVER, LOCK, CAB STAY 1 1512- ALL MANUAL TILT CAB
103 I1-09744 107-0 PIN, JOINT, CAB STAY 1 1512- ALL MANUAL TILT CAB, OD=10 L=48
1 I8-98001 433-2 LEVER, TORSION BAR 1 1512- NMR71 MANUAL TILT CAB
146 I8-98197 473-0 BRACKET ASM, CAB STAY UPR 1 1512- ALL MANUAL TILT CAB
133 I8-97410 270-3 LOCK ASM, CAB 1 1807- NMR81 (B)
31 I8-98060 839-0 WASHER, WAVE 1 1512- ALL MANUAL TILT CAB, ID=13 OD=22
1 I8-98001 434-0 LEVER, TORSION BAR 1 1512- NLR EXC. MANUAL TILT CAB
99 I0-91180 110-0 NUT, CAB STAY 2 1512- ALL MANUAL TILT CAB, M10
148 I8-97410 736-0 JOINY, HAW, HOOK TO HOOK 1 1512- ALL MANUAL TILT CAB
139 I8-97584 483-2 ROD, CAB LOCK, LEVER TO HOOK 1 1512-2106 ALL (A) MANUAL TILT CAB
1 I8-98197 474-0 LEVER, TORSION BAR 1 1512- NMR81 MANUAL TILT CAB
139 I8-98128 201-0 ROD, CAB LOCK, LEVER TO HOOK 1 1512- ALL (B) MANUAL TILT CAB
86 I0-91805 506-0 RING, SNAP, LOCK LEVER, CAB STAY 1 1512- ALL MANUAL TILT CAB, ID=6
324 I8-98004 319-1 BOLT, ADJUST 1 1512- ALL MANUAL TILT CAB, M14X55
311 I8-98031 126-0 SEAL, CAB LOCK 1 1512- ALL OD=32 BLACK
88 I0-91610 610-0 WASHER, PL, CAB STAY PIN 2 1512- ALL MANUAL TILT CAB, ID=10.5 OD=22 T=1.6
15 I8-97359 034-0 RING, SNAP, TORSION BAR 1 1512- ALL MANUAL TILT CAB
92 I8-97385 586-1 BRACKET, CAB STAY TO FRAME 1 1512- ALL MANUAL TILT CAB
141 I8-98062 280-0 PIN, SNAP, CAB LOCK ROD 1 1704- ALL (A) MANUAL TILT CAB, L=32.6
335 I8-98060 839-0 WASHER, CAB LOCK ROD 3 1512- ALL (C) MANUAL TILT CAB, ID=13 OD=22
136 I0-28650 820-0 BOLT, CAB LK 4 1512- ALL MANUAL TILT CAB, M8X20
150 I0-28650 825-0 BOLT, TILT HANDEL 1 1512- ALL MANUAL TILT CAB, M8X25
133 I0-28651 030-0 LOCK ASM, CAB 1 1512- NLR (B) MANUAL TILT CAB
152 I1-76798 029-0 GROMMET, DUMMY HOLE, CAB TILT LOCK 2 1512- NLR EXC. MANUAL TILT CAB, OD=25 BLACK
133 I8-98182 353-1 LOCK ASM, CAB 1 1512- ALL (A) MANUAL TILT CAB
144 I8-97853 066-4 BRACKET ASM, CAB RR MTG 2 1512- NLR EXC. MANUAL TILT CAB
142 I8-97410 272-0 ROD, HOOK TO HOOK 1 1512- ALL MANUAL TILT CAB
137 I8-97411 004-3 CONTROL UNIT, CAB LOCK 1 1512- ALL MANUAL TILT CAB
12 I8-98001 520-0 BAR, TORSION, UPR 1 1512- ALL MANUAL TILT CAB
141 I8-98039 426-1 PIN, SNAP, CAB LOCK ROD 3 1512- ALL (C) MANUAL TILT CAB, L=34
102 I0-91610 612-0 WASHER, PL, CAB STAY 1 1512- ALL MANUAL TILT CAB, ID=12.5 OD=26
145 I8-98051 939-0 BOLT, CAB RR MTG BRKT 12 1512- NLR EXC. MANUAL TILT CAB, M8X24.5
144 I8-97853 066-4 BRACKET ASM, CAB RR MTG 2 1512- NMR71 EXC. MANUAL TILT CAB
335 I8-94242 854-0 WASHER, CAB LOCK ROD 1 1512- ALL (A) MANUAL TILT CAB, ID=8.4 OD=14
83 I8-98122 493-0 PIN, JOINT, CAB STAY 1 1512- ALL MANUAL TILT CAB
93 I8-98122 498-0 PIN, CAB STAY 1 1512- ALL MANUAL TILT CAB
