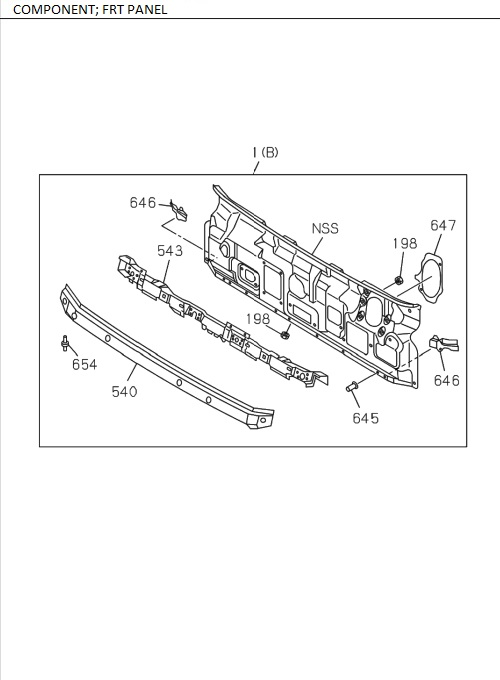

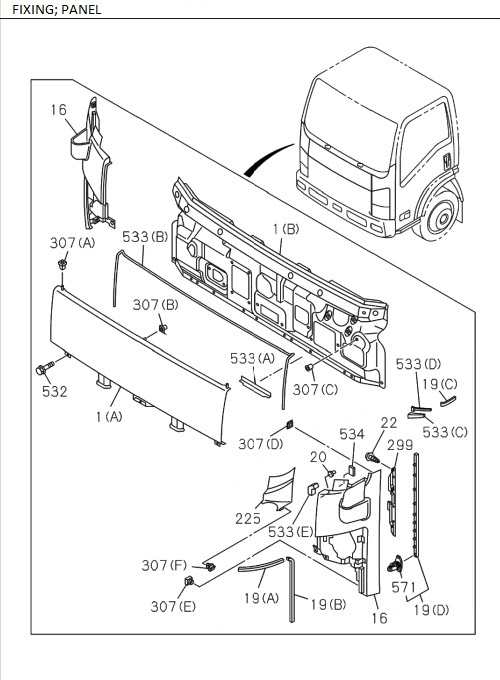

6-05 | FRONT PANEL
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 16 | I8-97405 625-B | PANEL, FRONT SIDE | 1 | 1512- | ALL | |||
| 646 | I8-98023 098-1 | REINFORCEMENT, DASH | 1 | 1512- | ALL | |||
| 571 | I8-98027 457-0 | CLIP, SEAL | 20 | 1512- | ALL | |||
| 20 | I8-97410 739-1 | CLIP, FRT PANEL SIDE | 4 | 1512- | ALL | |||
| 534 | I8-98059 208-1 | FASTENER | 2 | 1512- | ALL | 20X30 | ||
| 540 | I8-97585 962-3 | PANEL, FRONT, OUTER | 1 | 1512- | ALL | |||
| 307 | I8-98023 229-1 | GROMMET, FRT PANEL | 1 | 1512- | ALL | (B) | ||
| 307 | I8-98021 300-1 | GROMMET, FRT PANEL | 4 | 1512- | ALL | (E) | ||
| 533 | I8-98043 509-0 | SEAL, FRT PANEL | 1 | 1512- | ALL | (C ) | ||
| 198 | I9-09114 086-0 | NUT, PANEL | 6 | 1512- | ALL | M6 | ||
| 533 | I8-98043 510-0 | SEAL, FRT PANEL | 1 | 1512- | ALL | (C ) | ||
| 533 | I8-98021 003-1 | SEAL, FRT PANEL | 1 | 1512- | ALL | (A) | ||
| 225 | I8-98036 521-3 | COVER, SIDE, FRT | 1 | 1512- | ALL | |||
| 299 | I8-98028 145-1 | COVER, FRT PANEL SIDE | 1 | 1512- | ALL | |||
| 19 | I8-98035 268-0 | SEAL, FRT SIDE PANEL | 2 | 1512- | ALL | (A) | ||
| 19 | I8-98028 750-3 | SEAL, FRT SIDE PANEL | 1 | 1512- | ALL | (D) | ||
| 16 | I8-97405 621-B | PANEL, FRONT SIDE | 1 | 1512- | ALL | |||
| 307 | I8-97410 738-0 | GROMMET, FRT PANEL | 2 | 1512- | ALL | (D) | ||
| 533 | I8-98043 511-1 | SEAL, FRT PANEL | 2 | 1512- | ALL | (D) | ||
| 533 | I8-98064 939-0 | SEAL, FRT PANEL | 2 | 1512- | ALL | (D) | ||
| 307 | I8-98034 363-1 | GROMMET, FRT PANEL | 4 | 1512- | ALL | (C) OD=20 | ||
| 307 | I8-98021 968-0 | GROMMET, FRT PANEL | 1 | 1512- | ALL | (A) | ||
| 533 | I8-97553 114-0 | SEAL, FRT PANEL | 1 | 2003- | ALL | (B) | ||
| 307 | I8-98028 743-0 | GROMMET, FRT PANEL | 2 | 1512- | ALL | (F) | ||
| 654 | I8-98021 967-2 | PIN, FRT PANEL | 2 | 1512- | ALL | |||
| 532 | I0-52010 616-0 | BOLT, FRT PANEL | 4 | 1512- | ALL | M6X16 | ||
| 299 | I8-98028 144-1 | COVER, FRT PANEL SIDE | 1 | 1512- | ALL | |||
| 645 | I8-98013 112-0 | STUD, FRT PANEL | 6 | 1512- | ALL | M6X12 | ||
| 19 | I8-98028 749-3 | SEAL, FRT SIDE PANEL | 1 | 1512- | ALL | (D) | ||
| 19 | I8-98038 608-0 | SEAL, FRT SIDE PANEL | 2 | 1512- | ALL | (C ) | ||
| 533 | I8-98309 763-0 | SEAL, FRT PANEL | 1 | 1512-2002 | ALL | (B) | ||
| 543 | I8-97585 988-2 | CLOSING, FRT MTG RAIL | 1 | 1512- | ALL | |||
| 647 | I8-98006 327-0 | REINFORCEMENT, WIPER MOTOR | 1 | 1512- | ALL | |||
| 225 | I8-98036 520-3 | COVER, SIDE, FRT | 1 | 1512- | ALL | |||
| 19 | I8-98062 215-0 | SEAL, FRT SIDE PANEL | 2 | 1512- | ALL | (B) | ||
| 307 | I8-98021 969-0 | GROMMET, FRT PANEL | 1 | 1512- | ALL | (A) | ||
| 1 | I8-98122 692-0 | PANEL ASM, FRT | 1 | 1512- | ALL | (A) | ||
| 646 | I8-98023 099-1 | REINFORCEMENT, DASH | 1 | 1512- | ALL | |||
| 1 | I8-98186 848-0 | PANEL ASM, FRT | 1 | 1512- | ALL | (B) | ||
| 22 | I0-74360 410-0 | SCREW, FRT PANEL SIDE | 6 | 1512- | ALL | M4X10 |
