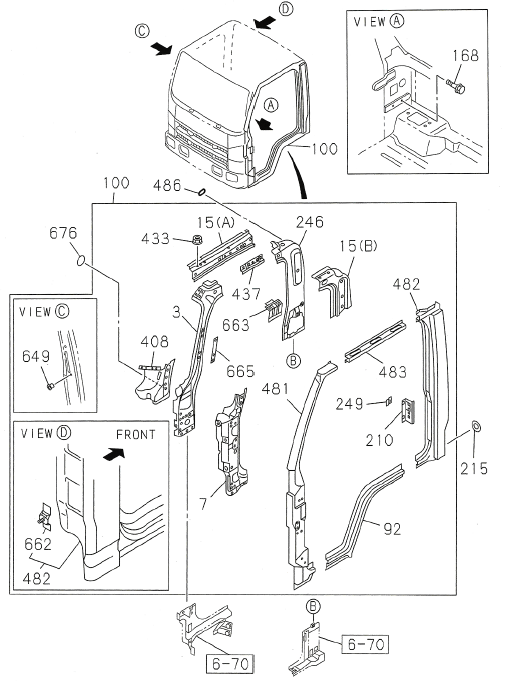

6-20 | SIDE PANEL AND STEP
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 7 | I8-97585 244-4 | REINFORCEMENT, HINGE | 1 | 1512- | NLR | |||
| 246 | I8-97585 301-3 | PANEL, RR PILLAR, INNER | 1 | 1512- | ALL | |||
| 437 | I8-98039 020-0 | BRACKET, FOOR RAIL | 1 | 1512- | ALL | |||
| 481 | I8-98055 451-0 | PANEL, SIDE FRT PILLAR | 1 | 1512- | ALL | |||
| 92 | I8-98055 462-1 | PANEL, SIDE SILL, CAB | 1 | 1512- | ALL | |||
| 649 | I8-97249 574-0 | NUT, POP | 2 | 1512- | ALL | M5 | ||
| 486 | I8-98059 421-0 | SEAL, BODY SIDE | 4 | 1512- | ALL | OD=20 T=0.05 | ||
| 92 | I8-98055 461-1 | PANEL, SIDE SILL, CAB | 1 | 1512- | ALL | |||
| 659 | I8-97811 510-0 | CLAP, SPRING NUT | 4 | 1512- | ALL | |||
| 665 | I8-97585 314-0 | REINFORCEMENT, GRIP ASSIST | 2 | 1512- | ALL | |||
| 483 | I8-98055 458-0 | PANEL, SIDE CANT RAIL | 1 | 1512- | ALL | |||
| 210 | I8-97585 260-4 | PANEL, DOOR STRIKER REINF | 1 | 1512- | ALL | |||
| 657 | I8-97378 910-0 | REFLECTOR, REFLEX | 2 | 1512- | ALL | |||
| 408 | I8-97585 316-3 | GUSSET, PILLAR | 1 | 1512- | ALL | |||
| 15 | I8-97585 302-1 | PANEL, CANT RAIL SIDE | 1 | 1512- | ALL | (B) | ||
| 663 | I8-97585 207-2 | BRACKET, AIR | 1 | 1512- | ALL | |||
| 215 | I8-94122 971-0 | GROMMET, RR PILLAR | 1 | 1512- | ALL | OD=35 | ||
| 676 | I1-76798 029-0 | SEAL | 1 | 1512- | ALL | OD=20 T=0.05 | ||
| 7 | I8-97585 244-4 | REINFORCEMENT, HINGE | 1 | 1512- | NMR71 | |||
| 408 | I8-97585 317-4 | GUSSET, PILLAR | 1 | 1512- | ALL | |||
| 103 | I8-98022 774-A | PLATE, STEP | 1 | 1512- | ALL | |||
| 660 | I8-98111 558-0 | CLIP, FLAP | 4 | 1512- | ALL | |||
| 210 | I8-97585 261-4 | PANEL, DOOR STRIKER REINF | 1 | 1512- | ALL | |||
| 3 | I8-98058 236-1 | PANEL, CLOSING, FRT PILLAR | 1 | 1512- | ALL | |||
| 437 | I8-98039 019-0 | BRACKET, FOOR RAIL | 1 | 1512- | ALL | |||
| 663 | I8-97585 208-2 | BRACKET, AIR | 1 | 1512- | ALL | |||
| 662 | I8-97584 611-1 | BRACKET, DUCT | 1 | 1512- | ALL | |||
| 100 | I8-97585 200-9 | PANEL ASM, BODY SIDE | 1 | 1512- | NMR71 | |||
| 246 | I8-97586 154-3 | PANEL, RR PILLAR, INNER | 1 | 1512- | ALL | |||
| 15 | I8-97585 294-2 | PANEL, CANT RAIL SIDE | 1 | 1512- | ALL | (A) | ||
| 103 | I8-98022 775-A | PLATE, STEP | 1 | 1512- | ALL | |||
| 482 | I8-98055 464-1 | PANEL, SIDE RR PILLAR | 1 | 1512- | ALL | |||
| 100 | I8-98340 619-0 | PANEL ASM, BODY SIDE | 1 | 1807- | NMR81 | |||
| 3 | I8-98058 237-1 | PANEL, CLOSING, FRT PILLAR | 1 | 1512- | ALL | |||
| 481 | I8-98055 470-0 | PANEL, SIDE FRT PILLAR | 1 | 1512- | ALL | |||
| 249 | I8-98012 287-1 | REINFORCEMENT, RR PILLAR | 2 | 1512- | ALL | |||
| 7 | I8-98377 771-0 | REINFORCEMENT, HINGE | 1 | 1807- | NMR81 | |||
| 168 | I0-38050 612-0 | BOLT, BODY SIDE PANEL | 8 | 1512- | ALL | M6X12 | ||
| 435 | I8-98004 345-0 | BOLT, RR STEP | 12 | 1512- | ALL | M8X18 | ||
| 658 | I8-98037 560-1 | FLAP, STEP | 2 | 1512- | ALL | |||
| 7 | I8-97585 240-3 | REINFORCEMENT, HINGE | 1 | 1512- | ALL | |||
| 482 | I8-98055 463-0 | PANEL, SIDE RR PILLAR | 1 | 1512- | ALL | |||
| 100 | I8-97585 200-9 | PANEL ASM, BODY SIDE | 1 | 1512- | NLR | |||
| 15 | I8-97585 295-2 | PANEL, CANT RAIL SIDE | 1 | 1512- | ALL | (A) | ||
| 15 | I8-97585 303-2 | PANEL, CANT RAIL SIDE | 1 | 1512- | ALL | (B) | ||
| 483 | I8-98055 460-0 | PANEL, SIDE CANT RAIL | 1 | 1512- | ALL | |||
| 433 | I9-09114 086-0 | NUT, HEADER SHELF | 4 | 1512- | ALL | M6 | ||
| 100 | I8-97586 023-5 | PANEL ASM, BODY SIDE | 1 | 1512- | ALL |
