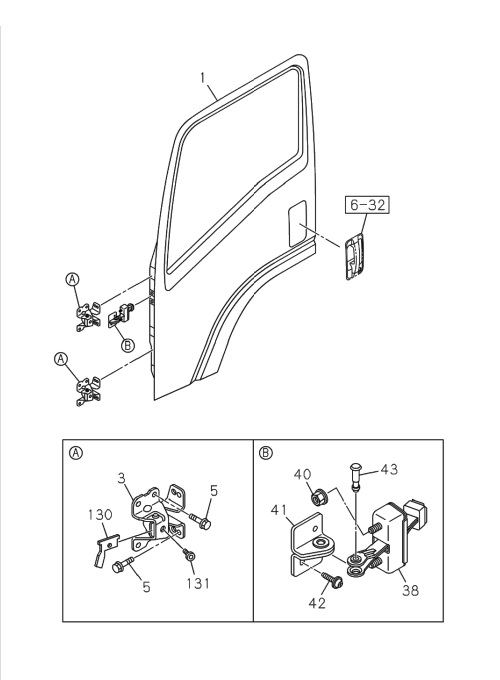

6-30 | FRONT DOOR AND HINGE
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98260 604-0 | DOOR ASM, FRT, WO/TRIM | 1 | 1512- | ALL | |||
| 5 | I8-98029 440-0 | BOLT, HINGE | 16 | 1512- | NMR71 | (B) M8X23 | ||
| 131 | I8-98039 593-1 | BOLT, DOOR STOPPER | 4 | 1512- | ALL | M10X11 | ||
| 130 | I8-98038 299-1 | STOPPER, HINGE | 4 | 1512- | ALL | |||
| 43 | I8-98037 152-2 | PIN | 2 | 1512- | ALL | |||
| 5 | I8-98049 756-0 | BOLT, HINGE | 12 | 1512- | ALL | (A) M8X20 | ||
| 38 | I8-98330 950-0 | CHECKER ASM, DOOR | 2 | 1512- | ALL | |||
| 42 | I8-98032 159-2 | BOLT, BRKT | 4 | 1512- | ALL | |||
| 1 | I8-98260 603-1 | DOOR ASM, FRT, WO/TRIM | 1 | 1512- | ALL | |||
| 3 | I8-98191 302-0 | HINGE, DOOR FRT | 4 | 1512- | ALL | |||
| 41 | I8-98029 290-4 | BRACKET, CHECKER | 2 | 1512- | ALL | |||
| 40 | I8-97329 625-0 | NUT, CHECKER | 4 | 1512- | ALL | M8 | ||
| 5 | I8-98029 440-0 | BOLT, HINGE | 16 | 1512- | NLR | (B) M8X23 |
