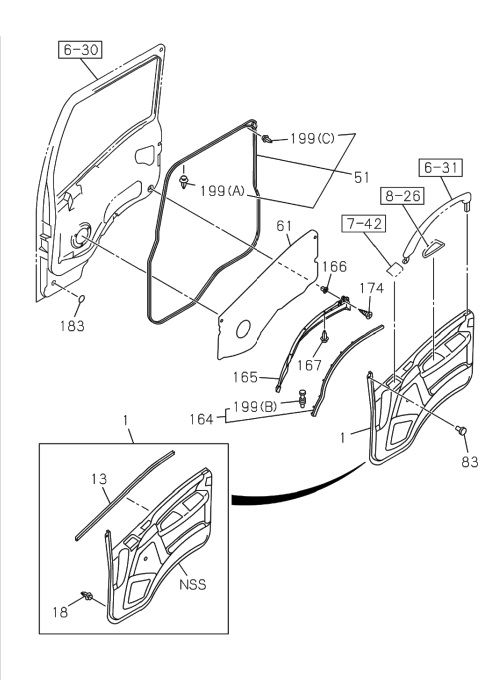

| Key |
PART NO |
ITC |
DESCRIPTION |
QTY |
APP DATE |
LR |
MODEL |
REMARKS |
|
|
|
|
|
|
|
|
|
| 18 |
I8-98004 025-0 |
|
CLIP, DOOR PAD |
14 |
1512- |
|
ALL |
|
| 167 |
I1-09983 105-0 |
|
CLIP, LINER |
6 |
1512- |
|
ALL |
D6X16 |
| 183 |
I1-76798 029-0 |
|
SEAL, LOCATION HOLE |
2 |
1512- |
|
ALL |
OD=25 |
| 51 |
I8-98029 199-A |
|
WEATHERSTRIP, FRONT DOOR |
1 |
1512- |
|
ALL |
|
| 1 |
I8-97696 053-A |
|
PAD, TRIM, FRT DOOR |
1 |
1512- |
|
ALL |
|
| 61 |
I8-98029 394-2 |
|
SEAL, WATER, DOOR PAD |
1 |
1512- |
|
ALL |
|
| 199 |
I8-98062 271-0 |
|
CLIP, SEAL |
2 |
1512- |
|
ALL |
(C) |
| 83 |
I8-97405 308-0 |
|
CLIP, DOOR TRIM |
2 |
1512- |
|
ALL |
|
| 165 |
I8-98022 761-1 |
|
LINER, DOOR LWR |
1 |
1512- |
|
ALL |
|
| 199 |
I8-98027 457-0 |
|
CLIP, SEAL |
20 |
1512- |
|
ALL |
(B) |
| 199 |
I8-98062 270-0 |
|
CLIP, SEAL |
80 |
1512- |
|
ALL |
(A) |
| 1 |
I8-97696 054-A |
|
PAD, TRIM, FRT DOOR |
1 |
1512- |
|
ALL |
|
| 13 |
I8-98029 202-1 |
|
SEAL, DOOR TRIM |
1 |
1512- |
|
ALL |
INNER |
| 164 |
I8-98022 741-A |
|
SEAL, SUB, SILL SIDE |
2 |
1512- |
|
ALL |
|
| 51 |
I8-98077 429-A |
|
WEATHERSTRIP, FRONT DOOR |
1 |
1512- |
|
ALL |
|
| 13 |
I8-98029 201-1 |
|
SEAL, DOOR TRIM |
1 |
1512- |
|
ALL |
INNER |
| 166 |
I8-94279 078-A |
|
PLUG, HOLE |
4 |
1512- |
|
ALL |
D=8.6X7.7 L=7.5 |
| 61 |
I8-98029 395-2 |
|
SEAL, WATER, DOOR PAD |
1 |
1512- |
|
ALL |
|
| 174 |
I0-72180 512-0 |
|
SCREW, LINER |
4 |
1512- |
|
ALL |
M5X12 |
| 165 |
I8-98022 760-1 |
|
LINER, DOOR LWR |
1 |
1512- |
|
ALL |
|
