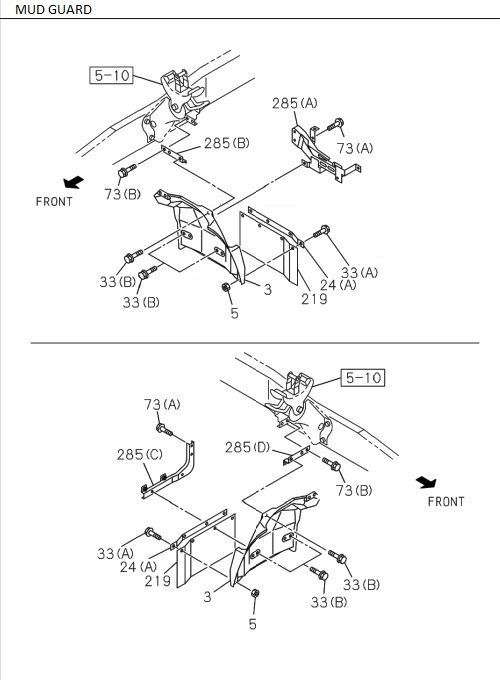

6-47 | MUD GUARD AND INSULATOR
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 150 | I0-91180 108-0 | NUT, SIDE PANEL | 4 | 1512- | ALL | M8 | ||
| 285 | I8-98169 721-0 | BRACKET, MUD COVER | 1 | 1512- | ALL | (A) | ||
| 23 | I8-97997 832-0 | FASTENER, MUD COVER | 6 | 1512- | ALL | OD=8.3 | ||
| 285 | I8-98038 865-1 | BRACKET, MUD COVER | 1 | 1512- | ALL | (B) | ||
| 285 | I8-98059 689-0 | BRACKET, MUD COVER | 1 | 1512- | ALL | (D) | ||
| 205 | I8-94242 150-0 | FASTENER, MUD COVER | 2 | 1512- | ALL | D=5.8 | ||
| 254 | I8-98115 263-0 | COVER, MUD, VALANCE | 1 | 1512- | ALL | |||
| 3 | I8-97695 785-A | GUARD, MUD, RR | 1 | 1512- | ALL | |||
| 192 | I8-98022 756-1 | SEAL, MUD COVER | 1 | 1512- | ALL | (A) | ||
| 33 | I1-09030 093-0 | BOLT, MUD COVER | 8 | 1512- | ALL | (B) M8X25 | ||
| 24 | I8-97695 723-A | PLATE, MUD COVER | 2 | 1512- | ALL | (A) | ||
| 33 | I8-98061 108-0 | BOLT, MUD COVER | 4 | 1512- | ALL | (C) M16X16 | ||
| 5 | I8-98227 380-0 | NUT, FLAP RUBBER | 8 | 1512- | ALL | M6 | ||
| 73 | I0-28650 825-0 | BOLT, MUD COVER BRKT | 4 | 1512- | ALL | (B) M8X25 | ||
| 324 | I8-98022 786-2 | PROTECTOR, FRT FENDER | 2 | 1512- | ALL | |||
| 139 | I8-98331 753-0 | PANEL, SIDE | 1 | 1807- | NMR81 | (A) | ||
| 73 | I0-28651 025-0 | BOLT, MUD COVER BRKT | 4 | 1512- | ALL | (A) M10X25 | ||
| 3 | I8-97695 786-A | GUARD, MUD, RR | 1 | 1512- | ALL | |||
| 192 | I8-98022 755-1 | SEAL, MUD COVER | 1 | 1512- | ALL | (A) | ||
| 192 | I8-98192 388-A | SEAL, MUD COVER | 2 | 1512- | ALL | (B) | ||
| 139 | I8-97371 657-0 | PANEL, SIDE | 1 | 1512- | NMR71 | (A) | ||
| 140 | I1-09030 095-0 | BOLT, SIDE PANEL | 7 | 1512- | ALL | M8X30 | ||
| 44 | I1-76378 155-0 | CLIP, ANCHOR | 6 | 1512- | ALL | OD=16 L=11 | ||
| 139 | I8-97371 657-0 | PANEL, SIDE | 1 | 1512- | NLR | (A) | ||
| 139 | I8-97374 077-0 | PANEL, SIDE | 1 | 1512- | NMR71 | (B) | ||
| 219 | I8-98010 741-1 | FLAP, MUD GUARD | 2 | 1512- | ALL | |||
| 285 | I8-98131 079-0 | BRACKET, MUD COVER | 1 | 1512- | ALL | (C) | ||
| 33 | I8-98227 381-0 | BOLT, MUD COVER | 8 | 1512- | ALL | (A) M16X16 | ||
| 254 | I8-98115 264-0 | COVER, MUD, VALANCE | 1 | 1512- | ALL | |||
| 139 | I8-98331 754-0 | PANEL, SIDE | 1 | 1807- | NMR81 | (B) | ||
| 24 | I8-98154 261-0 | PLATE, MUD COVER | 2 | 1512- | ALL | (B) | ||
| 139 | I8-97374 077-0 | PANEL, SIDE | 1 | 1512- | NLR | (B) |
