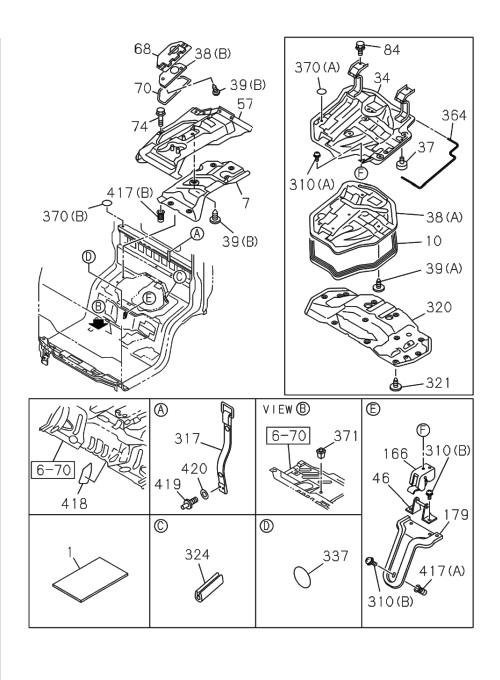

6-76 | FLOOR EQUIPMENT AND SEALING
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 7 | I8-98242 227-0 | INSULATOR, SUPPORT COVER | 1 | 1512- | NMR71 | |||
| 166 | I8-98040 152-0 | LOCK, ENG COVER | 2 | 1512- | NMR71 | |||
| 418 | I8-98090 191-2 | SEAL, PROTECTOR | 1 | 1512- | NLR | 4JB1-TC | ||
| 418 | I8-98090 192-2 | SEAL, PROTECTOR | 1 | 1512- | NLR | 4JB1-TC | ||
| 371 | I8-94279 714-0 | GROMMET, LOCATION HOLE | 2 | 1512- | ALL | 14.5X14.5 | ||
| 317 | I8-97585 575-0 | BAND, ENGINE COVER | 1 | 1512- | NMR71 | |||
| 74 | I0-28650 820-0 | BOLT, SUPPORT COVER TO FLOOR | 9 | 1512- | NLR | M8X20 | ||
| 364 | I8-97892 744-0 | FINISHER, ENG COVER SIDE | 1 | 1512- | NMR71 | L=1100 | ||
| 46 | I8-98040 145-0 | HOOK ASM, ENG COVER | 2 | 1512- | NMR71 | |||
| 418 | I8-98090 192-2 | SEAL, PROTECTOR | 1 | 1807- | NMR81 | |||
| 310 | I0-38050 616-0 | SCREW, ENG COVER HOOK | 5 | 1512- | NLR | (B) M6X16 | ||
| 324 | I8-97892 742-0 | FINISHER, FLOOR PANEL | 1 | 1512- | NLR | L=140 | ||
| 74 | I0-28650 820-0 | BOLT, SUPPORT COVER TO FLOOR | 9 | 1512- | NMR71 | M8X20 | ||
| 84 | I0-28650 820-0 | BOLT, ENG COVER HINGE | 3 | 1512- | NMR71 | M8X20 | ||
| 419 | I8-98065 262-0 | RIVET, ENG COVER | 1 | 1512- | NMR71 | |||
| 370 | I1-76798 029-0 | SEAL, LOCATION HOLE | 1 | 1512- | NLR | OD=25 | ||
| 321 | I8-97808 623-0 | CLIP, INSULATOR, FLOOR | 14 | 1512- | ALL | ID=6.2 L=11.4 | ||
| 364 | I8-97892 744-0 | FINISHER, ENG COVER SIDE | 1 | 1512- | NLR | L=1100 | ||
| 310 | I0-28650 616-0 | SCREW, ENG COVER HOOK | 4 | 1512- | NLR | (A) M6X16 | ||
| 417 | I8-98013 752-0 | NUT, POP | 1 | 1512- | NLR | M6 | ||
| 179 | I8-98048 301-1 | REINFORCEMENT, COVER | 1 | 1512- | NMR71 | |||
| 166 | I8-98040 152-0 | LOCK, ENG COVER | 2 | 1512- | NLR | |||
| 34 | I8-97589 241-3 | COVER ASM, ENG, CAB FLOOR | 1 | 1512- | NLR | |||
| 370 | I1-76798 029-0 | SEAL, LOCATION HOLE | 1 | 1512- | NMR71 | OD=25 | ||
| 337 | I8-98031 126-0 | SEAL, CLIP HOLE | 8 | 1512- | ALL | OD=32 | ||
| 37 | I5-74917 001-A | RUBBER, BUFFER, ENG COVER | 2 | 1512- | NMR71 | OD=30 T=10 | ||
| 324 | I8-97892 742-0 | FINISHER, FLOOR PANEL | 1 | 1512- | NMR71 | L=140 | ||
| 310 | I0-38050 616-0 | SCREW, ENG COVER HOOK | 5 | 1512- | NMR71 | (B) M6X16 | ||
| 420 | I0-91614 705-0 | WASHER, ENG COVER | 1 | 1512- | NLR | ID=5.3 OD=16 | ||
| 420 | I0-91614 705-0 | WASHER, ENG COVER | 1 | 1512- | NMR71 | ID=5.3 OD=16 | ||
| 38 | I8-98242 226-0 | INSULATOR, ENG COVER | 1 | 1512- | NMR71 | (A) | ||
| 57 | I8-97589 291-5 | COVER ASM, SUPPORT, CAB FLOOR | 1 | 1512- | NMR71 | |||
| 39 | I8-97808 623-0 | CLIP, INSULATOR, COVER | 5 | 1512- | NLR | (A) ID=6.2 L=11.4 | ||
| 84 | I0-28650 820-0 | BOLT, ENG COVER HINGE | 3 | 1512- | NLR | M8X20 | ||
| 179 | I8-98048 301-1 | REINFORCEMENT, COVER | 1 | 1512- | NLR | |||
| 46 | I8-98040 145-0 | HOOK ASM, ENG COVER | 2 | 1512- | NLR | |||
| 10 | I8-98029 377-A | SEAL, ENG COVER | 1 | 1512- | NMR71 | |||
| 7 | I8-98242 227-0 | INSULATOR, SUPPORT COVER | 1 | 1512- | NLR | |||
| 418 | I8-98090 191-2 | SEAL, PROTECTOR | 1 | 1807- | NMR81 | |||
| 68 | I8-98040 141-0 | COVER ASM, SUB, ENG COVER | 1 | 1512- | NLR | |||
| 419 | I8-98065 262-0 | RIVET, ENG COVER | 1 | 1512- | NLR | |||
| 417 | I8-98013 752-0 | NUT, POP | 1 | 1512- | NLR | M6 | ||
| 10 | I8-98029 377-A | SEAL, ENG COVER | 1 | 1512- | NLR | |||
| 70 | I8-97853 050-A | SEAL, ENG SUB COVER, CAB FLOOR | 1 | 1512- | NLR | |||
| 337 | I1-76798 029-0 | SEAL, CLIP HOLE | 3 | 1512- | NLR | OD=20 T=0.05 | ||
| 68 | I8-98040 141-0 | COVER ASM, SUB, ENG COVER | 1 | 1512- | NMR71 | |||
| 1 | I8-94262 093-0 | SHEET, MELTING, FLOOR | AR | 1512- | ALL | |||
| 70 | I8-97853 050-A | SEAL, ENG SUB COVER, CAB FLOOR | 1 | 1512- | NMR71 | |||
| 38 | I8-98242 234-0 | INSULATOR, ENG COVER | 1 | 1512- | NMR71 | (B) | ||
| 39 | I8-97808 623-0 | CLIP, INSULATOR, COVER | 5 | 1512- | NMR71 | (A) ID=6.2 L=11.4 | ||
| 317 | I8-97585 575-0 | BAND, ENGINE COVER | 1 | 1512- | NLR | |||
| 37 | I5-74917 001-A | RUBBER, BUFFER, ENG COVER | 2 | 1512- | NLR | OD=30 T=10 | ||
| 39 | I8-94279 997-0 | CLIP, INSULATOR, COVER | 7 | 1512- | NLR | (B) OD=30 | ||
| 310 | I0-28650 616-0 | SCREW, ENG COVER HOOK | 4 | 1512- | NMR71 | (A) M6X16 | ||
| 39 | I8-94279 997-0 | CLIP, INSULATOR, COVER | 7 | 1512- | NMR71 | (B) OD=30 | ||
| 38 | I8-98242 226-0 | INSULATOR, ENG COVER | 1 | 1512- | NLR | (A) | ||
| 38 | I8-98242 234-0 | INSULATOR, ENG COVER | 1 | 1512- | NLR | (B) | ||
| 34 | I8-97589 241-3 | COVER ASM, ENG, CAB FLOOR | 1 | 1512- | NMR71 | |||
| 417 | I8-98021 404-0 | NUT, POP | 1 | 1512- | NMR71 | M8 | ||
| 57 | I8-97589 291-5 | COVER ASM, SUPPORT, CAB FLOOR | 1 | 1512- | NLR | |||
| 417 | I8-98021 404-0 | NUT, POP | 1 | 1512- | NMR71 | M8 | ||
| 320 | I8-98242 224-0 | INSULATOR, FLOOR, FRT | 1 | 1512- | ALL | |||
| 337 | I1-76798 029-0 | SEAL, CLIP HOLE | 3 | 1512- | NMR71 | OD=20 T=0.05 |
