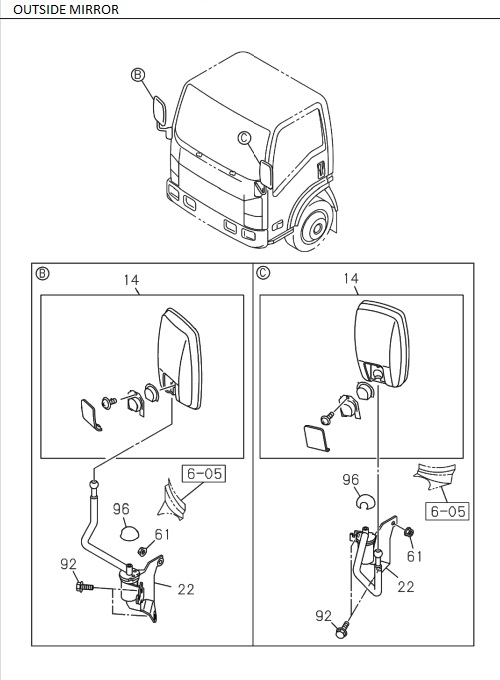

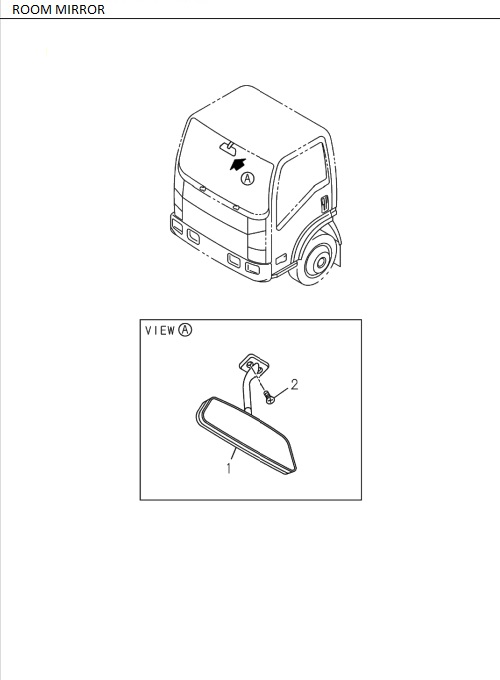

7-20 | MIRROR AND STAY MIRROR
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 64 | I8-98059 421-0 | SEAL, MIRROR | 2 | 1512- | NMR71 | OD=20 T=0.05 | ||
| 30 | I8-94262 625-2 | MIRROR, UNDER | 1 | 1512- | NMR71 | |||
| 96 | I8-98027 552-2 | CAP, MIRROR STAY | 2 | 1512- | ALL | |||
| 22 | I8-98070 509-A | STAY, OUT SIDE MIRROR | 1 | 1512- | NMR | LONG STAY | ||
| 31 | I8-94262 631-0 | PLATE, MIRROR | 1 | 1512- | NLR | |||
| 32 | I8-94279 372-0 | SCREW, UNDER MIRROR | 1 | 1512- | NLR | |||
| 22 | I8-98070 509-A | STAY, OUT SIDE MIRROR | 1 | 1512- | NLR | LONG STAY, NLR71-TL , NLR71-BL , NLR55T Lx | ||
| 1 | I8-97695 745-A | MlRROR, ROOM | 1 | 1512- | NLR | 12V | ||
| 14 | I6-45910 220-0 | MIRROR ASM, OUTSIDE | 1 | 1512- | ALL | (IADG) | ||
| 30 | I8-94262 625-2 | MIRROR, UNDER | 1 | 1512- | NLR | |||
| 2 | I8-94279 341-0 | SCREW, MIRROR TO BODY | 2 | 1512- | ALL | M5X16 | ||
| 14 | I7-45910 220-A | MIRROR ASM, OUTSIDE | 1 | 1512- | ALL | |||
| 3 | I8-97859 098-2 | STOPPER, RR VIEW MIRROR | 1 | 1512- | NMR71 | L=31 | ||
| 1 | I8-97695 746-A | MlRROR, ROOM | 1 | 1512- | NMR | 24V | ||
| 31 | I8-94262 631-0 | PLATE, MIRROR | 1 | 1512- | NMR71 | |||
| 3 | I8-97857 352-1 | STOPPER, RR VIEW MIRROR | 1 | 1512- | NMR71 | L=22 | ||
| 34 | I8-94262 629-0 | CAP, MIRROR | 1 | 1512- | NLR | |||
| 64 | I8-98059 421-0 | SEAL, MIRROR | 2 | 1512- | NLR | OD=20 T=0.05 | ||
| 1 | I8-97695 746-A | MlRROR, ROOM | 1 | 1512- | NLR | 24V | ||
| 92 | I0-28650 825-0 | BOLT, STAY BRKT, MIRROR | 4 | 1512- | ALL | M8X25 | ||
| 32 | I8-94279 372-0 | SCREW, UNDER MIRROR | 1 | 1512- | NMR71 | |||
| 34 | I8-94262 629-0 | CAP, MIRROR | 1 | 1512- | NMR71 | |||
| 22 | I8-98038 224-A | STAY, OUT SIDE MIRROR | 1 | 1512- | ALL | |||
| 3 | I8-97857 352-1 | STOPPER, RR VIEW MIRROR | 1 | 1512- | NLR | L=22 | ||
| 61 | I0-91180 108-0 | NUT, STAY,OUT SIDE MIRROR | 2 | 1512- | ALL | M8 | ||
| 22 | I8-98070 505-A | STAY, OUT SIDE MIRROR | 1 | 1512- | NLR | SHORT STAY, NLR55-T , NLR71-T , NLR55-B | ||
| 3 | I8-97859 098-2 | STOPPER, RR VIEW MIRROR | 1 | 1512- | NLR | L=31 |
