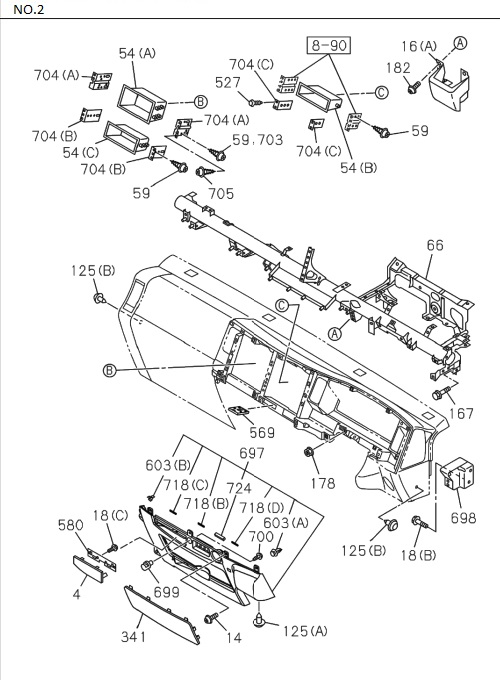

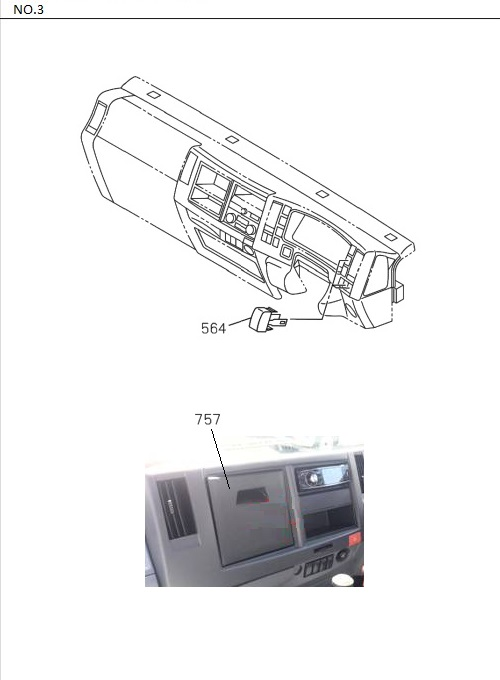

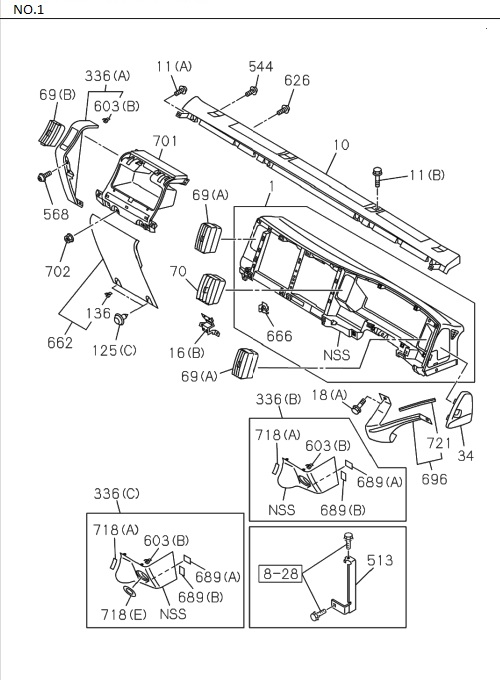

7-40 | INSTRUMENT PANEL AND BOX
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 702 | I0-91180 106-0 | NUT, TRAY | 2 | 1512- | ALL | M6 | ||
| 513 | I8-97695 771-A | BRACKET, RELAY | 1 | 1512- | NMR71 | |||
| 718 | I8-98200 040-0 | SEAL, COVER | 1 | 1512- | NLR | (B) 8X80 | ||
| 525 | I0-72180 516-0 | SCREW, CUP STAND | 3 | 1512- | NLR | |||
| 125 | I8-97419 968-1 | CLIP, INST PANEL | 2 | 1512- | ALL | (C) | ||
| 69 | I8-98028 561-2 | GRILLE, SIDE, AIR OUTLET | 2 | 1512- | ALL | (A) | ||
| 568 | I0-72180 516-0 | BOLT, COVER | 1 | 1512- | ALL | M5X16 | ||
| 527 | I8-97151 251-0 | CLIP, INST CLUSTER | 1 | 1512- | ALL | |||
| 11 | I8-98018 440-0 | BOLT, INST PNL | 8 | 1512- | ALL | (A) M5X16 | ||
| 178 | I0-91180 106-0 | NUT, INST PANEL | 1 | 1512- | ALL | M6 | ||
| 16 | I8-98053 711-0 | BRACKET, INST PNL | 1 | 1512- | ALL | |||
| 718 | I8-98159 538-0 | SEAL, COVER | 1 | 1807- | NMR81 | (A) 60X15 | ||
| 698 | I8-98089 257-1 | BRACKET, INST BAR SIDE | 1 | 1512- | ALL | |||
| 626 | I8-94279 804-0 | RETAINER | 2 | 1512- | ALL | 0D=15 | ||
| 603 | I8-98021 271-0 | CLIP, COVER | 2 | 1512- | ALL | (B) | ||
| 700 | I0-72180 516-0 | BOLT, HOOK | 1 | 1512- | ALL | M5X16 | ||
| 336 | I8-97418 759-2 | COVER, INST PANEL SIDE | 1 | 1807- | NMR81 | (B) | ||
| 704 | I8-97585 616-2 | BRACKET, CENTER POCKET | 2 | 1512- | ALL | (B) | ||
| 701 | I8-97422 090-1 | TRAY, INST | 1 | 1512- | ALL | |||
| 580 | I8-98091 546-0 | BRACKET, COVER | 1 | 1512- | ALL | |||
| 699 | I8-97408 927-0 | HOOK, INST PANEL | 1 | 1512- | ALL | |||
| 724 | I8-98200 042-0 | INSULATOR, INST PANEL | 1 | 1512- | ALL | |||
| 704 | I8-97585 618-2 | BRACKET, CENTER POCKET | 2 | 1512- | ALL | (A) | ||
| 711 | I8-97926 397-0 | HOLDER ASM, LID | 1 | 1512- | NMR71 | |||
| 696 | I8-98199 366-0 | BRACKET, KNEE | 1 | 1512- | ALL | |||
| 711 | I8-97926 396-0 | HOLDER ASM, LID | 1 | 1512- | NMR71 | |||
| 718 | I8-98218 319-0 | SEAL, COVER | 1 | 1512- | NLR | (C) | ||
| 54 | I8-97408 864-3 | POCKET, CENTER CLUSTER | 1 | 1512- | ALL | (B) H=58.4 | ||
| 718 | I8-98097 696-0 | SEAL, COVER | 1 | 1512- | NMR71 | (A) 30X15 | ||
| 709 | I0-71040 516-0 | SCREW, TRAY INST | 4 | 1512- | NMR71 | |||
| 708 | I8-98010 867-1 | STOPPER, TRAY INST LID | 2 | 1512- | NLR | |||
| 689 | I8-98061 778-1 | SEAL, INST | 1 | 1512- | ALL | (B) 18X170 | ||
| 718 | I8-98200 041-0 | SEAL, COVER | 1 | 1512- | NMR71 | (B) 4X35 | ||
| 707 | I8-97926 393-0 | SHAFT, TRAY INST LID | 2 | 1512- | NLR | |||
| 710 | I8-97926 398-0 | SPRING, TRAY INST LID | 1 | 1512- | NMR71 | |||
| 710 | I8-97926 399-0 | SPRING, TRAY INST LID | 1 | 1512- | NLR | |||
| 704 | I8-98107 549-0 | BRACKET, CENTER POCKET | 2 | 1512- | ALL | (C) | ||
| 11 | I0-72180 516-0 | BOLT, INST PNL | 8 | 1512- | ALL | (A) M5X16 | ||
| 718 | I8-98200 041-0 | SEAL, COVER | 1 | 1807- | NMR81 | (D) 4X35 | ||
| 710 | I8-97926 399-0 | SPRING, TRAY INST LID | 1 | 1512- | NMR71 | |||
| 265 | I8-97418 528-0 | HOLDER, CUP | 1 | 1512- | NMR71 | |||
| 689 | I8-98061 777-0 | SEAL, INST | 1 | 1512- | ALL | (A) 7X31 | ||
| 513 | I8-97695 771-A | BRACKET, RELAY | 1 | 1512- | NLR | |||
| 125 | I8-97408 817-0 | CLIP, INST PANEL | 2 | 1512- | ALL | (B) | ||
| 712 | I8-98031 846-0 | LOCK, TRAY INST LID | 1 | 1512- | NMR71 | |||
| 603 | I8-98004 025-0 | CLIP, COVER | 1 | 1512- | ALL | (A) | ||
| 182 | I0-38050 612-0 | BOLT, BRKT,INST PANEL | 1 | 1512- | ALL | M6X12 | ||
| 711 | I8-97926 397-0 | HOLDER ASM, LID | 1 | 1512- | NLR | |||
| 69 | I8-98028 562-2 | GRILLE, SIDE, AIR OUTLET | 1 | 1512- | ALL | (B) | ||
| 54 | I8-97408 865-3 | POCKET, CENTER CLUSTER | 1 | 1512- | ALL | (C) H=69.8 | ||
| 125 | I8-97408 063-0 | CLIP, INST PANEL | 2 | 1512- | ALL | (A) | ||
| 341 | I8-97423 658-0 | LID, FUSE BOX | 1 | 1512- | ALL | |||
| 718 | I8-98200 040-0 | SEAL, COVER | 1 | 1807- | NMR81 | (C) 8X80 | ||
| 336 | I8-97414 961-4 | COVER, INST PANEL SIDE | 1 | 1512- | NMR71 | (B) | ||
| 10 | I8-97419 684-5 | PANEL ASM, GARNISH | 1 | 1512- | ALL | |||
| 54 | I8-97407 129-3 | POCKET, CENTER CLUSTER | 1 | 1512- | ALL | (A) H=108.4 | ||
| 1 | I8-97405 253-8 | PANEL, INST | 1 | 1512- | ALL | |||
| 14 | I0-72180 516-0 | SCREW, INST PNL | 4 | 1512- | ALL | M5X16 | ||
| 705 | I0-72180 520-0 | SCREW, BRACKET CENTER POCKET | 1 | 1512- | ALL | M5X20 | ||
| 70 | I8-98028 563-2 | GRILLE, CENTER, AIR OUTLET | 1 | 1512- | ALL | |||
| 525 | I0-72180 516-0 | SCREW, CUP STAND | 3 | 1512- | NMR71 | |||
| 711 | I8-97926 396-0 | HOLDER ASM, LID | 1 | 1512- | NLR | |||
| 706 | I8-97409 510-0 | LID, TRAY INST | 1 | 1512- | NLR | |||
| 713 | I8-97926 400-0 | NUT, TRAY INST LID | 4 | 1512- | NMR71 | |||
| 712 | I8-98031 846-0 | LOCK, TRAY INST LID | 1 | 1512- | NLR | |||
| 524 | I8-98054 414-0 | STAND ASM, CUP,INST | 1 | 1512- | NMR71 | |||
| 59 | I8-98058 632-0 | SCREW, CLUSTER POCKET | 2 | 1512- | ALL | |||
| 136 | I8-98021 271-0 | CLIP, INST COVER | 5 | 1512- | ALL | |||
| 697 | I8-97423 656-1 | PANEL, INST CENTER | 1 | 1512- | ALL | |||
| 713 | I8-97926 400-0 | NUT, TRAY INST LID | 4 | 1512- | NLR | |||
| 4 | I8-97407 898-1 | COVER, INST PNL | 1 | 1512- | ALL | |||
| 718 | I8-98200 040-0 | SEAL, COVER | 1 | 1512- | NMR71 | (B) 8X80 | ||
| 718 | I8-98097 696-0 | SEAL, COVER | 1 | 1512- | NLR | (A) 30X15 | ||
| 544 | I0-72180 516-0 | SCREW, TRAY | 2 | 1512- | ALL | M5X16 | ||
| 524 | I8-98054 414-0 | STAND ASM, CUP,INST | 1 | 1512- | NLR | |||
| 757 | I7-37500 235-A | GLOVE BOX, ASM | 1 | 1512- | ALL | |||
| 718 | I8-98176 199-0 | SEAL, COVER | 1 | 1512- | NMR71 | (B) 5X30 | ||
| 703 | I8-98058 632-0 | SCREW, CENTER POCKET | 4 | 1512- | ALL | T=25 L=10 HEXALOBULAR | ||
| 564 | I8-98025 954-1 | COVER, SW | 3 | 1512- | ALL | |||
| 336 | I8-97414 961-4 | COVER, INST PANEL SIDE | 1 | 1512- | NLR | (B) | ||
| 666 | I8-98037 629-0 | INSERT, INST PANEL | 15 | 1512- | ALL | |||
| 167 | I8-97264 766-0 | BOLT, REINF TO INST | 4 | 1512- | ALL | M8X23 | ||
| 710 | I8-97926 398-0 | SPRING, TRAY INST LID | 1 | 1512- | NLR | |||
| 18 | I8-98058 632-0 | BOLT BRKT | 3 | 1512- | ALL | (C) SCREW T25 L=10 HEXALOBULAR | ||
| 18 | I0-38050 612-0 | BOLT BRKT | 2 | 1512- | ALL | (A) SCREW T25 M6X12 HEXALOBULAR SOCKET | ||
| 721 | I8-98176 240-0 | FINISHER, BRKT, KNEE | 1 | 1512- | ALL | L=75 | ||
| 18 | I0-28050 816-0 | BOLT BRKT | 4 | 1512- | ALL | (B) M8X16 | ||
| 662 | I8-97406 260-1 | COVER, LWR,INSTPANEL | 1 | 1512- | ALL | |||
| 34 | I8-97405 260-1 | LID, OIL TANK | 1 | 1512- | ALL | |||
| 718 | I8-98218 319-0 | SEAL, COVER | 1 | 1512- | NMR71 | (C) | ||
| 569 | I8-97410 276-1 | HOLDER, CARD | 1 | 1512- | ALL | |||
| 707 | I8-97926 393-0 | SHAFT, TRAY INST LID | 2 | 1512- | NMR71 | |||
| 265 | I8-97418 528-0 | HOLDER, CUP | 1 | 1512- | NLR | |||
| 708 | I8-98010 867-1 | STOPPER, TRAY INST LID | 2 | 1512- | NMR71 | |||
| 718 | I8-98200 041-0 | SEAL, COVER | 1 | 1512- | NLR | (B) 4X35 | ||
| 66 | I8-98199 364-1 | REINFORCEMENT, INST PANEL | 1 | 1512- | ALL | |||
| 698 | I8-98089 256-1 | BRACKET, INST BAR SIDE | 1 | 1512- | ALL | |||
| 718 | I8-98176 199-0 | SEAL, COVER | 1 | 1512- | NLR | (B) 5X30 | ||
| 336 | I8-97405 259-4 | COVER, INST PANEL SIDE | 1 | 1512- | ALL | (A) | ||
| 706 | I8-97409 510-0 | LID, TRAY INST | 1 | 1512- | NMR71 | |||
| 709 | I0-71040 516-0 | SCREW, TRAY INST | 4 | 1512- | NLR | |||
| 718 | I8-98176 199-0 | SEAL, COVER | 1 | 1807- | NMR81 | (B) 5X30 |
