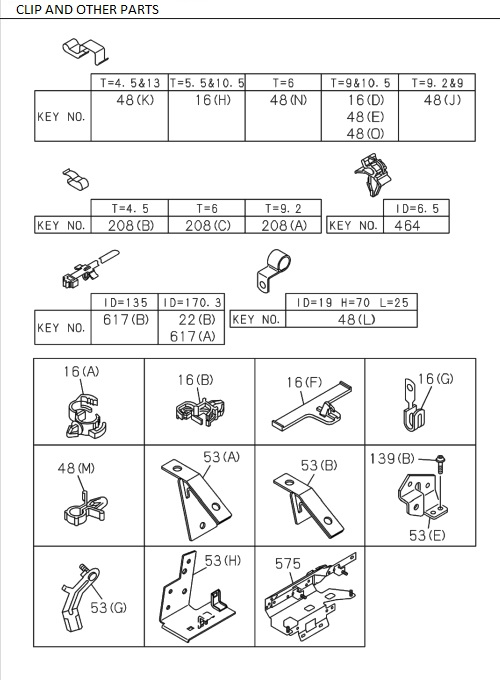

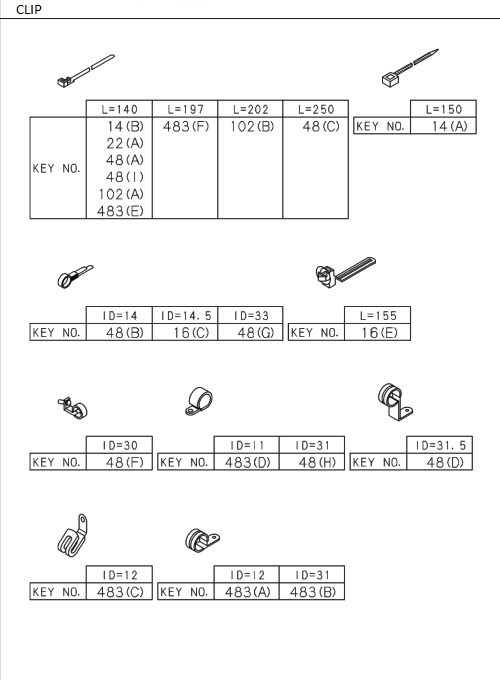

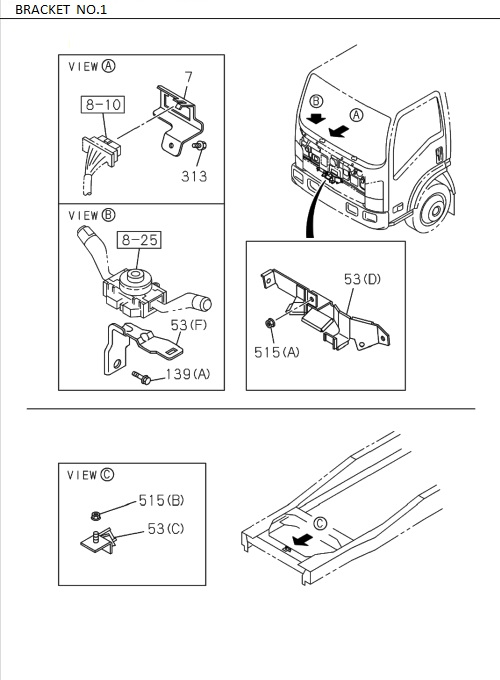

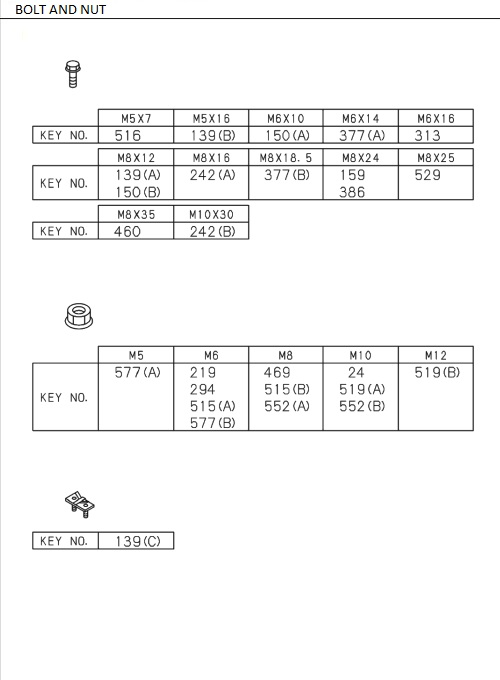

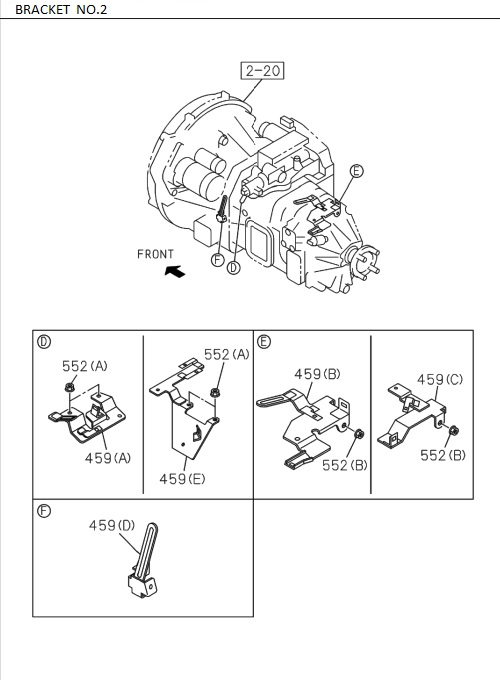

8-15 | FIXING PARTS, WIRING HARNESS
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 16 | I8-94329 956-0 | CLIP, HARNESS | 1 | 1512- | NMR71 | (D) L=911 D=8.5 | ||
| 48 | I1-09700 807-0 | CLIP, FRAME HARNESS | 5 | 1807- | NMR81 | (G) ID=33 L=63 | ||
| 386 | I8-98141 256-1 | BOLT, GRAND HARNESS | 2 | 1807- | NMR81 | M8X24 W/PL WASHER | ||
| 577 | I0-91180 106-0 | NUT, FUSE BOX | 2 | 1512- | ALL | (A) M6 | ||
| 159 | I8-98141 256-1 | BOLT, GRAND ENG ELEC | 1 | 1512- | NLR | M8X24 | ||
| 16 | I8-97173 307-0 | CLIP, HARNESS | 4 | 1807- | NMR81 | (E) L=155 | ||
| 48 | I8-97041 091-0 | CLIP, FRAME HARNESS | 1 | 1512- | NLR | (F) T=9.2&9 | ||
| 16 | I1-09701 014-0 | CLIP, HARNESS | 1 | 1807- | NMR81 | (C) ID=14.5 L=40 | ||
| 53 | I8-97018 095-3 | BRACKET, HARNESS | 1 | 1512- | NMR71 | (A) 4HG1-T | ||
| 16 | I8-97857 210-0 | CLIP, HARNESS | 1 | 1512- | NMR71 | (C) D8.5X19 | ||
| 529 | I0-28650 825-0 | BOLT, RELAY BOX | 3 | 1512- | ALL | M8X25 | ||
| 22 | I1-09987 182-0 | CLIP, ENG HARNESS | 1 | 1512- | NMR71 | (A) L=170.3 | ||
| 14 | I5-09707 031-1 | CLIP, BAND,HARNESS | 2 | 1807- | NMR81 | (B) L=140 | ||
| 48 | I8-97078 642-2 | CLIP, FRAME HARNESS | 1 | 1512- | NMR71 | (K) ID=30 W/STUD | ||
| 516 | I8-98063 767-0 | BOLT, HARNESS | 1 | 1512- | ALL | M5X7 | ||
| 139 | I0-28050 812-A | BOLT, BRKT | 1 | 1807- | NMR81 | (A) M8X12 | ||
| 150 | I0-28050 812-A | BOLT, CLIP | 1 | 1807- | NMR81 | (B) M8X12 | ||
| 377 | I8-98164 836-0 | BOLT, CAB EARTH | 3 | 1512- | ALL | (A) M6X14 | ||
| 53 | I8-98052 458-0 | BRACKET, HARNESS | 1 | 1807- | NMR81 | (F) | ||
| 16 | I8-97101 436-0 | CLIP, HARNESS | 1 | 1807- | NMR81 | (G) | ||
| 519 | I0-91111 510-0 | NUT, EARTH CABLE | 1 | 1807- | NMR81 | M10 | ||
| 294 | I8-94424 179-0 | NUT | 1 | 1512- | NLR | 4HG1-T | ||
| 313 | I0-28450 616-0 | BOLT, BRKT | 1 | 1512- | NMR | 4HG1-T | ||
| 14 | I8-97355 273-0 | CLIP, BAND,HARNESS | 1 | 1807- | NMR81 | (A) L=150 | ||
| 53 | I8-98039 984-2 | BRACKET, HARNESS | 1 | 1512- | ALL | (D) | ||
| 469 | I0-91180 108-0 | NUT, PROTECTOR | 1 | 1512- | NLR | M8 | ||
| 460 | I0-28650 835-0 | BOLT, HARNESS PROTECTOR | 1 | 1512- | NLR | M8X35 | ||
| 48 | I1-09701 017-0 | CLIP, FRAME HARNESS | 1 | 1807- | NMR81 | (D) ID=31.5 H=23 L=25 | ||
| 386 | I8-98141 255-0 | BOLT, GRAND HARNESS | 1 | 1512- | NLR | M8X18.5 | ||
| 469 | I0-91180 108-0 | NUT, PROTECTOR | 1 | 1512- | NMR71 | M8 | ||
| 22 | I1-09987 182-0 | CLIP, ENG HARNESS | 1 | 1512- | NLR | (A) 4HG1-T, L=170.3 | ||
| 483 | I5-09707 031-1 | CLIP, ENG HARNESS | 3 | 1512- | NLR | (C) 4HG1-T, L=140 | ||
| 48 | I1-09700 807-0 | CLIP, FRAME HARNESS | 1 | 1512- | NLR | (G) ID=33 L=63 | ||
| 242 | I0-28050 816-0 | BOLT, BRKT,HARNESS | 3 | 1807- | NMR81 | (A) M8X16 | ||
| 150 | I0-28050 610-0 | BOLT, CLIP | 3 | 1807- | NMR81 | (A) M6X10 | ||
| 483 | I1-09700 994-0 | CLIP, ENG HARNESS | 1 | 1807- | NMR81 | (B) ID=31 H=30 L=35 | ||
| 159 | I8-98141 256-1 | BOLT, GRAND ENG ELEC | 1 | 1512- | NMR71 | M8X24 | ||
| 464 | I8-94257 639-0 | CLIP, SEDIMENTER HARNESS | 1 | 1512- | NLR | ID=6.5 | ||
| 48 | I5-09707 030-1 | CLIP, FRAME HARNESS | 2 | 1512- | NMR71 | (L) L=250 | ||
| 48 | I1-09700 969-0 | CLIP, FRAME HARNESS | 1 | 1512- | ALL | (H) ID=31 L=30 | ||
| 48 | I8-94147 870-0 | CLIP, FRAME HARNESS | 1 | 1512- | NLR | (E) 4JB1-TC, ID=9.6 | ||
| 515 | I8-98040 024-0 | NUT, BRKT | 1 | 1512- | ALL | (B) M8 | ||
| 242 | I0-28651 030-0 | BOLT, BRKT,HARNESS | 1 | 1807- | NMR81 | (B) M10X30 | ||
| 48 | I5-09709 096-0 | CLIP, FRAME HARNESS | 1 | 1512- | NMR71 | (J) T=4.5&13 | ||
| 460 | I0-28650 835-0 | BOLT, HARNESS PROTECTOR | 1 | 1512- | NMR71 | M8X35 | ||
| 150 | I0-28050 812-A | BOLT CLIP | 1 | 1512- | NLR | 4JB1-TC | ||
| 48 | I1-09701 017-0 | CLIP, FRAME HARNESS | 1 | 1512- | NMR71 | (I) ID=31.5 H=23 L=25 | ||
| 24 | I0-91180 110-0 | NUT, HARNESS | 1 | 1807- | NMR81 | M10 | ||
| 48 | I5-09707 030-1 | CLIP, FRAME HARNESS | 1 | 1807- | NMR81 | (C) L=250 | ||
| 313 | I0-28450 616-0 | BOLT, BRKT | 1 | 1512- | NLR | 4HG1-T | ||
| 48 | I1-09700 773-0 | CLIP, FRAME HARNESS | 1 | 1512- | NLR | (D) 4JB1-TC, ID=19 H=70 L=25 | ||
| 483 | I1-09700 097-1 | CLIP, ENG HARNESS | 1 | 1807- | NMR81 | (A) ID=12 L=70 | ||
| 483 | I0-95235 035-0 | CLIP, ENG HARNESS | 1 | 1512- | NLR | (A) 4JB1-TC, ID=11 L=20 | ||
| 577 | I8-97068 819-0 | NUT, FUSE BOX | 4 | 1512- | ALL | (B) M5 | ||
| 48 | I1-09701 017-0 | CLIP, FRAME HARNESS | 1 | 1512- | NLR | (I) ID=31.5 H=23 L=25 | ||
| 219 | I0-91180 106-0 | NUT | 3 | 1512- | NLR | 4JB1-TC | ||
| 48 | I8-97041 091-0 | CLIP, FRAME HARNESS | 3 | 1807- | NMR81 | (E) T=9 & 10.5 | ||
| 459 | I8-98196 974-0 | BRACKET, SUPPORT,HARNESS | 1 | 1807- | NMR81 | (B) | ||
| 102 | I8-98143 872-0 | CLIP, BAND | 1 | 1807- | NMR81 | (B) L=202 | ||
| 53 | I8-98018 900-2 | BRACKET, HARNESS | 1 | 1512- | ALL | (C) | ||
| 102 | I5-09707 031-1 | CLIP, BAND | 2 | 1807- | NMR81 | (A) L=140 | ||
| 22 | I1-09987 143-1 | CLIP, ENG HARNESS | 1 | 1512- | NLR | (B) MYY5T, L=135 | ||
| 139 | I0-72180 516-0 | BOLT, BRKT | 1 | 1512- | NLR | (B) 4HG1-TC | ||
| 48 | I1-09700 807-0 | CLIP, FRAME HARNESS | 1 | 1512- | NMR71 | (G) ID=33 L=63 | ||
| 377 | I8-98141 255-0 | BOLT, CAB EARTH | 3 | 1512- | ALL | (B) M8X18.5 | ||
| 48 | I5-09709 096-0 | CLIP, FRAME HARNESS | 1 | 1512- | NLR | (J) T=4.5&13 | ||
| 48 | I5-09707 031-1 | CLIP, FRAME HARNESS | 3 | 1512- | ALL | (A) L=140 | ||
| 48 | I8-97078 642-2 | CLIP, FRAME HARNESS | 1 | 1512- | NLR | (K) ID=30 W/STUD | ||
| 16 | I8-97069 515-0 | CLIP, HARNESS | 2 | 1512- | ALL | (A) ID=6&10-13 | ||
| 386 | I8-98141 255-0 | BOLT, GRAND HARNESS | 1 | 1512- | NMR71 | M8X18.5 | ||
| 53 | I8-97362 859-0 | BRACKET, HARNESS | 2 | 1807- | NMR81 | (A) | ||
| 483 | I8-97367 984-1 | CLIP, ENG HARNESS | 3 | 1807- | NMR81 | (C) ID=12 VINYL CHLORIDE | ||
| 459 | I8-98020 227-3 | BRACKET, SUPPORT,HARNESS | 1 | 1807- | NMR81 | (A) | ||
| 16 | I8-94329 956-0 | CLIP, HARNESS | 1 | 1512- | NLR | (D) L=911 D=8.5 | ||
| 16 | I8-94472 578-0 | CLIP, HARNESS | 1 | 1512- | ALL | (B) ID=10&16 | ||
| 552 | I0-91180 108-0 | NUT, BRKT,HARNESS | 2 | 1807- | NMR81 | (A) M8 | ||
| 48 | I8-97078 642-2 | CLIP, FRAME HARNESS | 1 | 1807- | NMR81 | (F) ID=30 W/STUD | ||
| 48 | I5-09700 319-0 | CLIP, FRAME HARNESS | 2 | 1512- | ALL | (B) ID=14 L=47 | ||
| 22 | I1-09987 143-1 | CLIP, ENG HARNESS | 1 | 1512- | NMR71 | (B) L=135 | ||
| 242 | I0-28050 816-0 | BOLT, BRKT,HARNESS | 3 | 1512- | NMR71 | M8X16 | ||
| 48 | I8-97371 949-0 | CLIP, FRAME HARNESS | 1 | 1512- | NMR71 | (N) T=9&10.5 | ||
| 16 | I8-97041 091-0 | CLIP, HARNESS | 1 | 1807- | NMR81 | (D) T=9 & 10.5 | ||
| 53 | I8-97018 095-3 | BRACKET, HARNESS | 1 | 1512- | NLR | (A) 4HG1-T | ||
| 7 | I8-98043 070-1 | BRACKET, CONNECTOR | 1 | 1512- | NLR | 4HG1-T | ||
| 519 | I0-91180 112-0 | NUT, EARTH CABLE | 1 | 1512- | NLR | 4JB1-TC, M12 | ||
| 552 | I0-91180 110-0 | NUT, BRKT,HARNESS | 1 | 1807- | NMR81 | (B) M10 | ||
| 464 | I8-94257 639-0 | CLIP, SEDIMENTER HARNESS | 1 | 1512- | NMR71 | ID=6.5 | ||
| 483 | I1-83574 032-0 | CLIP, ENG HARNESS | 1 | 1512- | NLR | (B) 4JB1-TC, L=197 | ||
| 139 | I8-97028 451-3 | BOLT, BRKT | 1 | 1512- | NLR | (A) 4JB1-TC | ||
| 294 | I8-94424 179-0 | NUT | 1 | 1512- | NMR | 4HG1-T | ||
| 515 | I0-91180 106-0 | NUT, BRKT | 1 | 1512- | ALL | (A) M6 | ||
| 242 | I0-28050 816-0 | BOLT, BRKT,HARNESS | 3 | 1512- | NLR | M8X16 | ||
| 48 | I5-09707 030-1 | CLIP, FRAME HARNESS | 2 | 1512- | NLR | (L) L=250 | ||
| 139 | I0-72180 516-0 | BOLT, BRKT | 1 | 1512- | NMR | (B) | ||
| 53 | I8-97357 140-0 | BRACKET, HARNESS | 1 | 1512- | NLR | (B) 4JB1-TC | ||
| 483 | I5-09707 031-1 | CLIP, ENG HARNESS | 3 | 1512- | NMR71 | (C) L=140 | ||
| 53 | I8-98019 633-0 | BRACKET, HARNESS | 1 | 1807- | NMR81 | (B) | ||
| 16 | I8-98052 679-0 | CLIP, HARNESS | 2 | 1807- | NMR81 | (F) | ||
| 16 | I8-97371 950-0 | CLIP, HARNESS | 1 | 1807- | NMR81 | (H) T=10.5 | ||
| 48 | I8-97371 948-0 | CLIP, FRAME HARNESS | 1 | 1512- | NMR71 | (M) T=6.0 | ||
| 22 | I5-09707 031-1 | CLIP, ENG HARNESS | 1 | 1807- | NMR81 | L=140 | ||
| 7 | I8-98043 070-1 | BRACKET, CONNECTOR | 1 | 1512- | NMR | |||
| 53 | I8-98084 590-0 | BRACKET, HARNESS | 1 | 1512- | ALL | (E) | ||
| 16 | I8-97857 210-0 | CLIP, HARNESS | 1 | 1512- | NLR | (C) D8.5X19 | ||
| 208 | I5-09709 013-0 | CLIP, HARNESS,MAG VLV | 1 | 1807- | NMR81 | T=9.2 | ||
| 575 | I8-98173 144-2 | BRACKET, FUSE BOX | 1 | 1512- | ALL |
