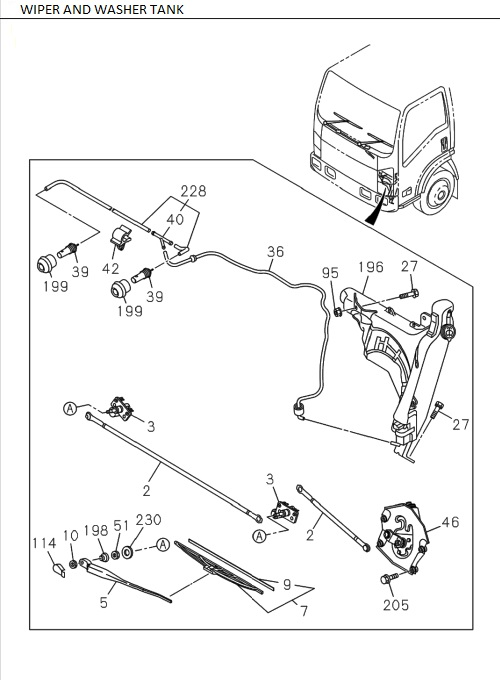

8-80 | WINDSHIELD WIPER AND WASHER
ELF
NLR NMR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 48 | I8-98052 215-0 | ARM, WIPER MOTOR | 1 | 1512- | ALL | |||
| 95 | I0-91180 108-0 | NUT, WASHER TANK | 1 | 1512- | ALL | M8 | ||
| 3 | I8-98053 764-0 | PIVOT ASM, FRT WIPER | 1 | 1512- | ALL | DRIVER SIDE | ||
| 2 | I8-98053 770-0 | LINK, FRT WIPER | 1 | 1512- | ALL | DRIVER SIDE L=590 W/CAP | ||
| 135 | I8-98052 214-0 | RUBBER, CUSHION, WlPER MOTOR | 4 | 1512- | ALL | |||
| 40 | I5-83363 033-0 | JOINT, WASHER HOSE | 1 | 1512- | ALL | |||
| 199 | I8-98079 030-0 | COVER, NOZZLE, WIPER | 2 | 1512- | ALL | |||
| 114 | I8-94282 851-0 | COVER, FRT WIPER ARM | 2 | 1512- | ALL | |||

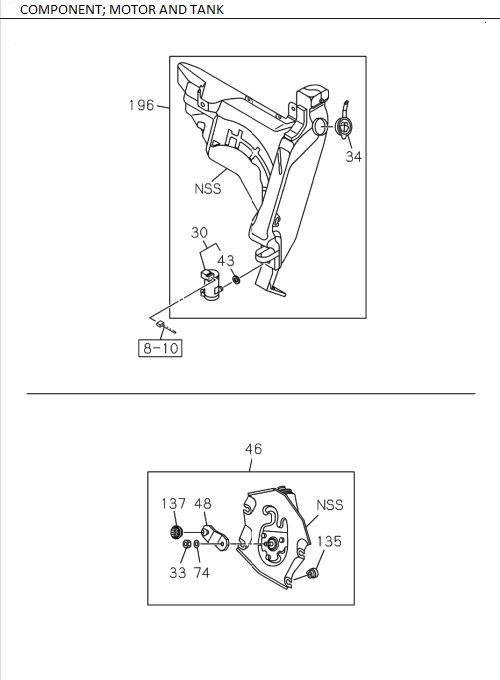

| 30 | I8-97855 138-0 | MOTOR ASM, FRT WASHER TANK | 1 | 1512- | NLR | 12V | ||
| 205 | I8-98018 440-0 | BOLT, WIPER MOTOR | 4 | 1512- | ALL | M6X25 | ||
| 43 | I8-94352 050-0 | RUBBER, GASKET, TANK | 1 | 1512- | ALL | |||
| 230 | I8-98029 097-0 | COLLAR, WIPER LINK | 2 | 1512- | ALL | |||
| 34 | I8-97855 140-0 | CAP, WASHER TANK | 1 | 1512- | ALL | |||
| 196 | I8-98029 137-3 | TANK, WASHER | 1 | 1512- | NLR | 12V | ||
| 228 | I8-98029 169-1 | HOSE ASM, WASHER | 1 | 1512- | ALL | |||
| 30 | I8-97855 139-0 | MOTOR ASM, FRT WASHER TANK | 1 | 1512- | NLR | 24V | ||
| 3 | I8-98053 763-0 | PIVOT ASM, FRT WIPER | 1 | 1512- | ALL | PASSENGER SIDE | ||
| 46 | I8-98029 123-3 | MOTOR ASM, FRT WINDSHIELD WIPER | 1 | 1512- | NLR | 24V | ||
| 2 | I8-98053 767-0 | LINK, FRT WIPER | 1 | 1512- | ALL | PASSENGER SIDE L=400 W/CAP STAMP M | ||
| 9 | I8-98053 793-0 | RUBBER, FRT WIPER BLADE | 2 | 1512- | ALL | L=475 | ||
| 137 | I8-98052 218-0 | SEAL, JOINT, WIPER MOTOR | 1 | 1512- | ALL | |||
| 5 | I8-98053 785-A | ARM, WIPER | 1 | 1512- | ALL | |||
| 10 | I0-91110 508-0 | NUT, WIPER ARM TO WIPER PIVOT | 2 | 1512- | ALL | M8 | ||
| 33 | I8-97855 157-0 | NUT, MOTOR TO ARM | 1 | 1512- | ALL | M8 | ||
| 5 | I8-98053 784-A | ARM, WIPER | 1 | 1512- | ALL | |||
| 46 | I8-98029 122-3 | MOTOR ASM, FRT WINDSHIELD WIPER | 1 | 1512- | NLR | 12V | ||
| 30 | I8-97855 139-0 | MOTOR ASM, FRT WASHER TANK | 1 | 1512- | NMR | 24V | ||
| 36 | I8-98029 171-2 | HOSE, WASHER | 1 | 1512- | ALL | L=1070 | ||
| 196 | I8-98029 135-3 | TANK, WASHER | 1 | 1512- | NLR | 24V | ||
| 39 | I8-98029 139-1 | NOZZLE, WINDSHIELD WASHER | 2 | 1512- | ALL | |||
| 46 | I8-98029 123-3 | MOTOR ASM, FRT WINDSHIELD WIPER | 1 | 1512- | NMR | 24V | ||
| 51 | I8-98029 167-0 | NUT, WIPER MOTOR LINK | 2 | 1512- | ALL | M24 | ||
| 27 | I8-94310 730-0 | BOLT, WASHER TANK | 2 | 1512- | ALL | M8X16 | ||
| 74 | I8-97162 101-0 | WASHER, ARM TO MOTOR | 1 | 1512- | ALL | ID=8 | ||
| 198 | I8-98029 164-0 | COVER, PIVOT, WIPER | 2 | 1512- | ALL | |||
| 196 | I8-98029 135-3 | TANK, WASHER | 1 | 1512- | NMR | 24V | ||
| 7 | I8-98053 790-A | BLADE, WIPER | 2 | 1512- | ALL | |||
| 42 | I8-97134 154-0 | CLIP, WASHER HOSE | 1 | 1512- | ALL |
