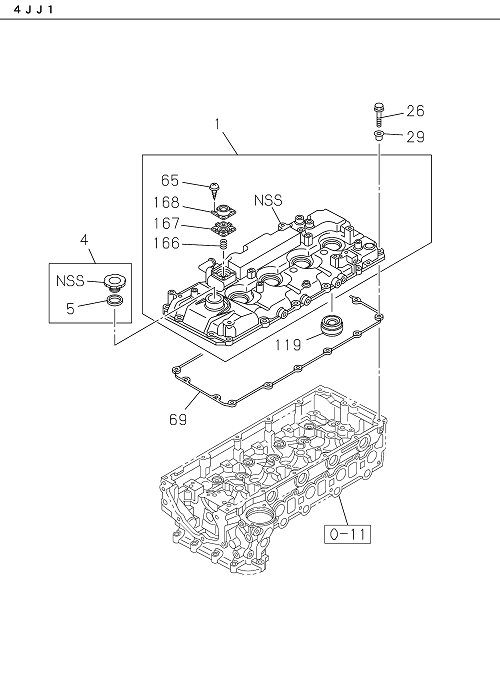

0-10 | CYLINDER HEAD COVER
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 168 | I8-97365 992-0 | COVER; VENTILATOR | 1 | 2203- | NLR85 | |||
| 128 | I7-05108 010-A | NUT; COVER,CYL HEAD COVER | 2 | 2203- | ALL | M8 FLANGE | ||
| 167 | I8-98226 101-1 | DIAPHRAGM; VENTILATOR | 1 | 2203- | NLR85 | |||
| 004 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 2203- | ALL | |||
| 079 | I1-09044 072-1 | BOLT; COVER | 7 | 2203- | NMR81 | (A) M8X65 FLANGE | ||
| 069 | I8-98181 200-0 | GASKET; HD TO COVER | 1 | 2203- | NLR85 | |||
| 005 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 2203- | ALL | ID=32 OD=40 | ||
| 166 | I8-97365 998-0 | SPRING; VENTILATOR | 1 | 2203- | NLR85 | |||
| 069 | I8-97845 483-0 | GASKET; HD TO COVER | 1 | 2203- | NMR81 | |||
| 001 | I8-97331 361-2 | COVER; CYL HD | 1 | 2203-2203 | NMR81 | |||
| 001 | I8-97846 577-0 | COVER; CYL HD | 1 | 2204- | NMR81 | |||
| 026 | I0-28650 630-0 | BOLT; CYL HD COVER | 15 | 2203- | NLR85 | M6X30 FLANGE | ||
| 029 | I8-97168 200-1 | RUBBER; MTG,HD COVER | 15 | 2203- | NLR85 | |||
| 079 | I0-28650 835-0 | BOLT; COVER | 2 | 2203- | ALL | (B) M8X35 FLANGE | ||
| 043 | I8-94395 684-0 | RUBBER; MTG,HD COVER,OUTER | 11 | 2203- | NMR81 | OD=22 | ||
| 082 | I8-97848 757-0 | PLUG; CYL HD COVER | 2 | 2203- | NMR81 | |||
| 001 | I8-98325 126-2 | COVER; CYL HD | 1 | 2203- | NLR85 | |||
| 065 | I8-98304 519-0 | SCREW; ADAPTER | 4 | 2203- | NLR85 | M5X10 W/LK WASHER | ||
| 119 | I8-98037 543-0 | COVER; SEAL,NOZZLE | 4 | 2203- | NLR85 |
