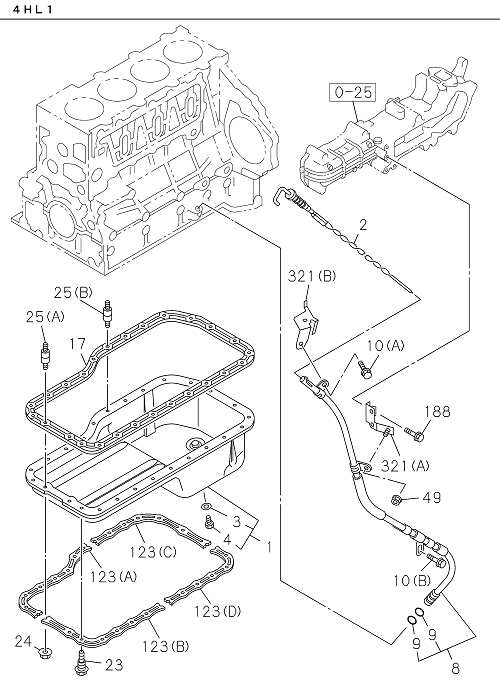

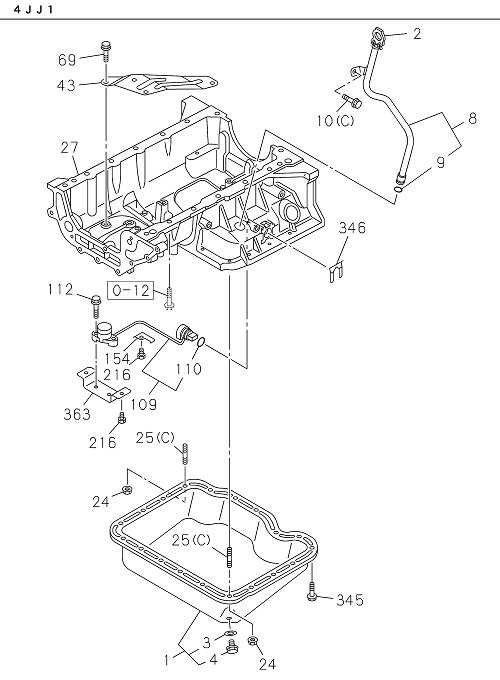

0-13 | OIL PAN AND LEVEL GAUGE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 010 | I0-28050 816-0 | BOLT; GUIDE TUBE | 1 | 2203- | ALL | (A) M8X16 FLANGE | ||
| 009 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 2 | 2203- | ALL | ID=11 | ||
| 002 | I8-98112 777-1 | GAUGE; OIL LEVEL | 1 | 2203- | NLR85 | |||
| 017 | I8-97846 336-0 | GASKET; OIL PAN | 1 | 2203- | NMR81 | |||
| 154 | I8-97386 380-0 | BRACKET; CLIP,ENG HARNESS | 1 | 2203- | NLR85 | |||
| 025 | I8-97190 392-0 | STUD; OIL PAN | 9 | 2203- | NMR81 | (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE | ||
| 069 | I0-28050 816-0 | BOLT; PLATE | 4 | 2203- | NLR85 | M8X16 FLANGE | ||
| 345 | I0-28050 816-0 | BOLT; SENSOR,OIL LEVEL | 17 | 2203- | NLR85 | M8X16 FLANGE | ||
| 001 | I8-98207 932-0 | PAN ASM; OIL | 1 | 2203- | NLR85 | |||
| 123 | I8-97186 994-0 | RUBBER; SEAL OIL | 1 | 2203- | NMR81 | (B) | ||
| 010 | I0-28151 016-0 | BOLT; GUIDE TUBE | 1 | 2203- | NMR81 | (B) M10X16 FLANGE | ||
| 110 | I8-98048 191-0 | GASKET; SW,OIL LEVEL | 1 | 2203- | NLR85 | |||
| 024 | I0-91180 208-0 | NUT; OIL PAN | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 002 | I8-98287 887-0 | GAUGE; OIL LEVEL | 1 | 2203- | NMR81 | |||
| 043 | I8-98213 367-0 | PLATE; CRANKCASE | 1 | 2203- | NLR85 | |||
| 025 | I8-97945 022-0 | STUD; OIL PAN | 2 | 2203- | NLR85 | (C) M8X20 L=31 | ||
| 188 | I0-28050 820-0 | BOLT; BRKT,TUBE | 1 | 2203- | ALL | M8X20 FLANGE | ||
| 123 | I8-97187 000-0 | RUBBER; SEAL OIL | 1 | 2203- | NMR81 | (D) | ||
| 109 | I8-97328 879-0 | SWITCH; OIL LEVEL | 1 | 2203- | NLR85 | |||
| 025 | I8-97190 391-0 | STUD; OIL PAN | 1 | 2203- | NMR81 | (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE | ||
| 123 | I8-97186 988-0 | RUBBER; SEAL OIL | 1 | 2203- | NMR81 | (A) | ||
| 346 | I8-97211 011-0 | CLIP; OIL LEVEL SW | 1 | 2203- | NLR85 | ID=19.2 | ||
| 024 | I7-05108 010-A | NUT; OIL PAN | 13 | 2203- | ALL | M8 FLANGE | ||
| 321 | I8-98287 889-0 | BRACKET; GUIDE TUBE | 1 | 2203- | NMR81 | (A) | ||
| 027 | I8-98202 045-4 | CRANKCASE | 1 | 2203- | NLR85 | |||
| 023 | I8-97190 390-0 | BOLT; OIL PAN | 13 | 2203- | NMR81 | M8X12.8 W/PL WASHER, RUBBER TUBE | ||
| 216 | I0-28050 812-A | BOLT; BRKT | 3 | 2203- | NLR85 | M8X12 FLANGE | ||
| 123 | I8-97186 998-0 | RUBBER; SEAL OIL | 1 | 2203- | NMR81 | (C) | ||
| 112 | I0-28650 630-0 | BOLT; SW,OIL LEVEL | 2 | 2203- | NLR85 | M6X30 FLANGE | ||
| 004 | I8-94152 613-A | PLUG; DRAIN,OIL | 1 | 2203- | ALL | M14X14 | ||
| 321 | I8-98379 823-1 | BRACKET; GUIDE TUBE | 1 | 2203- | NMR81 | (B) | ||
| 008 | I8-97381 490-3 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 2203- | NLR85 | |||
| 049 | I7-05108 010-A | NUT; GUIDE TUBE | 1 | 2203- | ALL | M8 FLANGE | ||
| 008 | I8-97648 721-0 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 2203- | NMR81 | |||
| 003 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 2203- | ALL | ID=14.2 OD=24 | ||
| 363 | I8-97381 486-0 | BRACKET; OIL LEVEL SW | 1 | 2203- | NLR85 | |||
| 009 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 1 | 2203- | ALL | ID=11 | ||
| 010 | I0-28050 812-A | BOLT; GUIDE TUBE | 1 | 2203- | NLR85 | (C) M8X12 FLANGE | ||
| 001 | I8-98124 513-0 | PAN ASM; OIL | 1 | 2203- | NMR81 |
