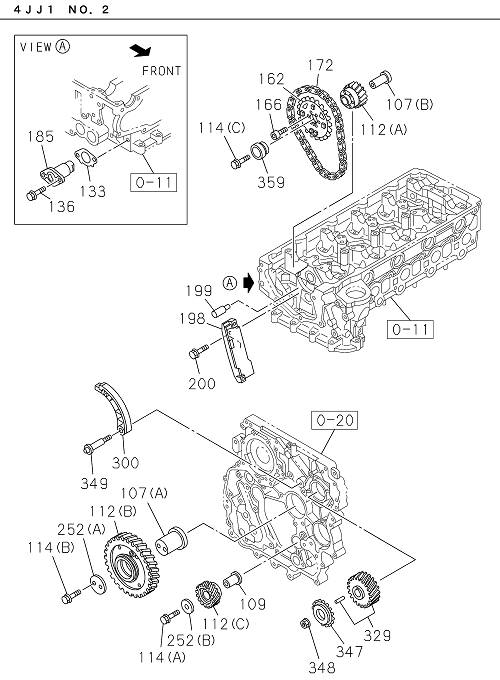

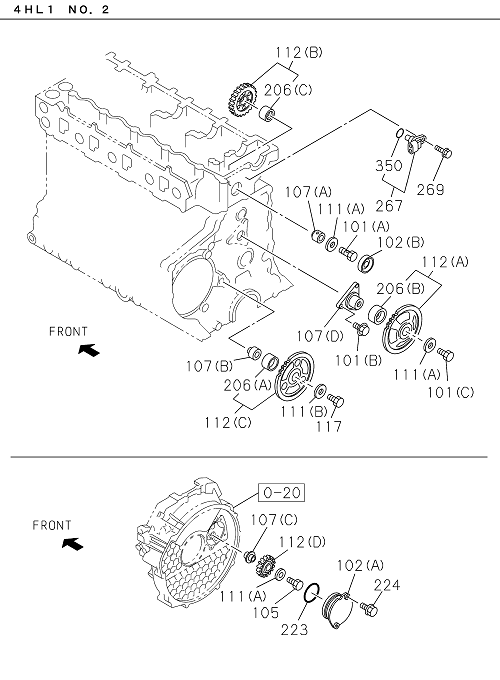

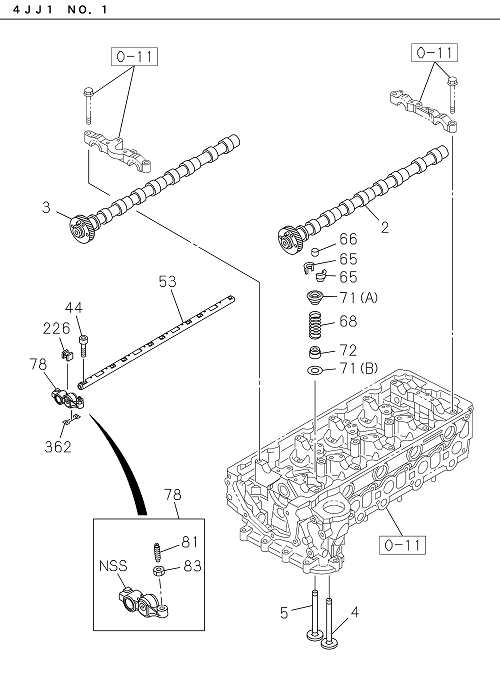

0-14 | CAMSHAFT AND VALVE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 117 | I8-97113 167-0 | BOLT; FLANGE | 1 | 2203- | NMR81 | M14X65 FLANGE | ||
| 112 | I8-97381 518-0 | GEAR; IDLE | 1 | 2203- | NLR85 | (C) Z=34 | ||
| 004 | I8-94395 882-2 | VALVE; INL | 8 | 2203- | NMR81 | |||
| 078 | I8-98236 198-0 | ARM; ROCKER | 16 | 2203- | NLR85 | JBK | ||
| 061 | I8-94394 803-0 | SCREW; ADJ,BRIDGE | 8 | 2203- | NMR81 | M8X21 | ||
| 057 | I8-94393 131-0 | BOLT; ROCKER ARM BRKT | 3 | 2203- | NMR81 | M10X62 FLANGE | ||
| 101 | I0-28060 816-0 | BOLT; THRUST COLLAR | 3 | 2203- | NMR81 | (B) M8X16 FLANGE | ||
| 111 | I8-97209 728-A | COLLAR; THRUST,IDLE GEAR | 3 | 2203- | NMR81 | (A) ID=14.5 OD=46 | ||
| 111 | I1-12535 030-1 | COLLAR; THRUST,IDLE GEAR | 1 | 2203- | NMR81 | (B) ID=14.5 OD=59 | ||
| 362 | I8-98225 381-1 | PLATE | 6 | 2203- | NLR85 | |||
| 112 | I8-98021 069-0 | GEAR; IDLE | 1 | 2203- | NMR81 | (C) Z=72-60-30 | ||
| 005 | I8-98016 974-1 | VALVE; EXH | 8 | 2203- | NLR85 | |||
| 081 | I8-94395 024-0 | SCREW; ADJ,ROCKER ARM | 8 | 2203- | NMR81 | M10 L=32 | ||
| 068 | I8-97648 794-A | SPRING; VLV | 8 | 2203- | NMR81 | EXHAUST | ||
| 001 | I8-97262 166-0 | CAMSHAFT | 1 | 2203- | NMR81 | |||
| 065 | I5-12565 004-0 | COLLAR; SPLIT | 32 | 2203- | NMR81 | |||
| 068 | I8-97311 669-0 | SPRING; VLV | 8 | 2203- | NLR85 | INLET H=49 NATURAL | ||
| 004 | I8-98016 973-0 | VALVE; INL | 8 | 2203- | NLR85 | |||
| 136 | I0-28050 616-0 | BOLT; TENSIONER | 2 | 2203- | NLR85 | M6X16 FLANGE | ||
| 068 | I8-97311 675-1 | SPRING; VLV | 8 | 2203- | NLR85 | EXHAUST H=57.5 MARK YELLOW | ||
| 083 | I9-09844 574-0 | NUT; ADJ SCREW,LK | 16 | 2203- | NLR85 | M8 | ||
| 053 | I8-97389 921-0 | SHAFT; ROCKER ARM | 1 | 2203- | NMR81 | |||
| 348 | I8-97312 423-2 | NUT; SPROCKET | 1 | 2203- | NLR85 | M14 FLANGE | ||
| 062 | I9-09844 574-0 | NUT; ADJ SCREW LK BRIDGE | 8 | 2203- | ALL | M8 | ||
| 114 | I0-28161 260-0 | BOLT; IDLE GEAR | 1 | 2203- | NLR85 | (A) M12X60 FLANGE | ||
| 066 | I8-98147 945-0 | CAP; VLV STEM END | 16 | 2203- | NLR85 | |||
| 005 | I8-97209 876-4 | VALVE; EXH | 8 | 2203- | NMR81 | |||
| 009 | I8-98018 935-3 | GEAR; CM/SHF | 1 | 2203- | NMR81 | Z=35 | ||
| 162 | I8-98193 179-0 | SPROCKET; IDLE | 1 | 2203- | NLR85 | |||
| 107 | I8-98201 549-0 | SHAFT; IDLE GEAR | 1 | 2203- | NLR85 | (A) | ||
| 223 | I1-09623 423-0 | GASKET; COVER,IDLE GEAR | 1 | 2203- | NMR81 | ID=105.6 | ||
| 071 | I8-98017 067-0 | SEAT; SPR | 16 | 2203- | NLR85 | (A) UPPER OD=29.5 | ||
| 198 | I8-97945 069-0 | GUIDE; TIMING CHAIN | 1 | 2203- | NLR85 | |||
| 206 | I8-98021 070-0 | BUSHING; IDLE GEAR | 1 | 2203- | NMR81 | (A) | ||
| 252 | I8-98016 893-0 | FLANGE; IDLE SHAFT | 1 | 2203- | NLR85 | (B) | ||
| 012 | I8-94399 487-0 | KEY; CAM GEAR SET | 1 | 2203- | NMR81 | OD=7 L=7.5 | ||
| 101 | I0-23951 425-0 | BOLT; THRUST COLLAR | 1 | 2203- | NMR81 | (C) M14X25 | ||
| 350 | I8-97369 404-0 | GASKET; SENSOR,CAM ANGLE | 1 | 2203- | ALL | ID=14.2 OD=18.8 | ||
| 002 | I8-98205 037-2 | CAMSHAFT; INL | 1 | 2203- | NLR85 | |||
| 300 | I8-97945 070-0 | LEVER; TENSION,TIMING CHAIN | 1 | 2203- | NLR85 | |||
| 114 | I0-28061 060-0 | BOLT; IDLE GEAR | 2 | 2203- | NLR85 | (B) M10X60 FLANGE | ||
| 071 | I8-94390 783-2 | SEAT; SPR | 16 | 2203- | NMR81 | (A) UPPER OD=32.8 T=12.75 | ||
| 081 | I8-98025 497-0 | SCREW; ADJ,ROCKER ARM | 16 | 2203- | NLR85 | M8 L=22 | ||
| 199 | I8-97356 061-1 | JET; OIL,TIMING CHAIN | 1 | 2203- | NLR85 | |||
| 008 | I9-09851 850-A | WASHER; CM/SHF GEAR | 1 | 2203- | NMR81 | ID=14.5 | ||
| 105 | I0-16956 460-0 | BOLT; IDLE GEAR SHAFT | 1 | 2203- | NMR81 | M14X60 | ||
| 172 | I8-97945 067-0 | CHAIN; TIMING,CM/SHF | 1 | 2203- | NLR85 | |||
| 206 | I8-97606 770-0 | BUSHING; IDLE GEAR | 1 | 2203- | NMR81 | (C) | ||
| 096 | I8-97334 414-0 | BRACKET; ROCKER ARM SHAFT | 3 | 2203- | NMR81 | |||
| 072 | I8-97328 647-0 | SEAL; VLV GUIDE | 16 | 2203- | NLR85 | |||
| 068 | I8-97648 793-A | SPRING; VLV | 8 | 2203- | NMR81 | INLET | ||
| 349 | I8-97312 328-0 | PIVOT; CHAIN LEVER | 1 | 2203- | NLR85 | |||
| 007 | I8-94396 439-0 | BOLT; CM/SHF GEAR | 1 | 2203- | NMR81 | M14X40 | ||
| 071 | I8-97144 584-0 | SEAT; SPR | 16 | 2203- | NLR85 | (B) LOWER OD=31 | ||
| 107 | I8-97186 398-1 | SHAFT; IDLE GEAR | 1 | 2203- | NMR81 | (A) | ||
| 102 | I8-97096 826-A | COVER; IDLE GEAR | 1 | 2203- | NMR81 | (B) OD=51 | ||
| 003 | I8-98288 964-2 | CAMSHAFT; EXH | 1 | 2203- | NLR85 | |||
| 078 | I8-97306 421-3 | ARM; ROCKER | 4 | 2203- | NMR81 | INLET | ||
| 101 | I8-94372 221-1 | BOLT; THRUST COLLAR | 1 | 2203- | NMR81 | (A) M14X36.5 | ||
| 107 | I8-97350 021-A | SHAFT; IDLE GEAR | 1 | 2203- | NMR81 | (D) | ||
| 071 | I8-94391 468-0 | SEAT; SPR | 16 | 2203- | NMR81 | (B) LOWER ID=14.3 T=1.0 | ||
| 053 | I8-98271 105-0 | SHAFT; ROCKER ARM | 2 | 2203- | NLR85 | |||
| 252 | I8-98016 892-0 | FLANGE; IDLE SHAFT | 1 | 2203- | NLR85 | (A) | ||
| 044 | I8-98224 626-0 | BOLT | 14 | 2203- | NLR85 | M6X25 HEX SOCKET | ||
| 072 | I8-97376 720-0 | SEAL; VLV GUIDE | 16 | 2203- | NMR81 | |||
| 112 | I8-97120 005-1 | GEAR; IDLE | 1 | 2203- | NMR81 | (D) Z=34 | ||
| 347 | I8-98210 266-0 | SPROCKET; I/PUMP | 1 | 2203- | NLR85 | |||
| 112 | I8-97606 767-0 | GEAR; IDLE | 1 | 2203- | NMR81 | (A) Z=61 | ||
| 107 | I8-94334 682-1 | SHAFT; IDLE GEAR | 1 | 2203- | NMR81 | (C) | ||
| 224 | I0-28050 816-0 | BOLT; COVER | 2 | 2203- | ALL | M8X16 FLANGE | ||
| 107 | I8-97312 315-2 | SHAFT; IDLE GEAR | 1 | 2203- | NLR85 | (B) | ||
| 206 | I8-97606 768-0 | BUSHING; IDLE GEAR | 1 | 2203- | NMR81 | (B) | ||
| 112 | I8-98320 154-0 | GEAR; IDLE | 1 | 2203- | NLR85 | (B) Z=80 | ||
| 107 | I8-97839 819-0 | SHAFT; IDLE GEAR | 1 | 2203- | NMR81 | (B) | ||
| 133 | I8-97312 336-0 | GASKET; CHAIN TENSIONER | 1 | 2203- | NLR85 | |||
| 095 | I8-94392 999-0 | SPRING; ROCKER SHAFT | 4 | 2203- | NMR81 | |||
| 112 | I8-97381 520-3 | GEAR; IDLE | 1 | 2203- | NLR85 | (A) Z=35 | ||
| 082 | I8-94396 015-2 | CAP; ROCKER SHAFT | 8 | 2203- | NMR81 | |||
| 166 | I0-58330 616-0 | BOLT; SPROCKET TO LAYSHAFT | 6 | 2203- | NLR85 | M6X16 HEX SOCKET | ||
| 063 | I8-94392 002-4 | BRIDGE | 8 | 2203- | NMR81 | |||
| 109 | I8-97312 319-1 | SHAFT; IDLE GEAR | 1 | 2203- | NLR85 | |||
| 329 | I8-98017 539-1 | GEAR; INJ PUMP | 1 | 2203- | NLR85 | Z=44 | ||
| 112 | I8-97606 929-0 | GEAR; IDLE | 1 | 2203- | NMR81 | (B) Z=41 | ||
| 185 | I8-98039 754-1 | TENSIONER; CHAIN | 1 | 2203- | NLR85 | |||
| 037 | I8-97386 189-0 | METAL; CM/SHF | 10 | 2203- | NMR81 | B=16 | ||
| 359 | I8-98201 554-0 | SLEEVE; GEAR | 1 | 2203- | NLR85 | |||
| 200 | I1-09070 120-1 | BOLT; CHAIN GUIDE,LWR | 2 | 2203- | NLR85 | M8X20 FLANGE | ||
| 269 | I0-28050 612-0 | BOLT; SENSOR | 1 | 2203- | ALL | M6X12 FLANGE | ||
| 102 | I8-94334 681-1 | COVER; IDLE GEAR | 1 | 2203- | NMR81 | (A) | ||
| 114 | I8-98176 233-0 | BOLT; IDLE GEAR | 1 | 2203- | NLR85 | (C) M12X75 FLANGE | ||
| 078 | I8-97306 424-3 | ARM; ROCKER | 4 | 2203- | NMR81 | EXHAUST | ||
| 083 | I0-91111 510-0 | NUT; ADJ SCREW,LK | 8 | 2203- | NMR81 | M10 | ||
| 065 | I8-94239 501-0 | COLLAR; SPLIT | 32 | 2203- | NLR85 | |||
| 267 | I8-98019 024-0 | SENSOR; CAM ANGLE | 1 | 2203- | ALL | |||
| 226 | I8-98204 889-0 | SPRING; CMPR,ROCKER ARM | 8 | 2203- | NLR85 | |||
| 087 | I0-28050 840-0 | BOLT; ROCKER SHAFT | 2 | 2203- | NMR81 | M8X40 FLANGE |
