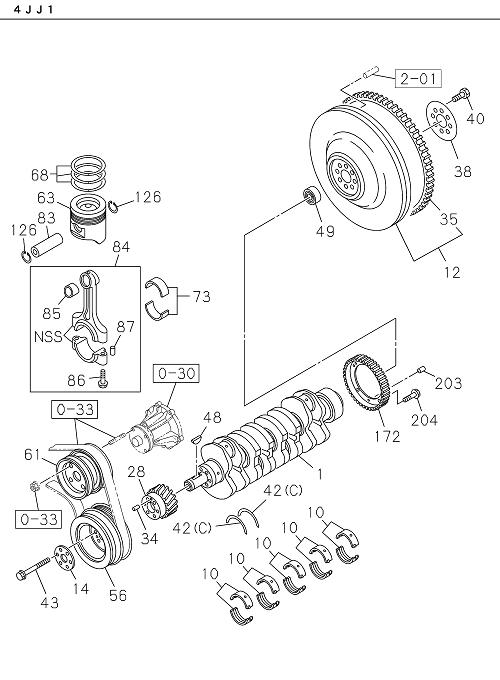

0-15 | CRANKSHAFT, PISTON AND FLYWHEEL
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 086 | I8-98048 538-0 | BOLT; CONNROD | 8 | 2203- | NLR85 | M11X44.5 | ||
| 203 | I9-08160 508-0 | PIN; ROTOR | 1 | 2203- | NLR85 | OD=5 L=8 | ||
| 083 | I8-98015 193-1 | PIN; PISTON | 4 | 2203- | NLR85 | |||
| 126 | I1-09587 081-1 | RING; SNAP,PISTON PIN | 8 | 2203- | NMR81 | |||
| 010 | I8-97372 076-1 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | NMR81 | BLUE | ||
| 063 | I8-98043 704-0 | PISTON | 4 | 2203- | NLR85 | GRADE=B | ||
| 204 | I8-98038 343-0 | BOLT; ROTOR | 3 | 2203- | NLR85 | M6X10 | ||
| 014 | I8-98165 125-0 | WASHER; PULLEY DAMPER | 1 | 2203- | NLR85 | ID=23 OD=72 T=3 | ||
| 063 | I8-98232 325-0 | PISTON | 4 | 2203- | NMR81 | NON GRADE | ||
| 038 | I8-94397 496-1 | WASHER; FLYWHEEL | 1 | 2203- | NMR81 | ID=55 OD=110 | ||
| 035 | I8-97498 796-0 | GEAR; RING | 1 | 2203- | NMR81 | Z=138 | ||
| 085 | I8-94391 794-1 | BUSHING; CONNROD | 4 | 2203- | NMR81 | |||
| 063 | I8-98043 703-0 | PISTON | 4 | 2203- | NLR85 | GRADE=A | ||
| 063 | I8-98043 705-0 | PISTON | 4 | 2203- | NLR85 | GRADE=C | ||
| 073 | I8-97616 358-0 | METAL SET; CONN ROD,STANDARD | 4 | 2203- | NMR81 | GREEN | ||
| 084 | I8-98032 182-4 | ROD ASM; CONN | 4 | 2203- | NMR81 | |||
| 083 | I8-94396 731-1 | PIN; PISTON | 4 | 2203- | NMR81 | |||
| 010 | I8-97372 077-1 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | NMR81 | BLACK | ||
| 010 | I8-98053 576-0 | METAL SET; CRANKSHAFT, STANDARD | 1 | 2203- | NLR85 | GRADE=9 | ||
| 068 | I8-98185 780-0 | RING SET; PISTON,STANDARD | 4 | 2203- | NLR85 | |||
| 034 | I9-08160 510-0 | PIN; GEAR SETTING | 1 | 2203-2306 | NLR85 | OD=5 L=10 | ||
| 038 | I8-98171 700-0 | WASHER; FLYWHEEL | 1 | 2203- | NLR85 | ID=50.5 OD=97 | ||
| 010 | I8-97387 967-0 | METAL SET; CRANKSHAFT, STANDARD | 4 | 2203- | NLR85 | GRADE=4 | ||
| 084 | I8-97388 921-3 | ROD ASM; CONN | 4 | 2203- | NLR85 | |||
| 010 | I8-97387 964-0 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | NLR85 | GRADE=1 | ||
| 087 | I9-08160 508-0 | PIN; CONNROD BIG END | 8 | 2203- | NLR85 | OD=5 L=8 | ||
| 056 | I8-97222 031-3 | PULLEY; CR/SHF DAMPER | 1 | 2203- | NMR81 | 4-GROOVE | ||
| 085 | I8-97383 066-0 | BUSHING; CONNROD | 4 | 2203- | NLR85 | |||
| 056 | I8-98154 943-1 | PULLEY; CR/SHF DAMPER | 1 | 2203- | NLR85 | 2-GROOVE; TRUCK | ||
| 040 | I8-94418 050-0 | BOLT; FLYWHEEL | 8 | 2203- | NLR85 | M13X45 | ||
| 073 | I8-97358 234-0 | METAL SET; CONN ROD,STANDARD | 4 | 2203- | NLR85 | |||
| 086 | I8-98091 141-0 | BOLT; CONNROD | 8 | 2203- | NMR81 | M13X57 FLANGE | ||
| 061 | I8-97364 396-1 | PULLEY; FAN DRIVE | 1 | 2203- | NMR81 | 2-GROOVE | ||
| 048 | I8-94201 641-0 | KEY; WOODRUFF,CR/SHF | 1 | 2203- | NLR85 | |||
| 073 | I8-97616 359-0 | METAL SET; CONN ROD,STANDARD | 4 | 2203- | NMR81 | YELLOW | ||
| 049 | I8-97258 239-0 | BEARING; PILOT | 1 | 2203- | NMR81 | |||
| 010 | I8-98053 578-0 | METAL SET; CRANKSHAFT, STANDARD | 1 | 2203- | NLR85 | GRADE=0 | ||
| 040 | I8-97178 013-0 | BOLT; FLYWHEEL | 8 | 2203- | NMR81 | M16X42 | ||
| 024 | I8-97028 733-0 | BOLT; DAMPER | 4 | 2203- | NMR81 | M16X42 | ||
| 034 | I8-97245 683-0 | PIN; GEAR SETTING | 1 | 2307- | NLR85 | OD=5 L=7.5 | ||
| 010 | I8-97372 078-1 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | NMR81 | BROWN | ||
| 068 | I8-97603 533-1 | RING SET; PISTON,STANDARD | 4 | 2203- | NMR81 | |||
| 042 | I8-98040 704-0 | WASHER; THRUST,CR/SHF | 2 | 2203- | NLR85 | (C) | ||
| 057 | I9-08150 820-0 | PIN; PULLEY | 2 | 2203- | NMR81 | OD=8 L=20 | ||
| 061 | I8-97362 215-2 | PULLEY; FAN DRIVE | 1 | 2203- | NLR85 | 2-GROOVE | ||
| 035 | I8-97046 366-1 | GEAR; RING | 1 | 2203- | NLR85 | Z=138 | ||
| 012 | I8-97696 377-A | FLYWHEEL | 1 | 2203- | NMR81 | |||
| 049 | I8-97325 153-0 | BEARING; PILOT | 1 | 2203- | NLR85 | |||
| 042 | I8-97386 549-0 | WASHER; THRUST,CR/SHF | 2 | 2203- | NMR81 | (B) | ||
| 010 | I8-97387 966-0 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | NLR85 | GRADE=3 | ||
| 049 | I8-97258 239-A | BEARING; PILOT | 1 | 2203- | NMR81 | (IADG) | ||
| 001 | I8-97662 901-0 | CRANKSHAFT | 1 | 2203- | NLR85 | |||
| 056 | I8-98154 944-1 | PULLEY; CR/SHF DAMPER | 1 | 2203- | NLR85 | 3-GROOVE; BUS | ||
| 010 | I8-97387 965-0 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | NLR85 | GRADE=2 | ||
| 034 | I9-09878 626-0 | PIN; GEAR SETTING | 1 | 2203- | NMR81 | OD=5 L=6 | ||
| 010 | I8-97387 968-0 | METAL SET; CRANKSHAFT, STANDARD | 4 | 2203- | NLR85 | GRADE=5 | ||
| 001 | I8-97363 301-3 | CRANKSHAFT | 1 | 2203- | NMR81 | |||
| 028 | I8-98154 945-1 | GEAR; CR/SHF | 1 | 2203- | NLR85 | Z=44 | ||
| 028 | I8-97109 626-1 | GEAR; CR/SHF | 1 | 2203- | NMR81 | Z=42 | ||
| 043 | I8-98165 234-1 | BOLT; CR/SHF PULLEY | 6 | 2203- | NLR85 | M10X90 | ||
| 172 | I8-98163 693-0 | ROTOR; CRANK SENSOR | 1 | 2203- | NLR85 | |||
| 126 | I8-94460 687-0 | RING; SNAP,PISTON PIN | 8 | 2203- | NLR85 | OD=37.5 | ||
| 012 | I8-98148 063-2 | FLYWHEEL | 1 | 2203- | NLR85 | |||
| 042 | I8-97386 548-0 | WASHER; THRUST,CR/SHF | 1 | 2203- | NMR81 | (A) |
