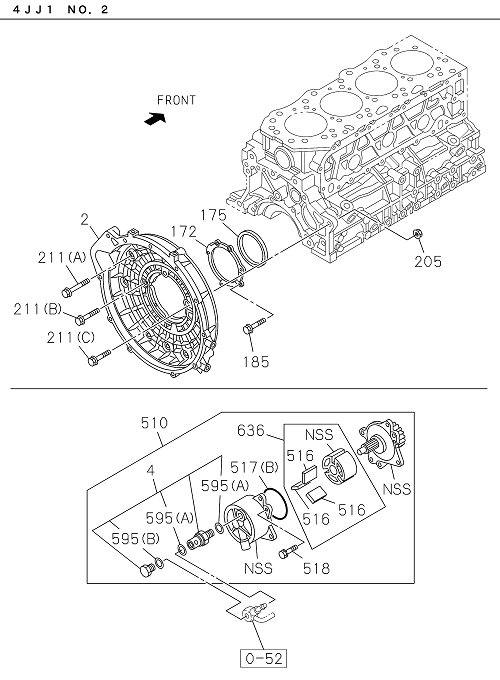

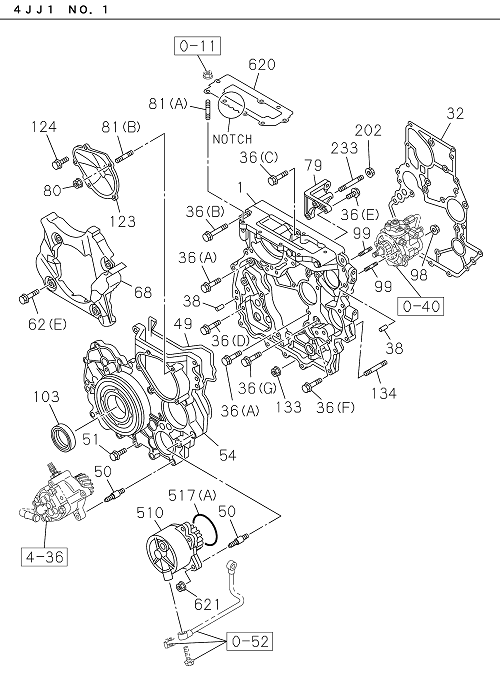

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 038 | I8-97135 423-0 | PIN; GEAR CASE COVER | 2 | 2203- | NLR85 | OD=10 L=20 | ||
| 185 | I0-28650 825-0 | BOLT; RET TO C/BL | 5 | 2203- | NLR85 | M8X25 FLANGE | ||
| 101 | I0-41010 818-0 | STUD; WATER PUMP | 1 | 2203- | ALL | (A) M8X18 L=30 | ||
| 211 | I0-28651 235-0 | BOLT; HSG | 5 | 2203- | NLR85 | (A) M12X35 FLANGE | ||
| 036 | I0-28050 860-0 | BOLT; GEAR CASE | 1 | 2203- | NLR85 | (B) M8X60 FLANGE | ||
| 049 | I8-97945 298-0 | GASKET; GEAR CASE TO COVER | 1 | 2203- | NLR85 | |||
| 103 | I8-98158 110-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2203- | NLR85 | ID=73 OD=96 | ||
| 175 | I6-97071 561-0 | SEAL; OIL,CR/SHF,RR | 1 | 2203- | NLR85 | (IADG) ID=95 OD=118 | ||
| 192 | I0-28151 250-0 | BOLT; STAY TO HSG | 2 | 2203- | NMR81 | (A) M12X50 FLANGE | ||
| 620 | I8-97331 632-2 | GASKET; GEAR CASE | 1 | 2203- | NLR85 | T=1.50 3-NOTCH | ||
| 233 | I8-98017 063-0 | STUD; BRKT | 1 | 2203- | NLR85 | M8X71 L=83 | ||
| 464 | I8-94373 246-3 | PIPE; PCV,FLYWHEEL HSG | 1 | 2203- | NMR81 | |||
| 098 | I0-91180 208-0 | NUT; STUD,INJ PUMP | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 079 | I8-98107 106-0 | BRACKET; GEAR CASE COVER | 1 | 2203- | NLR85 | |||
| 595 | I8-98018 519-0 | GASKET; VLV | 2 | 2203- | NLR85 | (A) ID=18 | ||
| 081 | I0-41010 616-0 | STUD; GEAR CASE COVER FIX | 2 | 2203- | NLR85 | (B) M6X16 L=25 | ||
| 081 | I0-49140 830-0 | STUD; GEAR CASE COVER FIX | 2 | 2203- | NLR85 | (A) M8X30 L=48 | ||
| 211 | I8-97135 419-0 | BOLT; HSG | 1 | 2203- | NMR81 | (A) M12X30 FLANGE | ||
| 211 | I8-98179 087-1 | BOLT; HSG | 9 | 2203- | NMR81 | (C) M12X70 FLANGE, W/PL WASHER | ||
| 175 | I8-98334 339-0 | SEAL; OIL,CR/SHF,RR | 1 | 2203- | NMR81 | ID=104 OD=139 | ||
| 124 | I0-28050 616-0 | BOLT; TIMING COVER | 3 | 2203- | NLR85 | M6X16 FLANGE | ||
| 036 | I0-28050 845-0 | BOLT; GEAR CASE | 2 | 2203- | NLR85 | (F) M8X45 FLANGE | ||
| 002 | I8-98328 145-0 | HOUSING; FLYWHEEL | 1 | 2203- | NMR81 | |||
| 054 | I8-98253 700-1 | COVER; GEAR CASE | 1 | 2203- | NLR85 | |||
| 062 | I0-28650 835-0 | BOLT; COVER | 6 | 2203- | ALL | (D) M8X35 FLANGE | ||
| 123 | I8-98158 145-0 | COVER; TIMING,LWR | 1 | 2203- | NLR85 | |||
| 211 | I0-28651 040-0 | BOLT; HSG | 1 | 2203- | NMR81 | (D) M10X40 FLANGE | ||
| 620 | I8-97328 828-2 | GASKET; GEAR CASE | 1 | 2203- | NLR85 | T=1.40 1-NOTCH | ||
| 237 | I0-28051 012-0 | PLUG; FLYWHEEL HSG | 1 | 2203- | ALL | M10X12 FLANGE | ||
| 103 | I6-97329 780-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2203- | NMR81 | (IADG) ID=109 OD=137 | ||
| 062 | I1-09044 072-1 | BOLT; COVER | 2 | 2203- | NMR81 | (A) M8X65 FLANGE | ||
| 133 | I0-91180 208-0 | NUT; TIMING GEAR CASE | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 205 | I7-05110 010-A | NUT; HSG | 1 | 2203- | NLR85 | M10 FLANGE | ||
| 100 | I8-97028 748-1 | GASKET; FRT COVER | 1 | 2203- | NMR81 | (A) ID=35.1 | ||
| 036 | I0-28050 835-0 | BOLT; GEAR CASE | 1 | 2203- | NLR85 | (C) M8X35 FLANGE | ||
| 001 | I8-98217 735-0 | CASE; TIMING GEAR | 1 | 2203- | NLR85 | |||
| 100 | I9-09561 318-0 | GASKET; FRT COVER | 1 | 2203- | NMR81 | (B) ID=17.8 | ||
| 172 | I8-97379 826-0 | RETAINER; CR/SHF | 1 | 2203- | NLR85 | |||
| 036 | I0-28650 830-0 | BOLT; GEAR CASE | 3 | 2203- | NLR85 | (E) M8X30 FLANGE | ||
| 191 | I8-97167 291-0 | STAY; FLYWHEEL HSG | 1 | 2203- | NMR81 | |||
| 517 | I9-09566 271-0 | GASKET; VAC PUMP | 1 | 2203- | NLR85 | (A) | ||
| 080 | I0-91180 206-0 | NUT; COVER | 2 | 2203- | NLR85 | M6 FLANGE | ||
| 467 | I8-98030 649-0 | BOLT; PLATE | 6 | 2203- | NMR81 | M6X10 | ||
| 068 | I8-98245 226-0 | COVER ASM; GEAR CASE COVER | 1 | 2203- | NLR85 | |||
| 036 | I0-28650 825-0 | BOLT; GEAR CASE | 1 | 2203- | NLR85 | (D) M8X25 FLANGE | ||
| 062 | I0-28650 825-0 | BOLT; COVER | 6 | 2203- | ALL | (B) M8X25 FLANGE | ||
| 004 | I8-98049 521-0 | VALVE ASM; CHECK | 1 | 2203- | NLR85 | |||
| 516 | I8-98051 275-0 | VANE; VAC PUMP | 3 | 2203- | NLR85 | |||
| 211 | I8-97200 622-1 | BOLT; HSG | 2 | 2203- | NMR81 | (B) M8X20,M8X65 L=90 | ||
| 051 | I8-97354 697-1 | BOLT; GEAR CASE COVER | 14 | 2203- | NLR85 | M6X28.5 | ||
| 510 | I8-98251 764-0 | PUMP ASM; VACUUM | 1 | 2203- | NLR85 | |||
| 517 | I8-98251 769-0 | GASKET; VAC PUMP | 1 | 2203- | NLR85 | (B) | ||
| 103 | I8-97329 780-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2203- | NMR81 | ID=109 OD=137 | ||
| 211 | I9-09606 535-0 | BOLT; HSG | 1 | 2203- | NLR85 | (C) M10X43 | ||
| 636 | I8-98049 520-0 | ROTOR & VANE ASM; VAC PUMP | 1 | 2203- | NLR85 | |||
| 191 | I8-97167 292-0 | STAY; FLYWHEEL HSG | 1 | 2203- | NMR81 | |||
| 192 | I0-28151 040-0 | BOLT; STAY TO HSG | 2 | 2203- | ALL | (C) M10X40 FLANGE | ||
| 518 | I8-98049 523-0 | BOLT; VAC PUMP | 3 | 2203- | NLR85 | M6X16 | ||
| 358 | I0-28050 616-0 | BOLT; ADAPTER | 1 | 2203- | ALL | M6X16 FLANGE | ||
| 225 | I8-97190 392-0 | STUD; OIL PAN | 3 | 2203- | NMR81 | M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE | ||
| 211 | I5-09000 227-0 | BOLT; HSG | 3 | 2203- | NLR85 | (B) M12X25 | ||
| 465 | I8-97363 824-1 | PLATE; FLYWHEEL HSG | 1 | 2203- | NMR81 | |||
| 050 | I8-97354 808-2 | STUD | 6 | 2203- | NLR85 | M8X27,M8X14 L=64.5 | ||
| 620 | I8-97331 631-2 | GASKET; GEAR CASE | 1 | 2203- | NLR85 | T=1.45 2-NOTCH | ||
| 032 | I8-98181 198-1 | GASKET; GEAR CASE TO C/BL | 1 | 2203- | NLR85 | |||
| 062 | I0-28650 830-0 | BOLT; COVER | 1 | 2203- | ALL | (C) M8X30 FLANGE | ||
| 099 | I8-98336 983-0 | STUD; INJ PUMP | 2 | 2203- | NLR85 | M8X30 L=41 | ||
| 002 | I8-98240 829-0 | HOUSING; FLYWHEEL | 1 | 2203- | NLR85 | |||
| 192 | I0-28151 200-0 | BOLT; STAY TO HSG | 1 | 2203- | NMR81 | (B) M12X100 FLANGE | ||
| 036 | I0-28050 816-0 | BOLT; GEAR CASE | 1 | 2203- | NLR85 | (G) M8X16 FLANGE | ||
| 621 | I0-91180 208-0 | NUT; VAC PUMP | 3 | 2203- | NLR85 | M8 FLANGE | ||
| 036 | I0-28050 820-0 | BOLT; GEAR CASE | 12 | 2203- | NLR85 | (A) M8X20 FLANGE | ||
| 268 | I8-98039 931-2 | COVER; FRT | 1 | 2203- | NMR81 | |||
| 595 | I8-98018 518-0 | GASKET; VLV | 1 | 2203- | NLR85 | (B) ID=12 | ||
| 202 | I0-91180 208-0 | NUT; BRKT | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 101 | I8-97028 541-0 | STUD; WATER PUMP | 1 | 2203- | NMR81 | (B) M8X18 L=29 | ||
| 062 | I0-28650 620-0 | BOLT; COVER | 4 | 2203- | NLR85 | (E) M6X20 FLANGE | ||
| 175 | I8-97071 561-1 | SEAL; OIL,CR/SHF,RR | 1 | 2203- | NLR85 | ID=95 OD=118 | ||
| 134 | I0-41010 820-0 | STUD; TIMING GEAR CASE | 2 | 2203- | NLR85 | M8X20 L=32 |
