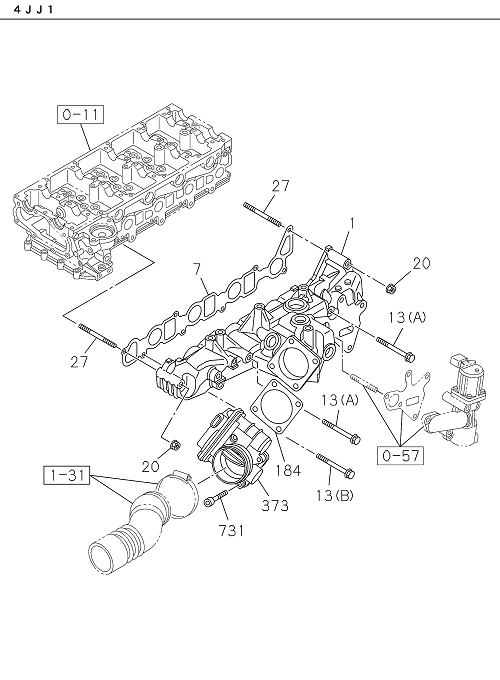

0-25 | INLET MANIFOLD
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 281 | I7-05108 010-A | NUT; INL COVER | 3 | 2203- | ALL | M8 FLANGE | ||
| 184 | I8-98096 968-0 | GASKET; T/V | 1 | 2203- | NLR85 | |||
| 053 | I0-58330 650-0 | BOLT; INL PIPE | 4 | 2203- | ALL | (B) M6X50 HEX SOCKET | ||
| 020 | I7-05108 010-A | NUT; INL MANIF | 2 | 2203- | ALL | M8 FLANGE | ||
| 013 | I0-28050 830-0 | BOLT; INL MANIF | 2 | 2203- | ALL | (B) M8X30 FLANGE | ||
| 013 | I0-28050 825-0 | BOLT; INL MANIF | 2 | 2203- | NMR81 | (D) M8X25 FLANGE | ||
| 013 | I0-28050 860-0 | BOLT; INL MANIF | 5 | 2203- | ALL | (C) M8X60 FLANGE | ||
| 003 | I8-97831 039-0 | DUCT; INTAKE | 1 | 2203- | NMR81 | EXC. INTAKE SHUTTER | ||
| 027 | I0-41010 825-0 | STUD; INL MANIF | 2 | 2203- | NMR81 | M8X25 L=37 | ||
| 002 | I8-97648 716-A | COVER; INL | 1 | 2203- | NMR81 | (A) | ||
| 001 | I8-98328 291-1 | MANIFOLD; INL | 1 | 2203- | NLR85 | |||
| 020 | I0-91180 208-0 | NUT; INL MANIF | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 138 | I8-98218 560-0 | PIPE; INL | 1 | 2203- | NMR81 | |||
| 731 | I0-58330 650-0 | BOLT; THROTTLE ASM | 4 | 2203- | NLR85 | M6X50 HEX SOCKET | ||
| 013 | I0-28055 811-0 | BOLT; INL MANIF | 2 | 2203- | NLR85 | (A) M8X110 FLANGE | ||
| 346 | I8-97367 984-1 | CLIP; ENG HARNESS | 1 | 2203- | NMR81 | ID=12 VINYL CHLORIDE | ||
| 195 | I8-98096 968-0 | GASKET; THROTTLE BODY INJECTOR | 1 | 2203- | ALL | |||
| 228 | I8-97111 477-0 | STUD; INL COVER | 1 | 2203- | NMR81 | (A) M8X117 L=128 | ||
| 013 | I8-97101 065-0 | BOLT; INL MANIF | 4 | 2203- | NLR85 | (B) M8X70 12-POINT HEAD | ||
| 228 | I8-97200 763-0 | STUD; INL COVER | 1 | 2203- | NMR81 | (B) M8X126 L=137 | ||
| 096 | I7-05108 010-A | NUT; ENG HARNESS CLIP | 1 | 2203- | ALL | M8 FLANGE | ||
| 222 | I8-98032 611-0 | GASKET; INL COVER | 1 | 2203- | NMR81 | |||
| 053 | I8-98028 225-0 | BOLT; INL PIPE | 1 | 2203- | NMR81 | (C) M8X12,M8X30 L=50 | ||
| 013 | I0-28055 812-0 | BOLT; INL MANIF | 3 | 2203- | NMR81 | (A) M8X120 FLANGE | ||
| 007 | I8-98284 081-0 | GASKET; INL MANIF TO HD | 1 | 2203- | NLR85 | |||
| 053 | I0-28050 830-0 | BOLT; INL PIPE | 1 | 2203- | ALL | (A) M8X30 FLANGE | ||
| 324 | I8-98249 932-0 | GASKET; INL PIPE TO INL CVR | 1 | 2203- | NMR81 | |||
| 032 | I0-41010 825-0 | STUD; INL PIPE | 2 | 2203- | NMR81 | M8X25 L=37 | ||
| 373 | I8-98040 003-4 | THROTTLE ASM; INT | 1 | 2203- | NLR85 | |||
| 002 | I8-98115 667-1 | COVER; INL | 1 | 2203- | NMR81 | (B) | ||
| 027 | I8-98017 063-0 | STUD; INL MANIF | 2 | 2203- | NLR85 | M8X71 L=83 |
