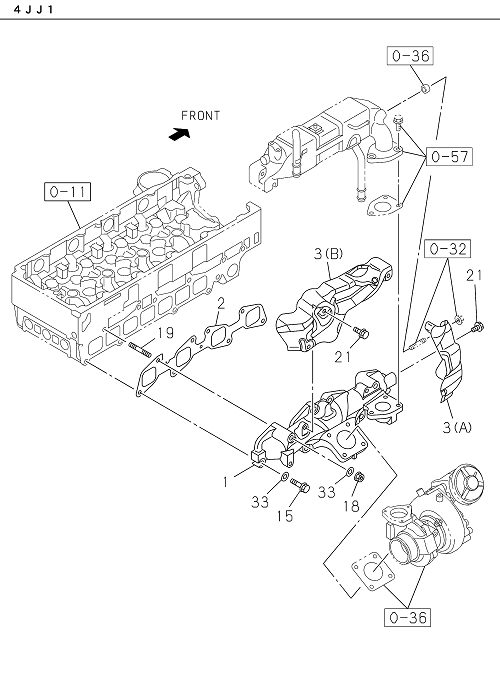

0-27 | EXHAUST MANIFOLD
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 019 | I8-98048 446-0 | STUD; MANIF TO CYL HD | 4 | 2203- | NLR85 | M10X70 L=83 | ||
| 034 | I8-97250 073-1 | COLLAR; DIST,EXH MANIF | 8 | 2203- | NMR81 | L=28 | ||
| 001 | I8-98147 698-0 | MANIFOLD; EXHAUST | 1 | 2203- | NLR85 | |||
| 002 | I8-98229 782-0 | GASKET; EXH MANIF TO HD | 1 | 2203- | NLR85 | |||
| 021 | I0-28050 812-A | BOLT; HEAT PROTECTOR | 5 | 2203- | NLR85 | M8X12 FLANGE | ||
| 002 | I8-97146 499-A | GASKET; EXH MANIF TO HD | 1 | 2203- | NMR81 | (IADG) | ||
| 002 | I8-97146 499-2 | GASKET; EXH MANIF TO HD | 1 | 2203- | NMR81 | |||
| 013 | I1-09556 015-0 | WASHER; LK,EXH MANIF | 2 | 2203- | NMR81 | T=2.2 | ||
| 018 | I8-97381 617-0 | NUT; EXH MANIF | 4 | 2203- | NLR85 | M10 FLANGE | ||
| 003 | I8-98147 699-0 | PROTECTOR; HEAT,EXH MANIF | 1 | 2203- | NLR85 | (B) | ||
| 001 | I8-97559 840-0 | MANIFOLD; EXHAUST | 1 | 2203- | NMR81 | |||
| 015 | I8-98032 158-0 | BOLT; EXH MANIF | 4 | 2203- | NLR85 | M10X30 FLANGE | ||
| 033 | I5-09500 013-0 | WASHER; EXH MANIF | 8 | 2203- | NLR85 | ID=10.5 | ||
| 018 | I0-91110 510-0 | NUT; EXH MANIF | 2 | 2203- | ALL | M10 | ||
| 003 | I8-98231 992-0 | PROTECTOR; HEAT,EXH MANIF | 1 | 2203- | NLR85 | (A) | ||
| 016 | I8-97656 181-0 | STUD; EXH PIPE TO MANIF | 2 | 2203- | NMR81 | M10X13,M10X26 L=41 | ||
| 015 | I8-97061 543-0 | BOLT; EXH MANIF | 6 | 2203- | NMR81 | M10X60 |
