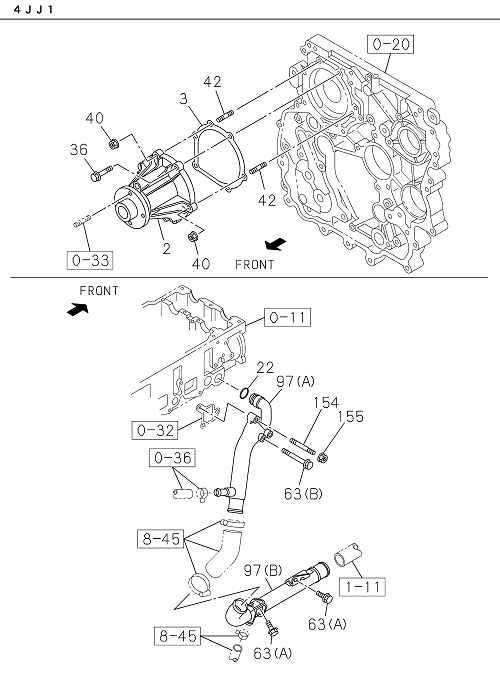

0-30 | WATER PUMP AND CORROSION RESISTOR
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 036 | I0-28650 840-0 | BOLT; WATER PUMP TO C/BL | 6 | 2203- | ALL | M8X40 FLANGE | ||
| 063 | I0-28050 816-0 | BOLT; INL PIPE | 2 | 2203- | NLR85 | (A) M8X16 FLANGE | ||
| 155 | I0-91180 208-0 | NUT; PIPE | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 040 | I0-91180 208-0 | NUT; WATER PUMP | 2 | 2203- | NLR85 | M8 FLANGE | ||
| 040 | I7-05108 010-A | NUT; WATER PUMP | 2 | 2203- | ALL | M8 FLANGE | ||
| 002 | I8-98212 068-2 | PUMP ASM; WATER | 1 | 2203- | NLR85 | |||
| 063 | I0-28050 870-0 | BOLT; INL PIPE | 1 | 2203- | NLR85 | (B) M8X70 FLANGE | ||
| 002 | I8-97363 478-0 | PUMP ASM; WATER | 1 | 2203- | NMR81 | |||
| 097 | I8-98152 996-2 | PIPE; WATER | 1 | 2203- | NLR85 | (B) | ||
| 042 | I0-41010 828-0 | STUD; WATER PUMP | 2 | 2203- | NLR85 | M8X28 L=40 | ||
| 003 | I8-97312 156-0 | GASKET; PUMP TO C/BL | 1 | 2203- | NLR85 | |||
| 036 | I0-28050 860-0 | BOLT; WATER PUMP TO C/BL | 4 | 2203- | NLR85 | M8X60 FLANGE | ||
| 097 | I8-98237 773-1 | PIPE; WATER | 1 | 2203- | NLR85 | (A) | ||
| 022 | I0-95690 226-0 | GASKET | 1 | 2203- | NLR85 | ID=26.2 | ||
| 154 | I0-41010 835-0 | STUD; PIPE | 2 | 2203- | NLR85 | M8X35 L=47 |
