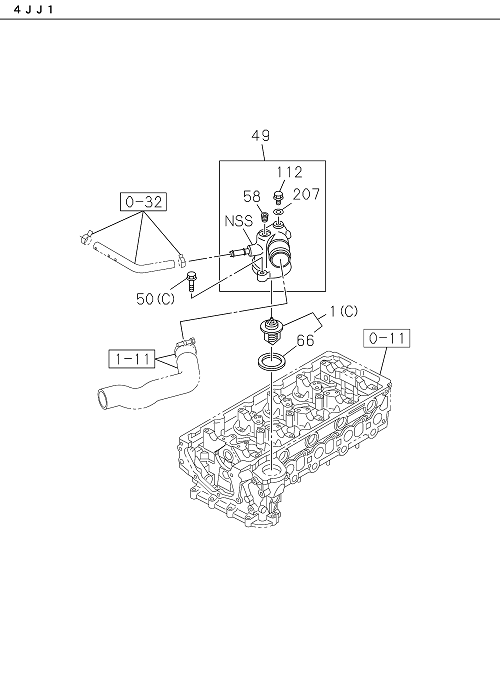

0-31 | TERMOSTAT AND HOUSING
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 050 | I1-09044 072-1 | BOLT; OUTLET PIPE | 2 | 2203- | NMR81 | (B) M8X65 FLANGE | ||
| 058 | I8-98319 955-0 | PLUG; WATER OUTLET PIPE | 2 | 2203- | NLR85 | PT1/8 | ||
| 001 | I8-97300 790-3 | THERMOSTAT | 1 | 2203- | NMR81 | (B) 82 CELSIUS | ||
| 058 | I8-97021 211-1 | PLUG; WATER OUTLET PIPE | 1 | 2203- | NMR81 | M8X16 | ||
| 049 | I8-97372 769-A | PIPE; WATER OUTLET | 1 | 2203- | NMR81 | |||
| 066 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 2 | 2203- | NMR81 | ID=49.5 OD=56.5 | ||
| 049 | I8-98159 913-0 | PIPE; WATER OUTLET | 1 | 2203- | NLR85 | |||
| 112 | I0-28050 812-A | PLUG | 1 | 2203- | NLR85 | M8X12 FLANGE | ||
| 001 | I8-97300 787-3 | THERMOSTAT | 1 | 2203- | NMR81 | (A) 85 CELSIUS | ||
| 050 | I0-28650 830-0 | BOLT; OUTLET PIPE | 2 | 2203- | NLR85 | (C) M8X30 FLANGE | ||
| 168 | I8-97358 699-0 | PIPE; WATER,COOLER | 1 | 2203- | NMR81 | |||
| 001 | I8-98284 133-0 | THERMOSTAT | 1 | 2203- | NLR85 | (C) 82 CELSIUS | ||
| 066 | I8-98114 587-0 | GASKET; THERMOSTAT HSG | 1 | 2203- | NLR85 | |||
| 050 | I0-28650 825-0 | BOLT; OUTLET PIPE | 2 | 2203- | ALL | (A) M8X25 FLANGE | ||
| 207 | I1-09630 082-0 | GASKET | 1 | 2203- | ALL | ID=8.2 OD=13.2 | ||
| 015 | I8-94342 574-0 | PIPE; BYPASS | 1 | 2203- | NMR81 | |||
| 014 | I9-09661 005-0 | PLUG; SW | 1 | 2203- | NMR81 | M16X8 PLUG |
