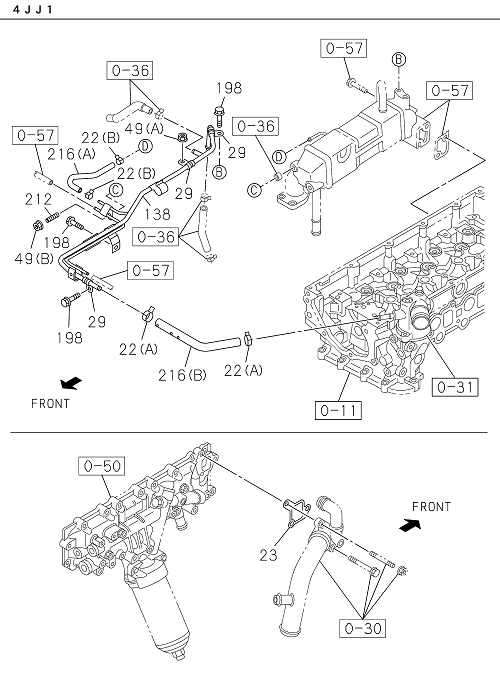

0-32 | WATER PIPING; ENGINE
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 022 | I8-97375 639-0 | CLIP; WATER HOSE | 2 | 2203- | NLR85 | (B) ID=11 | ||
| 049 | I8-97161 607-0 | NUT; WATER PIPE | 1 | 2203- | NLR85 | (B) M8 FLANGE | ||
| 010 | I8-98166 991-0 | PIPE; SUCTION | 1 | 2203- | NMR81 | |||
| 212 | I8-97378 062-0 | STUD; PIPE | 1 | 2203- | NLR85 | M8X25 L=36 | ||
| 017 | I8-94458 473-1 | BOLT; SUCTION PIPE | 1 | 2203- | NMR81 | M8X48 FLANGE | ||
| 002 | I8-98235 636-2 | HOSE; WATER,BY-PASS | 1 | 2203- | NMR81 | |||
| 216 | I8-98074 982-0 | HOSE; WATER | 1 | 2203- | NLR85 | (A) | ||
| 198 | I0-28050 612-0 | BOLT; PIPE | 3 | 2203- | NLR85 | M6X12 FLANGE | ||
| 202 | I8-97559 836-A | HOSE; RUBBER,EGR COOLER | 1 | 2203- | NMR81 | (C) | ||
| 031 | I0-28050 840-0 | BOLT; CLIP | 3 | 2203- | NMR81 | M8X40 FLANGE | ||
| 029 | I8-98120 917-0 | CLIP; PIPE | 3 | 2203- | NLR85 | ID=12 L=20 | ||
| 031 | I0-28050 845-0 | BOLT; CLIP | 1 | 2203- | ALL | M8X45 FLANGE | ||
| 202 | I8-97559 834-A | HOSE; RUBBER,EGR COOLER | 1 | 2203- | NMR81 | (A) | ||
| 138 | I8-98328 289-0 | PIPE; WATER | 1 | 2203- | NLR85 | |||
| 023 | I8-98075 127-0 | GASKET; SUCTION PIPE TO BLOCK | 1 | 2203- | NLR85 | |||
| 022 | I8-94221 519-0 | CLIP; WATER HOSE | 2 | 2203- | NLR85 | (A) ID=12.8 | ||
| 033 | I0-28050 816-0 | BOLT; BRKT | 1 | 2203- | ALL | M8X16 FLANGE | ||
| 202 | I8-97559 835-A | HOSE; RUBBER,EGR COOLER | 1 | 2203- | NMR81 | (B) | ||
| 049 | I0-91180 206-0 | NUT; WATER PIPE | 1 | 2203- | NLR85 | (A) M6 FLANGE | ||
| 148 | I1-09704 037-0 | CLIP; BYPASS HOSE | 2 | 2203- | NMR81 | ID=30 | ||
| 029 | I1-09701 284-0 | CLIP; PIPE | 8 | 2203- | NMR81 | ID=17 L=17 | ||
| 024 | I8-98242 501-0 | BRACKET; WATER PIPE | 1 | 2203- | NMR81 | |||
| 216 | I8-98113 336-0 | HOSE; WATER | 1 | 2203- | NLR85 | (B) |
