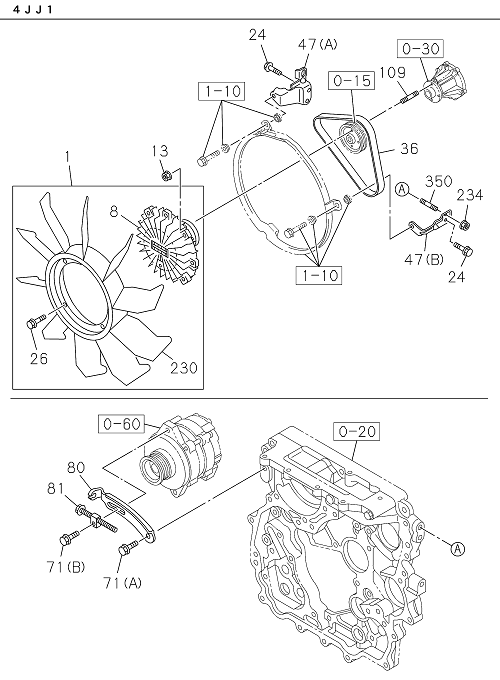

0-33 | FAN AND FAN BELT
ELF
NLR85 NMR81 E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 008 | I8-98024 684-0 | CLUTCH; COOLING FAN | 1 | 2203- | NLR85 | |||
| 080 | I8-98039 816-1 | PLATE; ADJ | 1 | 2203- | NLR85 | |||
| 080 | I8-97249 636-0 | PLATE; ADJ | 1 | 2203- | NMR81 | |||
| 014 | I7-05108 010-A | NUT; FAN TO CLU | 4 | 2203- | ALL | M8 FLANGE | ||
| 047 | I8-97381 549-1 | BRACKET; FAN | 1 | 2203- | NLR85 | (B) | ||
| 008 | I8-97654 021-A | CLUTCH; COOLING FAN | 1 | 2203- | NMR81 | |||
| 036 | I8-97648 718-A | BELT; COOLING FAN | 1 | 2203- | NMR81 | (IADG) | ||
| 001 | I8-97382 603-1 | FAN; COOLING | 1 | 2203- | NLR85 | OD=450 | ||
| 081 | I8-97257 223-0 | PIECE; SLIDING | 1 | 2203- | NMR81 | |||
| 230 | I8-98246 761-0 | FAN; COOLING | 1 | 2203- | NMR81 | |||
| 109 | I8-97049 577-1 | STUD; FAN CLU | 4 | 2203- | NMR81 | M8X13.5 L=22 | ||
| 024 | I0-28080 818-0 | BOLT; FAN | 4 | 2203- | NMR81 | M8X18 FLANGE | ||
| 086 | I8-97172 720-1 | BOLT; ADJ | 1 | 2203- | NMR81 | M8X130 FLANGE | ||
| 024 | I0-28151 020-0 | BOLT; FAN | 2 | 2203- | NLR85 | M10X20 FLANGE | ||
| 071 | I8-98050 130-0 | BOLT; ADJ PLATE,GEN | 1 | 2203- | NLR85 | (B) M8X50 FLANGE | ||
| 081 | I8-97132 048-0 | PIECE; SLIDING | 1 | 2203- | NLR85 | |||
| 047 | I8-98203 027-1 | BRACKET; FAN | 1 | 2203- | NLR85 | (A) | ||
| 036 | I8-97362 926-0 | BELT; COOLING FAN | 1 | 2203- | NLR85 | L=1006 | ||
| 230 | I8-97330 207-0 | FAN; COOLING | 1 | 2203- | NLR85 | |||
| 026 | I8-94389 764-0 | BOLT; FAN TO CLU | 4 | 2203- | ALL | |||
| 350 | I0-41010 818-0 | STUD; FAN BRKT | 1 | 2203- | NLR85 | M8X18 L=30 | ||
| 036 | I8-97648 718-0 | BELT; COOLING FAN | 1 | 2203- | NMR81 | |||
| 016 | I0-91614 608-0 | WASHER; PL,COOLING FAN | 1 | 2203- | NMR81 | ID=8.4 OD=18 | ||
| 024 | I0-28650 825-0 | BOLT; FAN | 1 | 2203- | NLR85 | M8X25 FLANGE | ||
| 001 | I8-97648 976-A | FAN; COOLING | 1 | 2203- | NMR81 | |||
| 109 | I0-41010 618-0 | STUD; FAN CLU | 4 | 2203- | NLR85 | M6X18 L=27 | ||
| 071 | I0-28650 830-0 | BOLT; ADJ PLATE,GEN | 1 | 2203- | NLR85 | (A) M8X30 FLANGE | ||
| 182 | I0-28650 835-0 | BOLT; BRKT | 2 | 2203- | ALL | M8X35 FLANGE | ||
| 036 | I8-97362 926-A | BELT; COOLING FAN | 1 | 2203- | NLR85 | (IADG) L=1006 | ||
| 234 | I0-91180 208-0 | NUT; FAN BRKT | 1 | 2203- | NLR85 | M8 FLANGE | ||
| 013 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 2203- | NLR85 | M6 FLANGE | ||
| 038 | I8-97108 643-0 | SPACER; FAN | 1 | 2203- | NMR81 |
